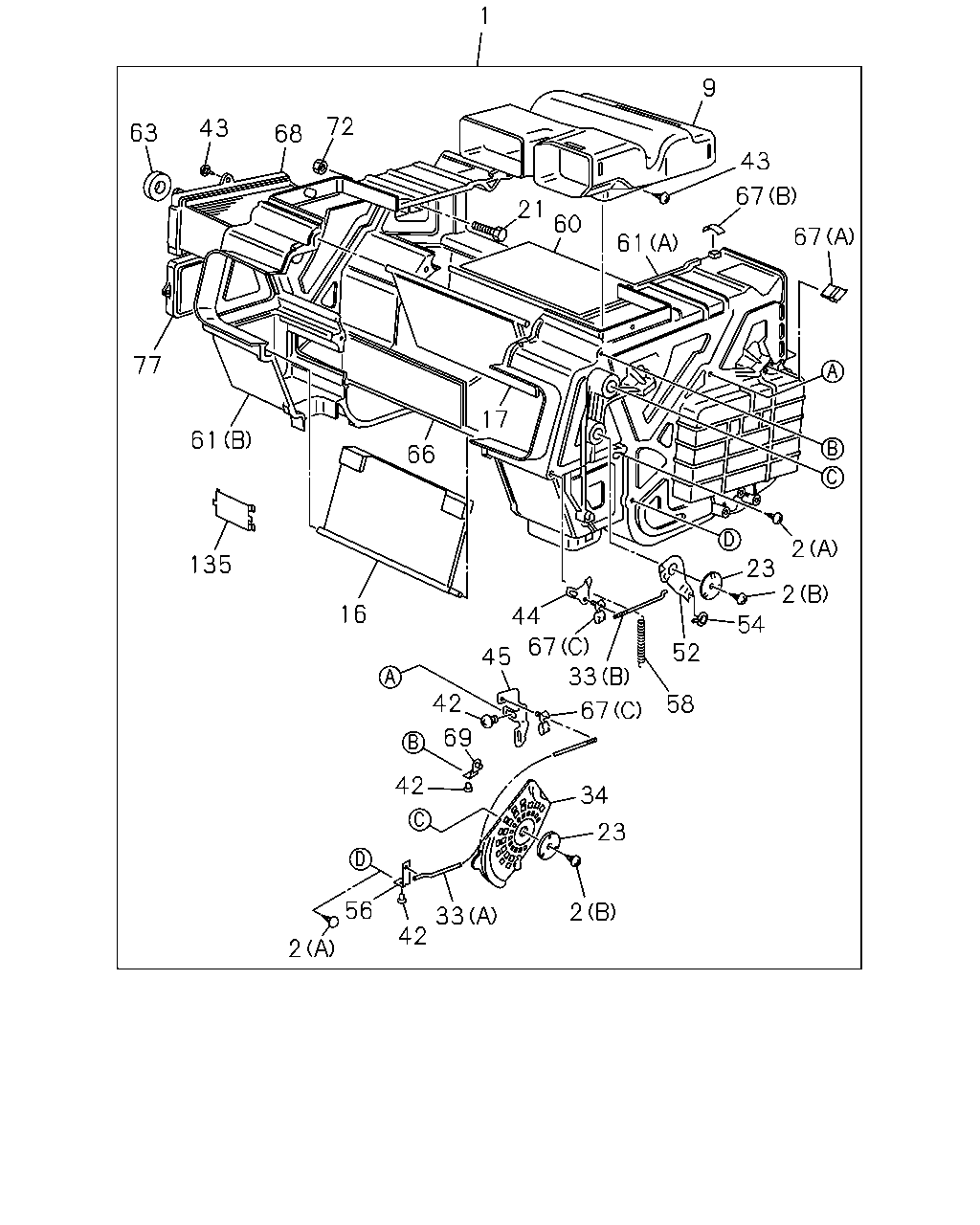

8-60 — HEATER UNIT; FRONT (#1996) — 42 parça

1 9 72 43 63 68 43 67 21 60 67 61 77 17 61 66 2 135 23 2 16 44 67 33 54 52 45 42 58 67 69 42 34 23 56 2 33 42 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HEATER UNIT HEATER & DEFROSTER<C41>	1-83511-102-5	01	1	9207-	●	●	●	●
1	HEATER UNIT VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83511-104-5	01	1	9207-	●	●	●	●
2	SCREW; LEVER HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (A)	1-83579-133-0	02	1	9207-	●	●	●	●
2	SCREW; LEVER HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (B) M5X16	8-94248-820-0	02	1	9207-	●	●	●	●
9	DUCT; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83563-106-1	01	1	9207-	●	●	●	●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83579-354-1	01	1	9207-9304	●	●	●	●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83564-258-0	01	1	9305-	●	●	●	●
17	SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83579-353-1	01	1	9207-9304	●	●	●	●
17	SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83564-257-0	01	1	9305-	●	●	●	●
21	BOLT; CASE,HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-15619-060-0	03	1	9207-	●	●	●	●
23	WASHER; LEVER HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	8-94129-950-0	02	1	9207-	●	●	●	●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER<C41> (A)	1-83579-355-0	01	1	9207-	●	●	●	●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (B)	1-83579-284-0	01	1	9207-	●	●	●	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83564-179-0	01	1	9207-	●	●	●	●
42	SCREW; LEVER HEATER & DEFROSTER<C41>	5-83571-160-0	04	1	9207-	●	●	●	●
42	SCREW; LEVER VENTILATOR&DEFROSTER WO/HEATER<SAZ>	5-83571-160-0	02	1	9207-	●	●	●	●
43	SCREW; CASE,HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	8-94248-807-0	06	1	9207-	●	●	●	●
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83564-178-2	01	1	9207-	●	●	●	●
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER<C41>	1-83564-176-0	01	1	9207-	●	●	●	●
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83564-196-1	01	1	9207-	●	●	●	●
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83574-136-0	01	1	9207-	●	●	●	●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER<C41>	1-83564-194-0	01	1	9207-	●	●	●	●
58	SPRING; HTR LEVER HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83579-242-0	01	1	9207-	●	●	●	●
60	DOOR; MIX,HTR UNIT HEATER & DEFROSTER<C41>	1-83579-351-1	01	1	9207-9304	●	●	●	●
60	DOOR; MIX,HTR UNIT HEATER & DEFROSTER<C41>	1-83564-255-0	01	1	9305-	●	●	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (A)	1-83564-220-0	01	1	9207-	●	●	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (B)	1-83564-221-0	01	1	9207-	●	●	●	●
63	LINING; HTR UNIT HEATER & DEFROSTER<C41>	1-83579-237-0	02	1	9207-9304	●	●	●	●
63	LINING; HTR UNIT HEATER & DEFROSTER<C41>	1-83579-557-0	02	1	9305-	●	●	●	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER<C41>	1-83579-352-1	01	1	9207-9304	●	●	●	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER<C41>	1-83564-256-0	01	1	9305-	●	●	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER<C41> (C)	1-83574-143-0	02	1	9207-	●	●	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER<C41> (A)	1-83574-149-0	02	1	9207-	●	●	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (B)	1-83574-148-0	09	1	9207-	●	●	●	●
67	CLIP; HTR UNIT VENTILATOR&DEFROSTER WO/HEATER<SAZ> (C)	1-83574-143-0	01	1	9207-	●	●	●	●
67	CLIP; HTR UNIT VENTILATOR&DEFROSTER WO/HEATER<SAZ> (A)	1-83574-149-0	01	1	9207-	●	●	●	●
68	CORE; HTR UNIT HEATER & DEFROSTER<C41>	1-83562-038-0	01	1	9207-	●	●	●	●
69	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83564-195-0	01	1	9207-	●	●	●	●
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	9-88410-525-0	03	1	9207-	●	●	●	●
77	COVER; HTR CASE HEATER & DEFROSTER<C41>	1-83579-197-0	01	1	9207-	●	●	●	●
77	COVER; HTR CASE VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83579-285-0	01	1	9207-	●	●	●	●
135	COVER; HTR HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83579-244-0	01	1	9207-	●	●	●	●
