Isuzu WW
▶
TRUCKS
▶
NKR
▶
50970 - NKR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

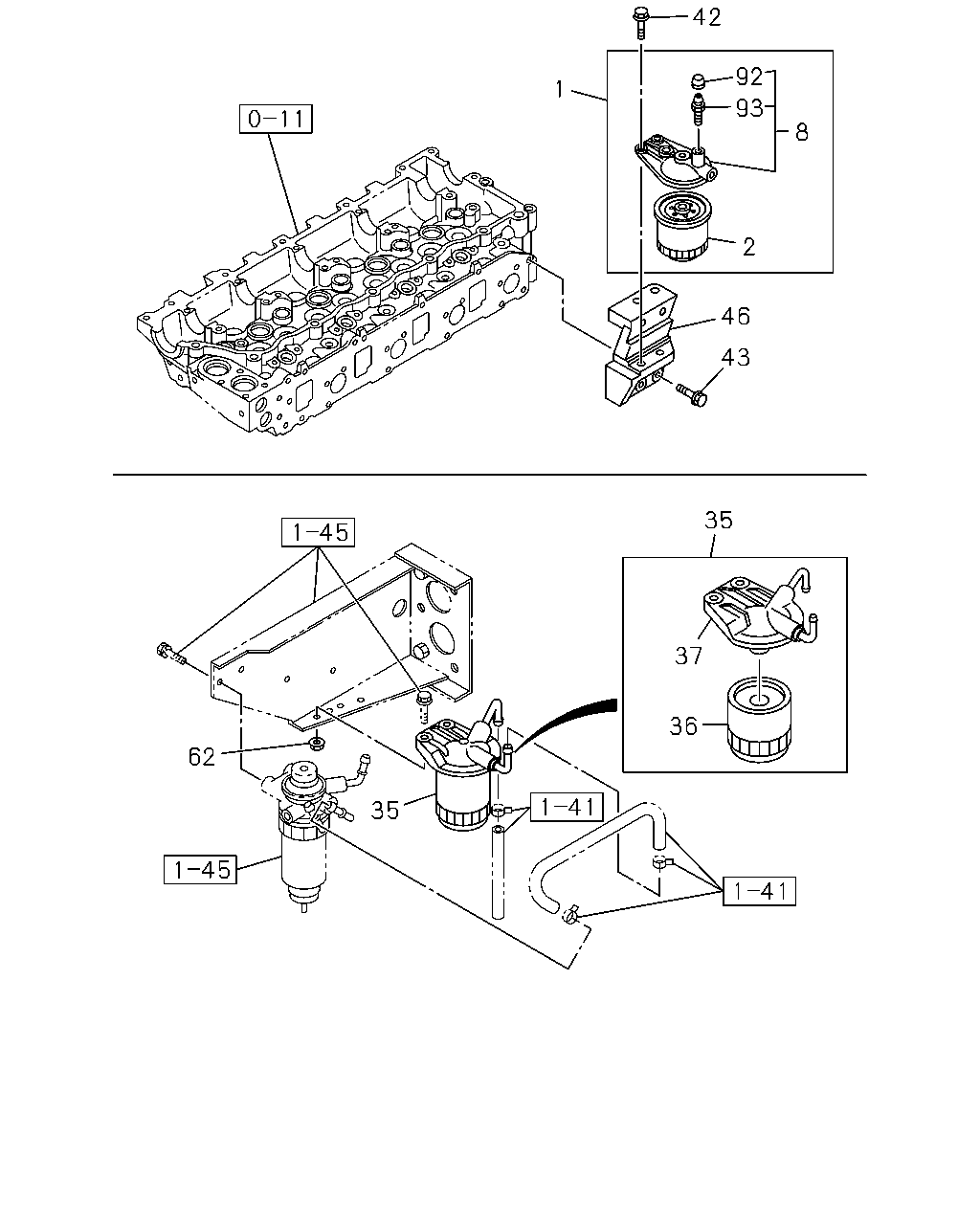

0-41 — FUEL FILTER AND BRACKET
(#19957) — 31 parça
Tümü
A - 4HG1 ENG
B - 4JB1 ENG
◀
[041A] 4HG1 (20 parça)
[041A] 4JB1 (11 parça)
▶
42
92
1
93
8
2
46
43
35
37
36
62
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
FILTER ASM; FUEL
8-97171-451-2
01
1
0309-
●
1
FILTER ASM; FUEL
FUEL FILTER DUAL<S6B>
8-97070-864-0
01
1
0309-
●
1
FILTER ASM; FUEL
EXC. FUEL FILTER DUAL<S6B> THA
8-97916-503-2
01
1
0309-
●
2
ELEMENT KIT; FUEL FILTER
8-97172-549-1
01
1
0309-
●
2
ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL<S6B> THA
8-94144-613-0
02
1
0309-
●
2
ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL<S6B> THA
8-97916-993-2
01
1
0309-
●
8
COVER; FUEL FILTER
8-97172-543-1
01
1
0309-
●
8
COVER; FUEL FILTER
EXC. FUEL FILTER DUAL<S6B> THA
8-97917-558-0
01
1
0309-
●
35
FILTER ASM; SUB FUEL
FUEL FILTER DUAL<S6B> THA
8-97070-865-0
01
1
0309-0505
●
35
FILTER ASM; SUB FUEL
FUEL FILTER DUAL<S6B>
8-98006-454-0
01
1
0506-
●
36
ELEMENT; FUEL FILTER
FUEL FILTER DUAL<S6B> THA
8-94246-908-0
01
1
0309-0505
●
36
ELEMENT; FUEL FILTER
FUEL FILTER DUAL<S6B> THA
8-97916-993-2
01
1
0506-
●
37
COVER; FUEL FILTER
FUEL FILTER DUAL<S6B> THA
8-97363-518-0
01
1
0309-0505
●
37
COVER; FUEL FILTER
FUEL FILTER DUAL<S6B> THA
8-97917-558-0
01
1
0506-
●
42
BOLT; FUEL FILTER
M10X30 FLANGE
0-28781-030-0
02
1
0309-
●
43
BOLT; BRKT
M12X28 FLANGE
0-28181-228-0
02
1
0309-
●
46
BRACKET
8-97061-452-0
01
1
0309-
●
62
NUT; FUEL FILTER
M10 FLANGE
0-91150-210-0
02
1
0309-
●
92
CAP; FUEL FILTER
8-97172-548-0
01
1
0309-
●
93
CONNECTOR; FUEL FILTER
8-97172-546-1
01
1
0309-
●
62
62
1
1
8
57
2
56
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
FILTER ASM; FUEL
8-97171-451-2
01
1
0309-
●
1
FILTER ASM; FUEL
FUEL FILTER DUAL<S6B>
8-97070-864-0
01
1
0309-
●
1
FILTER ASM; FUEL
EXC. FUEL FILTER DUAL<S6B> THA
8-97916-503-2
01
1
0309-
●
2
ELEMENT KIT; FUEL FILTER
8-97172-549-1
01
1
0309-
●
2
ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL<S6B> THA
8-94144-613-0
02
1
0309-
●
2
ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL<S6B> THA
8-97916-993-2
01
1
0309-
●
8
COVER; FUEL FILTER
8-97172-543-1
01
1
0309-
●
8
COVER; FUEL FILTER
EXC. FUEL FILTER DUAL<S6B> THA
8-97917-558-0
01
1
0309-
●
56
PLUG; FUEL FILTER
FUEL FILTER DUAL<S6B>
5-13226-001-0
01
1
0309-
●
57
GASKET; PLUG
FUEL FILTER DUAL<S6B> ID=14.2 OD=20.0
9-09571-414-0
01
1
0309-
●
62
NUT; FUEL FILTER
M10 FLANGE
0-91150-210-0
02
1
0309-
●
