◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50970 - NKR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#19956) — 411 parça

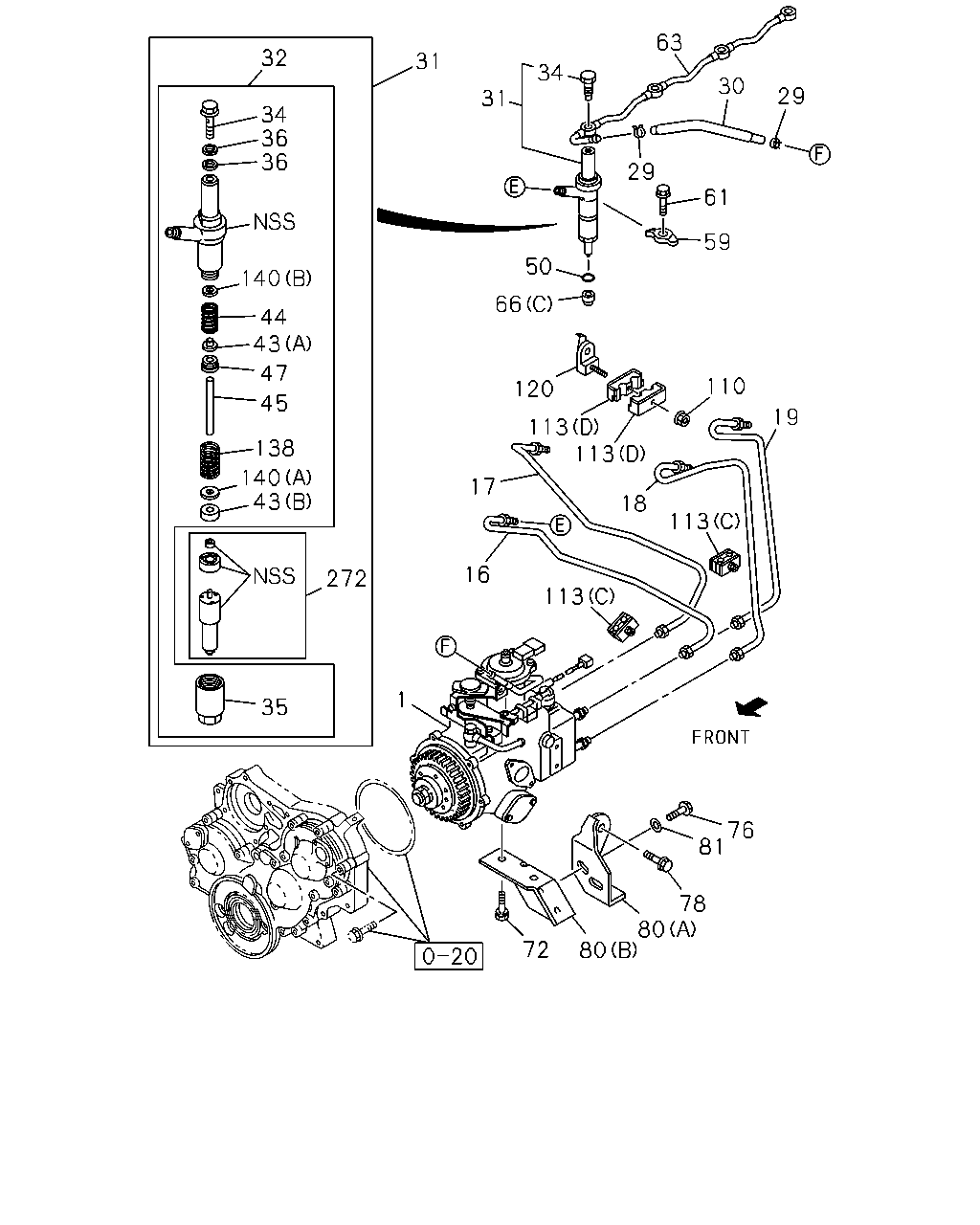

çizim 13279
63 32 31 34 30 29 31 34 36 36 29 61 59 50 140 66 44 43 47 110 120 45 19 113 113 138 140 43 17 18 113 16 272 113 1 35 76 81 78 80 80 72
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 0309- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97192-330-8 01 1 0309- ●
16 PIPE; INJ NO.1 8-97209-493-1 01 1 0309- ●
16 PIPE; INJ NO.1 8-97223-923-1 01 1 0309- ●
17 PIPE; INJ NO.2 8-97209-494-1 01 1 0309- ●
17 PIPE; INJ NO.2 8-97223-924-1 01 1 0309- ●
18 PIPE; INJ NO.3 8-97209-495-1 01 1 0309- ●
18 PIPE; INJ NO.3 8-97223-925-1 01 1 0309- ●
19 PIPE; INJ NO.4 8-97209-496-1 01 1 0309- ●
19 PIPE; INJ NO.4 8-97223-926-1 01 1 0309- ●
29 CLIP; HOSE
ID=11 		8-97173-219-0 02 1 0309- ●
30 HOSE; RUBBER,FUEL LEAK
L=320 		8-97364-773-0 01 1 0309- ●
31 NOZZLE ASM; INJ 8-97367-553-0 04 1 0309- ●
31 NOZZLE ASM; INJ 8-97192-333-2 04 1 0309-0501 ●
31 NOZZLE ASM; INJ 8-97382-945-0 04 1 0502- ●
32 HOLDER ASM; NOZZLE 8-97352-048-0 04 1 0309- ●
32 HOLDER ASM; NOZZLE 8-97203-471-1 04 1 0309- ●
34 BOLT; EYE,NOZZLE HOLDER
M8X18 EYE BOLT 		1-09675-037-1 04 1 0309- ●
34 BOLT; EYE,NOZZLE HOLDER 8-94320-307-0 04 1 0309- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-041-0 04 1 0309- ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-94395-214-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(D) 		8-97349-452-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) 		8-97361-697-0 04 1 0309- ● ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.00 		8-97223-343-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.02 		8-97223-344-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.04 		8-97223-345-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.06 		8-97223-346-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.08 		8-97223-347-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.10 		8-97223-348-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.12 		8-97223-349-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.14 		8-97223-350-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.16 		8-97223-351-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.18 		8-97223-352-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.20 		8-97223-353-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.22 		8-97223-354-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.24 		8-97223-355-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.26 		8-97223-356-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.28 		8-97223-357-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.30 		8-97223-358-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.32 		8-97223-359-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.34 		8-97223-360-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.36 		8-97223-361-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.38 		8-97223-362-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.40 		8-97223-363-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.42 		8-97223-364-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.44 		8-97223-365-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.46 		8-97223-366-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.48 		8-97223-367-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.50 		8-97223-368-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.52 		8-97223-369-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.54 		8-97223-370-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.56 		8-97223-371-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.58 		8-97223-372-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.60 		8-97223-373-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.62 		8-97223-374-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.64 		8-97223-375-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.66 		8-97223-376-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.68 		8-97223-377-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.70 		8-97223-378-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.72 		8-97223-379-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.74 		8-97223-380-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.76 		8-97223-381-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.78 		8-97223-382-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.80 		8-97223-383-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.82 		8-97223-384-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.84 		8-97223-385-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.86 		8-97223-386-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.88 		8-97223-387-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.90 		8-97223-388-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.92 		8-97223-389-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.94 		8-97223-390-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.96 		8-97223-391-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.98 		8-97223-392-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=3.00 		8-97223-393-0 04 1 0309- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-003-0 04 1 0309- ● ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.25 		8-97355-112-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.26 		8-97355-113-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.27 		8-97355-114-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.28 		8-97355-115-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.29 		8-97355-116-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.30 		8-97355-117-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.31 		8-97355-118-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.32 		8-97355-119-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.33 		8-97355-120-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.34 		8-97355-121-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.35 		8-97355-122-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.36 		8-97355-123-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.37 		8-97355-124-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.38 		8-97355-125-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.39 		8-97355-126-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.40 		8-97355-127-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.41 		8-97355-128-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.42 		8-97355-129-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.43 		8-97355-130-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.44 		8-97355-131-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.45 		8-97355-132-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.46 		8-97355-133-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.47 		8-97355-134-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.48 		8-97355-135-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.49 		8-97355-136-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.50 		8-97355-137-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.51 		8-97355-138-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.52 		8-97355-139-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.53 		8-97355-140-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.54 		8-97355-141-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.55 		8-97355-142-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.56 		8-97355-143-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.57 		8-97355-144-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.58 		8-97355-145-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.59 		8-97355-146-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.60 		8-97355-147-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.61 		8-97355-148-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.62 		8-97355-149-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.63 		8-97355-150-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.64 		8-97355-151-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.65 		8-97355-152-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.66 		8-97355-153-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.67 		8-97355-154-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.68 		8-97355-155-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.69 		8-97355-156-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.70 		8-97355-157-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.71 		8-97355-158-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.72 		8-97355-159-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.73 		8-97355-160-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.74 		8-97355-161-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.75 		8-97355-162-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.76 		8-97355-163-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.77 		8-97355-164-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.78 		8-97355-165-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.79 		8-97355-166-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.80 		8-97355-167-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.81 		8-97355-168-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.82 		8-97355-169-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.83 		8-97355-170-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.84 		8-97355-171-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.85 		8-97355-172-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.86 		8-97355-173-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.87 		8-97355-174-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.88 		8-97355-175-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.89 		8-97355-176-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.90 		8-97355-177-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.91 		8-97355-178-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.92 		8-97355-179-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.93 		8-97355-180-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.94 		8-97355-182-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER 1-15341-008-0 04 1 0309- ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 8-97223-340-0 04 1 0309- ● ●
50 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-2 04 1 0309- ●
59 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0309- ●
61 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0309- ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 0309- ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97288-702-0 01 1 0309- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) THA 		8-94326-439-0 04 1 0309- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97171-332-0 04 1 0309- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0309- ●
72 BOLT; BRKT TO INJ PUMP
M10X20 W/LK WASHER 		0-50051-020-0 02 1 0309- ●
76 BOLT; BRKT TO BRKT
M8X25 W/LK WASHER 		0-50040-825-0 02 1 0309- ●

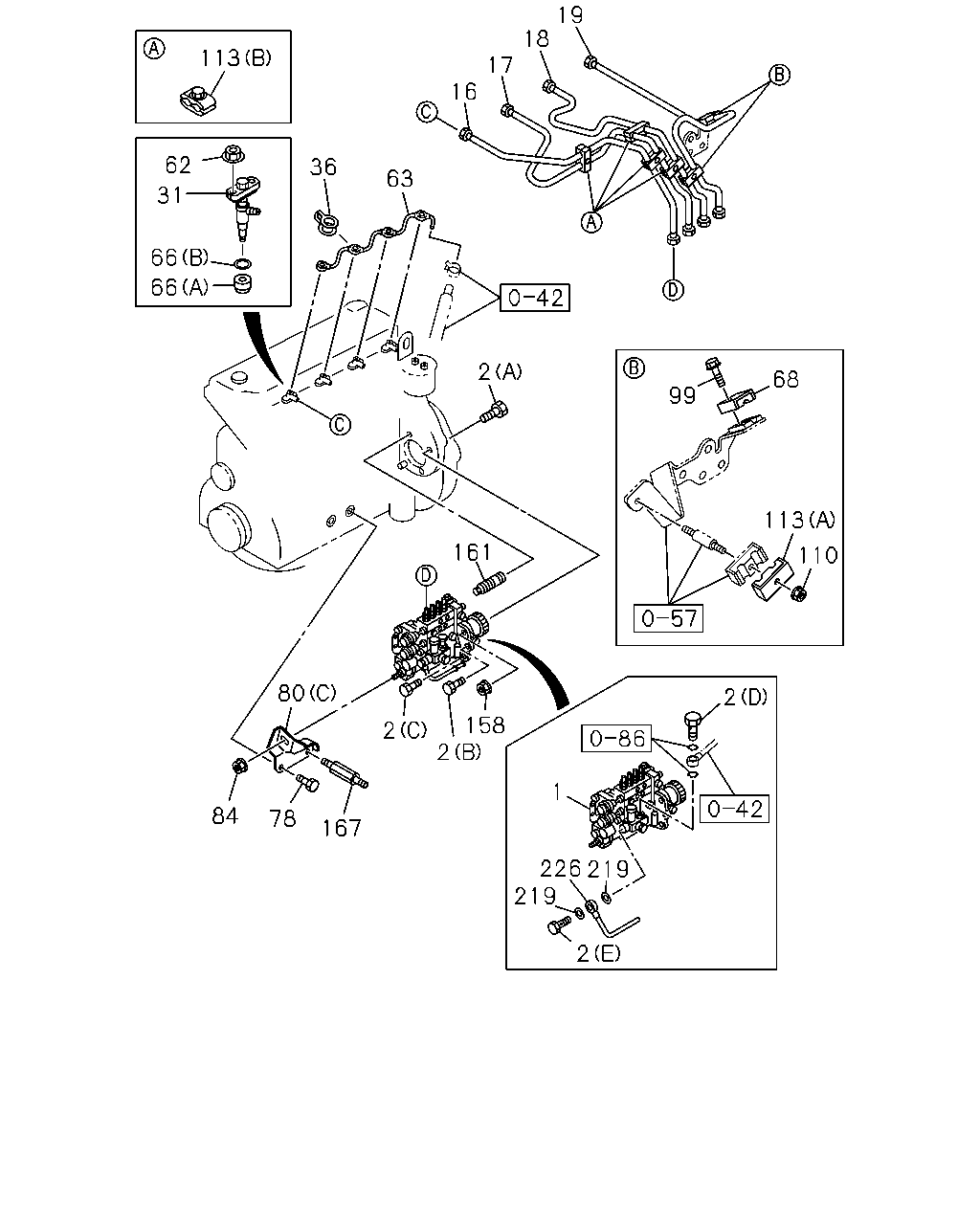

78 BOLT; BRKT TO C/BL
M10X20 FLANGE 		0-28781-020-0 01 1 0309- ●
78 BOLT; BRKT TO C/BL
M8X20 FLANGE 		0-28680-820-0 02 1 0309- ●
80 BRACKET; PUMP
(C) 		8-97136-677-0 01 1 0309- ●
80 BRACKET; PUMP
(A) THA 		8-94133-761-1 01 1 0309-0407 ●
80 BRACKET; PUMP 8-97368-670-0 01 1 0408- ●
80 BRACKET; PUMP
(B) THA 		8-94133-762-2 01 1 0309-0402 ●
80 BRACKET; PUMP 8-97368-671-0 01 1 0403- ●
81 WASHER; PL,BRKT TO PUMP
ID=8.4 OD=22 		9-09164-708-0 02 1 0309- ●
93 GASKET; LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97375-236-0 04 1 0403- ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 0309- ● ●
113 CLIP; INJ PIPE
(B) 		8-97213-050-0 04 1 0309- ●
113 CLIP; INJ PIPE
(A) 		8-97213-481-0 01 1 0309- ●
113 CLIP; INJ PIPE
(D) ID=15 L=30 		1-09701-132-1 02 1 0309- ●
113 CLIP; INJ PIPE
(C) 		8-97224-041-1 02 1 0309- ●
120 BRACKET; INJ PIPE 8-97224-300-0 01 1 0309-0505 ●
120 BRACKET; INJ PIPE 8-98015-024-0 01 1 0506- ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-004-0 04 1 0309- ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 8-94174-141-0 04 1 0309- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.20 		1-15349-004-0 04 1 0309- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.40 		1-15349-042-0 AR 1 0309- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.50 		1-15349-043-0 AR 1 0309- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.52 		1-15349-044-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.54 		1-15349-045-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.56 		1-15349-046-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.58 		1-15349-047-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.60 		1-15349-048-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.70 		1-15349-049-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.10 		8-97116-029-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.20 		8-97116-032-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.30 		8-97116-033-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.40 		8-97116-034-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.50 		8-97116-035-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.51 		8-97116-036-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.52 		8-97116-037-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.53 		8-97116-038-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.54 		8-97116-039-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.55 		8-97116-040-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.56 		8-97116-041-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.57 		8-97116-042-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.58 		8-97116-043-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.59 		8-97116-044-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.20 		1-15349-004-0 AR 1 0309- ●
272 NOZZLE KIT; INJ 8-97352-267-0 04 1 0309- ●
272 NOZZLE KIT; INJ 8-97329-208-0 04 1 0309- ●
çizim 56126
31 32 34 58 45 138 140 43 140 44 43 47 272 35
BalonParca AdiParca NoAdetTipApplied Date A B
31 NOZZLE ASM; INJ 8-97367-553-0 04 1 0309- ●
31 NOZZLE ASM; INJ 8-97192-333-2 04 1 0309-0501 ●
31 NOZZLE ASM; INJ 8-97382-945-0 04 1 0502- ●
32 HOLDER ASM; NOZZLE 8-97352-048-0 04 1 0309- ●
32 HOLDER ASM; NOZZLE 8-97203-471-1 04 1 0309- ●
34 BOLT; EYE,NOZZLE HOLDER
M8X18 EYE BOLT 		1-09675-037-1 04 1 0309- ●
34 BOLT; EYE,NOZZLE HOLDER 8-94320-307-0 04 1 0309- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-041-0 04 1 0309- ● ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(D) 		8-97349-452-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) 		8-97361-697-0 04 1 0309- ● ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.00 		8-97223-343-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.02 		8-97223-344-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.04 		8-97223-345-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.06 		8-97223-346-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.08 		8-97223-347-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.10 		8-97223-348-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.12 		8-97223-349-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.14 		8-97223-350-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.16 		8-97223-351-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.18 		8-97223-352-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.20 		8-97223-353-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.22 		8-97223-354-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.24 		8-97223-355-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.26 		8-97223-356-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.28 		8-97223-357-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.30 		8-97223-358-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.32 		8-97223-359-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.34 		8-97223-360-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.36 		8-97223-361-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.38 		8-97223-362-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.40 		8-97223-363-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.42 		8-97223-364-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.44 		8-97223-365-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.46 		8-97223-366-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.48 		8-97223-367-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.50 		8-97223-368-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.52 		8-97223-369-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.54 		8-97223-370-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.56 		8-97223-371-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.58 		8-97223-372-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.60 		8-97223-373-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.62 		8-97223-374-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.64 		8-97223-375-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.66 		8-97223-376-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.68 		8-97223-377-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.70 		8-97223-378-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.72 		8-97223-379-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.74 		8-97223-380-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.76 		8-97223-381-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.78 		8-97223-382-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.80 		8-97223-383-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.82 		8-97223-384-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.84 		8-97223-385-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.86 		8-97223-386-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.88 		8-97223-387-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.90 		8-97223-388-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.92 		8-97223-389-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.94 		8-97223-390-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.96 		8-97223-391-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.98 		8-97223-392-0 04 1 0309- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=3.00 		8-97223-393-0 04 1 0309- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-003-0 04 1 0309- ● ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.25 		8-97355-112-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.26 		8-97355-113-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.27 		8-97355-114-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.28 		8-97355-115-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.29 		8-97355-116-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.30 		8-97355-117-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.31 		8-97355-118-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.32 		8-97355-119-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.33 		8-97355-120-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.34 		8-97355-121-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.35 		8-97355-122-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.36 		8-97355-123-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.37 		8-97355-124-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.38 		8-97355-125-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.39 		8-97355-126-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.40 		8-97355-127-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.41 		8-97355-128-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.42 		8-97355-129-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.43 		8-97355-130-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.44 		8-97355-131-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.45 		8-97355-132-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.46 		8-97355-133-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.47 		8-97355-134-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.48 		8-97355-135-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.49 		8-97355-136-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.50 		8-97355-137-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.51 		8-97355-138-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.52 		8-97355-139-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.53 		8-97355-140-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.54 		8-97355-141-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.55 		8-97355-142-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.56 		8-97355-143-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.57 		8-97355-144-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.58 		8-97355-145-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.59 		8-97355-146-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.60 		8-97355-147-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.61 		8-97355-148-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.62 		8-97355-149-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.63 		8-97355-150-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.64 		8-97355-151-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.65 		8-97355-152-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.66 		8-97355-153-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.67 		8-97355-154-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.68 		8-97355-155-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.69 		8-97355-156-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.70 		8-97355-157-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.71 		8-97355-158-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.72 		8-97355-159-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.73 		8-97355-160-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.74 		8-97355-161-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.75 		8-97355-162-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.76 		8-97355-163-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.77 		8-97355-164-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.78 		8-97355-165-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.79 		8-97355-166-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.80 		8-97355-167-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.81 		8-97355-168-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.82 		8-97355-169-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.83 		8-97355-170-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.84 		8-97355-171-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.85 		8-97355-172-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.86 		8-97355-173-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.87 		8-97355-174-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.88 		8-97355-175-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.89 		8-97355-176-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.90 		8-97355-177-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.91 		8-97355-178-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.92 		8-97355-179-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.93 		8-97355-180-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.94 		8-97355-182-0 04 1 0309- ●
45 ROD; PUSH,NOZZLE HOLDER 1-15341-008-0 04 1 0309- ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 8-97223-340-0 04 1 0309- ● ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 0309- ●
93 GASKET; LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97375-236-0 04 1 0403- ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-004-0 04 1 0309- ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 8-94174-141-0 04 1 0309- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.20 		1-15349-004-0 04 1 0309- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.40 		1-15349-042-0 AR 1 0309- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.50 		1-15349-043-0 AR 1 0309- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.52 		1-15349-044-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.54 		1-15349-045-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.56 		1-15349-046-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.58 		1-15349-047-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.60 		1-15349-048-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.70 		1-15349-049-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.10 		8-97116-029-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.20 		8-97116-032-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.30 		8-97116-033-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.40 		8-97116-034-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.50 		8-97116-035-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.51 		8-97116-036-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.52 		8-97116-037-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.53 		8-97116-038-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.54 		8-97116-039-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.55 		8-97116-040-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.56 		8-97116-041-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.57 		8-97116-042-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.58 		8-97116-043-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.59 		8-97116-044-0 AR 1 0309- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.20 		1-15349-004-0 AR 1 0309- ●
272 NOZZLE KIT; INJ 8-97352-267-0 04 1 0309- ●
272 NOZZLE KIT; INJ 8-97329-208-0 04 1 0309- ●
çizim 56255
19 18 113 17 16 62 36 63 31 66 66 2 68 99 113 161 110 80 2 158 2 2 1 84 78 167 219 2 219 226
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 0309- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97192-330-8 01 1 0309- ●
2 BOLT; INJ PUMP
(A) M10X70 FLANGE 		0-28181-070-0 01 1 0309- ●
2 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0309- ●
2 BOLT; INJ PUMP
(C) M12X90 FLANGE 		0-28181-290-0 01 1 0309- ●
2 BOLT; INJ PUMP
(D) M14X27 FLANGE 		1-09675-086-0 02 1 0309- ●
2 BOLT; INJ PUMP
(E) M14X30 		8-97203-957-0 01 1 0309- ●
16 PIPE; INJ NO.1 8-97209-493-1 01 1 0309- ●
16 PIPE; INJ NO.1 8-97223-923-1 01 1 0309- ●
17 PIPE; INJ NO.2 8-97209-494-1 01 1 0309- ●
17 PIPE; INJ NO.2 8-97223-924-1 01 1 0309- ●
18 PIPE; INJ NO.3 8-97209-495-1 01 1 0309- ●
18 PIPE; INJ NO.3 8-97223-925-1 01 1 0309- ●
19 PIPE; INJ NO.4 8-97209-496-1 01 1 0309- ●
19 PIPE; INJ NO.4 8-97223-926-1 01 1 0309- ●
31 NOZZLE ASM; INJ 8-97367-553-0 04 1 0309- ●
31 NOZZLE ASM; INJ 8-97192-333-2 04 1 0309-0501 ●
31 NOZZLE ASM; INJ 8-97382-945-0 04 1 0502- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-94395-214-0 04 1 0309- ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 08 1 0309- ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 0309- ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97288-702-0 01 1 0309- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) THA 		8-94326-439-0 04 1 0309- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97171-332-0 04 1 0309- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0309- ●
68 CLIP; INJ PIPE 1-09701-091-0 01 1 0309- ●
78 BOLT; BRKT TO C/BL
M10X20 FLANGE 		0-28781-020-0 01 1 0309- ●
78 BOLT; BRKT TO C/BL
M8X20 FLANGE 		0-28680-820-0 02 1 0309- ●
80 BRACKET; PUMP
(C) 		8-97136-677-0 01 1 0309- ●
80 BRACKET; PUMP
(A) THA 		8-94133-761-1 01 1 0309-0407 ●
80 BRACKET; PUMP 8-97368-670-0 01 1 0408- ●
80 BRACKET; PUMP
(B) THA 		8-94133-762-2 01 1 0309-0402 ●
80 BRACKET; PUMP 8-97368-671-0 01 1 0403- ●
84 NUT; BRKT TO BRKT
M10 FLANGE 		0-91150-210-0 01 1 0309- ●
93 GASKET; LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97375-236-0 04 1 0403- ●
99 BOLT; CLIP,INJ,PIPE
M6X25 FLANGE 		0-28680-625-0 01 1 0309- ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 0309- ● ●
113 CLIP; INJ PIPE
(B) 		8-97213-050-0 04 1 0309- ●
113 CLIP; INJ PIPE
(A) 		8-97213-481-0 01 1 0309- ●
113 CLIP; INJ PIPE
(D) ID=15 L=30 		1-09701-132-1 02 1 0309- ●
113 CLIP; INJ PIPE
(C) 		8-97224-041-1 02 1 0309- ●
158 NUT; INJ PUMP
M10 FLANGE 		0-91150-110-0 02 1 0309- ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0309- ●
167 SPACER; GUIDE TUBE 8-97065-515-2 01 1 0309- ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 0309- ●
226 PIPE; FUEL 8-97203-567-0 01 1 0309- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
