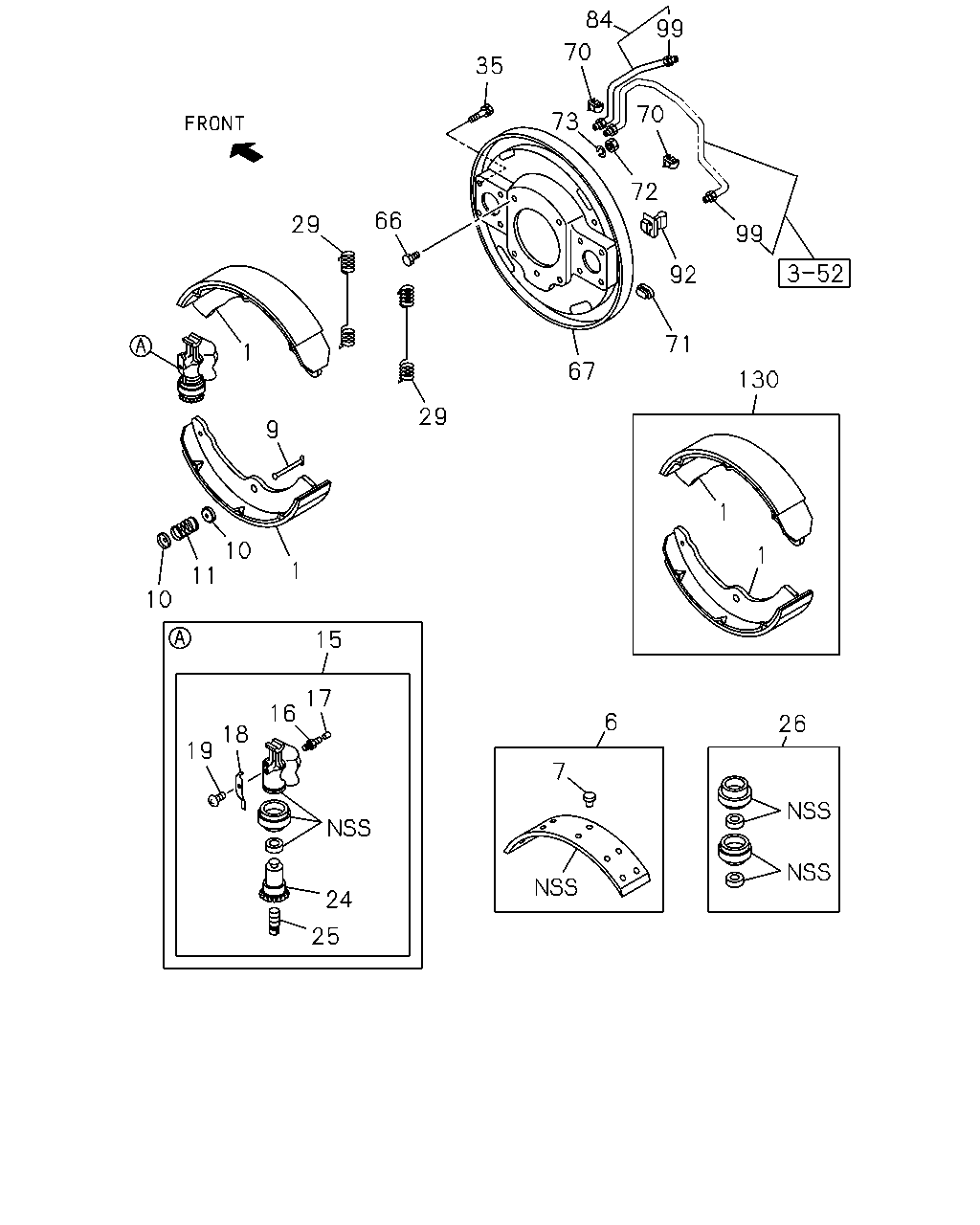

3-01 — FRONT WHEEL BRAKE (#19954) — 91 parça

84 99 70 35 70 73 72 66 29 99 92 71 1 67 130 29 9 1 10 1 1 11 10 15 17 16 6 26 18 19 7 24 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,FRT FRAME STRAIGHT TYPE<7KJ>	8-97188-455-0	04	1	0309-	●
1	SHOE; BRK,FRT	8-97188-455-0	04	1	0309-		●
1	SHOE; BRK,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97201-061-0	04	1	0309-	●
1	SHOE; BRK,FRT	8-97201-061-0	04	1	0309-			●
6	LINING KIT; FRT BRK FRAME STRAIGHT TYPE<7KJ>	5-87831-692-0	01	1	0309-	●
6	LINING KIT; FRT BRK	5-87831-692-0	01	1	0309-		●
6	LINING KIT; FRT BRK EXC. FRAME STRAIGHT TYPE<7KJ>	5-87831-774-0	01	1	0309-	●
6	LINING KIT; FRT BRK	5-87831-774-0	01	1	0309-			●
7	RIVET; LINING,FRT BRK FRAME STRAIGHT TYPE<7KJ>	1-09732-029-0	64	1	0309-	●
7	RIVET; LINING,FRT BRK	1-09732-029-0	64	1	0309-		●
7	RIVET; LINING,FRT BRK EXC. FRAME STRAIGHT TYPE<7KJ>	1-09732-029-0	48	1	0309-	●
7	RIVET; LINING,FRT BRK	1-09732-029-0	48	1	0309-			●
9	PIN; SHOE HOLDER FRAME STRAIGHT TYPE<7KJ>	8-97122-870-0	04	1	0309-	●
9	PIN; SHOE HOLDER	8-97122-870-0	04	1	0309-		●
9	PIN; SHOE HOLDER EXC. FRAME STRAIGHT TYPE<7KJ>	8-97022-089-0	04	1	0309-	●
9	PIN; SHOE HOLDER	8-97022-089-0	04	1	0309-			●
10	CUP; SHOE HOLDING	9-47165-096-0	08	1	0309-	●	●	●
11	SPRING; SHOE HOLDING	5-09580-101-1	04	1	0309-	●	●	●
15	CYLINDER; WHEEL,FRT BRK FRAME STRAIGHT TYPE<7KJ> FRONT	8-97353-574-0	01	1	0309-	●
15	CYLINDER; WHEEL,FRT BRK FRONT	8-97353-574-0	01	1	0309-		●
15	CYLINDER; WHEEL,FRT BRK FRAME STRAIGHT TYPE<7KJ> REAR	8-97353-576-0	01	1	0309-	●
15	CYLINDER; WHEEL,FRT BRK REAR	8-97353-576-0	01	1	0309-		●
15	CYLINDER; WHEEL,FRT BRK FRAME STRAIGHT TYPE<7KJ> FRONT	8-97353-573-0	01	1	0309-	●
15	CYLINDER; WHEEL,FRT BRK FRONT	8-97353-573-0	01	1	0309-		●
15	CYLINDER; WHEEL,FRT BRK FRAME STRAIGHT TYPE<7KJ> REAR	8-97353-575-0	01	1	0309-	●
15	CYLINDER; WHEEL,FRT BRK REAR	8-97353-575-0	01	1	0309-		●
15	CYLINDER; WHEEL,FRT BRK EXC. FRAME STRAIGHT TYPE<7KJ> REAR	8-97139-819-0	01	1	0309-	●
15	CYLINDER; WHEEL,FRT BRK REAR	8-97139-819-0	01	1	0309-			●
15	CYLINDER; WHEEL,FRT BRK EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-97139-821-0	01	1	0309-	●
15	CYLINDER; WHEEL,FRT BRK FRONT	8-97139-821-0	01	1	0309-			●
15	CYLINDER; WHEEL,FRT BRK EXC. FRAME STRAIGHT TYPE<7KJ> REAR	8-97139-818-0	01	1	0309-	●
15	CYLINDER; WHEEL,FRT BRK REAR	8-97139-818-0	01	1	0309-			●
15	CYLINDER; WHEEL,FRT BRK EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-97139-820-0	01	1	0309-	●
15	CYLINDER; WHEEL,FRT BRK FRONT	8-97139-820-0	01	1	0309-			●
16	SCREW; BLEEDER,FRT BRK	9-47615-027-0	02	1	0309-	●	●	●
17	CAP; BLEEDER,FRT WHEEL CYL	1-47619-009-0	02	1	0309-	●	●	●
18	STOPPER; ADJ SCREW	8-94128-486-0	04	1	0309-	●	●	●
19	SCREW; STOPPER SETTING	8-94128-727-0	04	1	0309-	●	●	●
24	PISTON; FRT WHEEL CYL FRAME STRAIGHT TYPE<7KJ>	8-97353-579-0	04	1	0309-	●
24	PISTON; FRT WHEEL CYL	8-97353-579-0	04	1	0309-		●
24	PISTON; FRT WHEEL CYL EXC. FRAME STRAIGHT TYPE<7KJ>	8-94414-700-1	04	1	0309-	●
24	PISTON; FRT WHEEL CYL	8-94414-700-1	04	1	0309-			●
25	SCREW; ADJ,FRT WHEEL CYL	8-94414-702-0	04	1	0309-	●	●	●
26	CUP SET; FRT WHEEL CYL FRAME STRAIGHT TYPE<7KJ>	5-87832-080-0	01	1	0309-	●
26	CUP SET; FRT WHEEL CYL	5-87832-080-0	01	1	0309-		●
26	CUP SET; FRT WHEEL CYL EXC. FRAME STRAIGHT TYPE<7KJ>	5-87831-598-0	01	1	0309-	●
26	CUP SET; FRT WHEEL CYL	5-87831-598-0	01	1	0309-			●
29	SPRING; RETURN,FRT BRK SHOE FRAME STRAIGHT TYPE<7KJ>	8-97122-869-0	04	1	0309-	●
29	SPRING; RETURN,FRT BRK SHOE	8-97122-869-0	04	1	0309-		●
29	SPRING; RETURN,FRT BRK SHOE EXC. FRAME STRAIGHT TYPE<7KJ>	8-97022-087-0	04	1	0309-	●
29	SPRING; RETURN,FRT BRK SHOE	8-97022-087-0	04	1	0309-			●
35	BOLT; FRT WHEEL CYL FRAME STRAIGHT TYPE<7KJ>	8-97081-305-0	16	1	0309-0502	●
35	BOLT; FRT WHEEL CYL	8-97081-305-0	16	1	0309-0502		●
35	BOLT; FRT WHEEL CYL	8-97081-305-0	16	1	0503-	●	●	●
35	BOLT; FRT WHEEL CYL EXC. FRAME STRAIGHT TYPE<7KJ>	8-97022-088-0	16	1	0309-0502	●
35	BOLT; FRT WHEEL CYL	8-97022-088-0	16	1	0309-0502			●
66	BOLT; OIL SHIELD COVER FRAME STRAIGHT TYPE<7KJ> M14X35	8-97122-853-2	08	1	0309-	●
66	BOLT; OIL SHIELD COVER M14X35	8-97122-853-2	08	1	0309-		●
66	BOLT; OIL SHIELD COVER EXC. FRAME STRAIGHT TYPE<7KJ> M12X33	9-09600-043-3	08	1	0309-	●
66	BOLT; OIL SHIELD COVER M12X33	9-09600-043-3	08	1	0309-			●
67	PLATE; BACK,FRT BRK FRAME STRAIGHT TYPE<7KJ>	8-97160-411-0	01	1	0309-	●
67	PLATE; BACK,FRT BRK	8-97160-411-0	01	1	0309-		●
67	PLATE; BACK,FRT BRK FRAME STRAIGHT TYPE<7KJ>	8-97160-410-0	01	1	0309-	●
67	PLATE; BACK,FRT BRK	8-97160-410-0	01	1	0309-		●
67	PLATE; BACK,FRT BRK EXC. FRAME STRAIGHT TYPE<7KJ>	8-97302-597-0	01	1	0309-	●
67	PLATE; BACK,FRT BRK	8-97302-597-0	01	1	0309-			●
67	PLATE; BACK,FRT BRK EXC. FRAME STRAIGHT TYPE<7KJ>	8-97302-596-0	01	1	0309-	●
67	PLATE; BACK,FRT BRK	8-97302-596-0	01	1	0309-			●
70	CLIP; PIPE HOLD	8-97022-086-0	02	1	0309-	●	●	●
71	GROMMET; CHECK HOLE	8-97017-507-0	02	1	0309-	●	●	●
72	NUT; OIL SHIELD COVER FRAME STRAIGHT TYPE<7KJ> M14	9-99110-514-0	08	1	0309-	●
72	NUT; OIL SHIELD COVER M14	9-99110-514-0	08	1	0309-		●
72	NUT; OIL SHIELD COVER EXC. FRAME STRAIGHT TYPE<7KJ> M12	9-99110-512-0	08	1	0309-0512	●
72	NUT; OIL SHIELD COVER M12	9-99110-512-0	08	1	0309-0512			●
72	NUT; OIL SHIELD COVER EXC. FRAME STRAIGHT TYPE<7KJ> M12	0-91110-512-0	08	1	0601-	●
72	NUT; OIL SHIELD COVER M12	0-91110-512-0	08	1	0601-			●
73	WASHER; LK,OIL SHIELD COVER FRAME STRAIGHT TYPE<7KJ> ID=14.2	9-09150-614-0	08	1	0309-	●
73	WASHER; LK,OIL SHIELD COVER ID=14.2	9-09150-614-0	08	1	0309-		●
73	WASHER; LK,OIL SHIELD COVER EXC. FRAME STRAIGHT TYPE<7KJ> ID=12.2	9-09150-612-0	08	1	0309-	●
73	WASHER; LK,OIL SHIELD COVER ID=12.2	9-09150-612-0	08	1	0309-			●
84	PIPE; BRK,WHEEL CYL TO HOSE THA	8-97940-704-0	01	1	0309-	●	●	●
84	PIPE; BRK,WHEEL CYL TO HOSE THA	8-97940-703-0	01	1	0309-	●	●	●
92	GROMMET; ADJ HOLE THA	8-97044-742-1	02	1	0309-	●	●	●
99	NUT; ANCHOR PIN FINAL GEAR RATIO 43/7<R42>,FINAL GEAR RATIO 39/6<R43> FRAME STRAIGHT TYPE<7KJ>	9-09217-625-0	08	1	0309-0403	●	●
99	NUT; ANCHOR PIN 4HE1 ENG<RLY> FINAL GEAR RATIO 43/7<R42>,FINAL GEAR RATIO 39/6<R43> FRAME STRAIGHT TYPE<7KJ>	9-09217-625-0	08	1	0404-0407	●	●
99	NUT; ANCHOR PIN 4HE1 ENG<RLY> FINAL GEAR RATIO 41/8<RU1> G.V.W. 8.0-8.5TON<RPZ> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	9-09217-625-0	08	1	0408-	●
99	NUT; ANCHOR PIN 4HE1 ENG<RLY> FINAL GEAR RATIO 43/10<S7C>	9-09217-625-0	08	1	0408-		●
130	SHOE KIT; BRK,FRT FRAME STRAIGHT TYPE<7KJ>	5-87831-693-0	01	1	0309-	●
130	SHOE KIT; BRK,FRT	5-87831-693-0	01	1	0309-		●
130	SHOE KIT; BRK,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	5-87831-775-0	01	1	0309-	●
130	SHOE KIT; BRK,FRT	5-87831-775-0	01	1	0309-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
