2-85 — POWER TAKE OFF CONTROL (#19953) — 143 parça

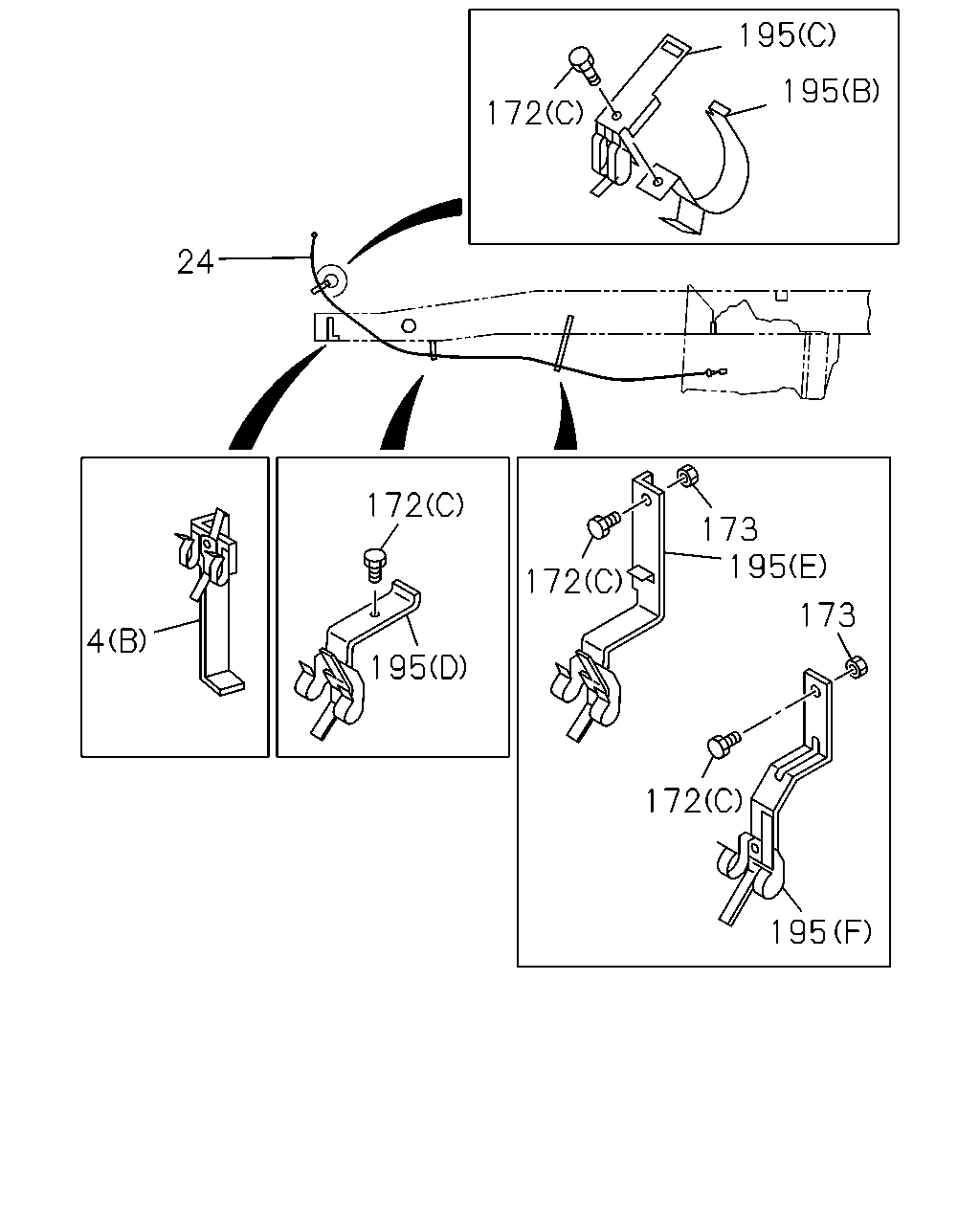

195 195 172 24 172 173 195 172 173 4 195 172 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE<V66> (A)	8-97310-740-0	01	1	0309-0407	●
4	BRACKET; PTO CONT 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> (A)	8-97310-740-0	01	1	0408-	●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97114-534-1	01	1	0309-0407	●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97114-534-1	01	1	0408-	●	●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-1	01	1	0408-		●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> L=3057	8-97352-390-0	01	1	0309-	●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> L=3209	8-97352-391-0	01	1	0309-	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28681-030-0	01	1	0408-		●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	0309-0407	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> M8X16 W/LK WASHER	0-50040-816-0	02	1	0408-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0309-0407	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0408-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (C) M8X25 FLANGE	0-28680-825-0	02	1	0309-0407	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	02	1	0408-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M8X25 FLANGE	0-28680-825-0	04	1	0309-0407	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	04	1	0408-	●	●
173	NUT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	0408-		●
173	NUT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	01	1	0309-0407	●
173	NUT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	01	1	0408-	●	●
173	NUT; BRKT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	02	1	0309-0407	●
173	NUT; BRKT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	02	1	0408-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ>	8-97231-502-0	01	1	0408-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (B)	8-97079-557-3	01	1	0309-0407	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66>	8-97079-557-3	01	1	0408-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (C)	8-97079-558-3	01	1	0309-0407	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66>	8-97079-558-3	01	1	0408-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (A)	8-97088-407-1	01	1	0309-0407	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66>	8-97088-407-1	01	1	0408-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (F)	8-97229-563-0	01	1	0309-0407	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ>	8-97229-563-0	01	1	0408-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97079-559-2	01	1	0309-0407	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97079-559-2	01	1	0408-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97079-560-3	01	1	0309-0407	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97079-560-3	01	1	0408-	●	●

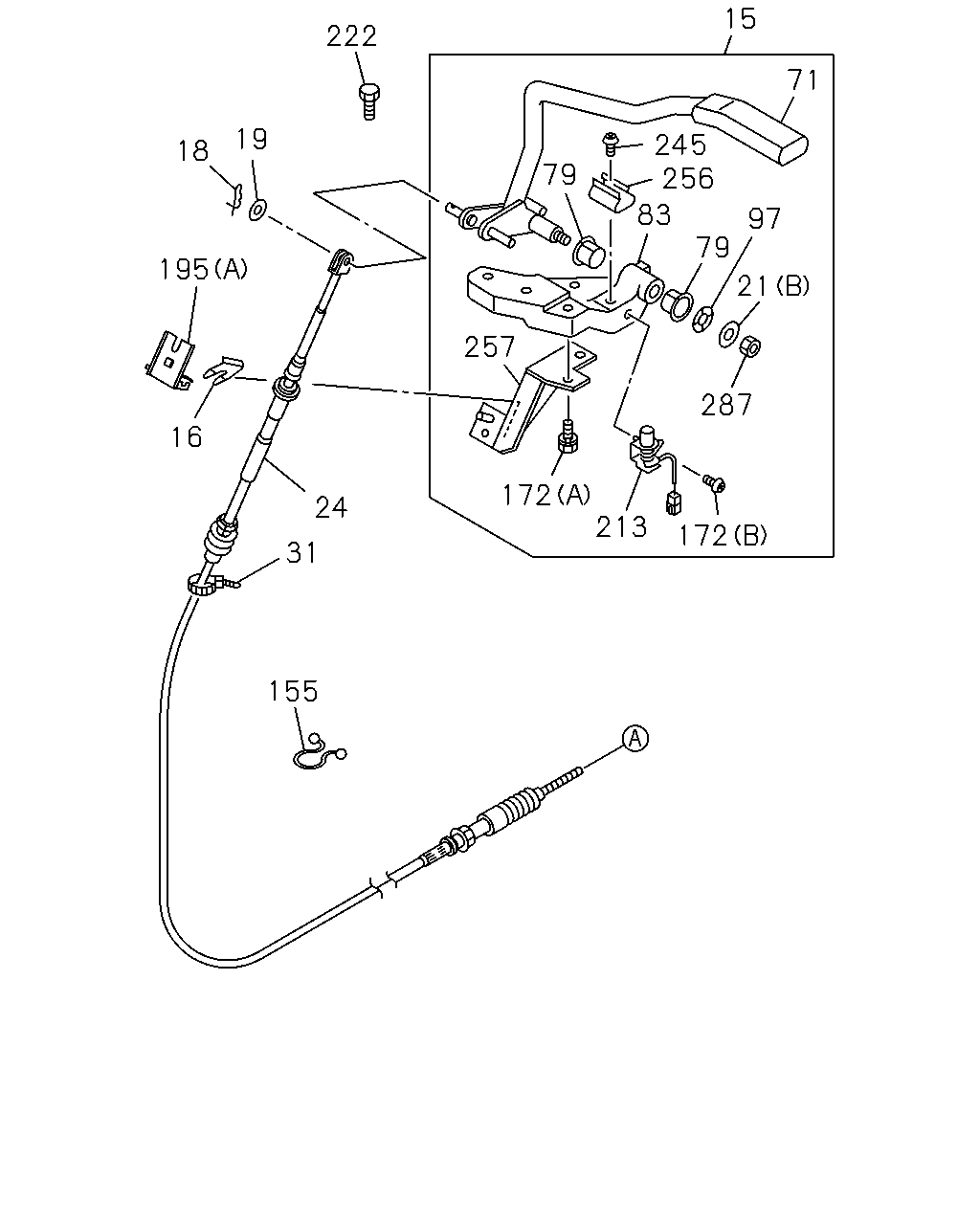

15 222 71 19 245 256 18 79 83 97 79 195 21 257 287 16 172 213 24 172 31 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	LEVER ASM; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97177-805-3	01	1	0309-0407	●
15	LEVER ASM; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97177-805-3	01	1	0408-	●	●
16	CLIP; CABLE,PTO PTO TRANSMISSION SIDE<V66>	8-94152-900-0	01	1	0309-0407	●
16	CLIP; CABLE,PTO PTO TRANSMISSION SIDE<V66>	8-94152-900-0	01	1	0408-	●	●
18	PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE<V66> L=27.7	8-94111-137-0	01	1	0309-0407	●
18	PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE<V66> L=27.7	8-94111-137-0	01	1	0408-	●	●
19	WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE<V66> ID=8.4	9-09160-508-0	01	1	0309-0407	●
19	WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE<V66> ID=8.4	9-09160-508-0	01	1	0408-	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (B) ID=8.4 OD=22	9-09160-708-0	01	1	0309-0407	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> ID=8.4 OD=22	9-09160-708-0	01	1	0408-	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (A) ID=8.4 OD=22	9-09164-708-0	01	1	0309-0407	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (A) ID=8.4 OD=22	9-09164-708-0	01	1	0408-	●	●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-1	01	1	0408-		●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> L=3057	8-97352-390-0	01	1	0309-	●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> L=3209	8-97352-391-0	01	1	0309-	●
31	CLIP; BAND,CABLE PTO TRANSMISSION SIDE<V66> L=250 THA	5-09707-030-1	01	1	0309-0407	●
31	CLIP; BAND,CABLE PTO TRANSMISSION SIDE<V66> L=250 THA	5-09707-030-1	01	1	0408-	●	●
71	LEVER; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97177-806-1	01	1	0309-0407	●
71	LEVER; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97177-806-1	01	1	0408-	●	●
79	BUSHING; CONT LEVER PTO TRANSMISSION SIDE<V66>	8-94238-596-0	02	1	0309-0407	●
79	BUSHING; CONT LEVER PTO TRANSMISSION SIDE<V66>	8-94238-596-0	02	1	0408-	●	●
83	BRACKET; CONT LEVER PTO TRANSMISSION SIDE<V66>	8-97117-352-0	01	1	0309-0407	●
83	BRACKET; CONT LEVER PTO TRANSMISSION SIDE<V66>	8-97117-352-0	01	1	0408-	●	●
97	WASHER; LK PTO TRANSMISSION SIDE<V66> ID=15 OD=25	8-11053-111-0	01	1	0309-0407	●
97	WASHER; LK PTO TRANSMISSION SIDE<V66> ID=15 OD=25	8-11053-111-0	01	1	0408-	●	●
155	CLIP; CABLE PTO TRANSMISSION SIDE<V66> ID=15	1-09709-003-0	01	1	0309-0403	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28681-030-0	01	1	0408-		●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	0309-0407	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> M8X16 W/LK WASHER	0-50040-816-0	02	1	0408-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0309-0407	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0408-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (C) M8X25 FLANGE	0-28680-825-0	02	1	0309-0407	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	02	1	0408-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M8X25 FLANGE	0-28680-825-0	04	1	0309-0407	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	04	1	0408-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ>	8-97231-502-0	01	1	0408-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (B)	8-97079-557-3	01	1	0309-0407	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66>	8-97079-557-3	01	1	0408-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (C)	8-97079-558-3	01	1	0309-0407	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66>	8-97079-558-3	01	1	0408-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (A)	8-97088-407-1	01	1	0309-0407	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66>	8-97088-407-1	01	1	0408-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (F)	8-97229-563-0	01	1	0309-0407	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ>	8-97229-563-0	01	1	0408-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97079-559-2	01	1	0309-0407	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97079-559-2	01	1	0408-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97079-560-3	01	1	0309-0407	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97079-560-3	01	1	0408-	●	●
213	SWITCH; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97041-412-1	01	1	0309-0309	●
213	SWITCH; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97370-568-0	01	1	0309-0407	●
213	SWITCH; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97370-568-0	01	1	0408-	●	●
222	BOLT; LEVER PTO TRANSMISSION SIDE<V66> M8X14 FLANGE	0-28080-814-0	04	1	0309-0407	●
222	BOLT; LEVER PTO TRANSMISSION SIDE<V66> M8X14 FLANGE	0-28080-814-0	04	1	0408-	●	●
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE<V66> M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0309-0407	●
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE<V66> M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0408-	●	●
256	PLATE; LOCK PTO TRANSMISSION SIDE<V66>	8-97117-351-0	01	1	0309-0407	●
256	PLATE; LOCK PTO TRANSMISSION SIDE<V66>	8-97117-351-0	01	1	0408-	●	●
257	REINFORCEMENT; PTO PTO TRANSMISSION SIDE<V66>	8-97088-406-3	01	1	0309-0407	●
257	REINFORCEMENT; PTO PTO TRANSMISSION SIDE<V66>	8-97088-406-3	01	1	0408-	●	●
287	NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE<V66> M8 W/LK WASHER	8-94279-050-0	01	1	0309-0407	●
287	NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE<V66> M8 W/LK WASHER	8-94279-050-0	01	1	0408-	●	●

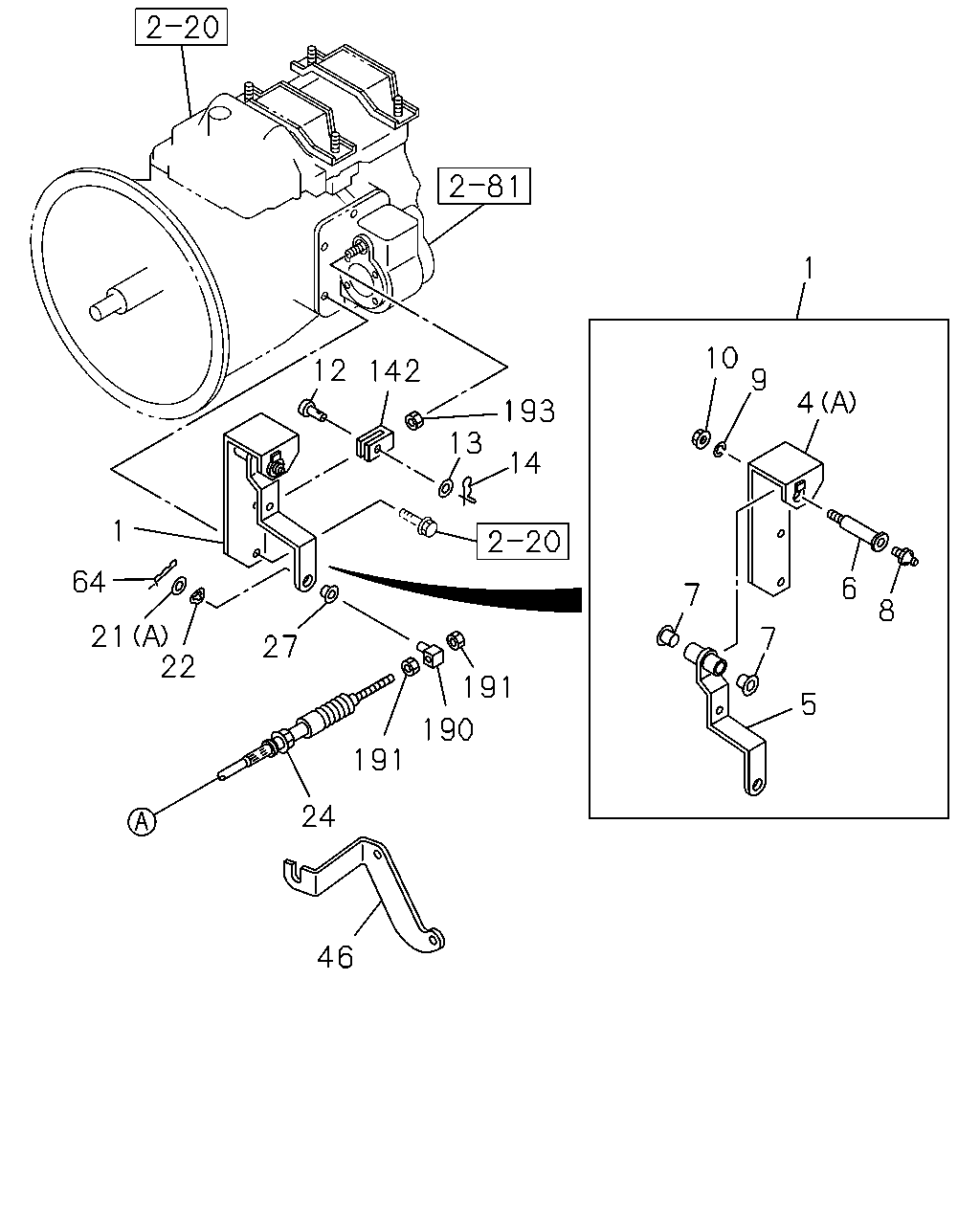

1 10 9 12 142 4 193 13 14 1 64 6 7 8 21 22 7 27 191 5 190 191 24 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE<V66>	8-97310-741-0	01	1	0309-0407	●
1	LEVER ASM; PTO & DUMP CONT 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66>	8-97310-741-0	01	1	0408-	●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE<V66> (A)	8-97310-740-0	01	1	0309-0407	●
4	BRACKET; PTO CONT 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> (A)	8-97310-740-0	01	1	0408-	●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97114-534-1	01	1	0309-0407	●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97114-534-1	01	1	0408-	●	●
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE<V66>	8-97310-747-0	01	1	0309-0407	●
5	LEVER; PTO SHIFT CONT 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66>	8-97310-747-0	01	1	0408-	●
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97204-596-0	01	1	0309-0407	●
6	SHAFT; PTO CONT 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66>	8-97204-596-0	01	1	0408-	●
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE<V66>	5-33659-053-0	02	1	0309-0407	●
7	BUSHING; LEVER,PTO 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66>	5-33659-053-0	02	1	0408-	●
8	NIPPLE; GREASE PTO TRANSMISSION SIDE<V66> M6 STRAIGHT	9-09031-006-0	01	1	0309-0407	●
8	NIPPLE; GREASE 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> M6 STRAIGHT	9-09031-006-0	01	1	0408-	●
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE<V66> ID=8.2	9-09150-508-0	01	1	0309-0407	●
9	WASHER; LK,SHAFT,PTO 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> ID=8.2	9-09150-508-0	01	1	0408-	●
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE<V66> M8	9-09110-408-0	01	1	0309-0407	●
10	NUT; SHAFT,PTO 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> M8	9-09110-408-0	01	1	0408-	●
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE<V66>	8-94174-099-0	01	1	0309-0407	●
12	JOINT; PIN,YOKE 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66>	8-94174-099-0	01	1	0408-	●
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE<V66> ID=12.5	9-09160-512-0	01	1	0309-0407	●
13	WASHER; PL,YOKE 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> ID=12.5	9-09160-512-0	01	1	0408-	●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> OD=2.8 L=18	9-08113-018-0	01	1	0408-		●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE<V66>	1-09987-158-1	01	1	0309-0407	●
14	PIN; SPLIT,YOKE 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66>	1-09987-158-1	01	1	0408-	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (B) ID=8.4 OD=22	9-09160-708-0	01	1	0309-0407	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> ID=8.4 OD=22	9-09160-708-0	01	1	0408-	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (A) ID=8.4 OD=22	9-09164-708-0	01	1	0309-0407	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (A) ID=8.4 OD=22	9-09164-708-0	01	1	0408-	●	●
22	WASHER; LK,LEVER PTO TRANSMISSION SIDE<V66> ID=8.5 T=0.3	5-09509-001-0	01	1	0309-0407	●
22	WASHER; LK,LEVER PTO TRANSMISSION SIDE<V66> ID=8.5 T=0.3	5-09509-001-0	01	1	0408-	●	●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-1	01	1	0408-		●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> L=3057	8-97352-390-0	01	1	0309-	●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> L=3209	8-97352-391-0	01	1	0309-	●
27	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE<V66>	8-94367-367-0	01	1	0309-0407	●
27	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE<V66>	8-94367-367-0	01	1	0408-	●	●
46	BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE<V66>	8-97264-954-1	01	1	0309-0407	●
46	BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE<V66>	8-97264-954-1	01	1	0408-	●	●
64	PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE<V66> L=27.7	8-94111-137-0	01	1	0309-0407	●
64	PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE<V66> L=27.7	8-94111-137-0	01	1	0408-	●	●
142	CLEVIS; CONT BOX PTO TRANSMISSION SIDE<V66>	8-97327-588-0	01	1	0309-0407	●
142	CLEVIS; CONT BOX 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66>	8-97327-588-0	01	1	0408-	●
190	BOSS; LEVER,PTO PTO TRANSMISSION SIDE<V66>	8-94366-842-1	01	1	0309-0407	●
190	BOSS; LEVER,PTO PTO TRANSMISSION SIDE<V66>	8-94366-842-1	01	1	0408-	●	●
191	NUT; BOSS PTO TRANSMISSION SIDE<V66> M6	9-09110-506-0	02	1	0309-0407	●
191	NUT; BOSS PTO TRANSMISSION SIDE<V66> M6	9-09110-506-0	02	1	0408-	●	●
193	NUT PTO TRANSMISSION SIDE<V66> M12	9-99111-412-0	01	1	0309-0407	●
193	NUT 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> M12	9-99111-412-0	01	1	0408-	●
