2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#19952) — 113 parça

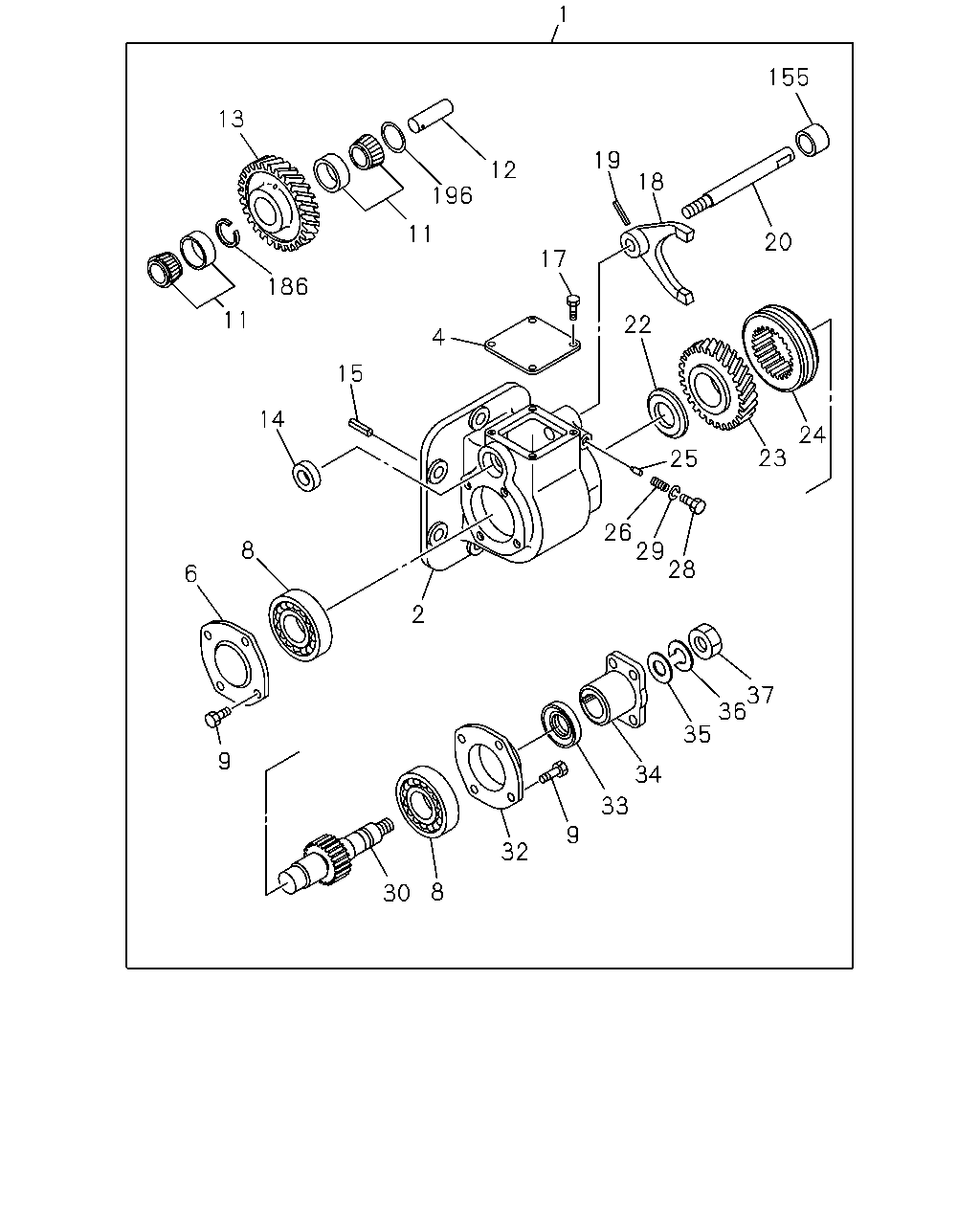

çizim 12308
1 155 13 19 12 18 196 11 20 17 186 11 22 4 15 14 24 23 25 26 29 28 8 6 2 37 36 35 9 34 33 9 32 8 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 POWER TAKE OFF ASM; TRANS SIDE
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		8-97309-237-3 01 1 0408- ●
1 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE<V66> IDENTIFICATION=YG 		8-97286-908-2 01 1 0309-0407 ●
1 POWER TAKE OFF ASM; TRANS SIDE
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> IDENTIFICATION=YG 		8-97286-908-3 01 1 0408- ●
2 CASE; GEAR,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		8-97309-239-1 01 1 0408- ●
2 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> 		8-97308-689-1 01 1 0309-0407 ●
2 CASE; GEAR,TRANS SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> 		8-97308-689-2 01 1 0408- ●
4 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> 		8-97106-718-1 01 1 0309-0407 ●
4 COVER; UPR,TRANS SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> 		8-97106-718-1 01 1 0408- ●
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> 		9-38151-604-0 01 1 0309-0402 ●
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> 		8-97333-347-0 01 1 0403-0407 ●
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> 		8-97333-347-0 01 1 0408- ● ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> ID=25 OD=62 		8-94343-031-1 02 1 0309-0407 ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> ID=25 OD=62 		8-94343-031-1 02 1 0408- ● ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
PTO TRANSMISSION SIDE<V66> OR M8X25 FLANGE 		0-28680-825-0 08 1 0309-0407 ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
PTO TRANSMISSION SIDE<V66> M8X25 FLANGE 		0-28680-825-0 08 1 0408- ● ●
11 BEARING; IDLE GEAR,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		1-09811-144-0 01 1 0408- ●
11 BEARING; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> NSK 		8-97106-734-0 02 1 0309-0407 ●
11 BEARING; IDLE GEAR,TRANS SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> NSK 		8-97106-734-0 02 1 0408- ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		8-97305-817-0 01 1 0408- ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> 		9-38211-606-0 01 1 0309-0407 ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> 		9-38211-606-0 01 1 0408- ●
13 GEAR; IDLE,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> Z=36 		8-97305-810-0 01 1 0408- ●
13 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> Z=31 		8-97308-700-0 01 1 0309-0407 ●
13 GEAR; IDLE,TRANS SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> Z=31 		8-97308-700-0 01 1 0408- ●
14 SEAL; OIL,GEAR CASE,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		1-09625-358-0 01 1 0408- ●
14 SEAL; OIL,GEAR CASE,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> 		9-09724-015-0 01 1 0309-0407 ●
14 SEAL; OIL,GEAR CASE,TRANS SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> 		9-09724-015-0 01 1 0408- ●
15 PIN; SPR,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		9-09678-514-0 01 1 0408- ●
15 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> L=16 		9-09878-613-0 01 1 0309-0407 ●
15 PIN; SPR,TRANS SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> L=16 		9-09878-613-0 01 1 0408- ●
17 BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> OR M8X25 FLANGE 		0-28680-825-0 04 1 0309-0407 ●
17 BOLT; UPR COVER,TRANS SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> M8X25 FLANGE 		0-28680-825-0 04 1 0408- ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		8-97305-819-0 01 1 0408-0506 ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		8-98009-081-0 01 1 0507- ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> 		8-97224-702-0 01 1 0309-0407 ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> 		8-97224-702-0 01 1 0408- ●
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		8-97306-596-0 01 1 0408- ●
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> L=25 OD=5 		8-94135-771-0 01 1 0309-0407 ●
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> L=25 OD=5 		8-94135-771-0 01 1 0408- ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		8-97309-247-2 01 1 0408- ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> 		8-97308-707-0 01 1 0309-0407 ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> 		8-97308-707-0 01 1 0408- ●
21 COVER; SHIFTER ROD,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		1-09600-085-0 01 1 0408- ●
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		1-38226-046-0 01 1 0408- ●
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
PTO TRANSMISSION SIDE<V66> 		9-38245-603-1 01 1 0309-0407 ●
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> 		9-38245-603-1 01 1 0408- ●
23 GEAR; OUTPUT,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> Z=26 		8-97305-798-0 01 1 0408- ●
23 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> Z=27 		8-97308-714-0 01 1 0309-0407 ●
23 GEAR; OUTPUT,TRANS SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> Z=27 		8-97308-714-0 01 1 0408- ●
24 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> 		8-97231-316-0 01 1 0309-0407 ●
24 SLEEVE; DOG CLU,TRANS SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> 		8-97231-316-0 01 1 0408- ●
25 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE<V66> 		8-94169-071-0 01 1 0309-0407 ●
25 PIN; LK,SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> 		8-94169-071-0 01 1 0408- ●
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		8-97309-246-0 01 1 0408- ●
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> 		9-09940-380-0 01 1 0309-0407 ●
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> 		9-09940-380-0 01 1 0408- ●
28 BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE<V66> 		8-97318-428-0 01 1 0309-0407 ●
28 BOLT; SPRING,SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> 		8-97318-428-0 01 1 0408- ●
29 WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE<V66> ID=8.2 		9-09150-508-0 01 1 0309-0407 ●
29 WASHER; LK,SPRING,SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> ID=8.2 		9-09150-508-0 01 1 0408- ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		8-97374-129-0 01 1 0408- ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> 		8-97118-183-0 01 1 0309-0407 ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> 		8-97118-183-1 01 1 0408- ●
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> L=25 		1-09735-024-0 01 1 0408- ●
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		8-97305-794-0 01 1 0408- ●
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> 		8-97350-757-3 01 1 0309-0407 ●
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> 		8-97350-757-3 01 1 0408- ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> 		1-38159-007-0 01 1 0309-0407 ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> 		1-38159-007-0 01 1 0408- ● ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> 		8-97350-755-0 01 1 0309-0407 ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> 		8-97350-755-0 01 1 0408- ●
35 WASHER; PL,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> ID=15 		9-09160-514-0 01 1 0309-0407 ●
35 WASHER; PL,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> ID=15 		9-09160-514-0 01 1 0408- ● ●
36 WASHER; LK,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> ID=14.2 		9-09150-514-0 01 1 0309-0407 ●
36 WASHER; LK,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> ID=14.2 		9-09150-514-0 01 1 0408- ● ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> M14 		9-99111-414-0 01 1 0309-0407 ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> M14 		9-99111-414-0 01 1 0408- ● ●
49 PLUG; IDLE SHAFT,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		1-09600-084-0 03 1 0408- ●
50 WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		1-38226-058-0 01 1 0408- ●
50 WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		8-97305-818-0 01 1 0408- ●
51 RING; SNAP,PIN,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> ID=6 		9-09185-406-0 01 1 0408- ●
52 LEVER; CONT,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		8-97309-250-0 01 1 0408- ●
53 BUSHING; CONT LVR,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		1-09330-023-0 02 1 0408- ●
54 COLLAR; DIST,CONT LVR,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		1-38321-003-1 01 1 0408- ●
55 PLATE; LEVER JOINT,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		1-38313-036-0 02 1 0408- ●
56 PIN; PLATE TO LVR & ROD,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> OD=8 L=21 		9-08213-821-0 01 1 0408- ●
58 WASHER; PL,CONT LEVER
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> ID=10.5 OD=18 		9-09160-510-0 02 1 0408- ●
59 PIN; PTO CONT LEVER
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> OD=2.8 L=18 		9-08113-018-0 02 1 0408- ●
60 SHAFT; PTO CONT LEVER
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		8-97309-251-0 01 1 0408- ●
61 WASHER; LK,CONT LVR,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> ID=10.2 		9-09150-510-0 01 1 0408- ●
63 BRACKET; CONT LVR,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		8-97309-249-1 01 1 0408- ●
64 BOLT; CONT LEVER
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> M10X60 		0-10806-060-0 01 1 0408- ●
65 NUT; CONT LEVER
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> M10 		9-09110-510-0 01 1 0408- ●
66 BALL; SHIFTER ROD,TRANS SIDE PTO
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		9-00097-009-0 01 1 0408- ●
155 PLUG; SHIFTER ROD
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> 		8-97309-248-0 01 1 0408- ●
155 PLUG; SHIFTER ROD
PTO TRANSMISSION SIDE<V66> OD=24 L=31 		9-33545-011-0 01 1 0309-0402 ●
155 PLUG; SHIFTER ROD
PTO TRANSMISSION SIDE<V66> 		8-97374-349-0 01 1 0403-0407 ●
155 PLUG; SHIFTER ROD
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> 		8-97374-349-0 01 1 0408- ●
186 RING; SNAP,IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE<V66> 		8-97106-730-0 01 1 0309-0407 ●
186 RING; SNAP,IDLE GEAR,TRANS SIDE PTO
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> 		8-97106-730-0 01 1 0408- ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> T=1.50 		8-97106-724-0 02 1 0309-0407 ●
196 PIECE; THRUST
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> T=1.50 		8-97106-724-0 02 1 0408- ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> T=1.60 		8-97106-725-0 02 1 0309-0407 ●
196 PIECE; THRUST
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> T=1.60 		8-97106-725-0 02 1 0408- ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> T=1.65 		8-97106-726-0 02 1 0309-0407 ●
196 PIECE; THRUST
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> T=1.65 		8-97106-726-0 02 1 0408- ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> T=1.70 		8-97106-727-0 02 1 0309-0407 ●
196 PIECE; THRUST
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> T=1.70 		8-97106-727-0 02 1 0408- ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> T=1.80 		8-97106-728-0 02 1 0309-0407 ●
196 PIECE; THRUST
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> T=1.80 		8-97106-728-0 02 1 0408- ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE<V66> T=1.85 		8-97106-729-0 02 1 0309-0407 ●
196 PIECE; THRUST
4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> T=1.85 		8-97106-729-0 02 1 0408- ●
205 BOLT; BRKT,PTO,TRANS SIDE
4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> M10X20 FLANGE 		0-28181-020-0 02 1 0408- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
