2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#19950) — 137 parça

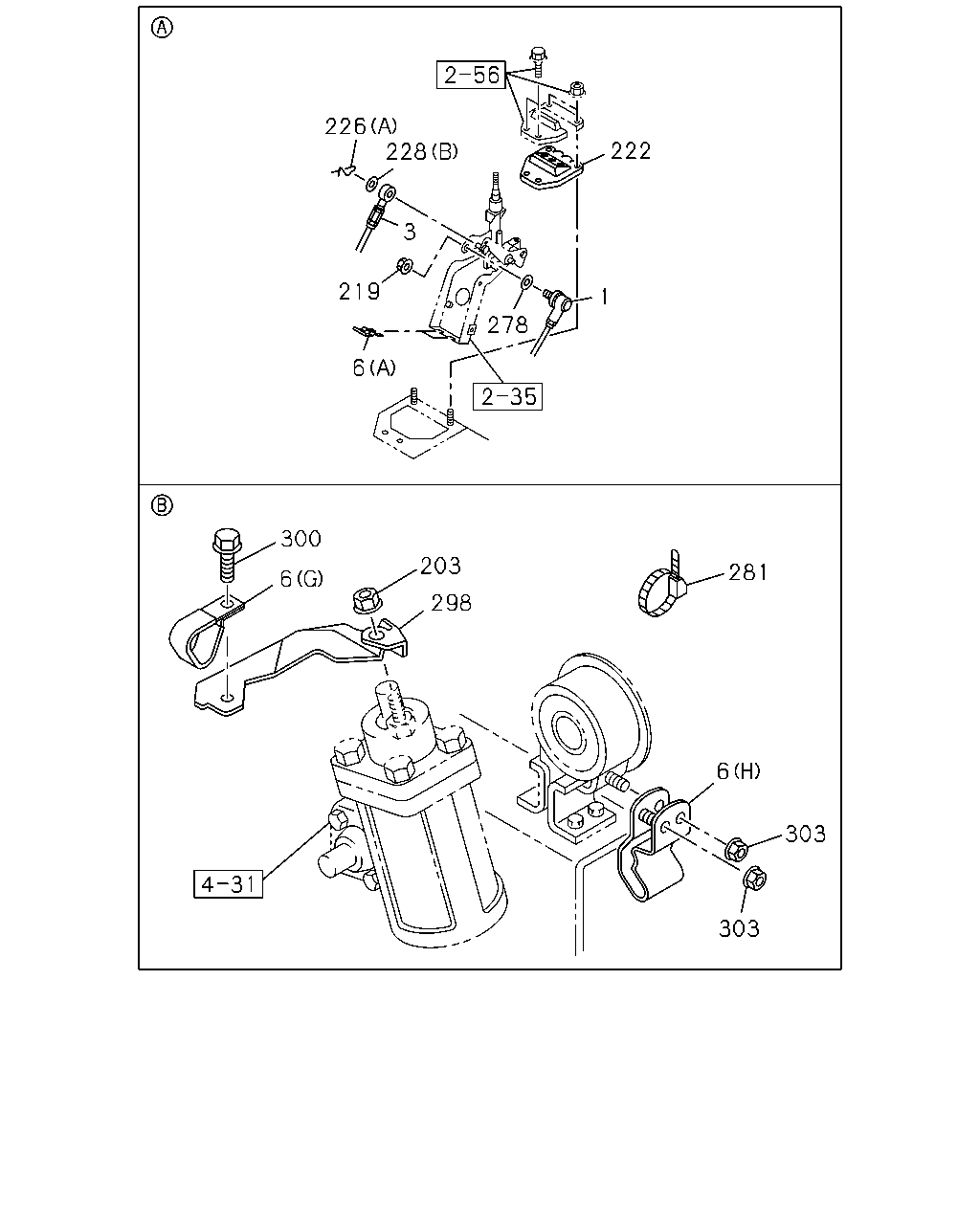

226 228 222 3 219 1 278 6 300 203 281 6 298 6 303 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT 4HE1 ENG<RLY> L=3070	8-97329-417-0	01	1	0408-	●
1	CABLE; SHIFT,TRANS CONT 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> L=3055	8-97350-425-1	01	1	0309-		●
1	CABLE; SHIFT,TRANS CONT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> L=2776	8-97350-417-1	01	1	0309-		●
3	CABLE; SELECT,TRANS CONT 4HE1 ENG<RLY> L=3151	8-97329-418-0	01	1	0408-	●
3	CABLE; SELECT,TRANS CONT 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> L=3113	8-97350-426-0	01	1	0309-		●
3	CABLE; SELECT,TRANS CONT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> L=2819	8-97350-418-0	01	1	0309-		●
6	CLIP; CABLE (C) ID=22.2 THA	1-09701-209-1	01	1	0309-0407		●
6	CLIP; CABLE (C) ID=22.2 THA	1-09701-209-1	01	1	0408-	●	●
6	CLIP; CABLE (A)	8-97011-448-0	02	1	0309-0407		●
6	CLIP; CABLE (A)	8-97011-448-0	02	1	0408-	●	●
6	CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0309-0407		●
6	CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0408-	●	●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0309-0407		●
6	CLIP; CABLE 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0309-0407		●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0408-	●	●
6	CLIP; CABLE 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0408-	●
6	CLIP; CABLE 4HE1 ENG<RLY> (H)	8-97147-985-0	01	1	0309-0407		●
6	CLIP; CABLE 4HE1 ENG<RLY> (H)	8-97147-985-0	01	1	0408-	●
6	CLIP; CABLE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (E)	5-09700-341-0	01	1	0309-0403		●
6	CLIP; CABLE 4HG1 ENG<RJH> (E)	5-09700-341-0	01	1	0404-		●
6	CLIP; CABLE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	9-09917-171-0	01	1	0309-0403		●
6	CLIP; CABLE 4HG1 ENG<RJH> (D)	9-09917-171-0	01	1	0404-		●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0309-0407		●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0408-	●	●
203	NUT; BRKT FIX 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	01	1	0309-0407		●
203	NUT; BRKT FIX 4HE1 ENG<RLY> POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0309-0407		●
203	NUT; BRKT FIX 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	01	1	0408-		●
203	NUT; BRKT FIX 4HE1 ENG<RLY> POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0408-	●
219	NUT; FLANGE,SHAFT CABLE M8 T=8.0	8-94363-045-0	01	1	0309-0407		●
219	NUT; FLANGE,SHAFT CABLE M8 T=8.0	8-94363-045-0	01	1	0408-	●	●
222	GROMMET; CABLE	8-97065-212-1	01	1	0309-0407		●
222	GROMMET; CABLE	8-97065-212-1	01	1	0408-	●	●
226	PIN; SHIFT CABLE (A) L=27.7	8-94111-137-0	01	1	0309-0407		●
226	PIN; SHIFT CABLE (A) L=27.7	8-94111-137-0	01	1	0408-	●	●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0309-0407		●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0408-	●	●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0309-0407		●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0408-	●	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0309-0407		●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0408-	●	●
278	WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0309-0407		●
278	WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0408-	●	●
281	CLIP; BAND L=250 THA	5-09707-030-1	01	1	0309-0407		●
281	CLIP; BAND L=250 THA	5-09707-030-1	01	1	0408-	●	●
298	BRACKET 4HE1 ENG<RLY> POWER STEERING<N40>	8-97288-446-0	01	1	0309-0407		●
298	BRACKET 4HE1 ENG<RLY> POWER STEERING<N40>	8-97288-446-0	01	1	0408-	●
300	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	02	1	0309-0407		●
300	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	02	1	0408-	●	●
300	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> M8X16 FLANGE	0-28080-816-0	01	1	0309-0407		●
300	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> M8X16 FLANGE	0-28080-816-0	01	1	0408-	●	●
300	BOLT; CLIP POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0309-0407		●
300	BOLT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0309-0407		●
300	BOLT; CLIP POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0408-	●	●
300	BOLT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0408-	●	●
303	NUT; CLIP 4HE1 ENG<RLY> M8 FLANGE	0-91150-108-0	03	1	0309-0407		●
303	NUT; CLIP 4HE1 ENG<RLY> M8 FLANGE	0-91150-108-0	03	1	0408-	●
303	NUT; CLIP 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	01	1	0309-		●

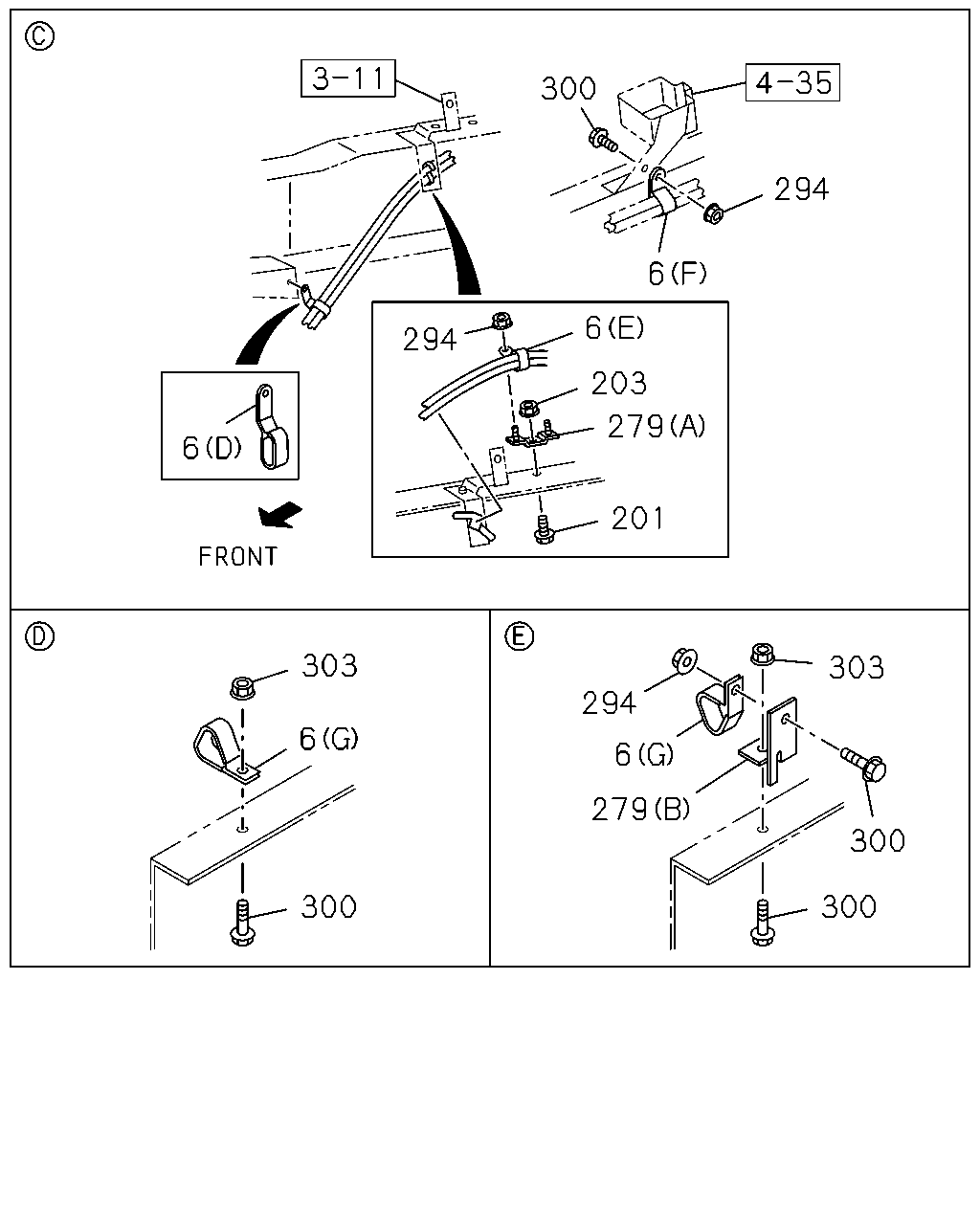

300 294 6 6 294 203 279 6 201 303 303 294 6 6 279 300 300 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	CLIP; CABLE (C) ID=22.2 THA	1-09701-209-1	01	1	0309-0407		●
6	CLIP; CABLE (C) ID=22.2 THA	1-09701-209-1	01	1	0408-	●	●
6	CLIP; CABLE (A)	8-97011-448-0	02	1	0309-0407		●
6	CLIP; CABLE (A)	8-97011-448-0	02	1	0408-	●	●
6	CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0309-0407		●
6	CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0408-	●	●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0309-0407		●
6	CLIP; CABLE 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0309-0407		●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0408-	●	●
6	CLIP; CABLE 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0408-	●
6	CLIP; CABLE 4HE1 ENG<RLY> (H)	8-97147-985-0	01	1	0309-0407		●
6	CLIP; CABLE 4HE1 ENG<RLY> (H)	8-97147-985-0	01	1	0408-	●
6	CLIP; CABLE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (E)	5-09700-341-0	01	1	0309-0403		●
6	CLIP; CABLE 4HG1 ENG<RJH> (E)	5-09700-341-0	01	1	0404-		●
6	CLIP; CABLE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	9-09917-171-0	01	1	0309-0403		●
6	CLIP; CABLE 4HG1 ENG<RJH> (D)	9-09917-171-0	01	1	0404-		●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0309-0407		●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0408-	●	●
201	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0309-0407		●
201	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0408-	●	●
203	NUT; BRKT FIX 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	01	1	0309-0407		●
203	NUT; BRKT FIX 4HE1 ENG<RLY> POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0309-0407		●
203	NUT; BRKT FIX 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	01	1	0408-		●
203	NUT; BRKT FIX 4HE1 ENG<RLY> POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0408-	●
279	BRACKET; CABLE TO FRAME 4HE1 ENG<RLY> (B)	8-97171-065-0	01	1	0309-0407		●
279	BRACKET; CABLE TO FRAME 4HE1 ENG<RLY>	8-97171-065-0	01	1	0408-	●
279	BRACKET; CABLE TO FRAME 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-496-1	01	1	0309-		●
294	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0309-0407		●
294	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0408-	●	●
300	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	02	1	0309-0407		●
300	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	02	1	0408-	●	●
300	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> M8X16 FLANGE	0-28080-816-0	01	1	0309-0407		●
300	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> M8X16 FLANGE	0-28080-816-0	01	1	0408-	●	●
300	BOLT; CLIP POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0309-0407		●
300	BOLT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0309-0407		●
300	BOLT; CLIP POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0408-	●	●
300	BOLT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0408-	●	●
303	NUT; CLIP 4HE1 ENG<RLY> M8 FLANGE	0-91150-108-0	03	1	0309-0407		●
303	NUT; CLIP 4HE1 ENG<RLY> M8 FLANGE	0-91150-108-0	03	1	0408-	●
303	NUT; CLIP 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	01	1	0309-		●

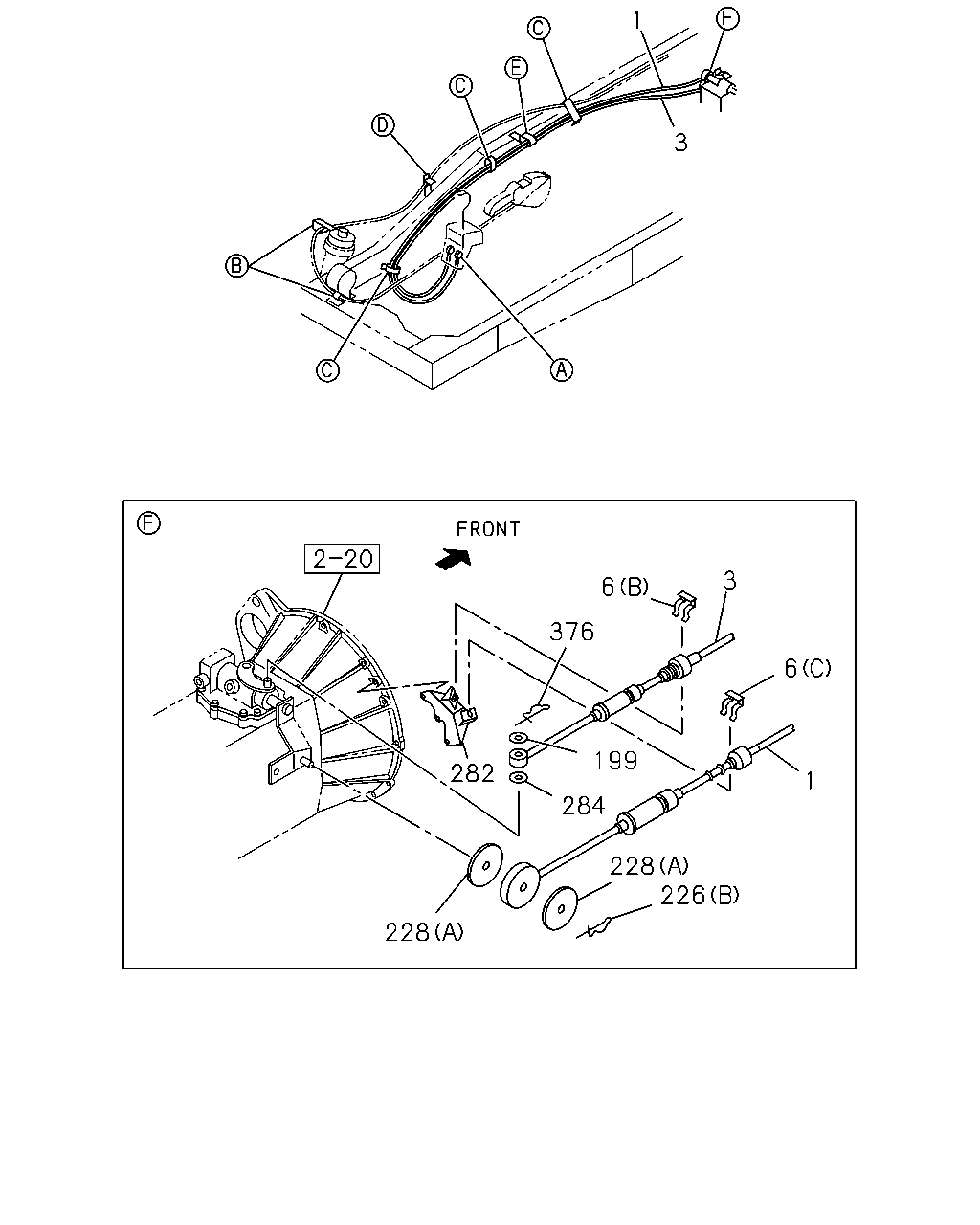

1 3 3 6 376 6 199 282 1 284 228 226 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT 4HE1 ENG<RLY> L=3070	8-97329-417-0	01	1	0408-	●
1	CABLE; SHIFT,TRANS CONT 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> L=3055	8-97350-425-1	01	1	0309-		●
1	CABLE; SHIFT,TRANS CONT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> L=2776	8-97350-417-1	01	1	0309-		●
3	CABLE; SELECT,TRANS CONT 4HE1 ENG<RLY> L=3151	8-97329-418-0	01	1	0408-	●
3	CABLE; SELECT,TRANS CONT 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> L=3113	8-97350-426-0	01	1	0309-		●
3	CABLE; SELECT,TRANS CONT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> L=2819	8-97350-418-0	01	1	0309-		●
6	CLIP; CABLE (C) ID=22.2 THA	1-09701-209-1	01	1	0309-0407		●
6	CLIP; CABLE (C) ID=22.2 THA	1-09701-209-1	01	1	0408-	●	●
6	CLIP; CABLE (A)	8-97011-448-0	02	1	0309-0407		●
6	CLIP; CABLE (A)	8-97011-448-0	02	1	0408-	●	●
6	CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0309-0407		●
6	CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0408-	●	●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0309-0407		●
6	CLIP; CABLE 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0309-0407		●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0408-	●	●
6	CLIP; CABLE 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0408-	●
6	CLIP; CABLE 4HE1 ENG<RLY> (H)	8-97147-985-0	01	1	0309-0407		●
6	CLIP; CABLE 4HE1 ENG<RLY> (H)	8-97147-985-0	01	1	0408-	●
6	CLIP; CABLE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (E)	5-09700-341-0	01	1	0309-0403		●
6	CLIP; CABLE 4HG1 ENG<RJH> (E)	5-09700-341-0	01	1	0404-		●
6	CLIP; CABLE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	9-09917-171-0	01	1	0309-0403		●
6	CLIP; CABLE 4HG1 ENG<RJH> (D)	9-09917-171-0	01	1	0404-		●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0309-0407		●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0408-	●	●
199	WASHER; PL,SELECT ID=8.4	9-09160-508-0	01	1	0309-0407		●
199	WASHER; PL,SELECT ID=8.4	9-09160-508-0	01	1	0408-	●	●
226	PIN; SHIFT CABLE (A) L=27.7	8-94111-137-0	01	1	0309-0407		●
226	PIN; SHIFT CABLE (A) L=27.7	8-94111-137-0	01	1	0408-	●	●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0309-0407		●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0408-	●	●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0309-0407		●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0408-	●	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0309-0407		●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0408-	●	●
282	BRACKET; TRANS SIDE 4HE1 ENG<RLY>	8-97311-442-1	01	1	0408-	●
282	BRACKET; TRANS SIDE	8-97311-441-1	01	1	0309-		●
284	WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0309-0407		●
284	WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0408-	●	●
376	PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0309-0407		●
376	PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0408-	●	●
