2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#19949) — 50 parça

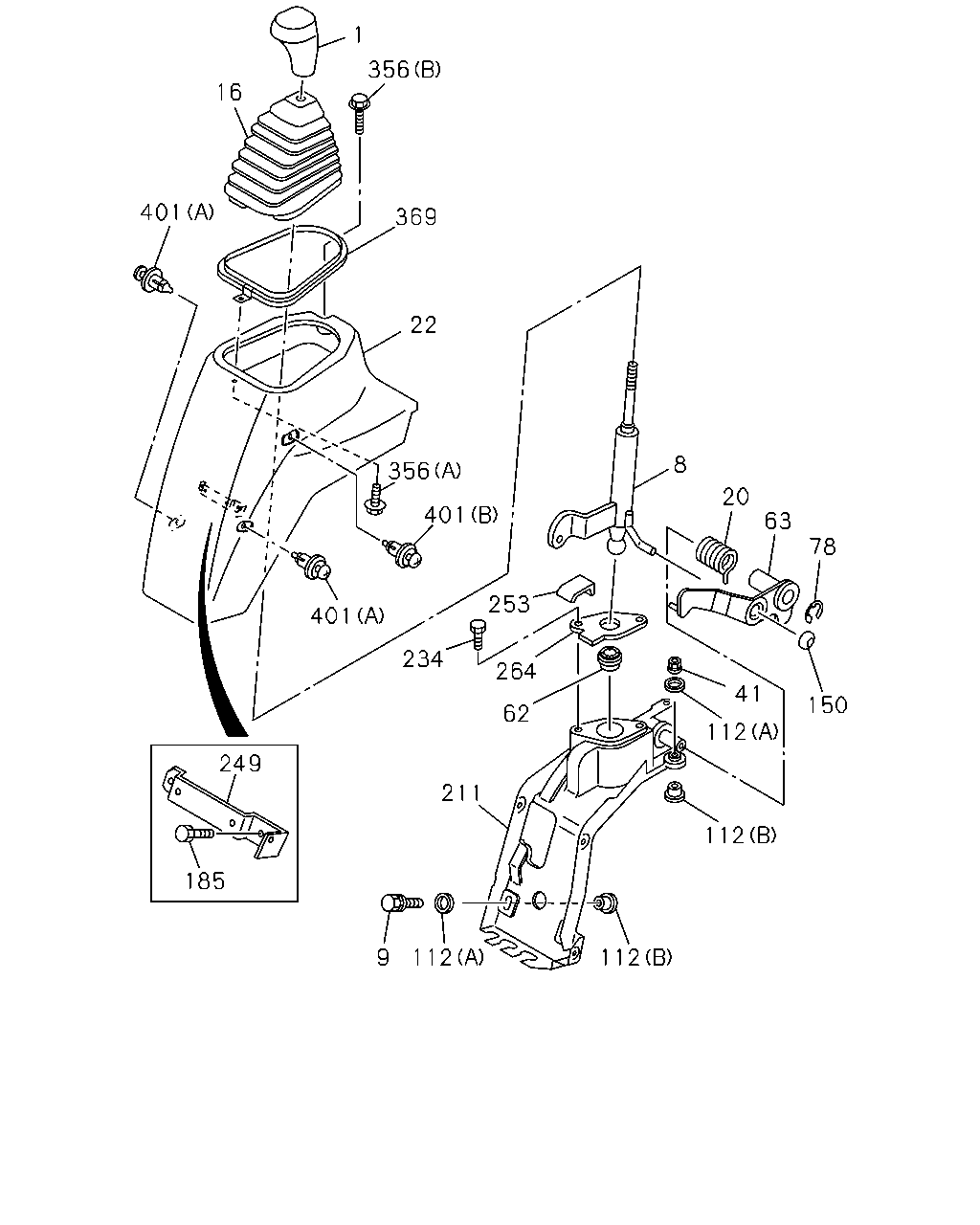

çizim 57943
1 356 16 401 369 22 8 356 20 401 63 78 253 401 234 264 41 150 62 112 249 211 112 185 9 112 112
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
THA 		8-97922-679-0 01 1 0408- ●
1 KNOB; CHANGE LEVER
THA 		8-97922-341-0 01 1 0309- ●
8 LEVER; CHANGE 8-97204-507-0 01 1 0408- ●
8 LEVER; CHANGE 8-97204-506-0 01 1 0309- ●
9 BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 0309-0407 ●
9 BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 0408- ● ●
16 BOOT; CHANGE LEVER 8-97066-287-1 02 1 0309-0407 ●
16 BOOT; CHANGE LEVER 8-97066-287-2 01 1 0408- ● ●
20 SPRING; CHANGE LEVER 8-97204-514-1 01 1 0309-0407 ●
20 SPRING; CHANGE LEVER 8-97204-514-1 01 1 0408- ● ●
22 COVER; DUST,CHANGE LEVER
DARK GRAY 		8-97867-625-3 01 1 0309-0407 ●
22 COVER; DUST,CHANGE LEVER
DARK GRAY 		8-97867-625-3 01 1 0408- ● ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0309-0407 ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0408- ● ●
62 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 0309-0407 ●
62 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 0408- ● ●
63 LEVER; RELAY,SELECT 8-97163-768-0 01 1 0408- ●
63 LEVER; RELAY,SELECT 8-97143-199-0 01 1 0309- ●
78 RING; SNAP,CHANGE LEVER
ID=10 		9-09185-410-0 01 1 0309-0407 ●
78 RING; SNAP,CHANGE LEVER
ID=10 		9-09185-410-0 01 1 0408- ● ●
112 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 0309-0407 ●
112 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 0408- ● ●
112 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 0309-0407 ●
112 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 0408- ● ●
150 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 0309-0407 ●
150 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 0408- ● ●
185 BOLT; BRKT,COVER
M8X20 FLANGE 		0-28680-820-0 02 1 0309-0407 ●
185 BOLT; BRKT,COVER
M8X20 FLANGE 		0-28680-820-0 02 1 0408- ● ●
211 BRACKET; CHANGE LEVER 8-97204-505-1 01 1 0309-0407 ●
211 BRACKET; CHANGE LEVER 8-97204-505-1 01 1 0408- ● ●
234 BOLT; BRKT 8-97204-512-0 02 1 0309-0310 ●
234 BOLT; BRKT
M6X12 FLANGE 		1-33739-842-0 02 1 0311-0407 ●
234 BOLT; BRKT
M6X12 FLANGE 		1-33739-842-0 02 1 0408- ● ●
249 BRACKET; COVER 8-97065-170-0 01 1 0309-0407 ●
249 BRACKET; COVER 8-97065-170-0 01 1 0408- ● ●
253 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 0309-0407 ●
253 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 0408- ● ●
264 PLATE; COVER 8-97204-511-0 01 1 0309-0407 ●
264 PLATE; COVER 8-97204-511-0 01 1 0408- ● ●
356 SCREW; COVER
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 0309-0403 ●
356 SCREW; COVER
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 0404-0407 ●
356 SCREW; COVER
(A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 0408- ● ●
356 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 0309-0407 ●
356 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 0408- ● ●
369 RETAINER; REINF 8-97066-288-0 02 1 0309-0407 ●
369 RETAINER; REINF 8-97066-288-1 01 1 0408- ● ●
401 CLIP; COVER
(A) DARK GRAY 		8-97098-523-0 02 1 0309-0407 ●
401 CLIP; COVER
(A) DARK GRAY 		8-97098-523-0 02 1 0408- ● ●
401 CLIP; COVER
(B) DARK GRAY 		8-97098-524-0 01 1 0309-0407 ●
401 CLIP; COVER
(B) DARK GRAY 		8-97098-524-0 01 1 0408- ● ●
