◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50971 - NPR/NQR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#19948) — 143 parça

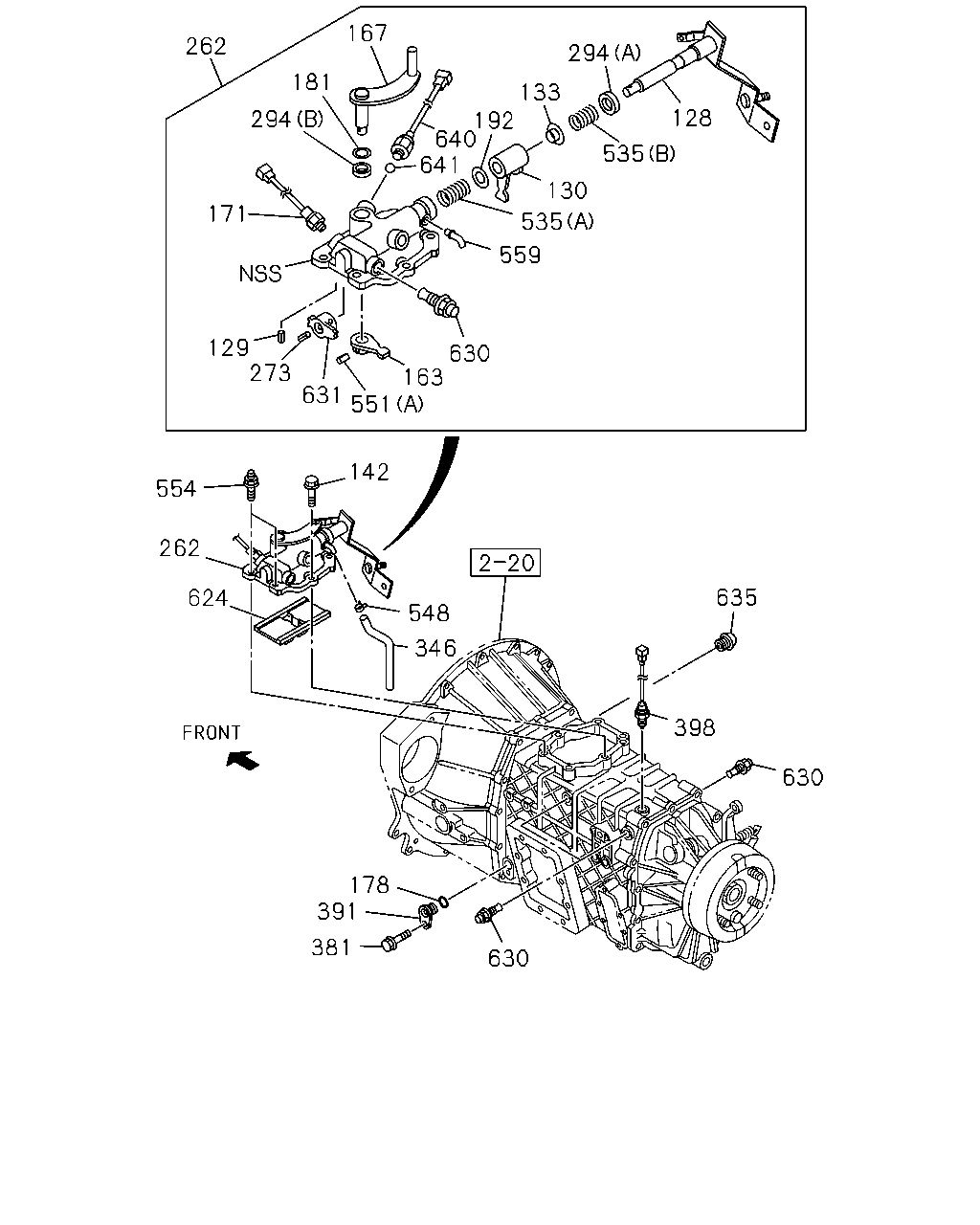

çizim 12017
167 262 294 181 133 192 640 641 128 294 535 130 171 535 559 129 273 630 163 551 631 142 554 262 635 624 548 346 398 630 178 391 381 630
BalonParca AdiParca NoAdetTipApplied Date A B
50 ARM; SHIFT,6TH
4HE1 ENG<RLY> 		8-97241-324-1 01 1 0408- ●
128 LEVER; SHIFT,EXTERNAL
4HE1 ENG<RLY> 		8-97363-226-0 01 1 0408- ●
128 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 0309-0407 ●
128 LEVER; SHIFT,EXTERNAL
4HG1 ENG<RJH> 		8-97305-725-0 01 1 0408- ●
129 PIN; SPR,SHIFT
D=4 		1-09748-031-0 01 1 0309-0407 ●
129 PIN; SPR,SHIFT
D=4 		1-09748-031-0 01 1 0408- ● ●
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 0309-0407 ●
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 0408- ● ●
133 SEAT; SPR 8-97305-667-0 01 1 0309-0407 ●
133 SEAT; SPR
4HG1 ENG<RJH> 		8-97305-667-0 01 1 0408- ●
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-94448-815-3 04 1 0309-0407 ●
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-94448-815-3 04 1 0408- ● ●
163 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 0309-0407 ●
163 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 0408- ● ●
167 LEVER; SELECT,EXTERNAL
4HE1 ENG<RLY> 		8-97305-665-0 01 1 0309-0407 ●
167 LEVER; SELECT,EXTERNAL
4HE1 ENG<RLY> 		8-97306-648-0 01 1 0309-0407 ●
167 LEVER; SELECT,EXTERNAL 8-97306-648-0 01 1 0408- ● ●
171 SWITCH; NEUTRAL 8-97316-688-1 01 1 0309-0407 ●
171 SWITCH; NEUTRAL 8-97316-688-1 01 1 0408- ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 0309-0407 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 0408- ● ●
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 0309-0407 ●
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 0408- ● ●
192 WASHER; PL
4HE1 ENG<RLY> 		8-97305-661-0 02 1 0408- ●
192 WASHER; PL 8-97305-661-0 01 1 0309-0407 ●
192 WASHER; PL
4HG1 ENG<RJH> 		8-97305-661-0 01 1 0408- ●
262 BOX ASM; SHIFT CONT
4HE1 ENG<RLY> 		8-97329-084-1 01 1 0309-0404 ●
262 BOX ASM; SHIFT CONT
4HE1 ENG<RLY> 		8-97362-751-0 01 1 0405-0407 ●
262 BOX ASM; SHIFT CONT
4HE1 ENG<RLY> 		8-97256-823-9 01 1 0408- ●
262 BOX ASM; SHIFT CONT
4HE1 ENG<RLY> 		8-97256-825-7 01 1 0309-0404 ●
262 BOX ASM; SHIFT CONT
4HE1 ENG<RLY> 		8-97362-750-1 01 1 0405-0407 ●
262 BOX ASM; SHIFT CONT
4HG1 ENG<RJH> 		8-97362-750-1 01 1 0408- ●
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 0309-0407 ●
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 0408- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 0309-0407 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 0408- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 0309-0407 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 0408- ● ●
346 HOSE; AIR 8-97309-855-0 01 1 0309-0407 ●
346 HOSE; AIR 8-97309-855-0 01 1 0408- ● ●
372 LEVER; RELAY,6TH
4HE1 ENG<RLY> 		8-97241-342-0 01 1 0408- ●
381 BOLT
M6X16 FLANGE 		0-28680-616-0 01 1 0309-0407 ●
381 BOLT
M6X16 FLANGE 		0-28680-616-0 01 1 0408- ● ●
391 PLUG; SW HOLE 8-97300-273-1 01 1 0309-0407 ●
391 PLUG; SW HOLE 8-97300-273-1 01 1 0408- ● ●
398 SWITCH; REV LAMP 8-97316-688-1 01 1 0309-0407 ●
398 SWITCH; REV LAMP 8-97316-688-1 01 1 0408- ● ●
535 SPRING; LEVER
4HE1 ENG<RLY> 		8-97305-659-0 01 1 0408- ●
535 SPRING; LEVER
4HE1 ENG<RLY> 		8-97305-660-0 01 1 0408- ●
535 SPRING; LEVER
(A) 		8-97323-771-0 01 1 0309-0407 ●
535 SPRING; LEVER
4HG1 ENG<RJH> (A) 		8-97323-771-0 01 1 0408- ●
535 SPRING; LEVER
(B) 		8-97323-772-0 01 1 0309-0407 ●
535 SPRING; LEVER
4HG1 ENG<RJH> (B) 		8-97323-772-0 01 1 0408- ●
548 CLIP; HOSE 8-97031-674-0 01 1 0309-0407 ●
548 CLIP; HOSE 8-97031-674-0 01 1 0408- ● ●
551 PIN; SPRING
4HE1 ENG<RLY> L=32 		8-97011-596-2 05 1 0508- ●
551 PIN; SPRING
(A) L=17 		1-09748-032-0 01 1 0309-0407 ●
551 PIN; SPRING
(A) L=17 		1-09748-032-0 01 1 0408- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 0309-0407 ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 0408-0507 ● ●
551 PIN; SPRING
4HG1 ENG<RJH> L=32 		8-97011-596-2 04 1 0508- ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0309-0407 ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0408- ● ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97352-677-0 02 1 0309-0407 ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97352-677-0 02 1 0408- ● ●
559 PIPE; BREATHER
4HE1 ENG<RLY> 		8-97305-517-0 02 1 0408-0507 ●
559 PIPE; BREATHER 8-97305-517-0 01 1 0309-0407 ●
559 PIPE; BREATHER
4HG1 ENG<RJH> 		8-97305-517-0 01 1 0408-0507 ●
559 PIPE; BREATHER 8-97305-517-0 01 1 0508- ● ●
624 PLATE; INTER LOCK 8-97241-317-2 01 1 0309-0407 ●
624 PLATE; INTER LOCK 8-97241-317-2 01 1 0408- ● ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HE1 ENG<RLY> 		8-97241-334-1 01 1 0408-0507 ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HE1 ENG<RLY> 		8-97383-754-0 01 1 0508- ●
627 ROD; GEAR SHIFT,6TH SUB
4HE1 ENG<RLY> 		8-97241-339-0 01 1 0408- ●
628 BLOCK; SHIFT,LOW,REV & 6TH
4HE1 ENG<RLY> 		8-97241-327-1 02 1 0408- ●
630 DETENT ASM
4HE1 ENG<RLY> 		8-97241-341-0 04 1 0408-0512 ●
630 DETENT ASM
4HE1 ENG<RLY> 		8-98019-536-0 04 1 0601- ●
630 DETENT ASM 8-97241-341-0 03 1 0309-0407 ●
630 DETENT ASM
4HG1 ENG<RJH> 		8-97241-341-0 03 1 0408-0512 ●
630 DETENT ASM
4HG1 ENG<RJH> 		8-98019-536-0 03 1 0601- ●
631 STOPPER; SPRING 8-97305-666-0 01 1 0309-0407 ●
631 STOPPER; SPRING 8-97305-666-0 01 1 0408- ● ●
635 PLUG; DETENT 8-97229-313-2 01 1 0309-0407 ●
635 PLUG; DETENT
4HG1 ENG<RJH> 		8-97229-313-2 01 1 0408- ●
640 SWITCH; SELECT
4HE1 ENG<RLY> 		8-97316-687-1 01 1 0309-0407 ●
641 BALL
4HE1 ENG<RLY> 		8-97305-668-0 01 1 0309-0407 ●
645 DETENT ASM 8-97241-341-0 01 1 0405-0407 ●
645 DETENT ASM
4HG1 ENG<RJH> 		8-97241-341-0 01 1 0408- ●

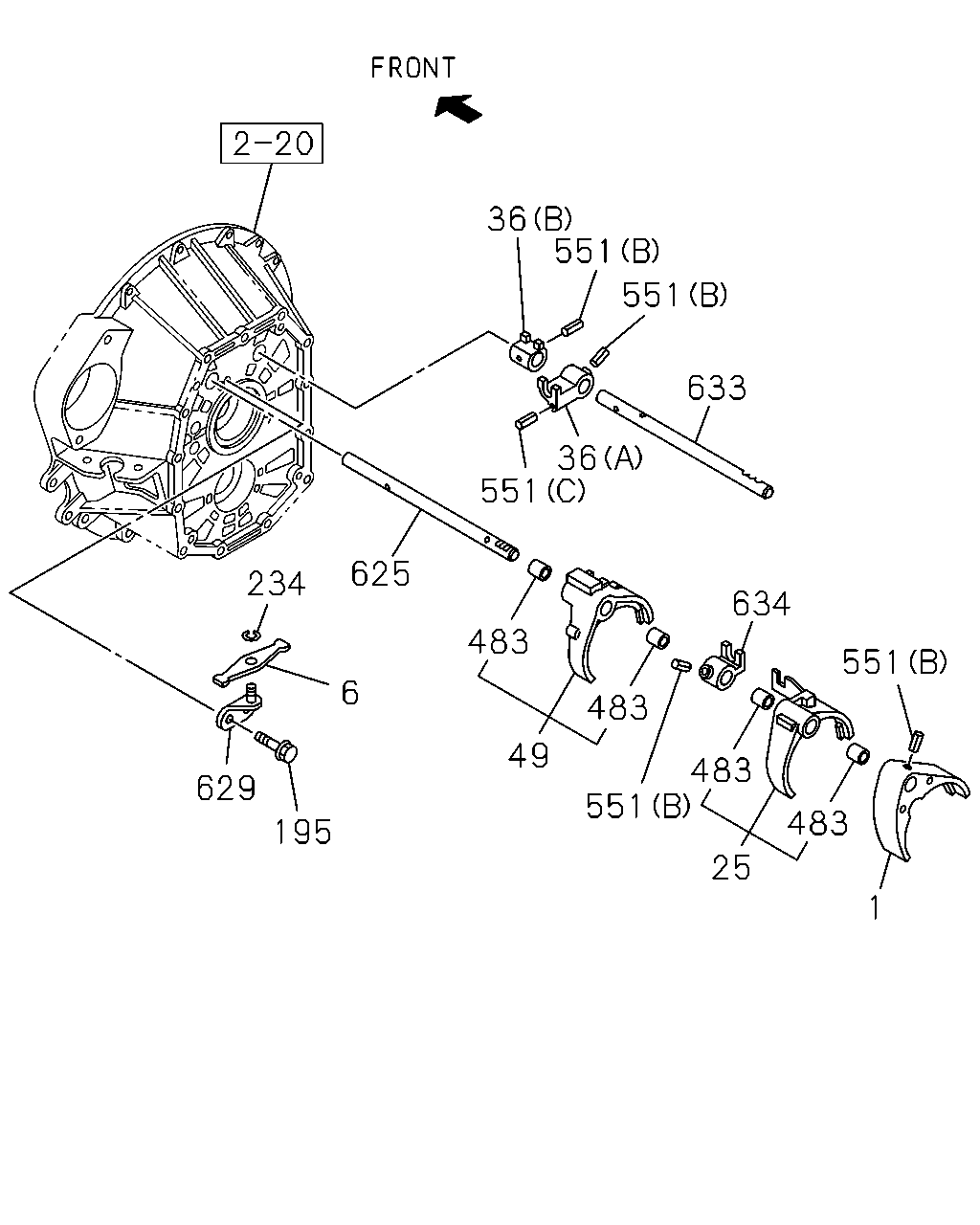

çizim 58315
36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV
4HE1 ENG<RLY> 		8-97241-319-2 01 1 0408- ●
1 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 0309-0407 ●
1 ARM; SHIFT,1ST & REV
4HG1 ENG<RJH> 		8-97241-320-2 01 1 0408- ●
6 LEVER; RELAY 8-97241-344-0 01 1 0309-0407 ●
6 LEVER; RELAY
4HG1 ENG<RJH> 		8-97241-344-0 01 1 0408- ●
25 ARM; SHIFT,2ND & 3RD
4HE1 ENG<RLY> 		8-97258-708-1 01 1 0408-0507 ●
25 ARM; SHIFT,2ND & 3RD
4HE1 ENG<RLY> 		8-97362-737-0 01 1 0508- ●
25 ARM; SHIFT,2ND & 3RD 8-97355-690-0 01 1 0309-0404 ●
25 ARM; SHIFT,2ND & 3RD 8-97362-731-0 01 1 0405-0407 ●
25 ARM; SHIFT,2ND & 3RD
4HG1 ENG<RJH> 		8-97362-731-1 01 1 0408- ●
36 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 0309-0407 ●
36 BLOCK; SHIFT,4TH & 5TH
4HG1 ENG<RJH> (A) 		8-97241-329-1 01 1 0408- ●
36 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 0309-0407 ●
36 BLOCK; SHIFT,4TH & 5TH
4HG1 ENG<RJH> (B) 		8-97241-330-0 01 1 0408- ●
49 ARM; SHIFT,4TH & 5TH
4HE1 ENG<RLY> 		8-97258-709-2 01 1 0408-0507 ●
49 ARM; SHIFT,4TH & 5TH
4HE1 ENG<RLY> 		8-97362-738-0 01 1 0508- ●
49 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 0309-0407 ●
49 ARM; SHIFT,4TH & 5TH
4HG1 ENG<RJH> 		8-97258-716-0 01 1 0408- ●
50 ARM; SHIFT,6TH
4HE1 ENG<RLY> 		8-97241-324-1 01 1 0408- ●
195 BOLT
M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0309-0407 ●
195 BOLT
M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0408- ● ●
234 RING; SNAP
4HE1 ENG<RLY> ID=16.5 		9-09180-418-0 02 1 0408-0507 ●
234 RING; SNAP
4HE1 ENG<RLY> ID=16.5 		9-09180-418-0 01 1 0508- ●
234 RING; SNAP
ID=12 		8-94460-357-0 01 1 0309-0407 ●
234 RING; SNAP
4HG1 ENG<RJH> ID=12 		8-94460-357-0 01 1 0408- ●
372 LEVER; RELAY,6TH
4HE1 ENG<RLY> 		8-97241-342-0 01 1 0408- ●
483 BUSHING; SHIFT ARM 8-97241-326-1 04 1 0309-0407 ●
483 BUSHING; SHIFT ARM 8-97241-326-2 04 1 0408- ● ●
551 PIN; SPRING
4HE1 ENG<RLY> L=32 		8-97011-596-2 05 1 0508- ●
551 PIN; SPRING
(A) L=17 		1-09748-032-0 01 1 0309-0407 ●
551 PIN; SPRING
(A) L=17 		1-09748-032-0 01 1 0408- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 0309-0407 ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 0408-0507 ● ●
551 PIN; SPRING
4HG1 ENG<RJH> L=32 		8-97011-596-2 04 1 0508- ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0309-0407 ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0408- ● ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD
4HE1 ENG<RLY> 		8-97241-332-2 01 1 0408-0507 ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD
4HE1 ENG<RLY> 		8-97362-735-0 01 1 0508- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97241-333-3 01 1 0309-0404 ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-741-0 01 1 0405-0407 ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD
4HG1 ENG<RJH> 		8-97362-741-0 01 1 0408- ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HE1 ENG<RLY> 		8-97241-334-1 01 1 0408-0507 ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HE1 ENG<RLY> 		8-97383-754-0 01 1 0508- ●
627 ROD; GEAR SHIFT,6TH SUB
4HE1 ENG<RLY> 		8-97241-339-0 01 1 0408- ●
628 BLOCK; SHIFT,LOW,REV & 6TH
4HE1 ENG<RLY> 		8-97241-327-1 02 1 0408- ●
629 BRIDGE; LEVER
4HE1 ENG<RLY> 		8-97241-345-1 01 1 0408- ●
629 BRIDGE; LEVER 8-97237-107-1 01 1 0309-0407 ●
629 BRIDGE; LEVER
4HG1 ENG<RJH> 		8-97237-107-1 01 1 0408- ●
633 ROD; GEAR SHIFT,4TH,5TH 8-97358-832-0 01 1 0309-0404 ●
633 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 0405-0407 ●
633 ROD; GEAR SHIFT,4TH,5TH
4HG1 ENG<RJH> 		8-97362-743-0 01 1 0408- ●
634 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 0309-0407 ●
634 BLOCK; SHIFT,LOW,REV
4HG1 ENG<RJH> 		8-97241-327-1 01 1 0408- ●
645 DETENT ASM 8-97241-341-0 01 1 0405-0407 ●
645 DETENT ASM
4HG1 ENG<RJH> 		8-97241-341-0 01 1 0408- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
