◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50971 - NPR/NQR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#19947) — 229 parça

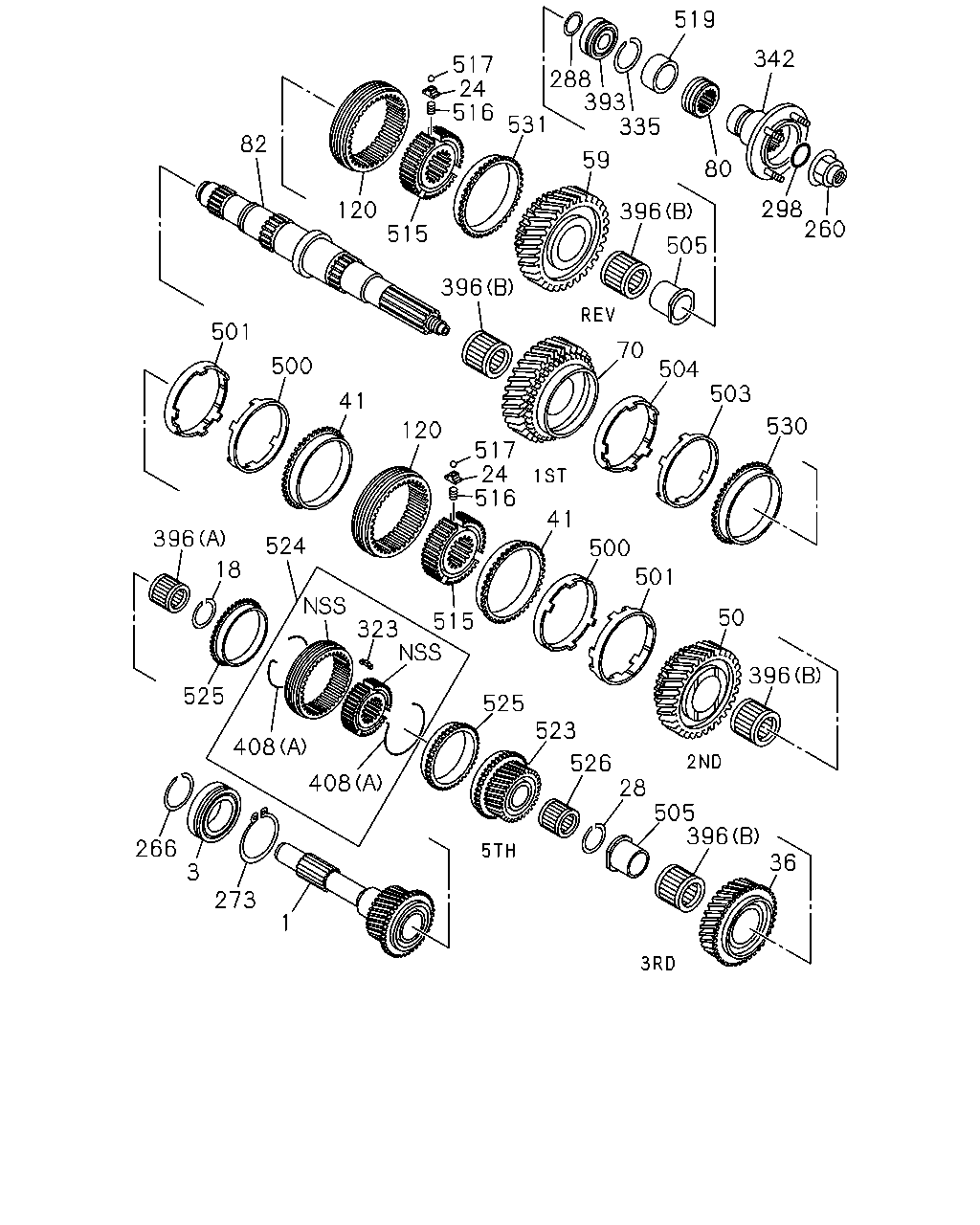

çizim 12016
519 342 517 24 516 288 393 335 531 82 59 80 298 260 120 396 515 505 396 501 70 500 504 503 41 530 120 517 24 516 41 396 524 500 18 501 50 515 323 396 525 525 523 408 526 28 505 396 36 408 266 3 273 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS
4HE1 ENG<RLY> Z=25 		8-97372-362-0 01 1 0408-0506 ●
1 SHAFT; TOP GEAR,TRANS
4HE1 ENG<RLY> Z=25 		8-97371-090-0 01 1 0507- ●
1 SHAFT; TOP GEAR,TRANS
Z=28 		8-97252-924-1 01 1 0309-0407 ●
1 SHAFT; TOP GEAR,TRANS
4HG1 ENG<RJH> Z=28 		8-97252-924-1 01 1 0408- ●
3 BEARING; TOP GEAR SHAFT
4HE1 ENG<RLY> 		8-97253-097-1 01 1 0408- ●
3 BEARING; TOP GEAR SHAFT 8-97253-098-1 01 1 0309-0407 ●
3 BEARING; TOP GEAR SHAFT
4HG1 ENG<RJH> 		8-97253-098-1 01 1 0408- ●
18 RING; SNAP,CLU HUB
4HE1 ENG<RLY> ID=35.7 T=1.8 		8-97256-855-0 01 1 0408- ●
18 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 0309-0407 ●
18 RING; SNAP,CLU HUB
4HG1 ENG<RJH> ID=30.7 T=1.8 		8-97254-728-0 01 1 0408- ●
19 RING; BLOCK,4TH & 5TH
4HE1 ENG<RLY> Z=45 		8-97241-306-1 02 1 0408- ●
20 SLEEVE
4HE1 ENG<RLY> 		8-97241-295-2 02 1 0408- ●
20 SLEEVE
4HE1 ENG<RLY> 		8-97241-296-1 02 1 0408- ●
21 HUB; CLU,4TH & 5TH
4HE1 ENG<RLY> 		8-97241-299-2 01 1 0408- ●
24 BLOCK; INDEX,SYN
4HE1 ENG<RLY> 		8-97241-313-1 12 1 0408- ●
24 BLOCK; INDEX,SYN 8-97241-313-1 06 1 0309-0407 ●
24 BLOCK; INDEX,SYN
4HG1 ENG<RJH> 		8-97241-313-1 06 1 0408- ●
28 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0309-0407 ●
28 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0408- ● ●
30 GEAR; 4TH,MAINSHAFT
4HE1 ENG<RLY> Z=28 		8-97252-628-0 01 1 0408- ●
36 GEAR; 3RD,MAINSHAFT
4HE1 ENG<RLY> Z=31 		8-97252-630-1 01 1 0408- ●
36 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 0309-0407 ●
36 GEAR; 3RD,MAINSHAFT
4HG1 ENG<RJH> Z=34 		8-97241-234-0 01 1 0408- ●
41 RING; BLOCK,2ND & 3RD
4HE1 ENG<RLY> Z=54 		8-97241-305-2 02 1 0408- ●
41 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 0309-0407 ●
41 RING; BLOCK,2ND & 3RD
4HG1 ENG<RJH> Z=45 		8-97241-306-1 02 1 0408- ●
50 GEAR; 2ND,MAINSHAFT
4HE1 ENG<RLY> Z=43 		8-97241-236-1 01 1 0408- ●
50 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 0309-0407 ●
50 GEAR; 2ND,MAINSHAFT
4HG1 ENG<RJH> Z=38 		8-97241-237-1 01 1 0408- ●
59 GEAR; REV MAINSHAFT
4HE1 ENG<RLY> Z=45 		8-97241-243-0 01 1 0408- ●
59 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 0309-0407 ●
59 GEAR; REV MAINSHAFT
4HG1 ENG<RJH> Z=41 		8-97241-244-0 01 1 0408- ●
70 GEAR; 1ST,MAINSHAFT
4HE1 ENG<RLY> Z=45 		8-97241-241-0 01 1 0408- ●
70 GEAR; 1ST,MAINSHAFT
Z=43 		8-97241-242-1 01 1 0309-0404 ●
70 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 0405-0407 ●
70 GEAR; 1ST,MAINSHAFT
4HG1 ENG<RJH> Z=43 		8-97350-010-0 01 1 0408- ●
77 GEAR; 6TH,MAINSHAFT
4HE1 ENG<RLY> Z=20 		8-97252-634-0 01 1 0408- ●
80 GEAR; SPD DRIVE
4HE1 ENG<RLY> Z=4 		8-97253-555-0 01 1 0408- ●
80 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 0309-0407 ●
80 GEAR; SPD DRIVE
4HG1 ENG<RJH> Z=4 		8-97253-556-0 01 1 0408- ●
82 SHAFT; MAIN,TRANS
4HE1 ENG<RLY> Z=26-42-23 		8-97253-115-3 01 1 0408- ●
82 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-117-3 01 1 0309-0407 ●
82 SHAFT; MAIN,TRANS
4HG1 ENG<RJH> Z=28-42-42-21 		8-97253-117-3 01 1 0408- ●
115 BEARING; NEEDLE,6TH,COUNTER
4HE1 ENG<RLY> 		8-97253-113-0 01 1 0408- ●
118 GEAR; 6TH,COUNTER
4HE1 ENG<RLY> Z=47 		8-97241-246-0 01 1 0408- ●
120 SLEEVE 8-97241-296-1 02 1 0309-0407 ●
120 SLEEVE
4HG1 ENG<RJH> 		8-97241-296-1 02 1 0408- ●
121 HUB; CLU,6TH
4HE1 ENG<RLY> 		8-97241-301-2 01 1 0408- ●
260 NUT; MAINSHAFT END
M27 H=25 		8-97253-126-0 01 1 0309-0407 ●
260 NUT; MAINSHAFT END
M27 H=25 		8-97253-126-0 01 1 0408- ● ●
266 RING; SNAP,BRG INNER
4HE1 ENG<RLY> 		8-97286-915-0 01 1 0408- ●
266 RING; SNAP,BRG INNER 8-97286-916-0 01 1 0309-0407 ●
266 RING; SNAP,BRG INNER
4HG1 ENG<RJH> 		8-97286-916-0 01 1 0408- ●
273 RING; SNAP,BRG OUTER
4HE1 ENG<RLY> 		8-97254-609-0 01 1 0408- ●
273 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 0309-0407 ●
273 RING; SNAP,BRG OUTER
4HG1 ENG<RJH> 		8-97254-610-0 01 1 0408- ●
288 SPACER; BRG,MAINSHAFT
4HE1 ENG<RLY> 		8-97252-941-0 01 1 0408- ●
288 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 0309-0407 ●
288 SPACER; BRG,MAINSHAFT
4HG1 ENG<RJH> 		8-97252-942-0 01 1 0408- ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG<RLY> ID=35.7 T=5 		1-09623-379-0 01 1 0408- ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-94481-411-0 01 1 0309-0407 ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG<RJH> ID=30.6 T=5.7 		8-94481-411-0 01 1 0408-0507 ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG<RJH> ID=30.6 T=5.7 		8-98028-226-0 01 1 0508- ●
300 RING; SNAP,COUNTER SHAFT,RR END
4HE1 ENG<RLY> ID=33.2 T=1.7 		8-97288-618-0 01 1 0408- ●
300 RING; SNAP,COUNTER SHAFT,RR END
4HE1 ENG<RLY> ID=33.2 T=1.8 		8-97288-619-0 01 1 0408- ●
300 RING; SNAP,COUNTER SHAFT,RR END
4HE1 ENG<RLY> ID=33.2 T=1.9 		8-97288-620-0 01 1 0408- ●
300 RING; SNAP,COUNTER SHAFT,RR END
4HE1 ENG<RLY> ID=33.2 T=1.6 		8-97365-616-0 01 1 0408- ●
323 INSERT 8-94448-202-2 03 1 0309-0407 ●
323 INSERT
4HG1 ENG<RJH> 		8-94448-202-2 03 1 0408- ●
335 RING; SNAP,BEARING
4HE1 ENG<RLY> 		8-97254-720-0 01 1 0408- ●
335 RING; SNAP,BEARING 8-97254-722-0 01 1 0309-0407 ●
335 RING; SNAP,BEARING
4HG1 ENG<RJH> 		8-97254-722-0 01 1 0408- ●
342 FLANGE; OUTPUT 8-97252-814-1 01 1 0309-0407 ●
342 FLANGE; OUTPUT
4HG1 ENG<RJH> 		8-97252-814-1 01 1 0408- ●
393 BEARING; MAINSHAFT END
4HE1 ENG<RLY> 		8-97253-104-0 01 1 0408- ●
393 BEARING; MAINSHAFT END 8-97253-105-1 01 1 0309-0407 ●
393 BEARING; MAINSHAFT END
4HG1 ENG<RJH> 		8-97253-105-1 01 1 0408- ●
396 BEARING; NEEDLE,MAINSHAFT
4HE1 ENG<RLY> 		8-97253-099-1 01 1 0408- ●
396 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 0309-0407 ●
396 BEARING; NEEDLE,MAINSHAFT
4HG1 ENG<RJH> (A) 		8-97253-102-1 01 1 0408- ●
396 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0309-0407 ●
396 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0408- ● ●
408 SPRING
(B) 		8-94148-196-0 03 1 0309-0407 ●
408 SPRING
4HG1 ENG<RJH> (B) 		8-94148-196-0 03 1 0408- ●
408 SPRING
(A) 		8-94422-075-0 02 1 0309-0404 ●
408 SPRING 8-97366-040-0 02 1 0405-0407 ●
408 SPRING
4HG1 ENG<RJH> 		8-97366-040-1 02 1 0408- ●
432 BEARING; NEEDLE,4TH
4HE1 ENG<RLY> NSK 		8-97253-111-0 01 1 0408- ●
480 WASHER; THRUST,6TH
4HE1 ENG<RLY> 		8-97253-122-0 01 1 0408- ●
500 RING; OUTSIDE,3RD & 2ND
4HE1 ENG<RLY> 		8-97241-307-1 02 1 0408- ●
500 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 0309-0407 ●
500 RING; OUTSIDE,3RD & 2ND
4HG1 ENG<RJH> 		8-97241-309-1 02 1 0408- ●
501 RING; INSIDE,3RD & 2ND
4HE1 ENG<RLY> 		8-97241-311-1 02 1 0408- ●
501 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 0309-0407 ●
501 RING; INSIDE,3RD & 2ND
4HG1 ENG<RJH> 		8-97241-312-1 02 1 0408- ●
503 RING; OUTSIDE,LOW & REV
4HE1 ENG<RLY> 		8-97241-307-1 02 1 0408- ●
503 RING; OUTSIDE,LOW & REV 8-97241-309-1 01 1 0309-0407 ●
503 RING; OUTSIDE,LOW & REV
4HG1 ENG<RJH> 		8-97241-309-1 01 1 0408- ●
504 RING; INSIDE,LOW & REV
4HE1 ENG<RLY> 		8-97241-311-1 02 1 0408- ●
504 RING; INSIDE,LOW & REV 8-97241-312-1 01 1 0309-0407 ●
504 RING; INSIDE,LOW & REV
4HG1 ENG<RJH> 		8-97241-312-1 01 1 0408- ●
505 COLLAR; 3RD & REV 8-97253-119-2 02 1 0309-0407 ●
505 COLLAR; 3RD & REV 8-97253-119-2 02 1 0408- ● ●
506 COLLAR; 6TH,COUNTER
4HE1 ENG<RLY> 		8-97253-120-1 01 1 0408- ●
508 RING; BLOCK,6TH
4HE1 ENG<RLY> Z=45 		8-97241-306-1 01 1 0408- ●
515 HUB; CLU,1ST & REV,2ND & 3RD
4HE1 ENG<RLY> 		8-97239-155-2 02 1 0408- ●
515 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-2 02 1 0309-0407 ●
515 HUB; CLU,1ST & REV,2ND & 3RD
4HG1 ENG<RJH> 		8-97241-298-2 02 1 0408- ●
516 SPRING; SYNCHRO,INDEX
4HE1 ENG<RLY> 		8-97305-803-1 12 1 0408- ●
516 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 0309-0407 ●
516 SPRING; SYNCHRO,INDEX
4HG1 ENG<RJH> 		8-97254-835-0 06 1 0408- ●
517 BALL; SYNCHRO,INDEX
4HE1 ENG<RLY> 		8-97252-935-0 12 1 0408- ●
517 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 0309-0407 ●
517 BALL; SYNCHRO,INDEX
4HG1 ENG<RJH> 		8-97252-935-0 06 1 0408- ●
519 COLLAR; MAINSHAFT END,5TH 8-97252-940-0 01 1 0309-0407 ●
519 COLLAR; MAINSHAFT END,5TH
4HG1 ENG<RJH> 		8-97252-940-0 01 1 0408- ●
523 GEAR; OD,MAINSHAFT
Z=22 		8-97241-231-0 01 1 0309-0407 ●
523 GEAR; OD,MAINSHAFT
4HG1 ENG<RJH> Z=22 		8-97241-231-0 01 1 0408- ●
524 SLEEVE & HUB ASM; TOP-4TH,OD 8-97300-195-0 01 1 0309-0404 ●
524 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 0405-0407 ●
524 SLEEVE & HUB ASM; TOP-4TH,OD
4HG1 ENG<RJH> 		8-97366-526-0 01 1 0408- ●
525 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 0309-0407 ●
525 RING; BLOCK,TOP & 4TH,OD
4HG1 ENG<RJH> Z=45 		8-97309-532-0 02 1 0408- ●
526 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 0309-0407 ●
526 BEARING; NEEDLE,4TH & 5TH
4HG1 ENG<RJH> 		8-97253-112-0 01 1 0408- ●
530 RING; BLOCK,LOW
4HE1 ENG<RLY> Z=54 		8-97241-305-2 01 1 0408- ●
530 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 0309-0407 ●
530 RING; BLOCK,LOW
4HG1 ENG<RJH> Z=45 		8-97241-306-1 01 1 0408- ●
531 RING; BLOCK,REV
4HE1 ENG<RLY> Z=54 		8-97241-305-2 01 1 0408- ●
531 RING; BLOCK,REV
Z=45 		8-97368-343-0 01 1 0309-0407 ●
531 RING; BLOCK,REV
4HG1 ENG<RJH> Z=45 		8-97368-343-0 01 1 0408- ●

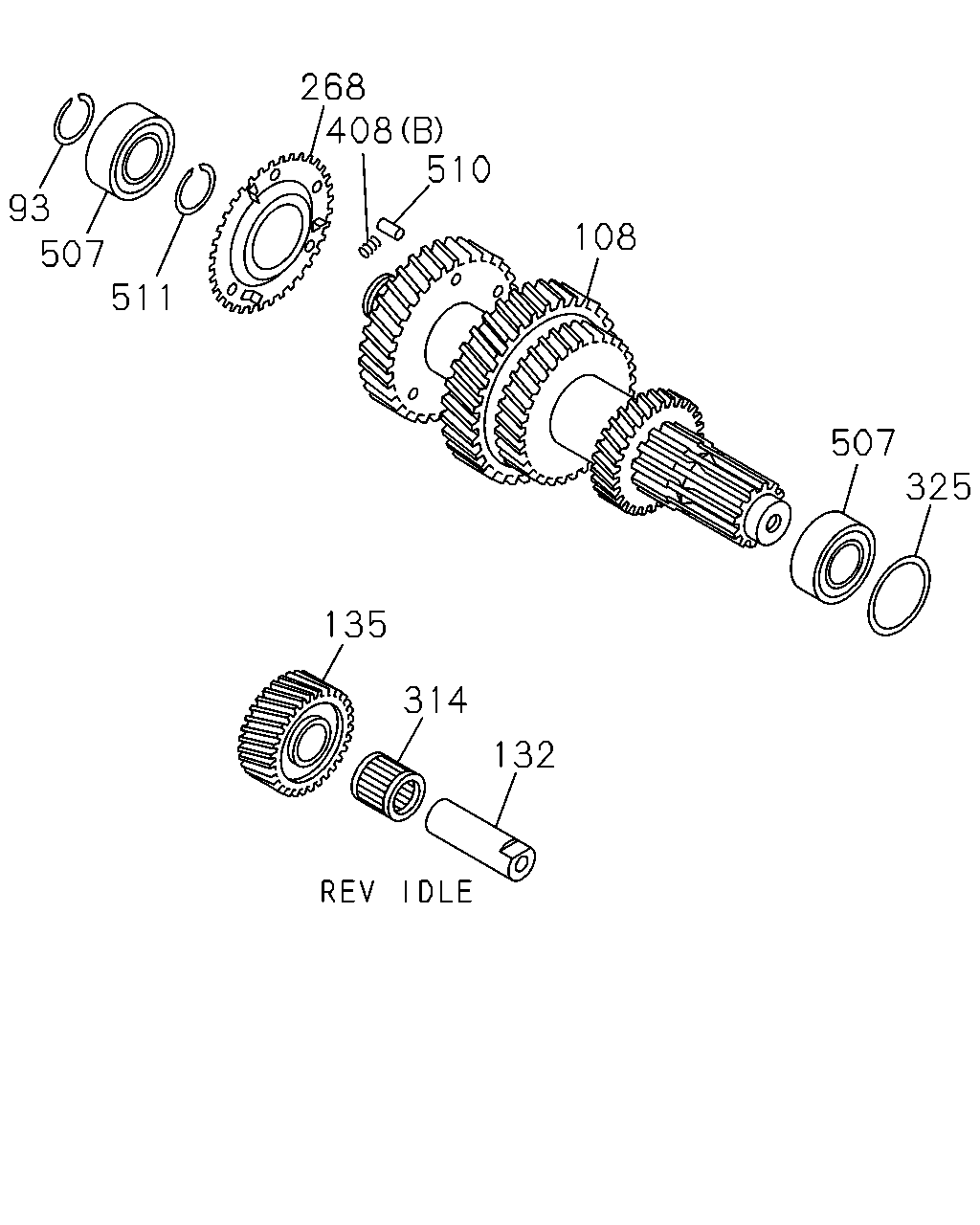

çizim 57952
268 408 510 93 108 507 511 507 325 135 314 132
BalonParca AdiParca NoAdetTipApplied Date A B
19 RING; BLOCK,4TH & 5TH
4HE1 ENG<RLY> Z=45 		8-97241-306-1 02 1 0408- ●
20 SLEEVE
4HE1 ENG<RLY> 		8-97241-295-2 02 1 0408- ●
20 SLEEVE
4HE1 ENG<RLY> 		8-97241-296-1 02 1 0408- ●
21 HUB; CLU,4TH & 5TH
4HE1 ENG<RLY> 		8-97241-299-2 01 1 0408- ●
30 GEAR; 4TH,MAINSHAFT
4HE1 ENG<RLY> Z=28 		8-97252-628-0 01 1 0408- ●
77 GEAR; 6TH,MAINSHAFT
4HE1 ENG<RLY> Z=20 		8-97252-634-0 01 1 0408- ●
93 RING; SNAP,COUNTER FRT BRG
4HE1 ENG<RLY> ID=34.4 T=1.9 		8-97254-735-0 01 1 0408- ●
93 RING; SNAP,COUNTER FRT BRG
4HE1 ENG<RLY> ID=34.4 T=2.1 		8-97254-738-0 01 1 0408- ●
93 RING; SNAP,COUNTER FRT BRG
4HE1 ENG<RLY> ID=34.4 T=2.3 		8-97254-741-0 01 1 0408- ●
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 0309-0407 ●
93 RING; SNAP,COUNTER FRT BRG
4HG1 ENG<RJH> ID=30.7 T=1.9 		8-97254-734-0 01 1 0408- ●
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 0309-0407 ●
93 RING; SNAP,COUNTER FRT BRG
4HG1 ENG<RJH> ID=30.7 T=2.1 		8-97254-740-0 01 1 0408- ●
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 0309-0407 ●
93 RING; SNAP,COUNTER FRT BRG
4HG1 ENG<RJH> ID=30.7 T=2.3 		8-97254-742-0 01 1 0408- ●
108 SHAFT; COUNTER
4HE1 ENG<RLY> Z=46-38-29-21 		8-97349-881-0 01 1 0408- ●
108 SHAFT; COUNTER
Z=45-49-33-20 		8-97326-590-0 01 1 0309-0404 ●
108 SHAFT; COUNTER
Z=45-49-33-20 		8-97380-630-0 01 1 0405-0407 ●
108 SHAFT; COUNTER
4HG1 ENG<RJH> Z=45-49-33-20 		8-97380-630-0 01 1 0408- ●
115 BEARING; NEEDLE,6TH,COUNTER
4HE1 ENG<RLY> 		8-97253-113-0 01 1 0408- ●
118 GEAR; 6TH,COUNTER
4HE1 ENG<RLY> Z=47 		8-97241-246-0 01 1 0408- ●
121 HUB; CLU,6TH
4HE1 ENG<RLY> 		8-97241-301-2 01 1 0408- ●
132 SHAFT; REV 8-97252-655-0 01 1 0309-0407 ●
132 SHAFT; REV 8-97252-655-0 01 1 0408- ● ●
135 GEAR; REV IDLER
4HE1 ENG<RLY> Z=26 		8-97241-292-1 01 1 0408- ●
135 GEAR; REV IDLER
Z=25 		8-97241-293-0 01 1 0309-0407 ●
135 GEAR; REV IDLER
4HG1 ENG<RJH> Z=25 		8-97241-293-0 01 1 0408- ●
268 PLATE; ANTI LASH,COUNTER 8-97257-300-1 01 1 0309-0407 ●
268 PLATE; ANTI LASH,COUNTER
4HG1 ENG<RJH> 		8-97257-300-1 01 1 0408- ●
300 RING; SNAP,COUNTER SHAFT,RR END
4HE1 ENG<RLY> ID=33.2 T=1.7 		8-97288-618-0 01 1 0408- ●
300 RING; SNAP,COUNTER SHAFT,RR END
4HE1 ENG<RLY> ID=33.2 T=1.8 		8-97288-619-0 01 1 0408- ●
300 RING; SNAP,COUNTER SHAFT,RR END
4HE1 ENG<RLY> ID=33.2 T=1.9 		8-97288-620-0 01 1 0408- ●
300 RING; SNAP,COUNTER SHAFT,RR END
4HE1 ENG<RLY> ID=33.2 T=1.6 		8-97365-616-0 01 1 0408- ●
314 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0309-0407 ●
314 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0408- ● ●
325 SHIM; COUNTER SHAFT BRG
4HE1 ENG<RLY> ID=70 T=1.38 		8-97252-656-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
4HE1 ENG<RLY> ID=70 T=1.44 		8-97252-657-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
4HE1 ENG<RLY> ID=70 T=1.50 		8-97252-658-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
4HE1 ENG<RLY> ID=70 T=1.56 		8-97252-659-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
4HE1 ENG<RLY> ID=70 T=1.62 		8-97252-660-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
4HE1 ENG<RLY> ID=70 T=1.68 		8-97252-661-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
4HE1 ENG<RLY> ID=70 T=1.74 		8-97252-662-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
4HE1 ENG<RLY> ID=70 T=1.80 		8-97252-663-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
4HE1 ENG<RLY> ID=70 T=1.86 		8-97252-664-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
4HE1 ENG<RLY> ID=70 T=1.92 		8-97252-665-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
4HE1 ENG<RLY> ID=70 T=1.98 		8-97257-621-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
4HE1 ENG<RLY> ID=70 T=1.20 		8-97306-185-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
4HE1 ENG<RLY> ID=70 T=1.26 		8-97306-186-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
4HE1 ENG<RLY> ID=70 T=1.32 		8-97306-187-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 0309-0407 ●
325 SHIM; COUNTER SHAFT BRG
4HG1 ENG<RJH> ID=62.7 T=2.41 		8-97252-668-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 0309-0407 ●
325 SHIM; COUNTER SHAFT BRG
4HG1 ENG<RJH> ID=62.7 T=2.47 		8-97252-669-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 0309-0407 ●
325 SHIM; COUNTER SHAFT BRG
4HG1 ENG<RJH> ID=62.7 T=2.53 		8-97252-670-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 0309-0407 ●
325 SHIM; COUNTER SHAFT BRG
4HG1 ENG<RJH> ID=62.7 T=2.59 		8-97252-671-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 0309-0407 ●
325 SHIM; COUNTER SHAFT BRG
4HG1 ENG<RJH> ID=62.7 T=2.65 		8-97252-672-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 0309-0407 ●
325 SHIM; COUNTER SHAFT BRG
4HG1 ENG<RJH> ID=62.7 T=2.71 		8-97252-673-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 0309-0407 ●
325 SHIM; COUNTER SHAFT BRG
4HG1 ENG<RJH> ID=62.7 T=2.77 		8-97252-674-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 0309-0407 ●
325 SHIM; COUNTER SHAFT BRG
4HG1 ENG<RJH> ID=62.7 T=2.83 		8-97252-675-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 0309-0407 ●
325 SHIM; COUNTER SHAFT BRG
4HG1 ENG<RJH> ID=62.7 T=2.89 		8-97257-622-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.95 		8-97320-549-0 01 1 0309-0404 ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 0405-0407 ●
325 SHIM; COUNTER SHAFT BRG
4HG1 ENG<RJH> ID=62.7 T=2.29 		8-97252-666-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=3.01 		8-97320-550-0 01 1 0309-0404 ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 0405-0407 ●
325 SHIM; COUNTER SHAFT BRG
4HG1 ENG<RJH> ID=62.7 T=2.35 		8-97252-667-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=3.07 		8-97320-551-0 01 1 0309-0404 ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 0405-0407 ●
325 SHIM; COUNTER SHAFT BRG
4HG1 ENG<RJH> ID=62.7 T=2.11 		8-97306-188-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=3.13 		8-97320-552-0 01 1 0309-0404 ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 0405-0407 ●
325 SHIM; COUNTER SHAFT BRG
4HG1 ENG<RJH> ID=62.7 T=2.17 		8-97306-189-0 01 1 0408- ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=3.19 		8-97320-553-0 01 1 0309-0404 ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 0405-0407 ●
325 SHIM; COUNTER SHAFT BRG
4HG1 ENG<RJH> ID=62.7 T=2.23 		8-97306-190-0 01 1 0408- ●
408 SPRING
(B) 		8-94148-196-0 03 1 0309-0407 ●
408 SPRING
4HG1 ENG<RJH> (B) 		8-94148-196-0 03 1 0408- ●
408 SPRING
(A) 		8-94422-075-0 02 1 0309-0404 ●
408 SPRING 8-97366-040-0 02 1 0405-0407 ●
408 SPRING
4HG1 ENG<RJH> 		8-97366-040-1 02 1 0408- ●
432 BEARING; NEEDLE,4TH
4HE1 ENG<RLY> NSK 		8-97253-111-0 01 1 0408- ●
480 WASHER; THRUST,6TH
4HE1 ENG<RLY> 		8-97253-122-0 01 1 0408- ●
506 COLLAR; 6TH,COUNTER
4HE1 ENG<RLY> 		8-97253-120-1 01 1 0408- ●
507 BEARING; COUNTER SHAFT,FRT & RR
4HE1 ENG<RLY> 		8-97253-106-0 02 1 0408- ●
507 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 0309-0407 ●
507 BEARING; COUNTER SHAFT,FRT & RR
4HG1 ENG<RJH> 		8-97253-107-0 02 1 0408- ●
508 RING; BLOCK,6TH
4HE1 ENG<RLY> Z=45 		8-97241-306-1 01 1 0408- ●
510 PIN; STRAIGHT,ANTI LASH 9-08160-825-0 03 1 0309-0407 ●
510 PIN; STRAIGHT,ANTI LASH
4HG1 ENG<RJH> 		9-08160-825-0 03 1 0408- ●
511 RING; SNAP,ANTI LASH PLATE 8-97254-767-0 01 1 0309-0407 ●
511 RING; SNAP,ANTI LASH PLATE
4HG1 ENG<RJH> 		8-97254-767-0 01 1 0408- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
