2-25 — SPEEDOMETER DRIVEN GEAR (#19946) — 42 parça

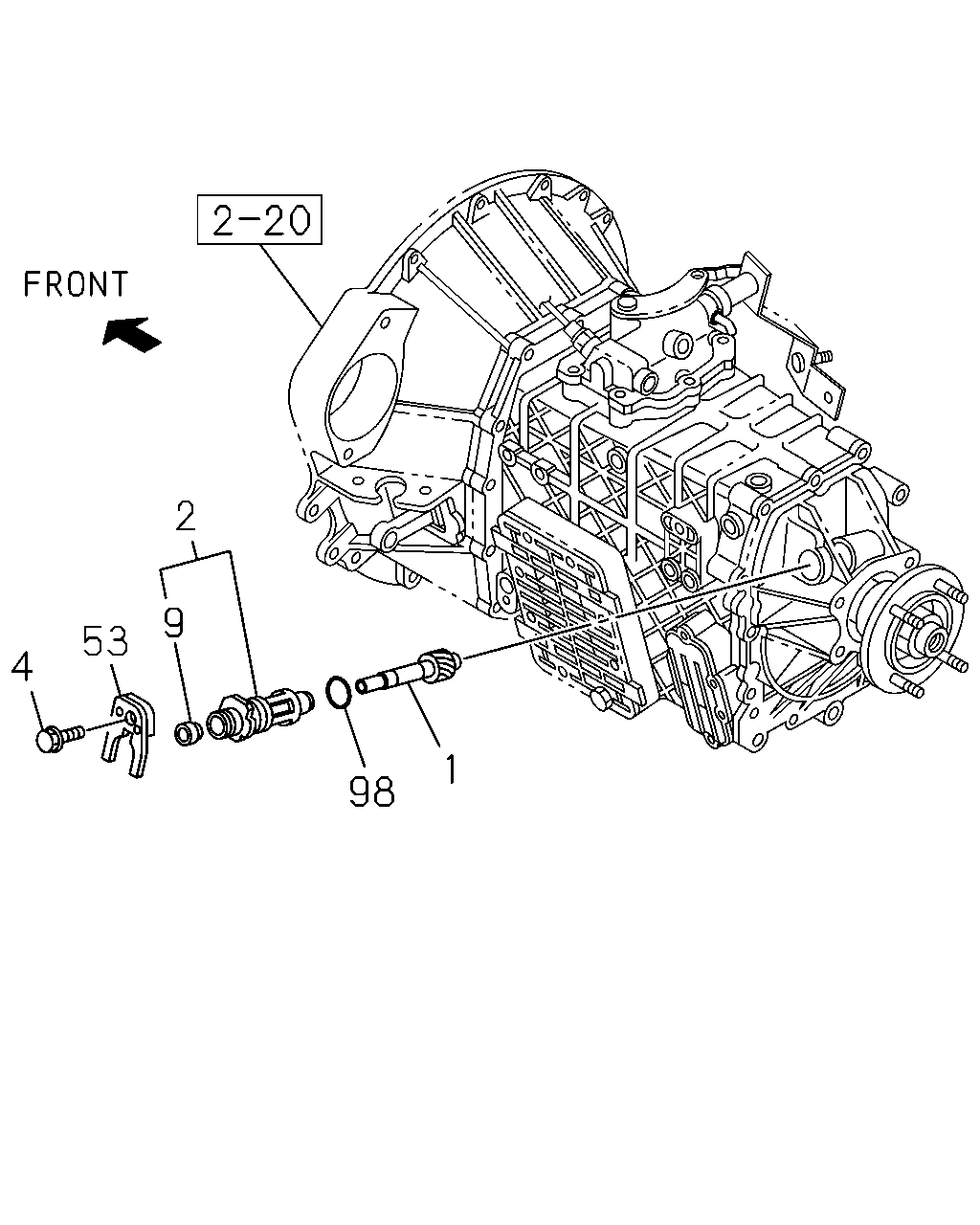

çizim 57946
2 9 53 4 1 98
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GEAR; DRIVEN,SPD
M/T MZZ6F<RSR> FINAL GEAR RATIO 41/8<RU1> FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> Z=12 		8-97253-563-1 01 1 0408- ●
1 GEAR; DRIVEN,SPD
M/T MZZ6F<RSR> FINAL GEAR RATIO 41/10<GT5> FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> Z=10 		8-97253-579-1 01 1 0408- ●
1 GEAR; DRIVEN,SPD
M/T MZZ6F<RSR> FINAL GEAR RATIO 43/10<S7C> FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> Z=10 		8-97253-579-1 01 1 0408- ●
1 GEAR; DRIVEN,SPD
M/T MZZ6F<RSR> FINAL GEAR RATIO 43/10<S7C> FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> Z=11 		8-97253-559-1 01 1 0408- ●
1 GEAR; DRIVEN,SPD
M/T MYY5T<RSM> FINAL GEAR RATIO 39/6<R43> FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> Z=16 		8-97253-558-1 01 1 0309-0407 ●
1 GEAR; DRIVEN,SPD
M/T MYY5T<RSM> FINAL GEAR RATIO 39/6<R43> FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> Z=16 		8-97253-558-1 01 1 0309-0407 ●
1 GEAR; DRIVEN,SPD
M/T MYY5T<RSM> FINAL GEAR RATIO 39/6<R43> FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> Z=16 		8-97253-558-1 01 1 0408- ●
1 GEAR; DRIVEN,SPD
M/T MYY5T<RSM> FINAL GEAR RATIO 39/6<R43> FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> Z=15 		8-97253-560-1 01 1 0309-0407 ● ●
1 GEAR; DRIVEN,SPD
M/T MYY5T<RSM> FINAL GEAR RATIO 43/7<R42> Z=15 		8-97253-560-1 01 1 0309-0407 ●
1 GEAR; DRIVEN,SPD
M/T MYY5T<RSM> FINAL GEAR RATIO 43/7<R42> FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> Z=15 		8-97253-560-1 01 1 0309-0407 ●
1 GEAR; DRIVEN,SPD
M/T MYY5T<RSM> FINAL GEAR RATIO 43/7<R42> Z=15 		8-97253-560-1 01 1 0408- ●
1 GEAR; DRIVEN,SPD
M/T MYY5T<RSM> FINAL GEAR RATIO 39/6<R43> FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> Z=15 		8-97253-560-1 01 1 0408- ●
1 GEAR; DRIVEN,SPD
M/T MYY5T<RSM> FINAL GEAR RATIO 39/7<GV1> Z=14 		8-97253-561-1 01 1 0309- ●
1 GEAR; DRIVEN,SPD
M/T MYY5T<RSM> FINAL GEAR RATIO 41/8<RU1> Z=13 		8-97253-562-1 01 1 0309-0407 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8<RU1> FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> Z=13 		8-97253-562-1 01 1 0408- ●
1 GEAR; DRIVEN,SPD
M/T MYY5T<RSM> FINAL GEAR RATIO 41/8<RU1> Z=13 		8-97253-562-1 01 1 0408- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T<RSM> FINAL GEAR RATIO 39/6<R43> FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> MARK "10,11,16,17" 		8-97253-124-0 01 1 0309-0407 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T<RSM> FINAL GEAR RATIO 39/6<R43> FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> MARK "10,11,16,17" 		8-97253-124-0 01 1 0309-0407 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T<RSM> FINAL GEAR RATIO 39/6<R43> FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> MARK "10,11,16,17" 		8-97253-124-0 01 1 0408- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F<RSR> FINAL GEAR RATIO 41/10<GT5>,FINAL GEAR RATIO 43/10<S7C> FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> MARK "10,11,16,17" 		8-97253-124-0 01 1 0408- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T<RSM> FINAL GEAR RATIO 39/6<R43> FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> MARK "12,13,14,15" 		8-97253-125-0 01 1 0309-0407 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T<RSM> FINAL GEAR RATIO 43/7<R42> MARK "12,13,14,15" 		8-97253-125-0 01 1 0309-0407 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T<RSM> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/8<RU1> MARK "12,13,14,15" 		8-97253-125-0 01 1 0309-0407 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T<RSM> FINAL GEAR RATIO 43/7<R42> FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> MARK "12,13,14,15" 		8-97253-125-0 01 1 0309-0407 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T<RSM> FINAL GEAR RATIO 43/7<R42> MARK "12,13,14,15" 		8-97253-125-0 01 1 0408- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T<RSM> FINAL GEAR RATIO 39/6<R43> FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> MARK "12,13,14,15" 		8-97253-125-0 01 1 0408- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8<RU1> FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> MARK "12,13,14,15" 		8-97253-125-0 01 1 0408- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F<RSR> FINAL GEAR RATIO 41/8<RU1> FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> MARK "12,13,14,15" 		8-97253-125-0 01 1 0408- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T<RSM> FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 41/8<RU1> MARK "12,13,14,15" 		8-97253-125-0 01 1 0408- ●
4 BOLT; RET,DRIVEN GEAR
M/T MYY5T<RSM> M8X20 FLANGE 		0-28680-820-0 01 1 0404-0407 ● ● ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE 		0-28680-820-0 01 1 0408- ●
4 BOLT; RET,DRIVEN GEAR
M/T MYY5T<RSM> M8X20 FLANGE 		0-28680-820-0 01 1 0408- ●
4 BOLT; RET,DRIVEN GEAR
M/T MZZ6F<RSR> M8X20 FLANGE 		0-28680-820-0 01 1 0408- ●
4 BOLT; RET,DRIVEN GEAR
M/T MYY5T<RSM> M8X20 FLANGE 		0-28680-820-0 01 1 0309-0407 ● ● ●
9 SEAL; OIL,DRIVEN GEAR
M/T MYY5T<RSM> NOK 		8-97131-328-1 01 1 0309-0407 ● ● ●
9 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 0408- ● ● ●
53 PLATE; LOCK,DRIVEN GEAR
M/T MYY5T<RSM> 		8-97252-679-2 01 1 0309-0407 ● ● ●
53 PLATE; LOCK,DRIVEN GEAR 8-97252-679-2 01 1 0408- ●
53 PLATE; LOCK,DRIVEN GEAR
M/T MYY5T<RSM> 		8-97252-679-2 01 1 0408- ●
53 PLATE; LOCK,DRIVEN GEAR
M/T MZZ6F<RSR> 		8-97252-679-2 01 1 0408- ●
98 SEAL; OIL,BUSH
M/T MYY5T<RSM> 		9-09561-324-0 01 1 0309-0407 ● ● ●
98 SEAL; OIL,BUSH 9-09561-324-0 01 1 0408- ● ● ●
