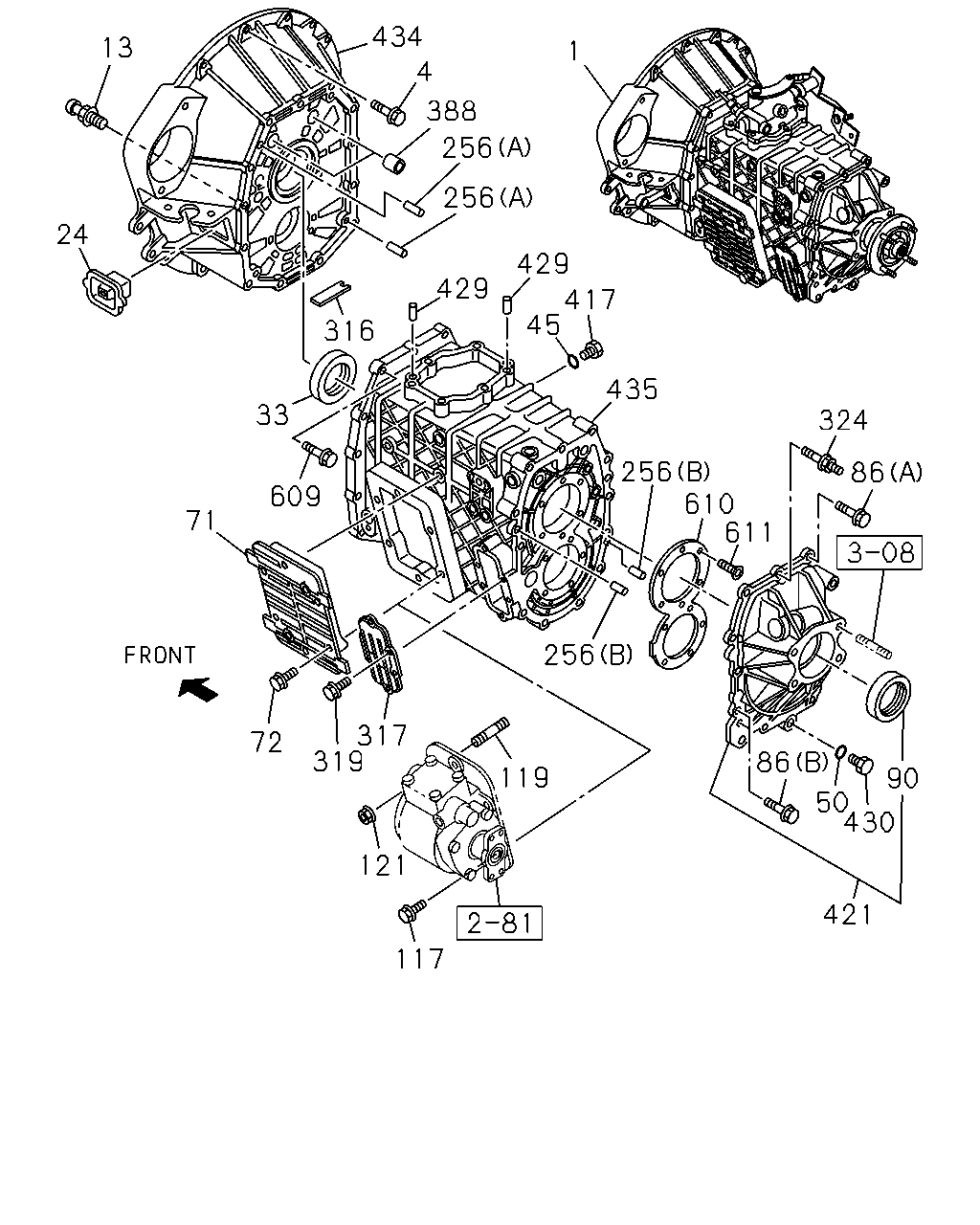

2-20 — MANUAL TRANSMISSION ASM AND CASE (#19945) — 95 parça

434 13 1 4 388 256 256 24 429 429 417 45 316 435 33 324 256 610 611 86 609 71 256 86 317 319 72 119 90 50 430 121 421 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL 4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66>	8-97350-619-0	01	1	0309-0404	●
1	TRANSMISSION ASM; MANUAL 4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66>	8-97373-917-0	01	1	0405-0407	●
1	TRANSMISSION ASM; MANUAL 4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66>	8-97379-203-0	01	1	0408-		●
1	TRANSMISSION ASM; MANUAL 4HE1 ENG<RLY> EXC. PTO TRANSMISSION SIDE<V66>	8-97350-619-0	01	1	0309-0404	●
1	TRANSMISSION ASM; MANUAL 4HE1 ENG<RLY> EXC. PTO TRANSMISSION SIDE<V66>	8-97373-917-0	01	1	0405-0407	●
1	TRANSMISSION ASM; MANUAL 4HE1 ENG<RLY> EXC. PTO TRANSMISSION SIDE<V66>	8-97379-203-0	01	1	0408-		●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66>	8-97350-617-0	01	1	0309-0404	●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66>	8-97373-914-0	01	1	0405-	●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> EXC. PTO TRANSMISSION SIDE<V66>	8-97350-617-0	01	1	0309-0404	●
1	TRANSMISSION ASM; MANUAL 4HG1 ENG<RJH> EXC. PTO TRANSMISSION SIDE<V66>	8-97373-914-0	01	1	0405-	●
4	BOLT; FLYWHEEL HSG 4HE1 ENG<RLY> M10X30 FLANGE	0-28181-030-0	04	1	0408-		●
4	BOLT; FLYWHEEL HSG M10X30 FLANGE	0-28181-030-0	02	1	0309-0407	●
4	BOLT; FLYWHEEL HSG EXC. PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28181-030-0	02	1	0309-0407	●
4	BOLT; FLYWHEEL HSG 4HG1 ENG<RJH> M10X30 FLANGE	0-28181-030-0	02	1	0408-	●
4	BOLT; FLYWHEEL HSG 4HG1 ENG<RJH> EXC. PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28181-030-0	02	1	0408-	●
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28181-035-0	03	1	0309-0407	●
4	BOLT; FLYWHEEL HSG 4HG1 ENG<RJH> M10X35 FLANGE	0-28181-035-0	03	1	0408-	●
4	BOLT; FLYWHEEL HSG 4HE1 ENG<RLY> M10X35 FLANGE	0-28181-035-0	03	1	0408-		●
4	BOLT; FLYWHEEL HSG M10X55 FLANGE THA	8-94399-863-1	02	1	0309-0407	●
4	BOLT; FLYWHEEL HSG 4HG1 ENG<RJH> M10X55 FLANGE THA	8-94399-863-1	02	1	0408-	●
4	BOLT; FLYWHEEL HSG 4HE1 ENG<RLY> M10X55 FLANGE THA	8-94399-863-1	02	1	0408-		●
4	BOLT; FLYWHEEL HSG PTO TRANSMISSION SIDE<V66> M10X35 FLANGE	0-28181-035-0	02	1	0309-0407	●
4	BOLT; FLYWHEEL HSG PTO TRANSMISSION SIDE<V66> M10X35 FLANGE	0-28181-035-0	02	1	0408-	●	●
13	SUPPORT; SHIFT FORK	8-97255-384-1	01	1	0309-0407	●
13	SUPPORT; SHIFT FORK 4HG1 ENG<RJH>	8-97255-384-1	01	1	0408-	●
24	COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	0309-0407	●
24	COVER; CHECK HOLE,DUST 4HG1 ENG<RJH>	8-97255-201-0	01	1	0408-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0309-0407	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0408-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0309-0407	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0408-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0309-0407	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0408-	●	●
71	COVER; SIDE,TRANS CASE 4HE1 ENG<RLY> EXC. PTO TRANSMISSION SIDE<V66>	8-97252-624-0	01	1	0408-		●
71	COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE<V66>	8-97252-625-0	01	1	0309-0407	●
71	COVER; SIDE,TRANS CASE 4HG1 ENG<RJH> EXC. PTO TRANSMISSION SIDE<V66>	8-97252-625-0	01	1	0408-	●
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE	8-97254-833-0	06	1	0309-	●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28181-040-0	10	1	0309-0407	●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28181-040-0	10	1	0408-	●	●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97305-392-0	02	1	0309-0407	●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97305-392-0	02	1	0408-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG<RLY>	8-97253-551-1	01	1	0408-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97253-552-1	01	1	0309-0407	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG<RJH>	8-97253-552-1	01	1	0408-	●
117	BOLT; PTO FIX 4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> M10X28 FLANGE	0-28181-028-0	06	1	0408-		●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28781-030-0	03	1	0309-0407	●
117	BOLT; PTO FIX 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28781-030-0	03	1	0408-	●
119	STUD; PTO FIX 4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> M10X25 L=40	9-04411-025-0	02	1	0408-		●
119	STUD; PTO FIX PTO TRANSMISSION SIDE<V66> M10X25 L=40	9-04411-025-0	03	1	0309-0407	●
119	STUD; PTO FIX 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> M10X25 L=40	9-04411-025-0	03	1	0408-	●
121	NUT; PTO FIX 4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> M10 FLANGE	0-91150-210-0	02	1	0408-		●
121	NUT; PTO FIX PTO TRANSMISSION SIDE<V66> M10 FLANGE	0-91150-210-0	03	1	0309-0407	●
121	NUT; PTO FIX 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> M10 FLANGE	0-91150-210-0	03	1	0408-	●
256	PIN; KNOCK (A) OD=10 L=20	8-97135-423-0	02	1	0309-0407	●
256	PIN; KNOCK (A) OD=10 L=20	8-97135-423-0	02	1	0408-	●	●
256	PIN; KNOCK (B) ID=6 L=12	9-08160-612-0	02	1	0309-0407	●
256	PIN; KNOCK (B) ID=6 L=12	9-08160-612-0	02	1	0408-	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0309-0407	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0408-	●	●
317	COVER; CASE	8-97252-626-0	01	1	0309-0407	●
317	COVER; CASE	8-97252-626-0	01	1	0408-	●	●
319	BOLT; COVER M8X20 FLANGE	0-28080-820-0	06	1	0309-0407	●
319	BOLT; COVER M8X20 FLANGE	0-28080-820-0	06	1	0408-	●	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0309-0407	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0408-	●	●
388	BUSHING; CLU HSG	8-97241-326-1	02	1	0309-0407	●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	0408-	●	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0309-0407	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0408-	●	●
421	COVER; RR,TRANS 4HE1 ENG<RLY>	8-97238-934-3	01	1	0408-		●
421	COVER; RR,TRANS	8-97252-621-0	01	1	0309-0407	●
421	COVER; RR,TRANS 4HG1 ENG<RJH>	8-97252-621-0	01	1	0408-0507	●
421	COVER; RR,TRANS 4HG1 ENG<RJH>	8-98020-029-0	01	1	0508-	●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	0309-0407	●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	0408-	●	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0309-0407	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0408-	●	●
434	HOUSING; CLU 4HE1 ENG<RLY>	8-97238-930-4	01	1	0408-		●
434	HOUSING; CLU	8-97237-099-5	01	1	0309-0407	●
434	HOUSING; CLU 4HG1 ENG<RJH>	8-97237-099-5	01	1	0408-	●
435	CASE; TRANS 4HE1 ENG<RLY>	8-97252-622-5	01	1	0408-0408		●
435	CASE; TRANS 4HE1 ENG<RLY>	8-97382-868-1	01	1	0409-		●
435	CASE; TRANS	8-97252-623-7	01	1	0309-0403	●
435	CASE; TRANS	8-97379-375-0	01	1	0404-0407	●
435	CASE; TRANS 4HG1 ENG<RJH>	8-97379-375-0	01	1	0408-	●
586	BEARING; NEEDLE 4HE1 ENG<RLY>	8-97253-108-0	01	1	0408-		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28181-040-0	13	1	0309-0407	●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28181-040-0	13	1	0408-	●	●
610	RETAINER; BRG 4HE1 ENG<RLY>	8-97241-314-2	01	1	0408-		●
610	RETAINER; BRG	8-97241-315-1	01	1	0309-0407	●
610	RETAINER; BRG 4HG1 ENG<RJH>	8-97241-315-1	01	1	0408-	●
611	SCREW 4HE1 ENG<RLY> M10X27	8-97254-834-2	10	1	0408-		●
611	SCREW M10X27	8-97254-834-2	11	1	0309-0407	●
611	SCREW 4HG1 ENG<RJH> M10X27	8-97254-834-2	11	1	0408-	●
631	SPACER; PTO 4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66>	8-97328-662-0	01	1	0408-		●
