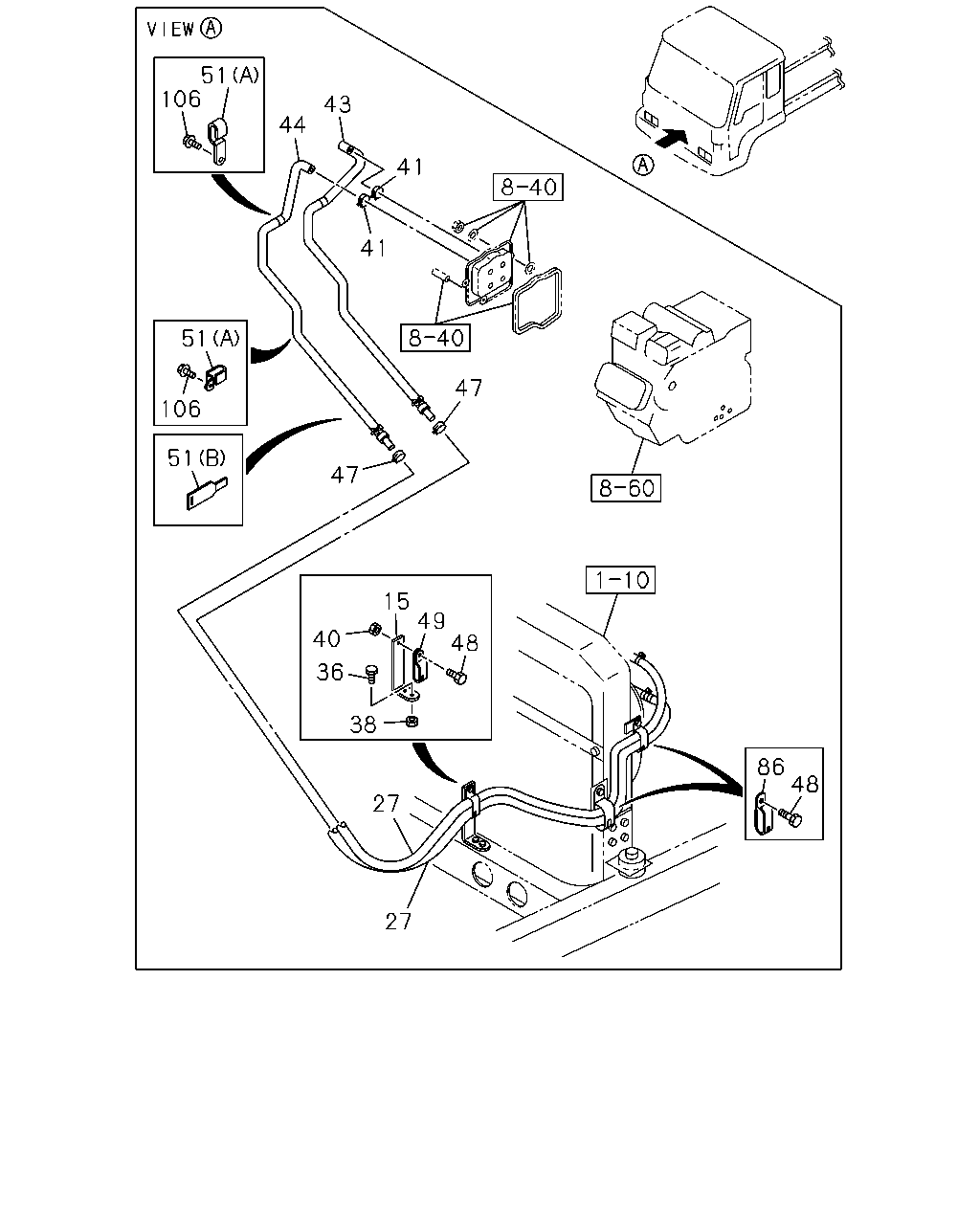

8-45 — HEATER PIPING
(#1994) — 16 parça
Tümü
A - FSS6MC
B - FSS6MF
C - FTS6MC
D - FTS6MF
51
106
43
44
41
41
51
47
106
51
47
15
49
48
40
36
38
86
48
27
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
15
BRACKET; WATER HOSE
HEATER & DEFROSTER<C41>
1-83571-385-1
01
1
9207-
●
●
●
●
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER<C41> (B) L=445+205
1-83565-400-2
01
1
9207-
●
●
●
●
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER<C41> (A) L=525+215
1-83565-401-1
01
1
9207-
●
●
●
●
36
BOLT; BRKT
HEATER & DEFROSTER<C41> M8X20 FLANGE
0-28080-820-0
02
1
9207-
●
●
●
●
38
NUT; BRKT
HEATER & DEFROSTER<C41> M8
9-09110-408-0
02
1
9207-
●
●
●
●
40
NUT; CLIP
HEATER & DEFROSTER<C41> M8
9-09110-408-0
01
1
9207-
●
●
●
●
41
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER<C41> ID=26
1-09704-090-1
02
1
9207-
●
●
●
●
43
HOSE; WATER,OUTLET,HTR
HEATER & DEFROSTER<C41>
1-83565-407-2
01
1
9207-
●
●
●
●
44
HOSE; WATER,HTR,INL
HEATER & DEFROSTER<C41>
1-83565-415-1
01
1
9207-
●
●
●
●
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER<C41> ID=26
1-09704-090-1
04
1
9207-
●
●
●
●
48
BOLT; CLIP FIX
HEATER & DEFROSTER<C41> M8X20 FLANGE
0-28080-820-0
03
1
9207-
●
●
●
●
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER<C41> ID=24X2 L=25
1-09700-710-0
01
1
9207-
●
●
●
●
51
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER<C41> (A)
1-09700-625-0
02
1
9207-
●
●
●
●
51
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER<C41> (B)
1-83574-139-0
02
1
9207-
●
●
●
●
86
CLIP; HTR HOSE
HEATER & DEFROSTER<C41>
9-09917-380-0
02
1
9207-
●
●
●
●
106
BOLT; CLIP,WATER HOSE,HTR
HEATER & DEFROSTER<C41> M6X20 W/LK&PL WASHER
1-09980-493-0
02
1
9207-
●
●
●
●
