Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#19936) — 276 parça

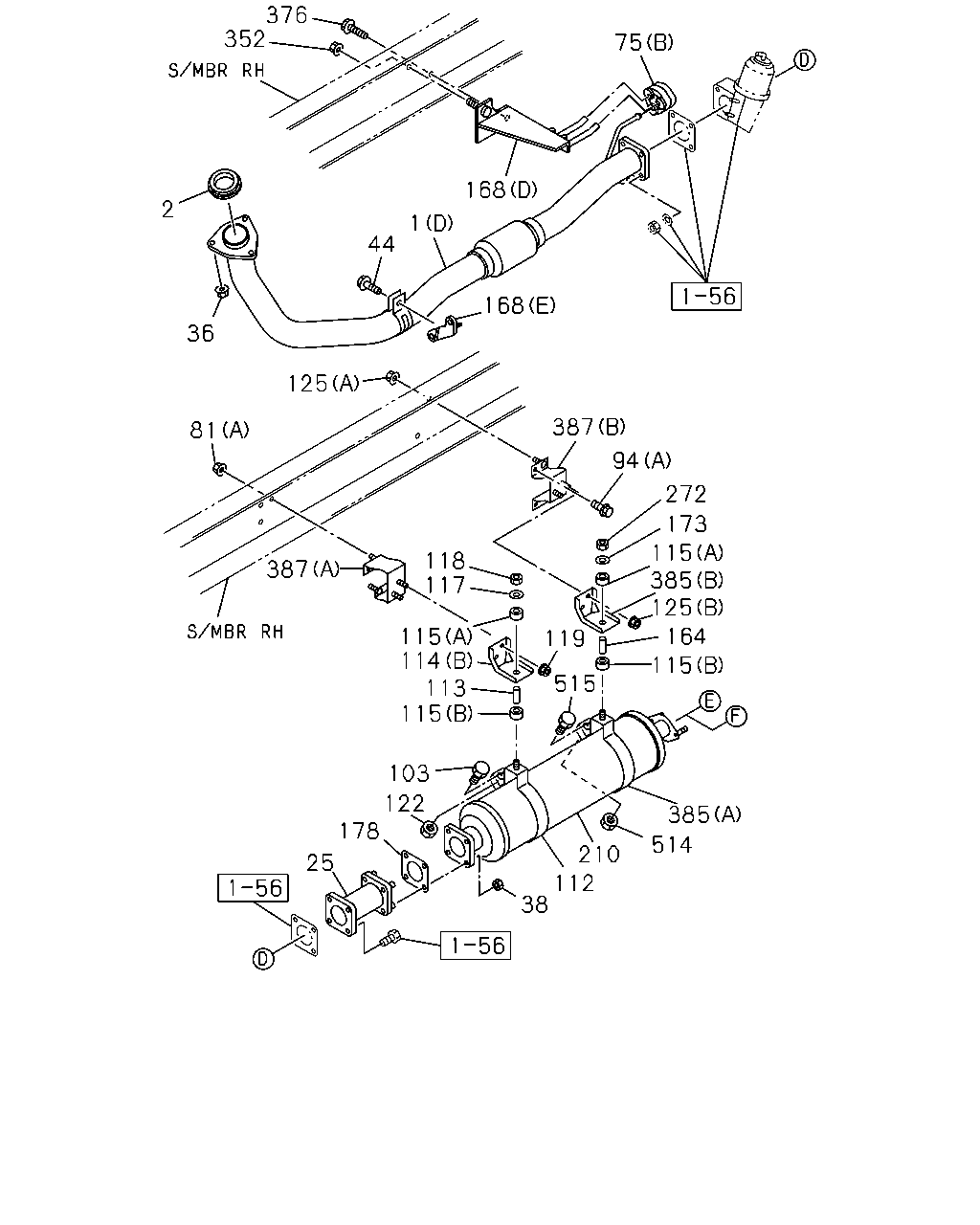

376 352 75 168 2 1 44 168 36 125 387 81 94 272 173 115 385 125 118 117 387 164 115 114 113 115 119 115 515 103 122 178 385 514 210 112 38 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 4HE1 ENG<RLY> (C)	8-97210-052-0	01	1	0408-	●
1	PIPE; EXH 4HG1 ENG<RJH> (A) THA	8-97917-124-1	01	1	0309-	●	●
1	PIPE; EXH 4HE1 ENG<RLY> (D) THA	8-97920-879-0	01	1	0309-	●		●
1	PIPE; EXH (B) THA	8-97917-128-1	01	1	0309-		●
1	PIPE; EXH 4HE1 ENG<RLY> (C) THA	8-97920-934-0	01	1	0309-0407			●
1	PIPE; EXH 4HE1 ENG<RLY> (C) THA	8-97922-683-0	01	1	0408-			●
2	GASKET; PIPE TO MANIF	8-97180-749-2	01	1	0309-0408	●	●	●
2	GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0409-	●	●	●
25	PIPE; EXH,BRK VLV TO SILENCER EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97917-126-1	01	1	0309-	●
25	PIPE; EXH,BRK VLV TO SILENCER THA	8-97917-126-1	01	1	0309-		●
25	PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG<RLY> THA	8-97920-880-0	01	1	0309-0407	●		●
25	PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG<RLY> THA	8-97922-682-0	01	1	0408-	●		●
36	NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0309-	●	●	●
38	NUT; SILENCER 4HG1 ENG<RJH> M10 FLANGE	0-91150-110-0	02	1	0309-0407	●	●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0309-0407		●
38	NUT; SILENCER 4HE1 ENG<RLY> M10 FLANGE	0-91150-110-0	02	1	0309-0407			●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0408-	●	●	●
38	NUT; SILENCER 4HE1 ENG<RLY> M10 FLANGE	0-91150-110-0	02	1	0408-	●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0408-		●	●
38	NUT; SILENCER 4HE1 ENG<RLY> M8 FLANGE	0-91150-108-0	04	1	0309-0407	●		●
44	BOLT; BRKT M8X35 FLANGE	0-28080-835-0	01	1	0309-	●	●	●
75	RUBBER; SUPPORT,BRKT 4HG1 ENG<RJH> (A)	8-97166-498-0	01	1	0309-	●	●
75	RUBBER; SUPPORT,BRKT 4HE1 ENG<RLY> (B)	8-97080-694-0	01	1	0309-	●		●
75	RUBBER; SUPPORT,BRKT 4HE1 ENG<RLY> (C) L=115	8-94156-256-0	01	1	0309-			●
81	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0309-	●	●	●
81	NUT; BRKT 4HE1 ENG<RLY> (A) M10 FLANGE	0-91150-110-0	03	1	0309-	●		●
94	BOLT; CLAMP (B) M8X45	0-20800-845-0	02	1	0309-	●	●	●
94	BOLT; CLAMP 4HE1 ENG<RLY> (A) M10X30 FLANGE	0-28681-030-0	01	1	0309-	●		●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0309-	●	●	●
112	BRACKET; HANGER 4HE1 ENG<RLY>	8-97207-224-0	01	1	0501-	●		●
112	BRACKET; HANGER 4HG1 ENG<RJH>	8-97076-020-0	01	1	0309-0407	●	●
112	BRACKET; HANGER	8-97076-020-0	01	1	0408-0412	●	●	●
112	BRACKET; HANGER 4HG1 ENG<RJH>	8-97076-020-0	01	1	0501-	●	●
112	BRACKET; HANGER 4HE1 ENG<RLY>	8-97207-224-0	01	1	0309-0407	●		●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	01	1	0309-	●	●	●
114	BRACKET; EXH SILENCER EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94329-856-0	01	1	0309-	●
114	BRACKET; EXH SILENCER (A)	8-94329-856-0	01	1	0309-		●
114	BRACKET; EXH SILENCER 4HE1 ENG<RLY> (B)	8-94329-857-0	01	1	0309-	●		●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0309-	●	●	●
115	RUBBER; MTG,SILENCER 4HE1 ENG<RLY> (A)	8-94457-277-1	01	1	0309-	●		●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0309-	●	●	●
115	RUBBER; MTG,SILENCER 4HE1 ENG<RLY> (B)	8-94457-278-1	01	1	0309-	●		●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0309-	●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0309-	●	●	●
119	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-	●	●	●
122	NUT; HANGER BRKT M8	9-09110-408-0	01	1	0405-	●	●	●
122	NUT; HANGER BRKT M8	9-09110-408-0	01	1	0309-0407	●	●	●
125	NUT; CLAMP (C) M8	9-09110-408-0	01	1	0405-	●	●	●
125	NUT; CLAMP (C) M8	9-09110-408-0	01	1	0309-0407	●	●	●
125	NUT; CLAMP 4HE1 ENG<RLY> (B) M8 FLANGE	0-91150-108-0	02	1	0309-	●		●
125	NUT; CLAMP 4HE1 ENG<RLY> (A) M10 FLANGE	0-91150-110-0	02	1	0309-	●		●
164	COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0309-	●	●	●
164	COLLAR; DIST,TAIL PIPE 4HE1 ENG<RLY> L=37.5	9-22151-217-0	01	1	0309-	●		●
168	BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-97096-651-0	01	1	0309-	●
168	BRACKET; EXH PIPE,FRT (B)	8-97096-651-0	01	1	0309-			●
168	BRACKET; EXH PIPE,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (B)	5-22151-044-0	01	1	0309-	●
168	BRACKET; EXH PIPE,FRT (B)	5-22151-044-0	01	1	0309-		●
168	BRACKET; EXH PIPE,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94370-689-2	01	1	0309-	●
168	BRACKET; EXH PIPE,FRT (A)	8-94370-689-2	01	1	0309-		●
168	BRACKET; EXH PIPE,FRT 4HG1 ENG<RJH> (C)	8-97238-728-0	01	1	0309-	●	●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG<RLY> (E)	8-94370-046-4	01	1	0309-	●		●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG<RLY> (D)	8-97214-433-0	01	1	0309-	●		●
173	WASHER; PL 4HE1 ENG<RLY> OD=55	9-09852-169-0	01	1	0309-	●		●
178	GASKET; CONV TO MANIF 4HE1 ENG<RLY> ENGINE POWER N-SPEC<7QV> ID=64	8-97037-694-0	01	1	0309-0403	●		●
178	GASKET; CONV TO MANIF 4HE1 ENG<RLY> ID=64	8-97037-694-0	01	1	0404-0407	●		●
210	CONVERTER 4HE1 ENG<RLY> ENGINE POWER N-SPEC<7QV>	8-97205-851-1	01	1	0309-0403	●		●
210	CONVERTER 4HE1 ENG<RLY>	8-97205-851-1	01	1	0404-0407	●		●
272	NUT; FLANGE 4HE1 ENG<RLY> M10 FLANGE	5-09440-006-0	01	1	0309-	●		●
352	NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	02	1	0309-	●
352	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	0309-		●
376	BOLT; BRKT 4HG1 ENG<RJH> M10X35 FLANGE	0-28681-035-0	02	1	0309-	●	●
376	BOLT; BRKT 4HE1 ENG<RLY> M10X35 FLANGE	0-28681-035-0	01	1	0309-	●		●
385	BRACKET; SILENCER MTG 4HE1 ENG<RLY> (B)	8-94329-857-0	01	1	0309-	●		●
385	BRACKET; SILENCER MTG 4HE1 ENG<RLY> (A)	8-97207-224-0	01	1	0309-0407	●		●
385	BRACKET; SILENCER MTG 4HE1 ENG<RLY>	8-97076-020-0	01	1	0408-0412	●		●
385	BRACKET; SILENCER MTG 4HE1 ENG<RLY>	8-97207-224-0	01	1	0501-	●		●
387	SPACER; BRKT 4HE1 ENG<RLY> (B)	8-97172-493-2	01	1	0309-	●		●
387	SPACER; BRKT 4HE1 ENG<RLY> (A)	8-97218-212-0	01	1	0309-	●		●
514	NUT; BAND 4HE1 ENG<RLY> M8	9-09110-408-0	01	1	0405-	●		●
514	NUT; BAND 4HE1 ENG<RLY> M8	9-09110-408-0	01	1	0309-0407	●		●
515	BOLT; BAND 4HE1 ENG<RLY> M8X45 W/LK WASHER	0-50040-845-0	01	1	0309-	●		●

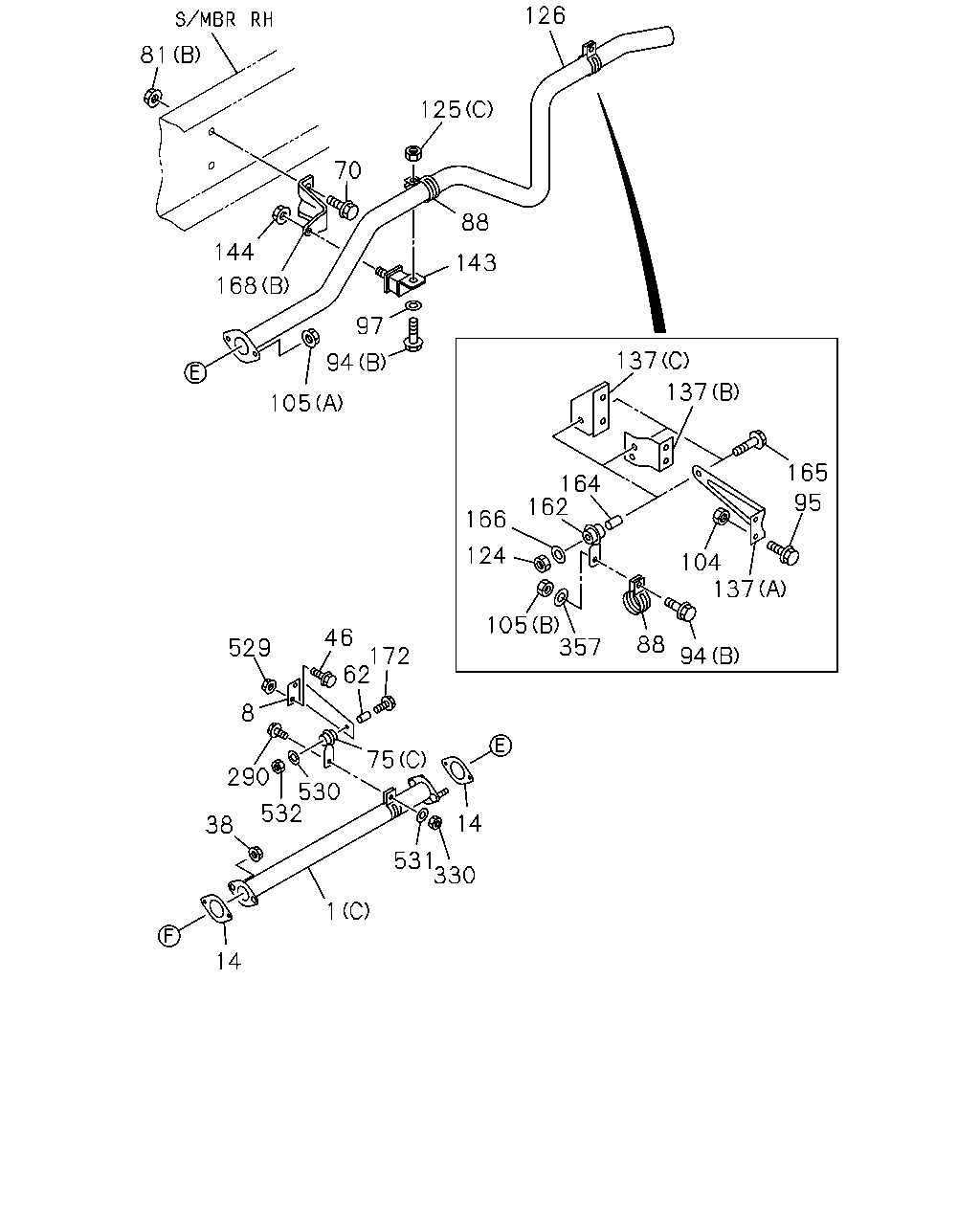

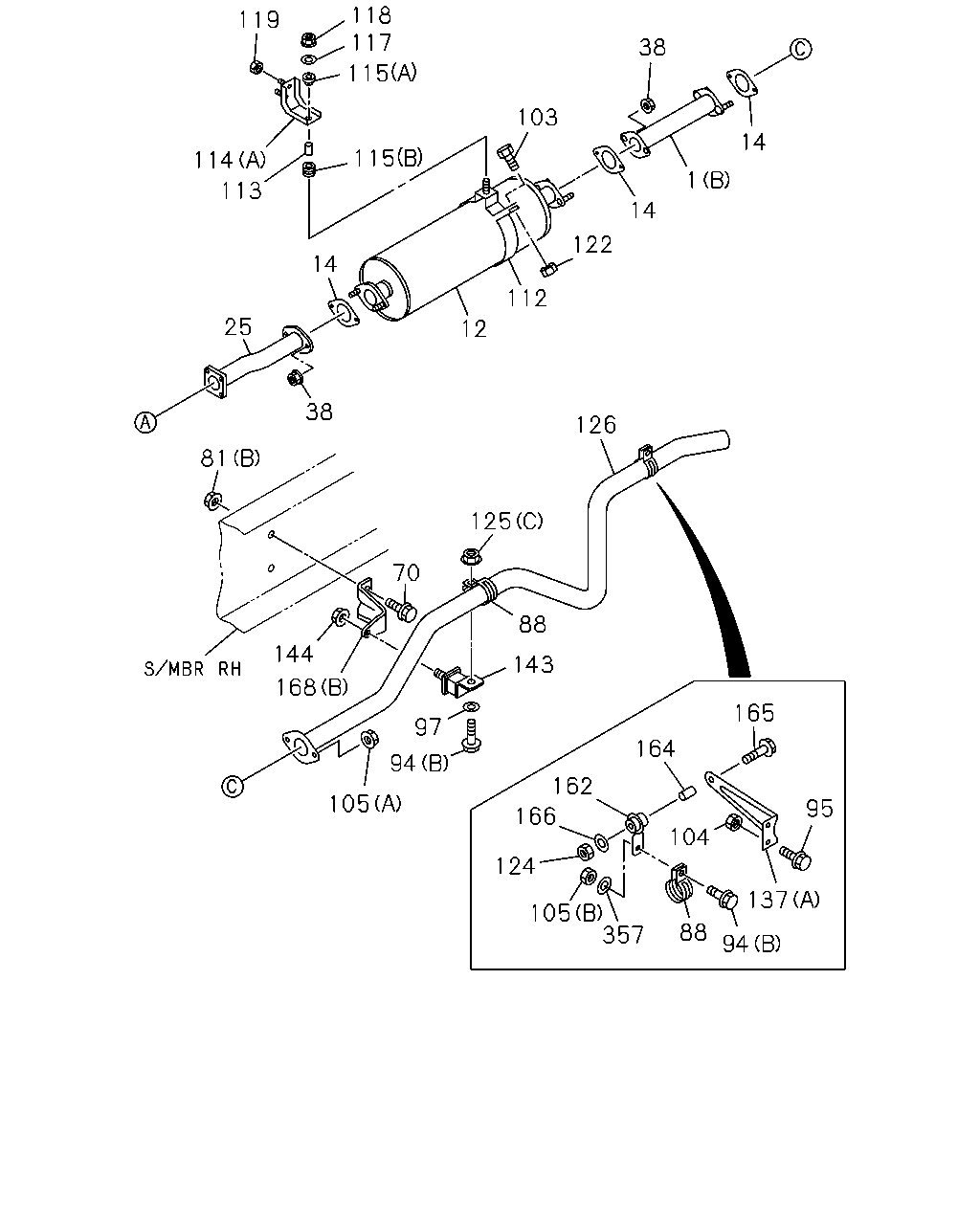

118 117 119 38 115 103 14 115 114 1 113 14 122 14 112 25 12 38 126 81 125 70 88 144 143 168 165 97 164 94 162 105 95 166 104 124 137 105 357 88 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 4HE1 ENG<RLY> (C)	8-97210-052-0	01	1	0408-	●
1	PIPE; EXH 4HG1 ENG<RJH> (A) THA	8-97917-124-1	01	1	0309-	●	●
1	PIPE; EXH 4HE1 ENG<RLY> (D) THA	8-97920-879-0	01	1	0309-	●		●
1	PIPE; EXH (B) THA	8-97917-128-1	01	1	0309-		●
1	PIPE; EXH 4HE1 ENG<RLY> (C) THA	8-97920-934-0	01	1	0309-0407			●
1	PIPE; EXH 4HE1 ENG<RLY> (C) THA	8-97922-683-0	01	1	0408-			●
12	SILENCER ASM; EXH 4HE1 ENG<RLY>	8-97222-489-1	01	1	0408-	●		●
12	SILENCER ASM; EXH 4HG1 ENG<RJH> THA	8-97940-315-2	01	1	0309-	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 THA	8-94328-352-0	01	1	0309-0407	●	●	●
14	GASKET; SILENCER TO EXH PIPE 4HG1 ENG<RJH> ID=64.7 THA	8-94328-352-0	01	1	0309-0407	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 THA	8-94328-352-0	01	1	0309-0407		●
14	GASKET; SILENCER TO EXH PIPE 4HE1 ENG<RLY> ID=64.7 THA	8-94328-352-0	01	1	0309-0407			●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 THA	8-94328-352-0	01	1	0408-	●	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 THA	8-94328-352-0	01	1	0408-	●	●	●
14	GASKET; SILENCER TO EXH PIPE 4HE1 ENG<RLY> ID=64.7 THA	8-94328-352-0	01	1	0408-	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 THA	8-94328-352-0	01	1	0408-		●	●
25	PIPE; EXH,BRK VLV TO SILENCER EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97917-126-1	01	1	0309-	●
25	PIPE; EXH,BRK VLV TO SILENCER THA	8-97917-126-1	01	1	0309-		●
25	PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG<RLY> THA	8-97920-880-0	01	1	0309-0407	●		●
25	PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG<RLY> THA	8-97922-682-0	01	1	0408-	●		●
38	NUT; SILENCER 4HG1 ENG<RJH> M10 FLANGE	0-91150-110-0	02	1	0309-0407	●	●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0309-0407		●
38	NUT; SILENCER 4HE1 ENG<RLY> M10 FLANGE	0-91150-110-0	02	1	0309-0407			●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0408-	●	●	●
38	NUT; SILENCER 4HE1 ENG<RLY> M10 FLANGE	0-91150-110-0	02	1	0408-	●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0408-		●	●
38	NUT; SILENCER 4HE1 ENG<RLY> M8 FLANGE	0-91150-108-0	04	1	0309-0407	●		●
70	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0309-	●	●	●
81	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0309-	●	●	●
81	NUT; BRKT 4HE1 ENG<RLY> (A) M10 FLANGE	0-91150-110-0	03	1	0309-	●		●
88	CLAMP; EXH PIPE THA	8-97917-235-0	02	1	0309-	●	●	●
94	BOLT; CLAMP (B) M8X45	0-20800-845-0	02	1	0309-	●	●	●
94	BOLT; CLAMP 4HE1 ENG<RLY> (A) M10X30 FLANGE	0-28681-030-0	01	1	0309-	●		●
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0309-	●	●
95	BOLT; BRKT 4HE1 ENG<RLY> M10X30 FLANGE	0-28681-030-0	02	1	0309-			●
97	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0309-	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0309-	●	●	●
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-	●	●
104	NUT; BRKT 4HE1 ENG<RLY> M10 FLANGE	0-91150-110-0	02	1	0309-			●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	0405-	●	●	●
105	NUT; CLAMP (A) M10 FLANGE	0-91150-110-0	02	1	0309-	●	●	●
112	BRACKET; HANGER 4HE1 ENG<RLY>	8-97207-224-0	01	1	0501-	●		●
112	BRACKET; HANGER 4HG1 ENG<RJH>	8-97076-020-0	01	1	0309-0407	●	●
112	BRACKET; HANGER	8-97076-020-0	01	1	0408-0412	●	●	●
112	BRACKET; HANGER 4HG1 ENG<RJH>	8-97076-020-0	01	1	0501-	●	●
112	BRACKET; HANGER 4HE1 ENG<RLY>	8-97207-224-0	01	1	0309-0407	●		●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	01	1	0309-	●	●	●
114	BRACKET; EXH SILENCER EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94329-856-0	01	1	0309-	●
114	BRACKET; EXH SILENCER (A)	8-94329-856-0	01	1	0309-		●
114	BRACKET; EXH SILENCER 4HE1 ENG<RLY> (B)	8-94329-857-0	01	1	0309-	●		●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0309-	●	●	●
115	RUBBER; MTG,SILENCER 4HE1 ENG<RLY> (A)	8-94457-277-1	01	1	0309-	●		●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0309-	●	●	●
115	RUBBER; MTG,SILENCER 4HE1 ENG<RLY> (B)	8-94457-278-1	01	1	0309-	●		●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0309-	●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0309-	●	●	●
119	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-	●	●	●
122	NUT; HANGER BRKT M8	9-09110-408-0	01	1	0405-	●	●	●
122	NUT; HANGER BRKT M8	9-09110-408-0	01	1	0309-0407	●	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE	0-91150-110-0	01	1	0309-	●	●	●
125	NUT; CLAMP (C) M8	9-09110-408-0	01	1	0405-	●	●	●
125	NUT; CLAMP (C) M8	9-09110-408-0	01	1	0309-0407	●	●	●
125	NUT; CLAMP 4HE1 ENG<RLY> (B) M8 FLANGE	0-91150-108-0	02	1	0309-	●		●
125	NUT; CLAMP 4HE1 ENG<RLY> (A) M10 FLANGE	0-91150-110-0	02	1	0309-	●		●
126	PIPE; EXH,RR 4HE1 ENG<RLY> THA	8-97920-881-0	01	1	0309-0407	●
126	PIPE; EXH,RR 4HE1 ENG<RLY> THA	8-97922-696-0	01	1	0408-	●
126	PIPE; EXH,RR 4HG1 ENG<RJH> THA	8-97917-129-1	01	1	0309-	●	●
126	PIPE; EXH,RR 4HE1 ENG<RLY> THA	8-97920-882-0	01	1	0309-			●
137	BRACKET; TAIL PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-97116-588-2	01	1	0309-	●
137	BRACKET; TAIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94114-022-1	01	1	0309-	●
137	BRACKET; TAIL PIPE (A)	8-94114-022-1	01	1	0309-		●
137	BRACKET; TAIL PIPE 4HE1 ENG<RLY> (C)	8-97185-801-0	01	1	0309-			●
143	RUBBER; SUPPORT	8-97229-586-0	01	1	0309-0309	●	●	●
143	RUBBER; SUPPORT	8-97371-655-0	01	1	0309-	●	●	●
144	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	01	1	0309-	●	●	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0309-	●	●	●
164	COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0309-	●	●	●
164	COLLAR; DIST,TAIL PIPE 4HE1 ENG<RLY> L=37.5	9-22151-217-0	01	1	0309-	●		●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0309-	●	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	9-09164-810-0	01	1	0309-	●	●	●
168	BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-97096-651-0	01	1	0309-	●
168	BRACKET; EXH PIPE,FRT (B)	8-97096-651-0	01	1	0309-			●
168	BRACKET; EXH PIPE,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (B)	5-22151-044-0	01	1	0309-	●
168	BRACKET; EXH PIPE,FRT (B)	5-22151-044-0	01	1	0309-		●
168	BRACKET; EXH PIPE,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94370-689-2	01	1	0309-	●
168	BRACKET; EXH PIPE,FRT (A)	8-94370-689-2	01	1	0309-		●
168	BRACKET; EXH PIPE,FRT 4HG1 ENG<RJH> (C)	8-97238-728-0	01	1	0309-	●	●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG<RLY> (E)	8-94370-046-4	01	1	0309-	●		●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG<RLY> (D)	8-97214-433-0	01	1	0309-	●		●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0309-	●	●	●

126 81 125 70 88 144 143 168 97 137 94 137 105 165 164 162 95 166 124 104 137 105 357 46 88 529 172 62 94 8 75 290 530 532 14 38 531 330 1 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 4HE1 ENG<RLY> (C)	8-97210-052-0	01	1	0408-	●
1	PIPE; EXH 4HG1 ENG<RJH> (A) THA	8-97917-124-1	01	1	0309-	●	●
1	PIPE; EXH 4HE1 ENG<RLY> (D) THA	8-97920-879-0	01	1	0309-	●		●
1	PIPE; EXH (B) THA	8-97917-128-1	01	1	0309-		●
1	PIPE; EXH 4HE1 ENG<RLY> (C) THA	8-97920-934-0	01	1	0309-0407			●
1	PIPE; EXH 4HE1 ENG<RLY> (C) THA	8-97922-683-0	01	1	0408-			●
8	BRACKET; EXH PIPE 4HE1 ENG<RLY>	8-97220-154-0	01	1	0309-			●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 THA	8-94328-352-0	01	1	0309-0407	●	●	●
14	GASKET; SILENCER TO EXH PIPE 4HG1 ENG<RJH> ID=64.7 THA	8-94328-352-0	01	1	0309-0407	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 THA	8-94328-352-0	01	1	0309-0407		●
14	GASKET; SILENCER TO EXH PIPE 4HE1 ENG<RLY> ID=64.7 THA	8-94328-352-0	01	1	0309-0407			●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 THA	8-94328-352-0	01	1	0408-	●	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 THA	8-94328-352-0	01	1	0408-	●	●	●
14	GASKET; SILENCER TO EXH PIPE 4HE1 ENG<RLY> ID=64.7 THA	8-94328-352-0	01	1	0408-	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 THA	8-94328-352-0	01	1	0408-		●	●
38	NUT; SILENCER 4HG1 ENG<RJH> M10 FLANGE	0-91150-110-0	02	1	0309-0407	●	●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0309-0407		●
38	NUT; SILENCER 4HE1 ENG<RLY> M10 FLANGE	0-91150-110-0	02	1	0309-0407			●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0408-	●	●	●
38	NUT; SILENCER 4HE1 ENG<RLY> M10 FLANGE	0-91150-110-0	02	1	0408-	●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0408-		●	●
38	NUT; SILENCER 4HE1 ENG<RLY> M8 FLANGE	0-91150-108-0	04	1	0309-0407	●		●
46	BOLT; BRKT,EXH PIPE 4HE1 ENG<RLY> M10X35 FLANGE	0-28681-035-0	02	1	0309-			●
62	TUBE; DIST,BRKT 4HE1 ENG<RLY> L=37.5	9-22151-217-0	01	1	0309-			●
70	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0309-	●	●	●
75	RUBBER; SUPPORT,BRKT 4HG1 ENG<RJH> (A)	8-97166-498-0	01	1	0309-	●	●
75	RUBBER; SUPPORT,BRKT 4HE1 ENG<RLY> (B)	8-97080-694-0	01	1	0309-	●		●
75	RUBBER; SUPPORT,BRKT 4HE1 ENG<RLY> (C) L=115	8-94156-256-0	01	1	0309-			●
81	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0309-	●	●	●
81	NUT; BRKT 4HE1 ENG<RLY> (A) M10 FLANGE	0-91150-110-0	03	1	0309-	●		●
88	CLAMP; EXH PIPE THA	8-97917-235-0	02	1	0309-	●	●	●
94	BOLT; CLAMP (B) M8X45	0-20800-845-0	02	1	0309-	●	●	●
94	BOLT; CLAMP 4HE1 ENG<RLY> (A) M10X30 FLANGE	0-28681-030-0	01	1	0309-	●		●
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0309-	●	●
95	BOLT; BRKT 4HE1 ENG<RLY> M10X30 FLANGE	0-28681-030-0	02	1	0309-			●
97	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0309-	●	●	●
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0309-	●	●
104	NUT; BRKT 4HE1 ENG<RLY> M10 FLANGE	0-91150-110-0	02	1	0309-			●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	0405-	●	●	●
105	NUT; CLAMP (A) M10 FLANGE	0-91150-110-0	02	1	0309-	●	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE	0-91150-110-0	01	1	0309-	●	●	●
125	NUT; CLAMP (C) M8	9-09110-408-0	01	1	0405-	●	●	●
125	NUT; CLAMP (C) M8	9-09110-408-0	01	1	0309-0407	●	●	●
125	NUT; CLAMP 4HE1 ENG<RLY> (B) M8 FLANGE	0-91150-108-0	02	1	0309-	●		●
125	NUT; CLAMP 4HE1 ENG<RLY> (A) M10 FLANGE	0-91150-110-0	02	1	0309-	●		●
126	PIPE; EXH,RR 4HE1 ENG<RLY> THA	8-97920-881-0	01	1	0309-0407	●
126	PIPE; EXH,RR 4HE1 ENG<RLY> THA	8-97922-696-0	01	1	0408-	●
126	PIPE; EXH,RR 4HG1 ENG<RJH> THA	8-97917-129-1	01	1	0309-	●	●
126	PIPE; EXH,RR 4HE1 ENG<RLY> THA	8-97920-882-0	01	1	0309-			●
137	BRACKET; TAIL PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-97116-588-2	01	1	0309-	●
137	BRACKET; TAIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94114-022-1	01	1	0309-	●
137	BRACKET; TAIL PIPE (A)	8-94114-022-1	01	1	0309-		●
137	BRACKET; TAIL PIPE 4HE1 ENG<RLY> (C)	8-97185-801-0	01	1	0309-			●
143	RUBBER; SUPPORT	8-97229-586-0	01	1	0309-0309	●	●	●
143	RUBBER; SUPPORT	8-97371-655-0	01	1	0309-	●	●	●
144	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	01	1	0309-	●	●	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0309-	●	●	●
164	COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0309-	●	●	●
164	COLLAR; DIST,TAIL PIPE 4HE1 ENG<RLY> L=37.5	9-22151-217-0	01	1	0309-	●		●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0309-	●	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	9-09164-810-0	01	1	0309-	●	●	●
168	BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-97096-651-0	01	1	0309-	●
168	BRACKET; EXH PIPE,FRT (B)	8-97096-651-0	01	1	0309-			●
168	BRACKET; EXH PIPE,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (B)	5-22151-044-0	01	1	0309-	●
168	BRACKET; EXH PIPE,FRT (B)	5-22151-044-0	01	1	0309-		●
168	BRACKET; EXH PIPE,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94370-689-2	01	1	0309-	●
168	BRACKET; EXH PIPE,FRT (A)	8-94370-689-2	01	1	0309-		●
168	BRACKET; EXH PIPE,FRT 4HG1 ENG<RJH> (C)	8-97238-728-0	01	1	0309-	●	●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG<RLY> (E)	8-94370-046-4	01	1	0309-	●		●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG<RLY> (D)	8-97214-433-0	01	1	0309-	●		●
172	BOLT 4HE1 ENG<RLY> M10X70 FLANGE	0-28081-070-0	01	1	0309-			●
290	BOLT; CLAMP 4HE1 ENG<RLY> M8X45	0-20800-845-0	01	1	0309-			●
330	NUT; CLAMP 4HE1 ENG<RLY> M8	9-09110-408-0	01	1	0405-			●
330	NUT; CLAMP 4HE1 ENG<RLY> M8	9-09110-408-0	01	1	0309-0407			●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0309-	●	●	●
529	NUT; BRKT,EXH PIPE 4HE1 ENG<RLY> M10 FLANGE	0-91150-110-0	02	1	0309-			●
530	WASHER 4HE1 ENG<RLY> ID=10.5 OD=32	9-09164-810-0	01	1	0309-			●
531	WASHER; CLAMP 4HE1 ENG<RLY> ID=8.4 OD=18	9-09164-608-0	01	1	0309-			●
532	NUT 4HE1 ENG<RLY> M10 FLANGE	0-91150-110-0	01	1	0309-			●

376 352 75 168 2 1 36 44 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 4HE1 ENG<RLY> (C)	8-97210-052-0	01	1	0408-	●
1	PIPE; EXH 4HG1 ENG<RJH> (A) THA	8-97917-124-1	01	1	0309-	●	●
1	PIPE; EXH 4HE1 ENG<RLY> (D) THA	8-97920-879-0	01	1	0309-	●		●
1	PIPE; EXH (B) THA	8-97917-128-1	01	1	0309-		●
1	PIPE; EXH 4HE1 ENG<RLY> (C) THA	8-97920-934-0	01	1	0309-0407			●
1	PIPE; EXH 4HE1 ENG<RLY> (C) THA	8-97922-683-0	01	1	0408-			●
2	GASKET; PIPE TO MANIF	8-97180-749-2	01	1	0309-0408	●	●	●
2	GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0409-	●	●	●
36	NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0309-	●	●	●
44	BOLT; BRKT M8X35 FLANGE	0-28080-835-0	01	1	0309-	●	●	●
75	RUBBER; SUPPORT,BRKT 4HG1 ENG<RJH> (A)	8-97166-498-0	01	1	0309-	●	●
75	RUBBER; SUPPORT,BRKT 4HE1 ENG<RLY> (B)	8-97080-694-0	01	1	0309-	●		●
75	RUBBER; SUPPORT,BRKT 4HE1 ENG<RLY> (C) L=115	8-94156-256-0	01	1	0309-			●
168	BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-97096-651-0	01	1	0309-	●
168	BRACKET; EXH PIPE,FRT (B)	8-97096-651-0	01	1	0309-			●
168	BRACKET; EXH PIPE,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (B)	5-22151-044-0	01	1	0309-	●
168	BRACKET; EXH PIPE,FRT (B)	5-22151-044-0	01	1	0309-		●
168	BRACKET; EXH PIPE,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94370-689-2	01	1	0309-	●
168	BRACKET; EXH PIPE,FRT (A)	8-94370-689-2	01	1	0309-		●
168	BRACKET; EXH PIPE,FRT 4HG1 ENG<RJH> (C)	8-97238-728-0	01	1	0309-	●	●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG<RLY> (E)	8-94370-046-4	01	1	0309-	●		●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG<RLY> (D)	8-97214-433-0	01	1	0309-	●		●
352	NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	02	1	0309-	●
352	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	0309-		●
376	BOLT; BRKT 4HG1 ENG<RJH> M10X35 FLANGE	0-28681-035-0	02	1	0309-	●	●
376	BOLT; BRKT 4HE1 ENG<RLY> M10X35 FLANGE	0-28681-035-0	01	1	0309-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
