1-45 — WATER SEDIMENTER; FUEL (#19935) — 69 parça

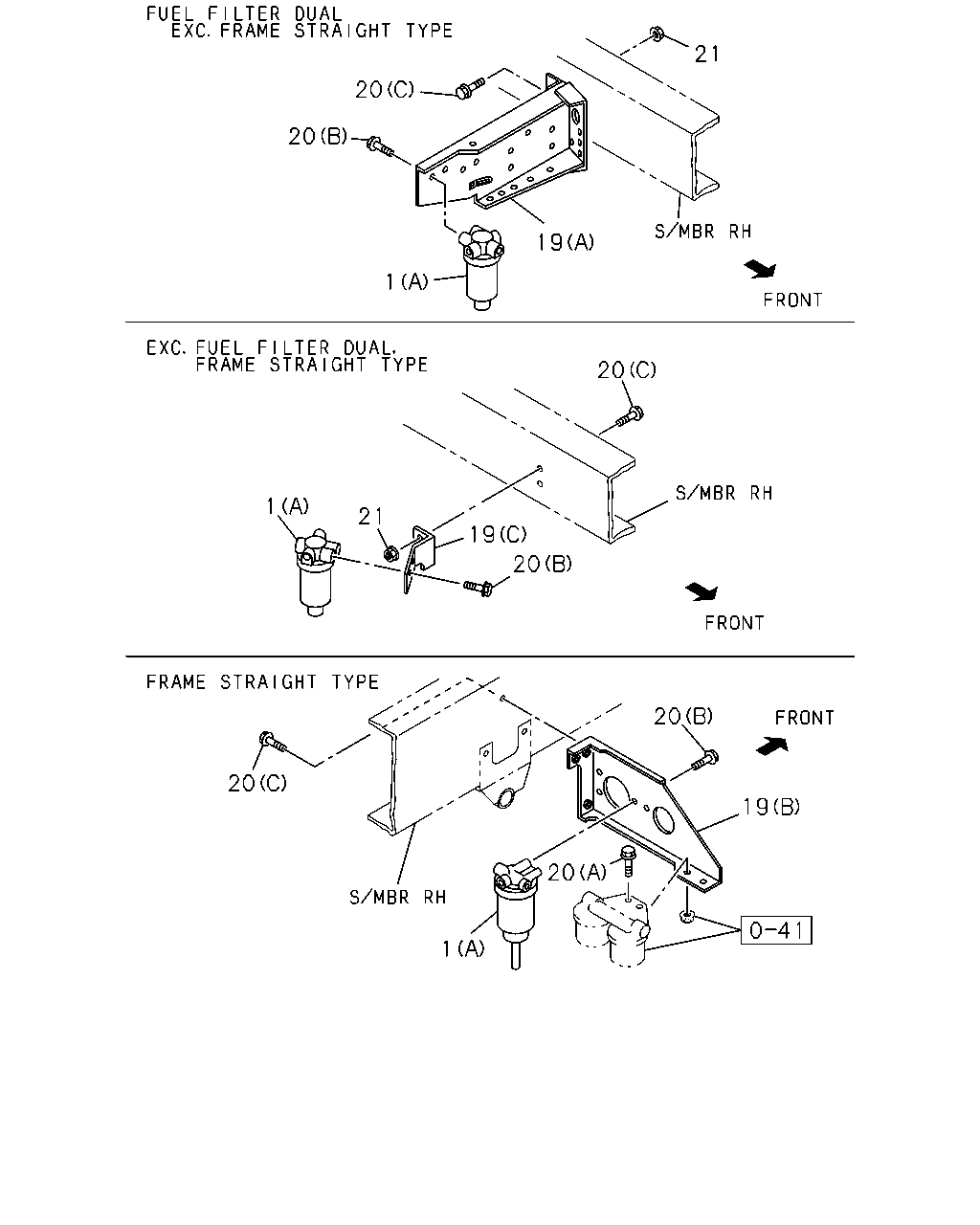

21 20 20 19 1 20 1 21 19 20 20 20 9 20 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SEDIMENTER; FUEL 4HG1 ENG<RJH> (A)	8-97081-814-2	01	1	0309-	●	●
1	SEDIMENTER; FUEL 4HE1 ENG<RLY> (B)	8-97188-042-0	01	1	0309-	●		●
9	GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG<RJH>	8-94132-675-0	01	1	0309-	●	●
9	GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG<RLY> ID=8.2 OD=13.2	1-09630-082-0	01	1	0309-	●		●
19	BRACKET; FUEL SEDIMENTER 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (B)	8-97363-089-0	01	1	0309-	●
19	BRACKET; FUEL SEDIMENTER 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97370-092-0	01	1	0309-	●	●
19	BRACKET; FUEL SEDIMENTER 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (C)	8-94366-685-0	01	1	0309-	●	●
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> (D)	8-97363-088-0	01	1	0309-	●		●
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG<RLY> EXC. FUEL FILTER DUAL<S6B> (E)	8-97182-048-2	01	1	0309-0309	●		●
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG<RLY> EXC. FUEL FILTER DUAL<S6B>	8-97372-020-0	01	1	0310-0310	●		●
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG<RLY> EXC. FUEL FILTER DUAL<S6B>	8-97182-048-2	01	1	0311-	●		●
20	BOLT; BRKT TO SEDIMENTER TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> (C) M10X30 FLANGE	0-28081-030-0	03	1	0309-	●
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG<RLY> (C) M10X30 FLANGE	0-28081-030-0	03	1	0309-			●
20	BOLT; BRKT TO SEDIMENTER 4HG1 ENG<RJH> (B) M8X20 FLANGE	0-28680-820-0	02	1	0309-	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (C) M8X30 FLANGE	0-28080-830-0	02	1	0309-	●	●
20	BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL<S6B> (A),(B),(C) M10X30 FLANGE	0-28081-030-0	02	1	0309-	●	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A),(B),(C) M10X30 FLANGE	0-28081-030-0	02	1	0309-	●	●
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG<RLY> (A),(B),(C) M10X30 FLANGE	0-28081-030-0	02	1	0309-	●		●
21	NUT; BRKT TO FRAME 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	0309-	●
21	NUT; BRKT TO FRAME 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	02	1	0309-	●	●
21	NUT; BRKT TO FRAME 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	02	1	0309-	●	●

1 9 7 5 36 87 14 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SEDIMENTER; FUEL 4HG1 ENG<RJH> (A)	8-97081-814-2	01	1	0309-	●	●
1	SEDIMENTER; FUEL 4HE1 ENG<RLY> (B)	8-97188-042-0	01	1	0309-	●		●
5	GASKET; UPR COVER,SEDIMENTER 4HG1 ENG<RJH>	5-09623-075-0	01	1	0309-	●	●
5	GASKET; UPR COVER,SEDIMENTER 4HE1 ENG<RLY>	1-09623-491-0	01	1	0309-	●		●
7	PLUG; DRAIN,SEDIMENTER 4HG1 ENG<RJH>	8-94132-674-0	01	1	0309-	●	●
7	PLUG; DRAIN,SEDIMENTER 4HE1 ENG<RLY>	9-13219-070-0	01	1	0309-	●		●
9	GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG<RJH>	8-94132-675-0	01	1	0309-	●	●
9	GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG<RLY> ID=8.2 OD=13.2	1-09630-082-0	01	1	0309-	●		●
14	GASKET; SENSOR TO CENTER BOLT 4HG1 ENG<RJH>	8-94447-156-0	01	1	0309-	●	●
36	RING; BODY TO CASE 4HG1 ENG<RJH>	5-13234-001-0	01	1	0309-	●	●
36	RING; BODY TO CASE 4HE1 ENG<RLY>	1-13219-226-0	01	1	0309-	●		●
37	PLUG; SENSOR 4HG1 ENG<RJH>	8-94453-746-0	01	1	0309-	●	●
87	CASE ASM; SEDIMENTER 4HG1 ENG<RJH>	8-97219-363-0	01	1	0309-	●	●

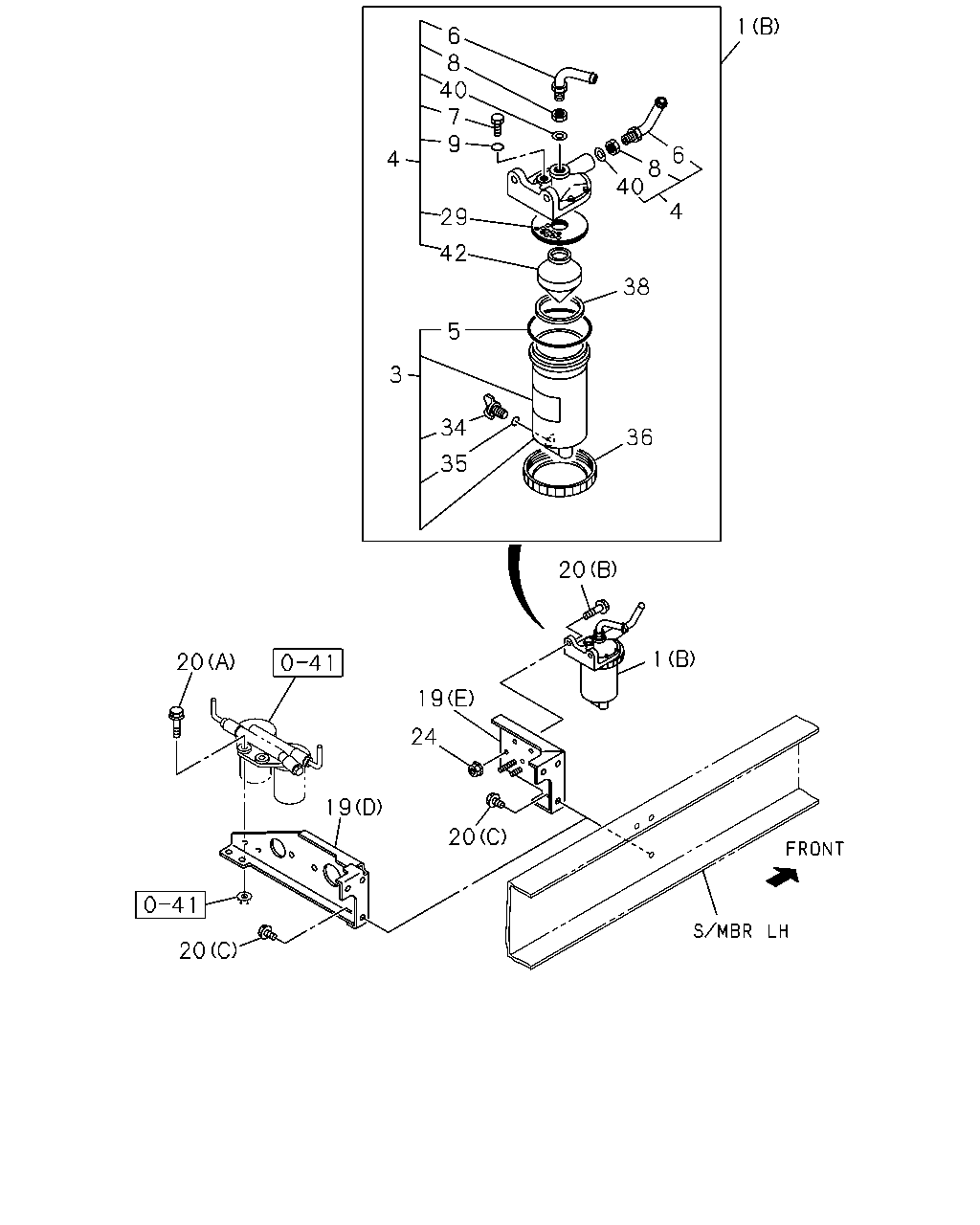

1 6 8 40 7 9 6 4 8 40 4 29 42 38 5 3 34 36 35 20 1 20 19 24 19 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SEDIMENTER; FUEL 4HG1 ENG<RJH> (A)	8-97081-814-2	01	1	0309-	●	●
1	SEDIMENTER; FUEL 4HE1 ENG<RLY> (B)	8-97188-042-0	01	1	0309-	●		●
3	BODY ASM; SEDIMENTER 4HE1 ENG<RLY>	1-13211-192-0	01	1	0309-	●		●
4	COVER; UPR,SEDIMENTER ASM 4HE1 ENG<RLY>	1-13212-146-0	01	1	0309-	●		●
5	GASKET; UPR COVER,SEDIMENTER 4HG1 ENG<RJH>	5-09623-075-0	01	1	0309-	●	●
5	GASKET; UPR COVER,SEDIMENTER 4HE1 ENG<RLY>	1-09623-491-0	01	1	0309-	●		●
6	CONNECTOR ASM; SEDIMENTER 4HE1 ENG<RLY>	1-13229-002-0	02	1	0309-	●		●
7	PLUG; DRAIN,SEDIMENTER 4HG1 ENG<RJH>	8-94132-674-0	01	1	0309-	●	●
7	PLUG; DRAIN,SEDIMENTER 4HE1 ENG<RLY>	9-13219-070-0	01	1	0309-	●		●
8	STOPPER; CONN,SEDIMENTER 4HE1 ENG<RLY>	1-13229-001-0	02	1	0309-	●		●
9	GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG<RJH>	8-94132-675-0	01	1	0309-	●	●
9	GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG<RLY> ID=8.2 OD=13.2	1-09630-082-0	01	1	0309-	●		●
19	BRACKET; FUEL SEDIMENTER 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (B)	8-97363-089-0	01	1	0309-	●
19	BRACKET; FUEL SEDIMENTER 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97370-092-0	01	1	0309-	●	●
19	BRACKET; FUEL SEDIMENTER 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (C)	8-94366-685-0	01	1	0309-	●	●
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> (D)	8-97363-088-0	01	1	0309-	●		●
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG<RLY> EXC. FUEL FILTER DUAL<S6B> (E)	8-97182-048-2	01	1	0309-0309	●		●
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG<RLY> EXC. FUEL FILTER DUAL<S6B>	8-97372-020-0	01	1	0310-0310	●		●
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG<RLY> EXC. FUEL FILTER DUAL<S6B>	8-97182-048-2	01	1	0311-	●		●
20	BOLT; BRKT TO SEDIMENTER TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> (C) M10X30 FLANGE	0-28081-030-0	03	1	0309-	●
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG<RLY> (C) M10X30 FLANGE	0-28081-030-0	03	1	0309-			●
20	BOLT; BRKT TO SEDIMENTER 4HG1 ENG<RJH> (B) M8X20 FLANGE	0-28680-820-0	02	1	0309-	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (C) M8X30 FLANGE	0-28080-830-0	02	1	0309-	●	●
20	BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL<S6B> (A),(B),(C) M10X30 FLANGE	0-28081-030-0	02	1	0309-	●	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A),(B),(C) M10X30 FLANGE	0-28081-030-0	02	1	0309-	●	●
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG<RLY> (A),(B),(C) M10X30 FLANGE	0-28081-030-0	02	1	0309-	●		●
24	NUT; SEDIMENTER 4HE1 ENG<RLY> M10 FLANGE	0-91150-210-0	02	1	0309-	●		●
29	SCREEN ASM; SEDIMENTER 4HE1 ENG<RLY>	1-13219-228-0	01	1	0309-	●		●
34	PLUG; DRAIN,FUEL FILTER 4HE1 ENG<RLY>	1-13219-225-0	01	1	0309-	●		●
35	GASKET; DRAIN PLUG 4HE1 ENG<RLY>	1-09623-490-0	01	1	0309-	●		●
36	RING; BODY TO CASE 4HG1 ENG<RJH>	5-13234-001-0	01	1	0309-	●	●
36	RING; BODY TO CASE 4HE1 ENG<RLY>	1-13219-226-0	01	1	0309-	●		●
38	FLOAT; SEDIMENTER 4HE1 ENG<RLY>	1-13219-227-0	01	1	0309-	●		●
40	GASKET; CONNECTOR TO COVER 4HE1 ENG<RLY> ID=14.2 OD=19.2	1-09630-085-0	02	1	0309-	●		●
42	PLATE; BAFFLE 4HE1 ENG<RLY>	1-13219-229-0	01	1	0309-	●		●
