Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#19934) — 263 parça

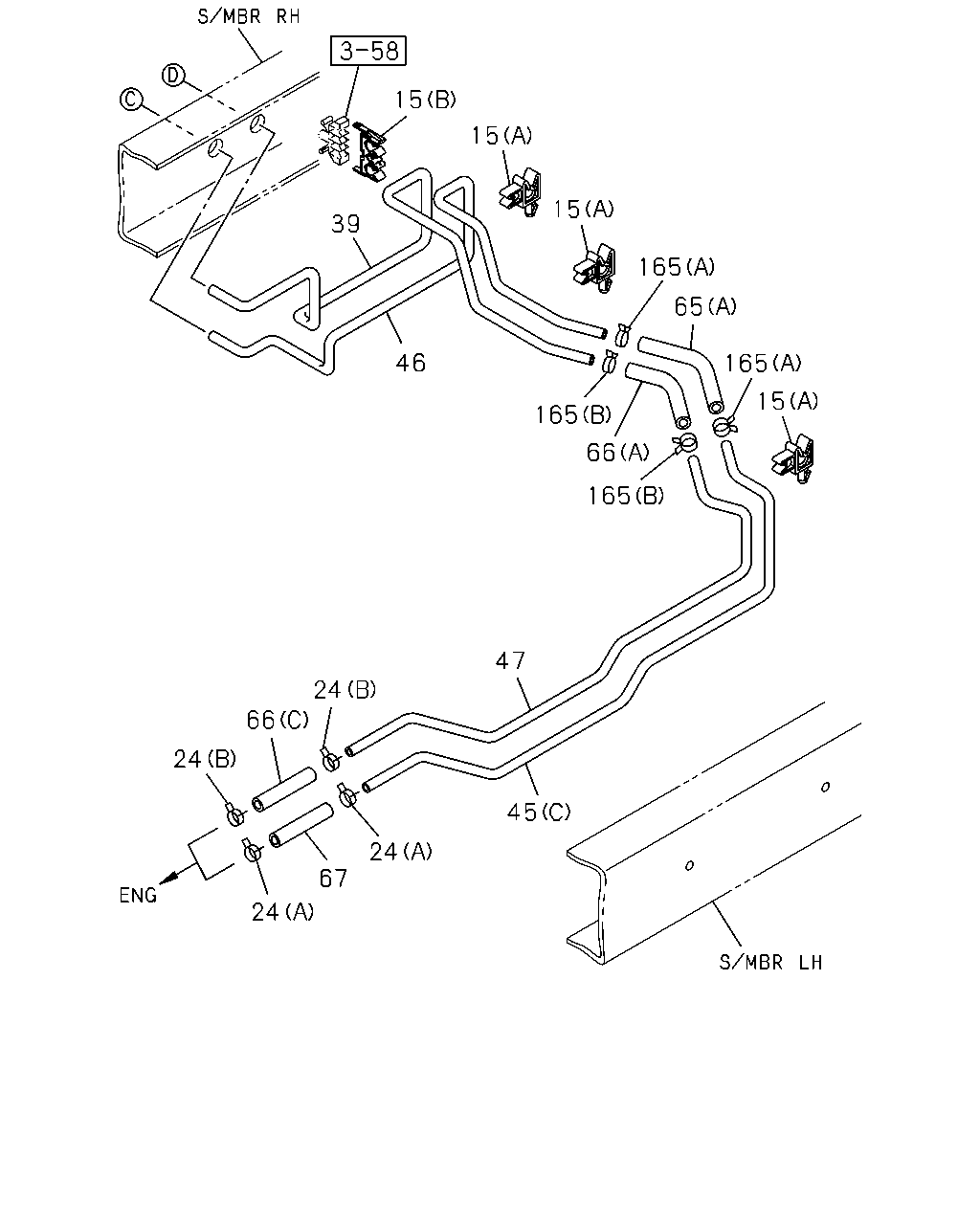

15 15 15 39 165 65 46 165 15 165 66 165 47 24 66 24 45 24 67 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	CLIP; FUEL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=12 & 6.35	8-97215-437-0	03	1	0309-	●
15	CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	03	1	0309-		●
15	CLIP; FUEL PIPE (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0309-	●	●	●
24	CLIP; FUEL HOSE (A) ID=16	8-94238-568-0	02	1	0309-	●	●	●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	0309-	●	●	●
39	PIPE; FUEL 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	8-97922-307-0	01	1	0309-	●	●
39	PIPE; FUEL 4HE1 ENG<RLY> M/T MYY5T<RSM> THA	8-97922-308-0	01	1	0309-0403	●		●
39	PIPE; FUEL 4HE1 ENG<RLY> THA	8-97922-308-0	01	1	0404-0407	●		●
39	PIPE; FUEL 4HE1 ENG<RLY>	8-97171-015-1	01	1	0408-	●		●
45	PIPE; FUEL,DELIVERY 4HG1 ENG<RJH> M/T MYY5T<RSM> (C) THA	8-97922-414-0	01	1	0309-	●	●
45	PIPE; FUEL,DELIVERY 4HE1 ENG<RLY> (B) THA	8-97920-897-0	01	1	0309-	●		●
45	PIPE; FUEL,DELIVERY 4HE1 ENG<RLY> M/T MYY5T<RSM> (A) THA	8-97922-306-0	01	1	0309-0403	●		●
45	PIPE; FUEL,DELIVERY 4HE1 ENG<RLY> THA	8-97922-306-0	01	1	0404-0407	●		●
46	PIPE; FUEL,TANK SIDE 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	8-97922-303-0	01	1	0309-	●	●
46	PIPE; FUEL,TANK SIDE 4HE1 ENG<RLY> M/T MYY5T<RSM> THA	8-97922-304-0	01	1	0309-0403	●		●
46	PIPE; FUEL,TANK SIDE 4HE1 ENG<RLY> THA	8-97922-304-0	01	1	0404-0407	●		●
46	PIPE; FUEL,TANK SIDE 4HE1 ENG<RLY>	8-97171-011-1	01	1	0408-	●		●
47	PIPE; FUEL,RETURN 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	8-97922-415-0	01	1	0309-	●	●
47	PIPE; FUEL,RETURN 4HE1 ENG<RLY> M/T MYY5T<RSM> THA	8-97922-310-0	01	1	0309-0403	●		●
47	PIPE; FUEL,RETURN 4HE1 ENG<RLY> THA	8-97922-310-0	01	1	0404-0407	●		●
47	PIPE; FUEL,RETURN 4HE1 ENG<RLY>	8-97171-013-1	01	1	0408-	●		●
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●		●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> (C) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●		●
66	HOSE; FUEL,RETURN PIPE FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0309-		●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●		●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> (C) THA	8-97920-884-0	01	1	0309-	●		●
67	HOSE; FUEL,DELIVERY 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
67	HOSE; FUEL,DELIVERY 4HE1 ENG<RLY> THA	8-97920-883-0	01	1	0309-	●		●
165	CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=250 THA	5-09707-030-1	01	1	0309-	●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> (C) L=250 THA	5-09707-030-1	01	1	0309-		●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	02	1	0309-0407	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	02	1	0309-0407	●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> (B) ID=13	8-94238-571-0	02	1	0309-0407		●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (B) ID=13	8-94238-571-0	02	1	0309-0407			●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	02	1	0408-	●	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (B) ID=13	8-94238-571-0	02	1	0408-	●		●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-94238-568-0	02	1	0309-	●	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (A) ID=16	8-94238-568-0	02	1	0309-	●		●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0309-	●	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (C) L=140	5-09707-031-1	01	1	0309-	●		●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (C) L=140	5-09707-031-1	01	1	0309-	●		●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> (C) L=140	5-09707-031-1	01	1	0309-	●		●

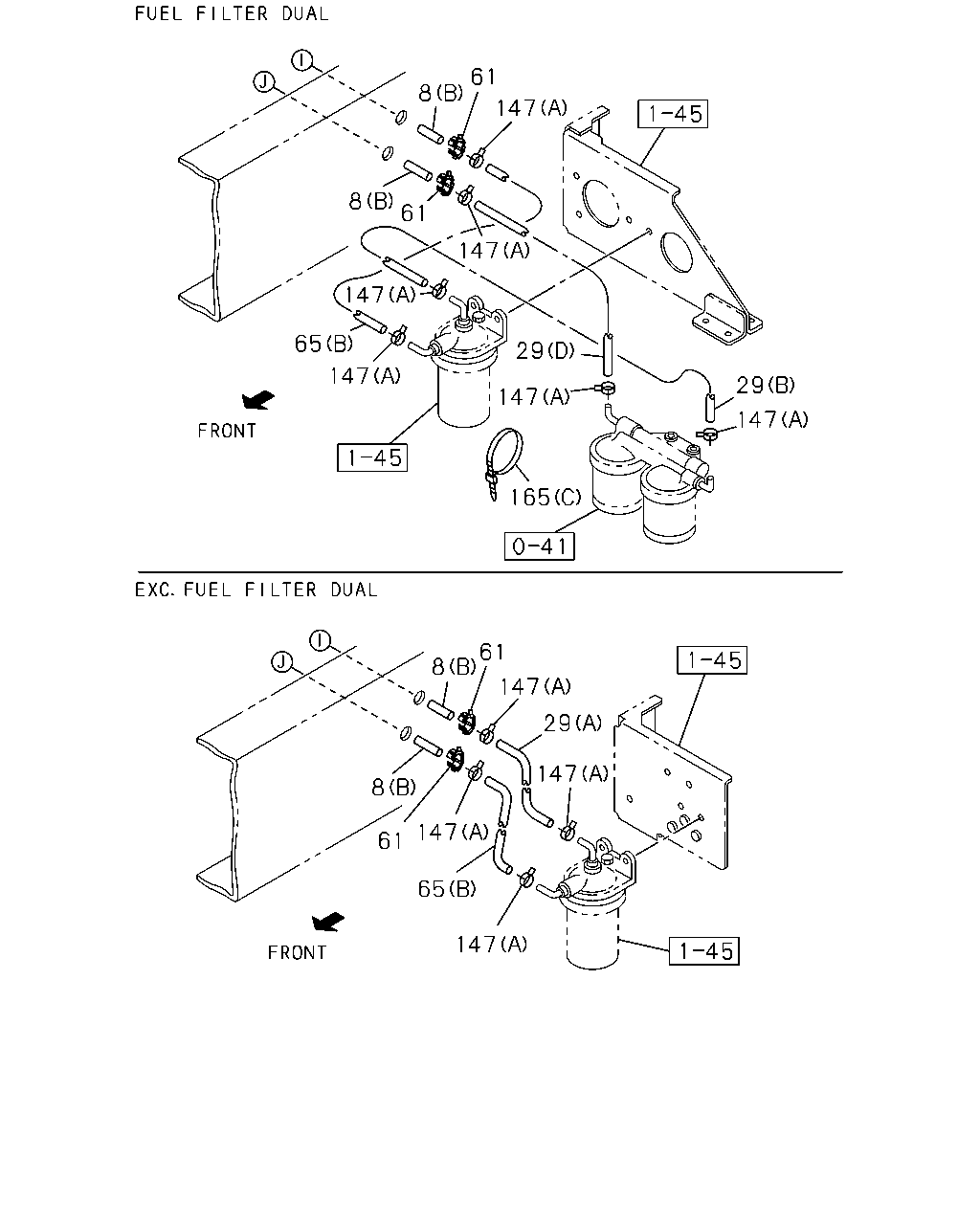

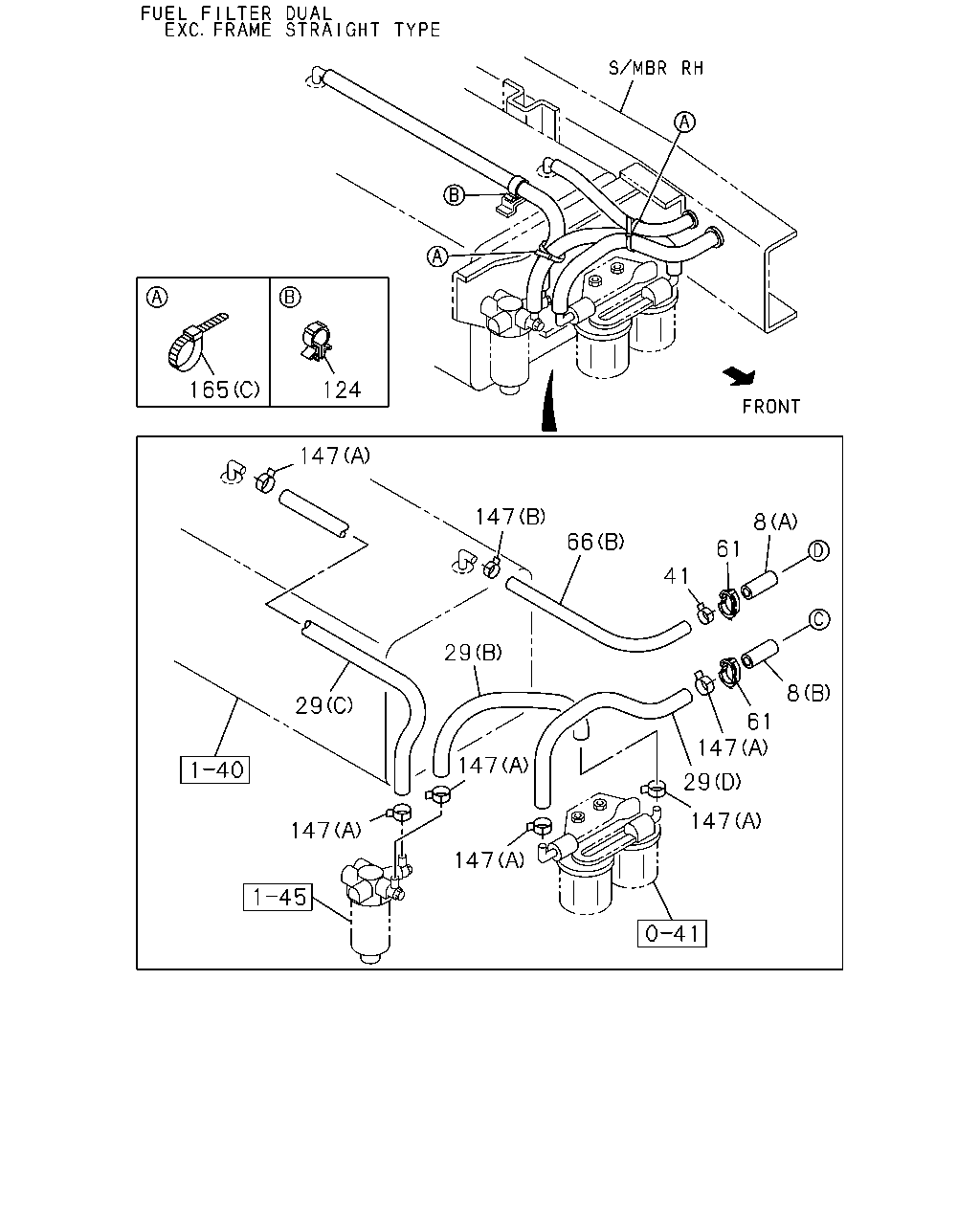

165 124 147 147 8 66 61 41 29 8 29 61 147 147 29 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	RUBBER; MTG EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	01	1	0309-	●
8	RUBBER; MTG (B) OD=15 L=50	8-97077-629-0	01	1	0309-		●
8	RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0309-	●	●	●
8	RUBBER; MTG 4HE1 ENG<RLY> (B) OD=15 L=50	8-97077-629-0	03	1	0309-	●		●
29	HOSE; FUEL FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
29	HOSE; FUEL 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
29	HOSE; FUEL 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
29	HOSE; FUEL 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
29	HOSE; FUEL 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (A) L=270 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
29	HOSE; FUEL 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> (D) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●		●
29	HOSE; FUEL 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> (B) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●		●
29	HOSE; FUEL 4HE1 ENG<RLY> EXC. FUEL FILTER DUAL<S6B> (A) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●		●
41	CLIP; FUEL PIPE,FUEL TANK ID=13	8-94238-571-0	01	1	0309-	●	●	●
61	GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> ID=17	8-94128-319-2	02	1	0309-	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0309-		●
61	GROMMET; PIPE TO FRAME 4HE1 ENG<RLY> ID=17	8-94128-319-2	04	1	0309-	●		●
66	HOSE; FUEL,RETURN PIPE FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0309-		●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●		●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> (C) THA	8-97920-884-0	01	1	0309-	●		●
124	CLIP; HOSE THA	8-97089-536-0	01	1	0309-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-94238-568-0	03	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	01	1	0309-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG<RLY> (A) ID=16	8-94238-568-0	01	1	0309-	●		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	01	1	0309-	●	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	02	1	0309-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG<RLY> (A) ID=16	8-94238-568-0	04	1	0309-	●		●
165	CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=250 THA	5-09707-030-1	01	1	0309-	●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> (C) L=250 THA	5-09707-030-1	01	1	0309-		●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	02	1	0309-0407	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	02	1	0309-0407	●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> (B) ID=13	8-94238-571-0	02	1	0309-0407		●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (B) ID=13	8-94238-571-0	02	1	0309-0407			●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	02	1	0408-	●	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (B) ID=13	8-94238-571-0	02	1	0408-	●		●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-94238-568-0	02	1	0309-	●	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (A) ID=16	8-94238-568-0	02	1	0309-	●		●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0309-	●	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (C) L=140	5-09707-031-1	01	1	0309-	●		●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (C) L=140	5-09707-031-1	01	1	0309-	●		●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> (C) L=140	5-09707-031-1	01	1	0309-	●		●

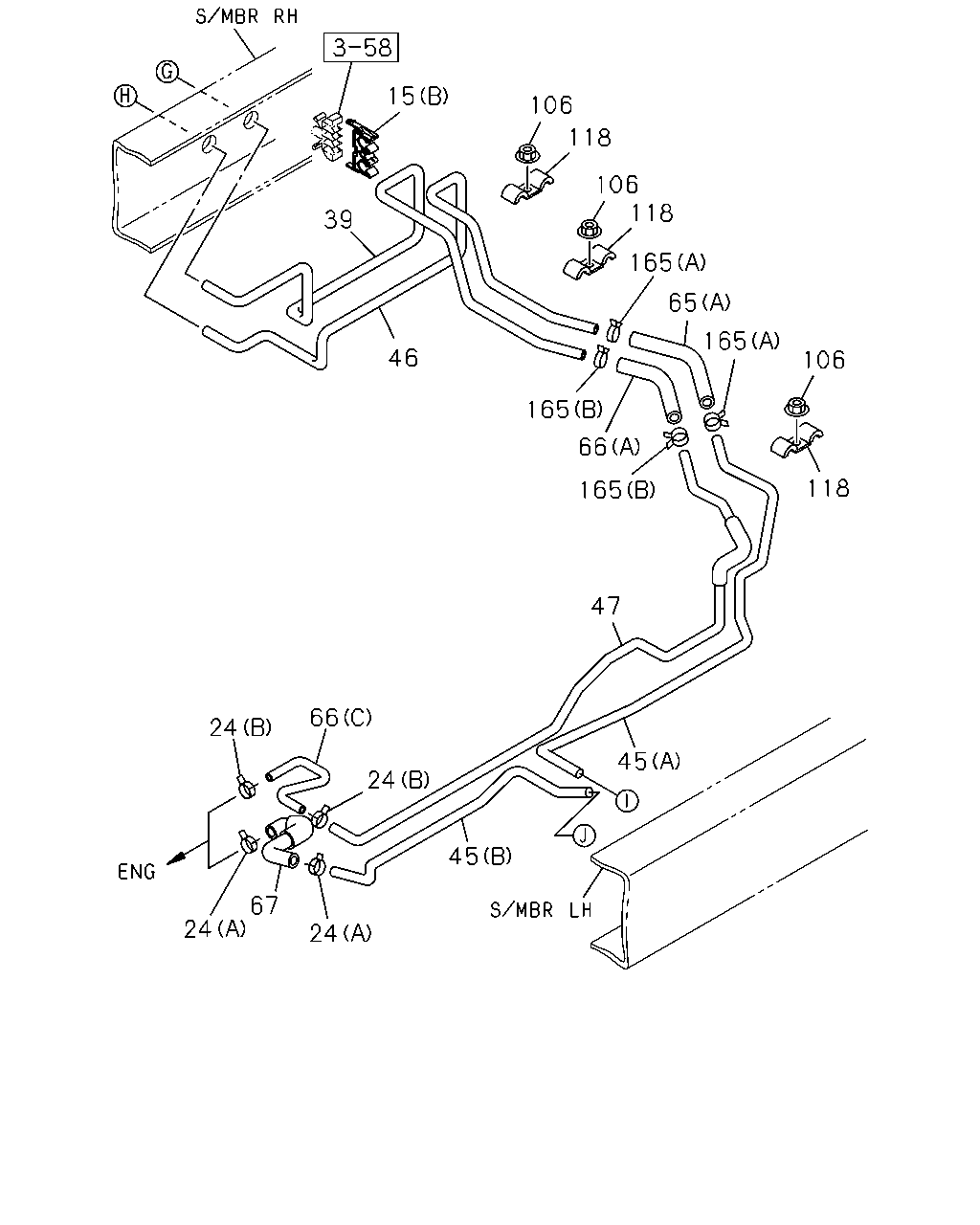

15 106 118 106 118 39 165 65 165 46 106 165 66 118 165 47 66 24 45 24 45 67 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	CLIP; FUEL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=12 & 6.35	8-97215-437-0	03	1	0309-	●
15	CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	03	1	0309-		●
15	CLIP; FUEL PIPE (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0309-	●	●	●
24	CLIP; FUEL HOSE (A) ID=16	8-94238-568-0	02	1	0309-	●	●	●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	0309-	●	●	●
39	PIPE; FUEL 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	8-97922-307-0	01	1	0309-	●	●
39	PIPE; FUEL 4HE1 ENG<RLY> M/T MYY5T<RSM> THA	8-97922-308-0	01	1	0309-0403	●		●
39	PIPE; FUEL 4HE1 ENG<RLY> THA	8-97922-308-0	01	1	0404-0407	●		●
39	PIPE; FUEL 4HE1 ENG<RLY>	8-97171-015-1	01	1	0408-	●		●
45	PIPE; FUEL,DELIVERY 4HG1 ENG<RJH> M/T MYY5T<RSM> (C) THA	8-97922-414-0	01	1	0309-	●	●
45	PIPE; FUEL,DELIVERY 4HE1 ENG<RLY> (B) THA	8-97920-897-0	01	1	0309-	●		●
45	PIPE; FUEL,DELIVERY 4HE1 ENG<RLY> M/T MYY5T<RSM> (A) THA	8-97922-306-0	01	1	0309-0403	●		●
45	PIPE; FUEL,DELIVERY 4HE1 ENG<RLY> THA	8-97922-306-0	01	1	0404-0407	●		●
46	PIPE; FUEL,TANK SIDE 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	8-97922-303-0	01	1	0309-	●	●
46	PIPE; FUEL,TANK SIDE 4HE1 ENG<RLY> M/T MYY5T<RSM> THA	8-97922-304-0	01	1	0309-0403	●		●
46	PIPE; FUEL,TANK SIDE 4HE1 ENG<RLY> THA	8-97922-304-0	01	1	0404-0407	●		●
46	PIPE; FUEL,TANK SIDE 4HE1 ENG<RLY>	8-97171-011-1	01	1	0408-	●		●
47	PIPE; FUEL,RETURN 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	8-97922-415-0	01	1	0309-	●	●
47	PIPE; FUEL,RETURN 4HE1 ENG<RLY> M/T MYY5T<RSM> THA	8-97922-310-0	01	1	0309-0403	●		●
47	PIPE; FUEL,RETURN 4HE1 ENG<RLY> THA	8-97922-310-0	01	1	0404-0407	●		●
47	PIPE; FUEL,RETURN 4HE1 ENG<RLY>	8-97171-013-1	01	1	0408-	●		●
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●		●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> (C) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●		●
66	HOSE; FUEL,RETURN PIPE FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0309-		●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●		●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> (C) THA	8-97920-884-0	01	1	0309-	●		●
67	HOSE; FUEL,DELIVERY 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
67	HOSE; FUEL,DELIVERY 4HE1 ENG<RLY> THA	8-97920-883-0	01	1	0309-	●		●
106	NUT; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> M6 FLANGE	0-91150-106-0	03	1	0309-	●
106	NUT; FUEL PIPE M6 FLANGE	0-91150-106-0	03	1	0309-			●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR FRAME STRAIGHT TYPE<7KJ> ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0309-	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0309-			●
165	CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=250 THA	5-09707-030-1	01	1	0309-	●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> (C) L=250 THA	5-09707-030-1	01	1	0309-		●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	02	1	0309-0407	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	02	1	0309-0407	●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> (B) ID=13	8-94238-571-0	02	1	0309-0407		●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (B) ID=13	8-94238-571-0	02	1	0309-0407			●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	02	1	0408-	●	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (B) ID=13	8-94238-571-0	02	1	0408-	●		●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-94238-568-0	02	1	0309-	●	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (A) ID=16	8-94238-568-0	02	1	0309-	●		●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0309-	●	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (C) L=140	5-09707-031-1	01	1	0309-	●		●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (C) L=140	5-09707-031-1	01	1	0309-	●		●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> (C) L=140	5-09707-031-1	01	1	0309-	●		●

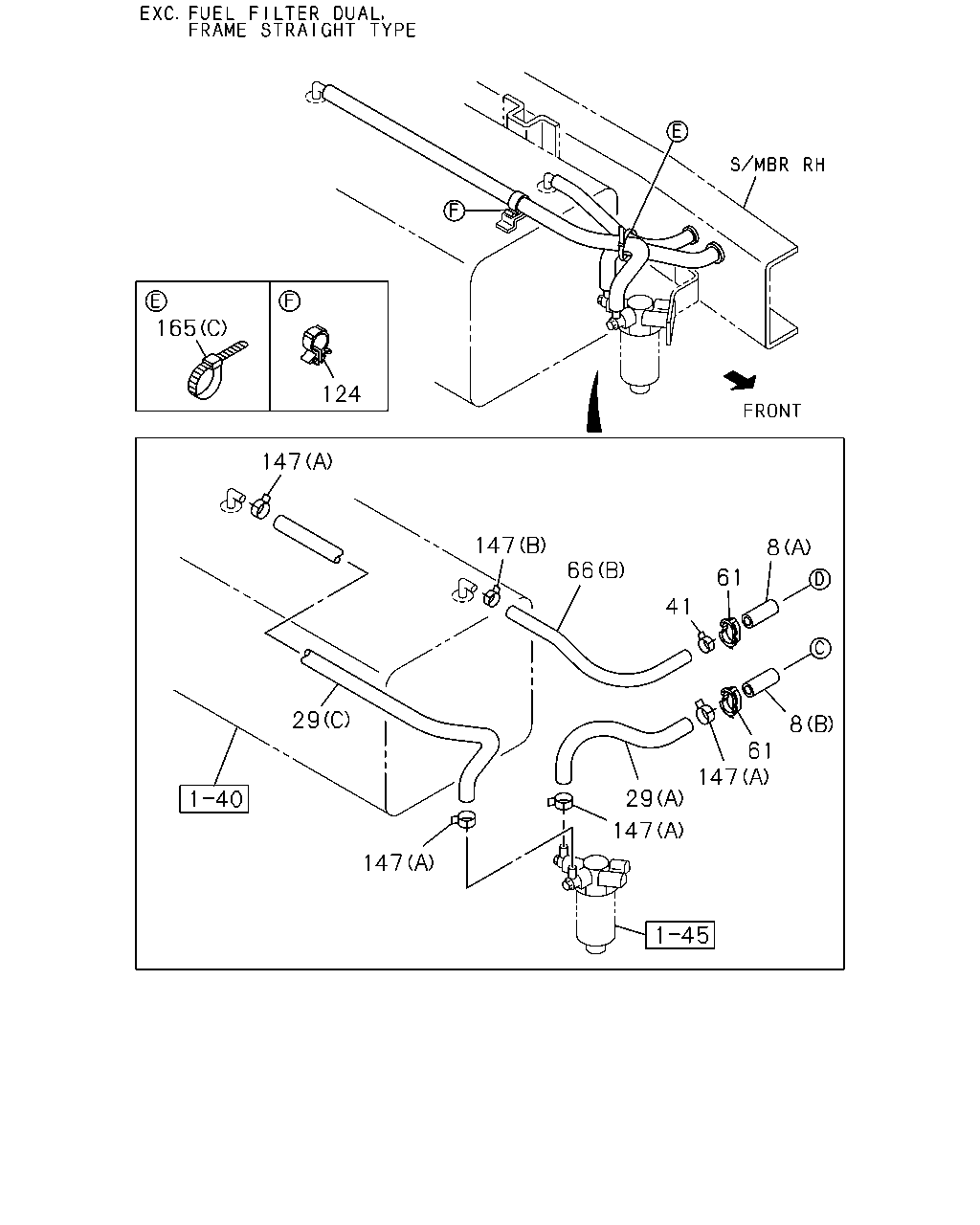

165 124 147 147 8 66 61 41 29 8 61 147 29 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	RUBBER; MTG EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	01	1	0309-	●
8	RUBBER; MTG (B) OD=15 L=50	8-97077-629-0	01	1	0309-		●
8	RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0309-	●	●	●
8	RUBBER; MTG 4HE1 ENG<RLY> (B) OD=15 L=50	8-97077-629-0	03	1	0309-	●		●
29	HOSE; FUEL FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
29	HOSE; FUEL 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
29	HOSE; FUEL 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
29	HOSE; FUEL 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
29	HOSE; FUEL 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (A) L=270 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
29	HOSE; FUEL 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> (D) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●		●
29	HOSE; FUEL 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> (B) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●		●
29	HOSE; FUEL 4HE1 ENG<RLY> EXC. FUEL FILTER DUAL<S6B> (A) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●		●
41	CLIP; FUEL PIPE,FUEL TANK ID=13	8-94238-571-0	01	1	0309-	●	●	●
61	GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> ID=17	8-94128-319-2	02	1	0309-	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0309-		●
61	GROMMET; PIPE TO FRAME 4HE1 ENG<RLY> ID=17	8-94128-319-2	04	1	0309-	●		●
66	HOSE; FUEL,RETURN PIPE FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0309-		●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●		●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> (C) THA	8-97920-884-0	01	1	0309-	●		●
124	CLIP; HOSE THA	8-97089-536-0	01	1	0309-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-94238-568-0	03	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	01	1	0309-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG<RLY> (A) ID=16	8-94238-568-0	01	1	0309-	●		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	01	1	0309-	●	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	02	1	0309-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG<RLY> (A) ID=16	8-94238-568-0	04	1	0309-	●		●
165	CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=250 THA	5-09707-030-1	01	1	0309-	●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> (C) L=250 THA	5-09707-030-1	01	1	0309-		●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	02	1	0309-0407	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	02	1	0309-0407	●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> (B) ID=13	8-94238-571-0	02	1	0309-0407		●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (B) ID=13	8-94238-571-0	02	1	0309-0407			●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	02	1	0408-	●	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (B) ID=13	8-94238-571-0	02	1	0408-	●		●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-94238-568-0	02	1	0309-	●	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (A) ID=16	8-94238-568-0	02	1	0309-	●		●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0309-	●	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (C) L=140	5-09707-031-1	01	1	0309-	●		●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (C) L=140	5-09707-031-1	01	1	0309-	●		●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> (C) L=140	5-09707-031-1	01	1	0309-	●		●

61 8 147 8 61 147 147 65 29 147 29 147 147 165 61 8 147 29 147 8 147 61 65 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	RUBBER; MTG EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	01	1	0309-	●
8	RUBBER; MTG (B) OD=15 L=50	8-97077-629-0	01	1	0309-		●
8	RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0309-	●	●	●
8	RUBBER; MTG 4HE1 ENG<RLY> (B) OD=15 L=50	8-97077-629-0	03	1	0309-	●		●
29	HOSE; FUEL FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
29	HOSE; FUEL 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
29	HOSE; FUEL 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
29	HOSE; FUEL 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
29	HOSE; FUEL 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (A) L=270 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●
29	HOSE; FUEL 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> (D) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●		●
29	HOSE; FUEL 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> (B) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●		●
29	HOSE; FUEL 4HE1 ENG<RLY> EXC. FUEL FILTER DUAL<S6B> (A) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●		●
61	GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> ID=17	8-94128-319-2	02	1	0309-	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0309-		●
61	GROMMET; PIPE TO FRAME 4HE1 ENG<RLY> ID=17	8-94128-319-2	04	1	0309-	●		●
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●		●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> (C) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●		●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-94238-568-0	03	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	01	1	0309-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG<RLY> (A) ID=16	8-94238-568-0	01	1	0309-	●		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	01	1	0309-	●	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	02	1	0309-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG<RLY> (A) ID=16	8-94238-568-0	04	1	0309-	●		●
165	CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=250 THA	5-09707-030-1	01	1	0309-	●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> (C) L=250 THA	5-09707-030-1	01	1	0309-		●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	02	1	0309-0407	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	02	1	0309-0407	●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> (B) ID=13	8-94238-571-0	02	1	0309-0407		●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (B) ID=13	8-94238-571-0	02	1	0309-0407			●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	02	1	0408-	●	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (B) ID=13	8-94238-571-0	02	1	0408-	●		●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-94238-568-0	02	1	0309-	●	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (A) ID=16	8-94238-568-0	02	1	0309-	●		●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0309-	●	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (C) L=140	5-09707-031-1	01	1	0309-	●		●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (C) L=140	5-09707-031-1	01	1	0309-	●		●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> (C) L=140	5-09707-031-1	01	1	0309-	●		●

124 147 8 147 61 41 66 8 61 65 147 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	RUBBER; MTG EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	01	1	0309-	●
8	RUBBER; MTG (B) OD=15 L=50	8-97077-629-0	01	1	0309-		●
8	RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0309-	●	●	●
8	RUBBER; MTG 4HE1 ENG<RLY> (B) OD=15 L=50	8-97077-629-0	03	1	0309-	●		●
41	CLIP; FUEL PIPE,FUEL TANK ID=13	8-94238-571-0	01	1	0309-	●	●	●
61	GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> ID=17	8-94128-319-2	02	1	0309-	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0309-		●
61	GROMMET; PIPE TO FRAME 4HE1 ENG<RLY> ID=17	8-94128-319-2	04	1	0309-	●		●
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●		●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> (C) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	0309-	●		●
66	HOSE; FUEL,RETURN PIPE FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0309-		●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●	●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0309-	●		●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> (C) THA	8-97920-884-0	01	1	0309-	●		●
124	CLIP; HOSE THA	8-97089-536-0	01	1	0309-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-94238-568-0	03	1	0309-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	01	1	0309-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG<RLY> (A) ID=16	8-94238-568-0	01	1	0309-	●		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	01	1	0309-	●	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	02	1	0309-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG<RLY> (A) ID=16	8-94238-568-0	04	1	0309-	●		●
165	CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=250 THA	5-09707-030-1	01	1	0309-	●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> (C) L=250 THA	5-09707-030-1	01	1	0309-		●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	02	1	0309-0407	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	02	1	0309-0407	●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> (B) ID=13	8-94238-571-0	02	1	0309-0407		●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (B) ID=13	8-94238-571-0	02	1	0309-0407			●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	02	1	0408-	●	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (B) ID=13	8-94238-571-0	02	1	0408-	●		●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-94238-568-0	02	1	0309-	●	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (A) ID=16	8-94238-568-0	02	1	0309-	●		●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=140	5-09707-031-1	01	1	0309-	●	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (C) L=140	5-09707-031-1	01	1	0309-	●		●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> (C) L=140	5-09707-031-1	01	1	0309-	●		●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> (C) L=140	5-09707-031-1	01	1	0309-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
