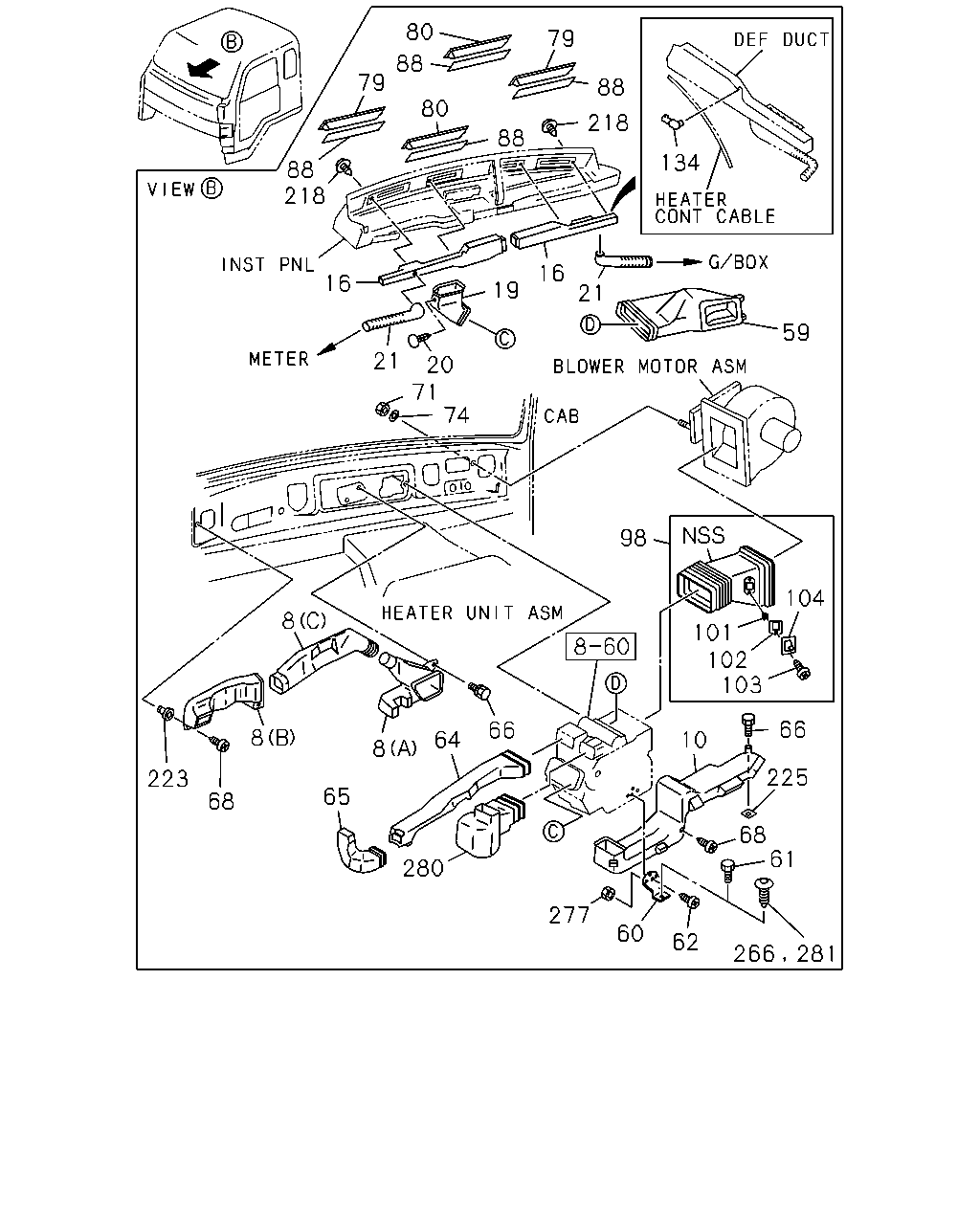

8-40 — HEATER SYSTEM (#1993) — 66 parça

91 92 253 249 248 249 247 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
91	GRILLE ASM; AIR OUTLET,METER CLUSTER	1-76367-050-1	02	1	9207-	●	●	●	●
92	BUSHING; AIR OUTLET GRILLE,METER CLUST	1-72547-048-1	02	1	9207-	●	●	●	●
246	COVER; BLOWER MOTOR EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-71997-533-3	01	1	9207-	●	●	●	●
247	SEAL; COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-71997-549-0	01	1	9207-	●	●	●	●
248	NUT; COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6 FLANGE	1-09984-141-0	03	1	9207-	●	●	●	●
249	WASHER; PL,COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=20	1-09509-047-0	01	1	9207-9210	●	●	●	●
249	WASHER; PL,COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=20	1-09509-047-0	02	1	9211-	●	●	●	●
249	WASHER; PL,COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=14	1-09509-048-0	02	1	9207-9210	●	●	●	●
249	WASHER; PL,COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=14	1-09509-048-0	01	1	9211-	●	●	●	●
253	KNOB; CONT LEVER HEATER & DEFROSTER<C41>	1-82346-072-0	03	1	9207-	●	●	●	●
253	KNOB; CONT LEVER VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-82346-072-0	02	1	9207-	●	●	●	●

80 79 88 79 88 80 218 88 134 88 218 16 16 19 21 59 21 20 71 74 98 104 8 101 102 103 66 66 8 64 10 8 225 223 65 68 68 61 280 277 60 62 266 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (C)	1-83542-085-3	01	1	9207-	●	●	●	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (B)	1-83542-075-2	01	1	9207-	●	●	●	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (A)	1-83542-074-0	01	1	9207-	●	●	●	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83542-076-0	01	1	9207-	●	●	●	●
16	DUCT ASM; DEFROSTER HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-76378-190-4	01	1	9207-	●	●	●	●
16	DUCT ASM; DEFROSTER HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-76378-207-2	01	1	9207-	●	●	●	●
19	DUCT; DEFROSTER,HTR JOINT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-76378-219-2	01	1	9207-	●	●	●	●
20	FASTENER; DEFROSTER DUCT,HTR JOINT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> BLACK	8-94104-935-0	01	1	9407-	●	●	●	●
21	HOSE; DEFROSTER,DRIVER SIDE HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> WO/URETHANE	1-76377-085-4	02	1	9207-	●	●	●	●
59	DUCT; VENT,ASSIST SIDE HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-76378-218-4	01	1	9207-	●	●	●	●
60	SUPPORT; HTR UNIT	1-73998-449-4	01	1	9207-	●	●	●	●
61	BOLT; SUPPORT,HTR UNIT M6X16 W/LK&PL WASHER	1-09980-586-0	01	1	9207-	●	●	●	●
62	SCREW; STAY,HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M5X14 TAPPING W/PL WASHER	0-74110-514-0	03	1	9207-	●	●	●	●
62	SCREW; STAY,HTR UNIT EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6X16	1-09981-453-0	01	1	9207-	●	●	●	●
64	DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-76378-216-3	01	1	9207-	●	●	●	●
65	DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-76378-221-1	01	1	9207-	●	●	●	●
66	BOLT; DUCT	1-09980-538-0	05	1	9207-	●	●	●	●
68	SCREW; HTR DUCT M5X16 TAPPING W/PL WASHER	0-74105-516-0	01	1	9207-	●	●	●	●
68	SCREW; HTR DUCT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M5X14 TAPPING W/PL WASHER	0-74110-514-0	01	1	9207-	●	●	●	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6 FLANGE	1-09984-141-0	06	1	9207-9301	●	●	●	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6 FLANGE	1-09984-141-0	03	1	9302-	●	●	●	●
74	WASHER; PL,BLOWER UNIT TO DASH HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=20	1-09509-047-0	01	1	9207-9210	●	●	●	●
74	WASHER; PL,BLOWER UNIT TO DASH HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=20	1-09509-047-0	02	1	9211-	●	●	●	●
74	WASHER; PL,BLOWER UNIT TO DASH HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=14	1-09509-048-0	02	1	9207-	●	●	●	●
79	GRILLE; DEFROSTER,INST OUTSIDE	1-76368-022-0	02	1	9207-	●	●	●	●
80	GRILLE; DEFROSTER,INSIDE	1-76368-023-0	02	1	9207-	●	●	●	●
88	SEAL; DEFROSTER,GRILLE SIDE	1-76778-012-1	04	1	9207-	●	●	●	●
98	DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83542-078-3	01	1	9207-	●	●	●	●
101	NUT; RESISTOR FIX HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83579-370-0	01	1	9207-	●	●	●	●
102	LINING; HTR DUCT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83579-368-0	01	1	9207-	●	●	●	●
103	SCREW; TAPPING,RESISTOR FIX HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83579-369-0	01	1	9207-	●	●	●	●
104	RESISTOR; HTR DUCT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83519-028-1	01	1	9207-	●	●	●	●
134	CLIP; CONT CABLE HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-09987-147-0	01	1	9207-	●	●	●	●
218	SCREW; DEFROSTER DUCT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M5X14 W/PL WASHER	5-09981-050-0	04	1	9207-	●	●	●	●
223	GROMMET; SCREW	5-09983-012-0	01	1	9207-	●	●	●	●
225	SEAL; WATER 25X25	8-94272-533-0	01	1	9207-	●	●	●	●
266	PLUG; HTR HOLE EXC. HEATER & DEFROSTER<C41> D4.7X11	1-76378-154-0	01	1	9207-	●	●	●	●
277	NUT; HTR EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> M5 FLANGE	5-09440-003-0	01	1	9207-	●	●	●	●
280	DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-76378-217-2	01	1	9207-	●	●	●	●
281	FASTENER; VENT DUCT,DRIVER SIDE HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> BLACK	8-94104-935-0	01	1	9407-	●	●	●	●
281	FASTENER; VENT DUCT,DRIVER SIDE HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> BLACK	8-94104-935-0	02	1	9407-	●	●	●	●

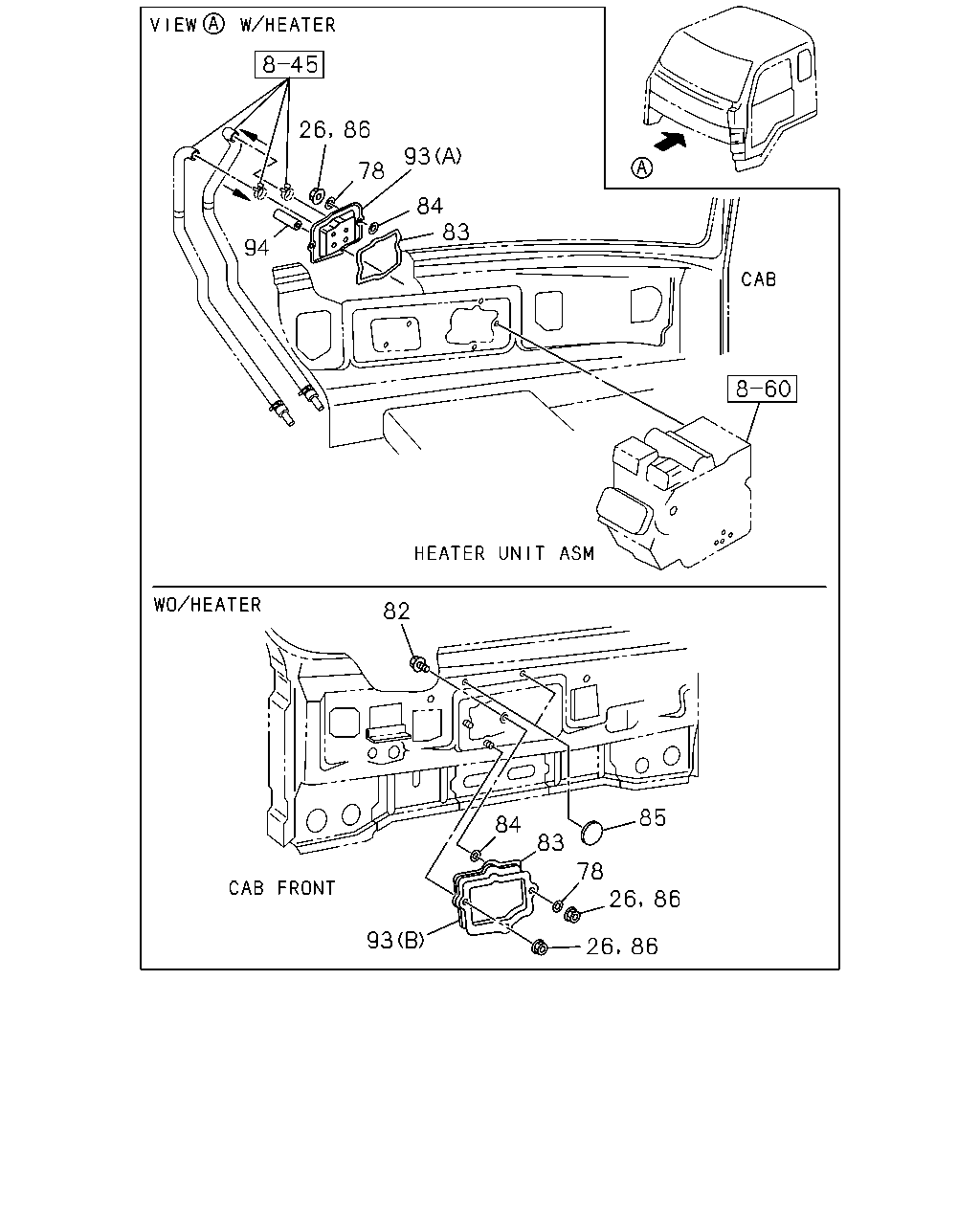

26 86 93 78 84 83 94 82 85 84 83 78 26 86 93 26 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
26	NUT; HTR HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6 FLANGE	1-09984-141-0	06	1	9207-9301	●	●	●	●
26	NUT; HTR HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6 FLANGE	1-09984-141-0	03	1	9302-	●	●	●	●
78	WASHER; PL,HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=20	1-09509-047-0	01	1	9207-	●	●	●	●
78	WASHER; PL,HTR UNIT HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=14	1-09509-048-0	02	1	9207-	●	●	●	●
78	WASHER; PL,HTR UNIT EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=14	1-09509-048-0	01	1	9207-	●	●	●	●
82	BOLT; COVER,HTR CORE EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-09980-538-0	01	1	9207-	●	●	●	●
83	SEAL; COVER,HTR HOLE	1-71998-222-0	01	1	9207-	●	●	●	●
84	SHEET; COVER,HTR CORE	1-71998-224-0	01	1	9207-	●	●	●	●
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> OD=20 T=0.4 BLACK	1-76798-020-0	02	1	9207-	●	●	●	●
86	NUT; COVER,HTR HOLE HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6 FLANGE	1-09984-141-0	02	1	9207-	●	●	●	●
86	NUT; COVER,HTR HOLE EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6 FLANGE	1-09984-141-0	03	1	9207-	●	●	●	●
93	COVER; HTR CORE HEATER & DEFROSTER<C41> (A)	1-71998-194-1	01	1	9207-	●	●	●	●
93	COVER; HTR CORE EXC. HEATER & DEFROSTER<C41> (B)	1-71998-180-1	01	1	9207-	●	●	●	●
94	CAP; HTR CORE HEATER & DEFROSTER<C41>	1-71998-399-0	01	1	9207-	●	●	●	●
