1-10 — RADIATOR (#19928) — 74 parça

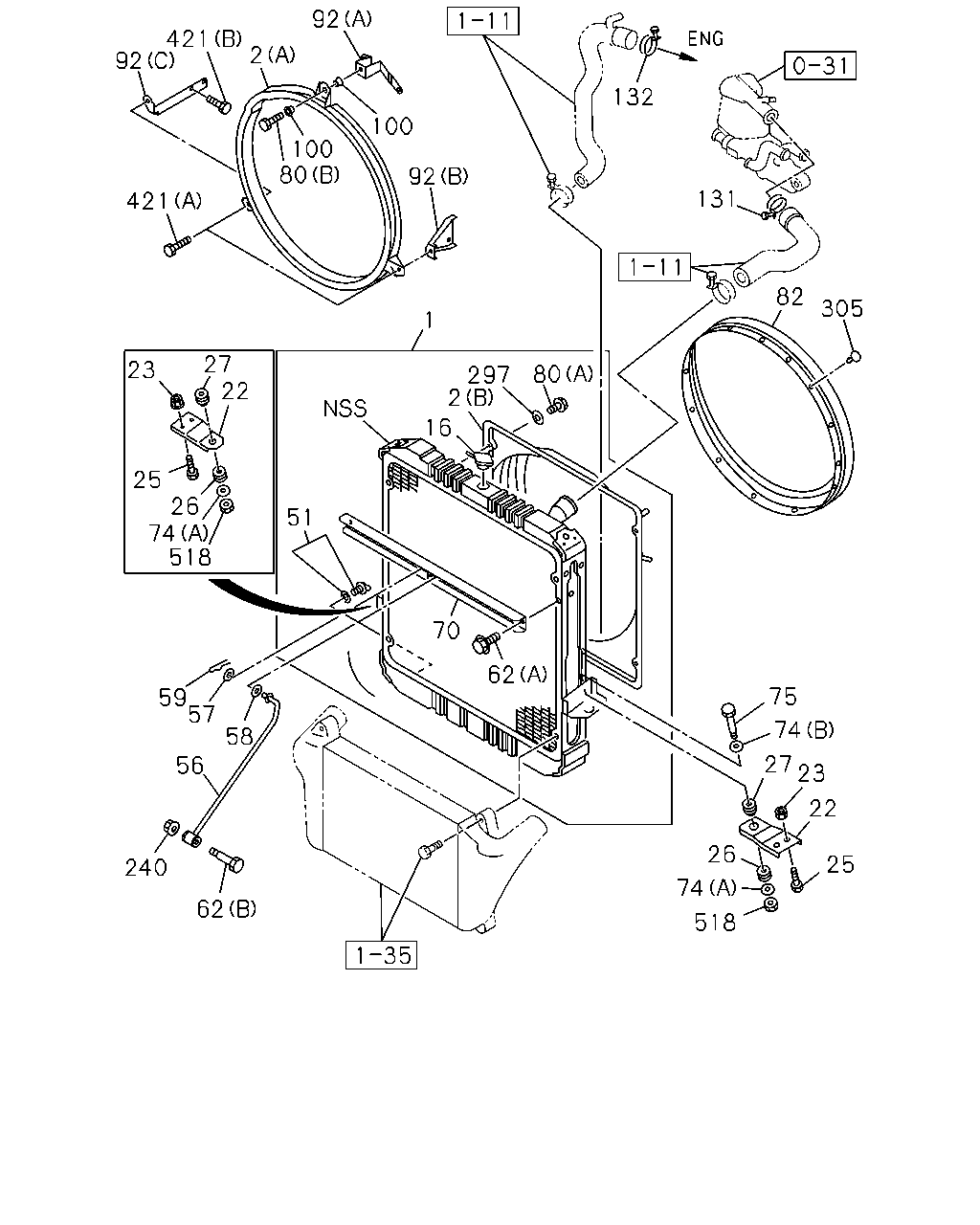

92 421 2 92 132 100 100 80 92 131 421 82 305 1 27 22 23 80 297 2 16 25 26 74 518 51 70 62 75 59 57 74 58 27 23 56 22 26 25 240 74 62 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	8-97940-295-1	01	1	0309-	●	●
1	RADIATOR ASM 4HE1 ENG<RLY> THA	8-97942-216-0	01	1	0309-	●		●
2	GUIDE; FAN 4HG1 ENG<RJH> M/T MYY5T<RSM> (C) THA	8-97942-319-0	01	1	0309-	●	●
2	GUIDE; FAN 4HE1 ENG<RLY> (A)	8-97068-803-0	01	1	0309-	●		●
2	GUIDE; FAN 4HE1 ENG<RLY> (B) THA	8-97218-802-1	01	1	0309-	●		●
16	CAP; RAD THA	8-97940-668-0	01	1	0309-	●	●	●
22	BRACKET; RAD MTG 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97918-331-0	02	1	0309-	●	●
22	BRACKET; RAD MTG 4HE1 ENG<RLY> THA	8-97918-330-0	02	1	0309-	●		●
23	NUT; RAD MTG M10 FLANGE	5-09440-006-0	04	1	0309-	●	●	●
25	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0309-	●	●	●
26	BUFFER; RAD,LWR THA	8-97916-760-0	02	1	0309-	●	●	●
27	BUFFER; RAD,UPR THA	8-97916-770-0	02	1	0309-	●	●	●
51	PLUG; DRAIN THA	8-97940-673-0	01	1	0309-	●	●	●
56	STAY; RAD 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97330-456-0	01	1	0309-	●	●
56	STAY; RAD 4HE1 ENG<RLY>	8-97073-424-2	01	1	0309-	●		●
57	WASHER; PL,STAY ID=10.5 OD=18	9-09160-510-0	01	1	0309-	●	●	●
58	WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0309-	●	●	●
59	PIN; SNAP,STAY L=27.7	8-94202-777-0	01	1	0309-	●	●	●
62	BOLT; STAY (A) M8X12 FLANGE	0-28080-812-0	02	1	0309-	●	●	●
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0309-	●	●	●
70	STAY; RAD THA	8-97940-660-0	01	1	0309-	●	●	●
74	WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-94221-082-0	02	1	0309-	●	●	●
74	WASHER; PL,CUSHION RUBBER (B) ID=10.5 OD=26	9-09160-710-0	01	1	0309-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M8X63	8-94249-446-0	01	1	0309-	●	●	●
80	BOLT; FAN GUIDE 4HE1 ENG<RLY> (A) M6X12 FLANGE	0-28080-612-0	04	1	0309-	●		●
80	BOLT; FAN GUIDE 4HE1 ENG<RLY> (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0309-	●		●
82	COVER; FAN,RAD 4HE1 ENG<RLY> THA	8-97218-799-0	01	1	0309-	●		●
92	BRACKET; FAN GUIDE 4HE1 ENG<RLY> (B)	8-97148-940-0	01	1	0309-	●		●
92	BRACKET; FAN GUIDE 4HE1 ENG<RLY> (C)	8-97148-941-1	01	1	0309-	●		●
92	BRACKET; FAN GUIDE 4HE1 ENG<RLY> (A)	8-97189-394-1	01	1	0309-	●		●
100	RUBBER; MTG 4HE1 ENG<RLY>	1-09337-027-0	06	1	0309-	●		●
131	CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0309-	●	●	●
132	CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0309-	●	●	●
240	NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0309-	●	●	●
297	WASHER; PL,FAN GUIDE 4HE1 ENG<RLY> ID=6.4 OD=18	9-09160-706-0	04	1	0309-	●		●
305	CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG<RLY> D6.8X11 PUSH RIVET THA	1-73318-230-0	12	1	0309-0404	●		●
305	CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG<RLY>	1-09470-009-0	12	1	0405-	●		●
305	CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG<RLY>	1-09470-009-0	12	1	0407-0407	●		●
421	BOLT; BRKT FAN GUIDE 4HE1 ENG<RLY> (A) M10X18 FLANGE	0-28181-018-0	02	1	0309-	●		●
421	BOLT; BRKT FAN GUIDE 4HE1 ENG<RLY> (B) M10X20 FLANGE	0-28181-020-0	02	1	0309-	●		●
518	NUT M8 FLANGE THA	5-09440-005-0	02	1	0309-	●	●	●

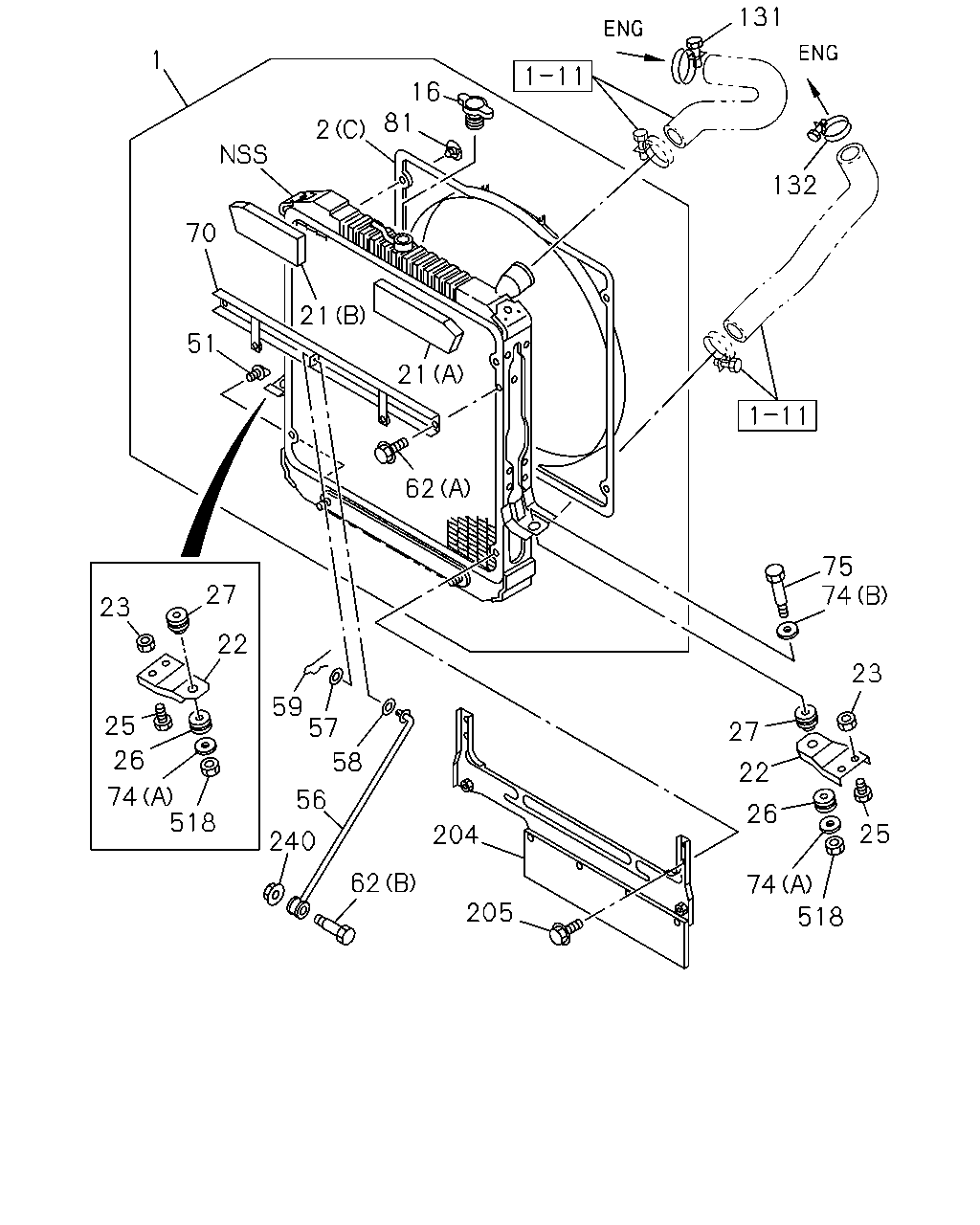

131 1 16 81 2 132 70 21 51 21 62 75 74 27 23 22 23 59 57 25 27 26 58 22 74 518 56 26 25 204 240 62 74 205 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	8-97940-295-1	01	1	0309-	●	●
1	RADIATOR ASM 4HE1 ENG<RLY> THA	8-97942-216-0	01	1	0309-	●		●
2	GUIDE; FAN 4HG1 ENG<RJH> M/T MYY5T<RSM> (C) THA	8-97942-319-0	01	1	0309-	●	●
2	GUIDE; FAN 4HE1 ENG<RLY> (A)	8-97068-803-0	01	1	0309-	●		●
2	GUIDE; FAN 4HE1 ENG<RLY> (B) THA	8-97218-802-1	01	1	0309-	●		●
16	CAP; RAD THA	8-97940-668-0	01	1	0309-	●	●	●
21	SEAL; RAD 4HG1 ENG<RJH> M/T MYY5T<RSM> (B) THA	8-97940-664-0	01	1	0309-	●	●
21	SEAL; RAD 4HG1 ENG<RJH> M/T MYY5T<RSM> (A) THA	8-97940-665-0	01	1	0309-	●	●
22	BRACKET; RAD MTG 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97918-331-0	02	1	0309-	●	●
22	BRACKET; RAD MTG 4HE1 ENG<RLY> THA	8-97918-330-0	02	1	0309-	●		●
23	NUT; RAD MTG M10 FLANGE	5-09440-006-0	04	1	0309-	●	●	●
25	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0309-	●	●	●
26	BUFFER; RAD,LWR THA	8-97916-760-0	02	1	0309-	●	●	●
27	BUFFER; RAD,UPR THA	8-97916-770-0	02	1	0309-	●	●	●
51	PLUG; DRAIN THA	8-97940-673-0	01	1	0309-	●	●	●
56	STAY; RAD 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97330-456-0	01	1	0309-	●	●
56	STAY; RAD 4HE1 ENG<RLY>	8-97073-424-2	01	1	0309-	●		●
57	WASHER; PL,STAY ID=10.5 OD=18	9-09160-510-0	01	1	0309-	●	●	●
58	WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0309-	●	●	●
59	PIN; SNAP,STAY L=27.7	8-94202-777-0	01	1	0309-	●	●	●
62	BOLT; STAY (A) M8X12 FLANGE	0-28080-812-0	02	1	0309-	●	●	●
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0309-	●	●	●
70	STAY; RAD THA	8-97940-660-0	01	1	0309-	●	●	●
74	WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-94221-082-0	02	1	0309-	●	●	●
74	WASHER; PL,CUSHION RUBBER (B) ID=10.5 OD=26	9-09160-710-0	01	1	0309-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M8X63	8-94249-446-0	01	1	0309-	●	●	●
81	SCREW; FAN GUIDE,RAD 4HG1 ENG<RJH> M/T MYY5T<RSM> THA	8-97940-658-0	04	1	0309-	●	●
131	CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0309-	●	●	●
132	CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0309-	●	●	●
204	GUIDE ASM; AIR 4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60>	8-97038-894-1	01	1	0309-	●	●
205	BOLT; AIR GUIDE 4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> M6X12 FLANGE	0-28080-612-0	04	1	0309-	●	●
240	NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0309-	●	●	●
518	NUT M8 FLANGE THA	5-09440-005-0	02	1	0309-	●	●	●
