◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50971 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-86 - MISCELLANEOUS PARTS; INJECTION PUMP ▶
0-86 — MISCELLANEOUS PARTS; INJECTION PUMP (#19925) — 32 parça

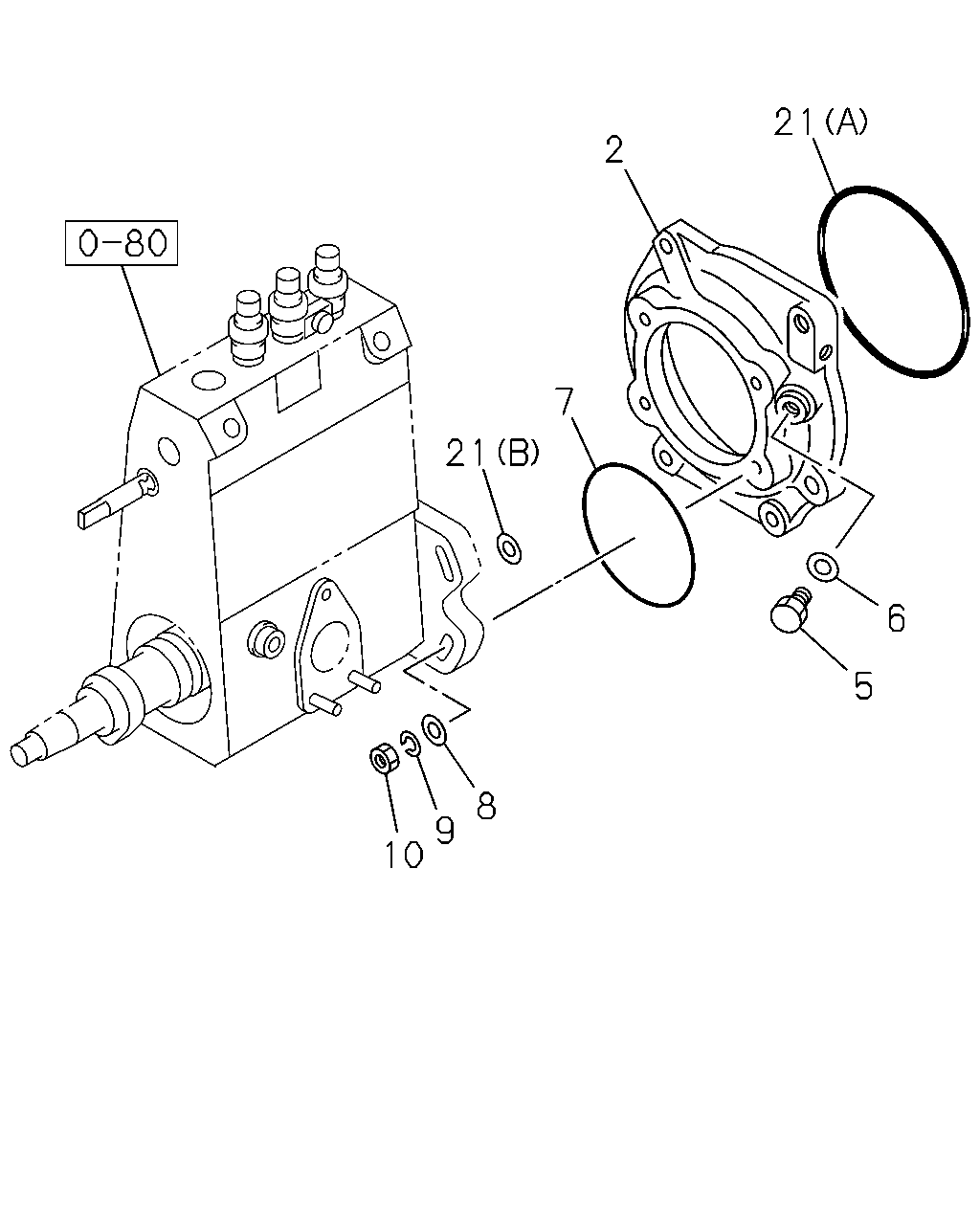

çizim 58142
21 2 7 21 6 5 8 9 10
BalonParca AdiParca NoAdetTipApplied Date A B
2 BRACKET; HSG & TIMER,INJ PUMP 8-97188-880-1 01 1 0502- ●
2 BRACKET; HSG & TIMER,INJ PUMP 8-97123-609-0 01 1 0309- ●
2 BRACKET; HSG & TIMER,INJ PUMP 8-97188-880-1 01 1 0309-0407 ●
5 PLUG; HSG BRKT,INJ PUMP 8-97026-919-0 01 1 0309-0407 ● ●
5 PLUG; HSG BRKT,INJ PUMP 8-97026-919-0 01 1 0408-0501 ●
5 PLUG; HSG BRKT,INJ PUMP 8-97026-919-0 01 1 0502- ● ●
5 PLUG; HSG BRKT,INJ PUMP 8-97026-919-0 01 1 0408- ● ●
6 GASKET; PLUG,INJ PUMP BRKT 1-15729-787-0 01 1 0309-0407 ● ●
6 GASKET; PLUG,INJ PUMP BRKT 1-15729-787-0 01 1 0408-0501 ●
6 GASKET; PLUG,INJ PUMP BRKT 1-15729-787-0 01 1 0502- ● ●
6 GASKET; PLUG,INJ PUMP BRKT 1-15729-787-0 01 1 0408- ● ●
7 GASKET; HSG BRKT,ENG SIDE 8-97188-881-0 01 1 0502- ●
7 GASKET; HSG BRKT,ENG SIDE 8-97188-881-0 01 1 0309-0407 ●
8 WASHER; PL,HSG BRKT,INJ PUMP
ID=10.5 		9-09164-510-0 04 1 0309-0407 ● ●
8 WASHER; PL,HSG BRKT,INJ PUMP
ID=10.5 		9-09164-510-0 04 1 0408-0501 ●
8 WASHER; PL,HSG BRKT,INJ PUMP
ID=10.5 		9-09164-510-0 04 1 0502- ● ●
8 WASHER; PL,HSG BRKT,INJ PUMP
ID=10.5 		9-09164-510-0 04 1 0408- ● ●
9 WASHER; LK,HSG BRKT,INJ PUMP
ID=10.2 		9-09150-510-0 04 1 0502- ●
9 WASHER; LK,HSG BRKT,INJ PUMP
ID=10.2 		9-09150-610-0 04 1 0309- ●
9 WASHER; LK,HSG BRKT,INJ PUMP
ID=10.2 		9-09150-510-0 04 1 0309-0407 ●
10 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 0309-0407 ● ●
10 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 0408-0501 ●
10 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 0502- ● ●
10 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 0408- ● ●
21 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97039-200-1 01 1 0309-0407 ● ●
21 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97039-200-1 01 1 0408-0501 ●
21 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97039-200-1 01 1 0502- ● ●
21 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=23.0 		9-09572-014-0 02 1 0309-0407 ● ●
21 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=23.0 		9-09572-014-0 02 1 0408-0501 ●
21 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=23.0 		9-09572-014-0 02 1 0502- ● ●
21 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97039-200-1 01 1 0408- ● ●
21 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=23.0 		9-09572-014-0 02 1 0408- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
