8-28 — CHASSIS ELECTRICAL (#1992) — 78 parça

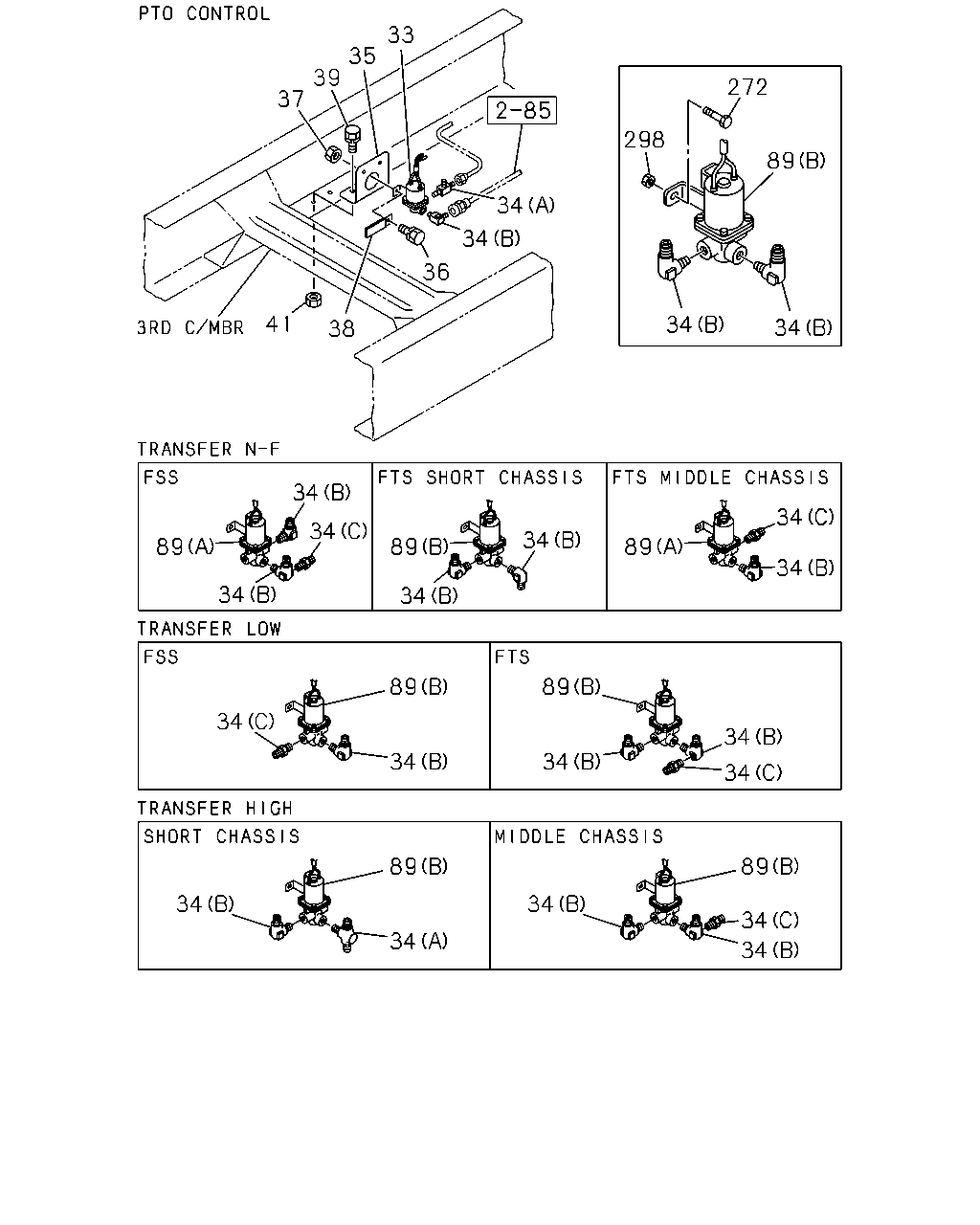

33 35 39 37 272 298 89 34 34 36 41 34 34 38 34 34 34 34 89 89 89 34 34 34 89 89 34 4 34 34 4 89 89 34 34 34 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	SCREW; FLASHER UNIT M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9207-	●	●	●	●
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-154-0	01	1	9207-	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9304-	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9207-9303	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9207-9303	●	●		●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9207-9303		●		●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9304-	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9207-9302	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9207-9302	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9207-9302	●	●		●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-9303	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-9303	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-9303	●	●		●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9304-	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9207-	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9207-9302	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) PT1/4 & M12 ELBOW	1-09656-168-1	01	1	9207-9302	●	●		●
34	CONNECTOR; MAG VLV,INL PORT (B) PT1/4 & M12 ELBOW	1-09656-168-1	01	1	9207-9302		●
34	CONNECTOR; MAG VLV,INL PORT (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9303-9303	●	●		●
34	CONNECTOR; MAG VLV,INL PORT (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9303-9303		●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9207-9303	●		●
34	CONNECTOR; MAG VLV,INL PORT (A) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9304-	●	●	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) PT1/4 & M12 ELBOW	1-09650-117-1	02	1	9207-9302			●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9303-9303			●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9304-	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) PT1/4 & M12 ELBOW	1-09656-485-1	01	1	9207-9302			●	●
34	CONNECTOR; MAG VLV,INL PORT (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9303-			●	●
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9304-			●	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	9304-			●	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-82569-077-1	01	1	9207-	●	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-82569-067-0	01	1	9207-			●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X25 W/LK WASHER	0-50040-825-0	02	1	9207-	●	●	●	●
37	NUT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8	9-09110-408-0	02	1	9207-	●	●	●	●
38	CLIP; MAG VLV HARNESS PTO CONTROL<SV6> L=63	1-09700-418-1	01	1	9207-	●	●	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28080-830-0	02	1	9207-	●	●	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8	9-09110-408-0	02	1	9207-	●	●	●	●
89	VALVE; MAG,DIFF LOCK (B)	1-82563-158-0	01	1	9207-9303	●	●	●	●
89	VALVE; MAG,DIFF LOCK (B)	1-82563-158-0	01	1	9207-9303	●	●	●	●
89	VALVE; MAG,DIFF LOCK (B)	1-82563-158-0	01	1	9207-9303			●
89	VALVE; MAG,DIFF LOCK (B)	1-82563-158-0	01	1	9304-	●	●	●	●
89	VALVE; MAG,DIFF LOCK (B)	1-82563-158-0	01	1	9304-	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-222-0	01	1	9207-9303	●	●		●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-222-0	01	1	9304-	●	●
89	VALVE; MAG,DIFF LOCK (B)	1-82563-158-0	02	1	9304-			●	●
272	BOLT; MAG VLV M8X25 FLANGE	0-28080-825-0	06	1	9207-	●	●	●	●
298	NUT; MAG VLV M8	9-09110-408-0	06	1	9207-	●	●	●	●

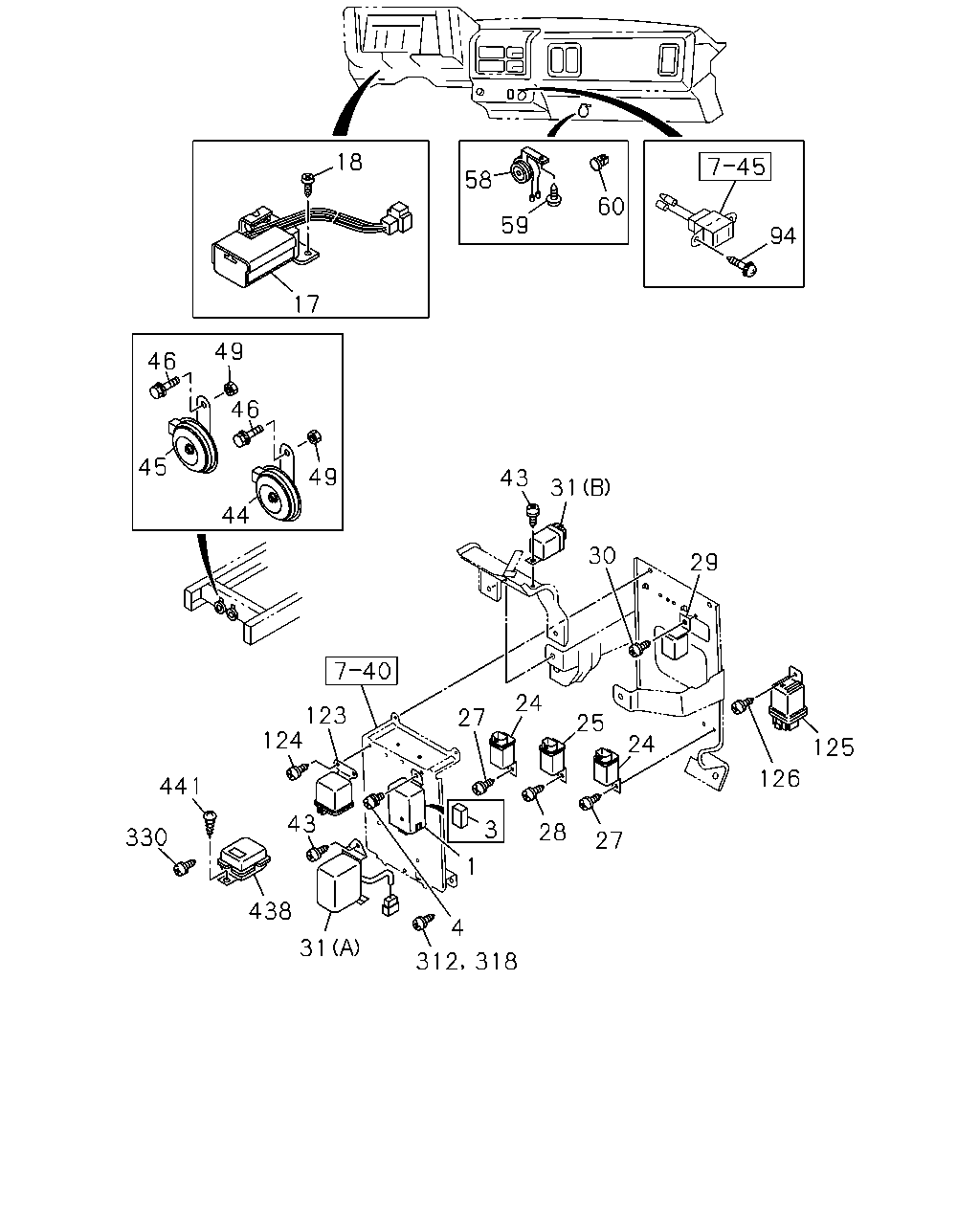

18 58 60 59 94 17 49 46 46 45 49 43 31 44 30 29 24 123 124 27 25 24 125 126 43 441 3 28 330 27 1 438 4 31 312 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	UNIT; FLASHER	1-83470-034-1	01	1	9207-	●	●	●	●
3	SEAL; SILENT,RELAY	1-73368-001-0	01	1	9207-	●	●	●	●
4	SCREW; FLASHER UNIT M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9207-	●	●	●	●
17	TIMER; SEAT BELT SAUDI ARABIA EQUIPMENT(WH1)	1-82550-183-1	01	1	9207-	●	●	●	●
18	SCREW; TIMER SAUDI ARABIA EQUIPMENT(WH1) M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9207-	●	●	●	●
24	RELAY; LIGHTING 24V	1-82550-176-0	02	1	9207-	●	●	●	●
25	RELAY; TAIL LAMP 24V	1-82550-176-0	01	1	9207-	●	●	●	●
27	SCREW; SET,LIGHTING RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9207-	●	●	●	●
28	SCREW; SET,TAIL LAMP RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9207-	●	●	●	●
29	RELAY; HORN	1-83420-001-0	01	1	9207-	●	●	●	●
30	SCREW; HORN RELAY TO DASH SIDE M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9207-	●	●	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V	1-82550-187-1	01	1	9207-	●	●	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V 12.5A JIDECO	1-82550-197-0	01	1	9207-	●	●	●	●
43	SCREW; PTO RELAY PTO CONTROL<SV6> M5X14 TAPPING W/PL WASHER	0-74100-514-0	03	1	9207-	●	●	●	●
44	HORN; HIGH NOTE	1-83410-053-1	01	1	9207-	●	●	●	●
45	HORN; LOW NOTE	1-83410-054-1	01	1	9207-	●	●	●	●
46	BOLT; HORN TO BODY M8X22 FLANGE	0-28080-822-0	02	1	9207-	●	●	●	●
49	NUT; HORN TO BODY M8 FLANGE	5-09440-005-0	02	1	9207-	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING	1-83460-022-0	01	1	9207-	●	●	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9207-	●	●	●	●
60	GROMMET; SCREW,BUZZER D=7X7 L=7.5	5-09983-007-0	01	1	9207-	●	●	●	●
94	SCREW; CONSENT TO BLIND PNL M5X14 W/PL WASHER	5-09981-050-0	02	1	9207-	●	●	●	●
123	RELAY; HTR HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 24V	1-82550-176-0	01	1	9207-	●	●	●	●
124	SCREW; SET,HTR RELAY HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9207-	●	●	●	●
125	RELAY; STROKE,BRAKE LINING WARNING	5-82550-046-0	01	1	9207-	●	●	●	●
126	SCREW; STROKE RELAY,BRAKE LINING WARNI M6X16 W/LK&PL WASHER	1-09981-141-0	01	1	9207-	●	●	●	●
312	BOLT; BUZZER M6X14 W/LK&PL WASHER	8-94279-142-0	01	1	9309-9501	●	●	●	●
318	SCREW; BUZZER SAUDI ARABIA EQUIPMENT(WH1) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9207-	●	●	●	●
330	SCREW; BACK LAMP RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9207-	●	●	●	●
438	UNIT; SPD CONTROL	1-82550-251-0	01	1	9207-	●	●	●	●
441	SCREW; CONT UNIT M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9210-	●	●	●	●
