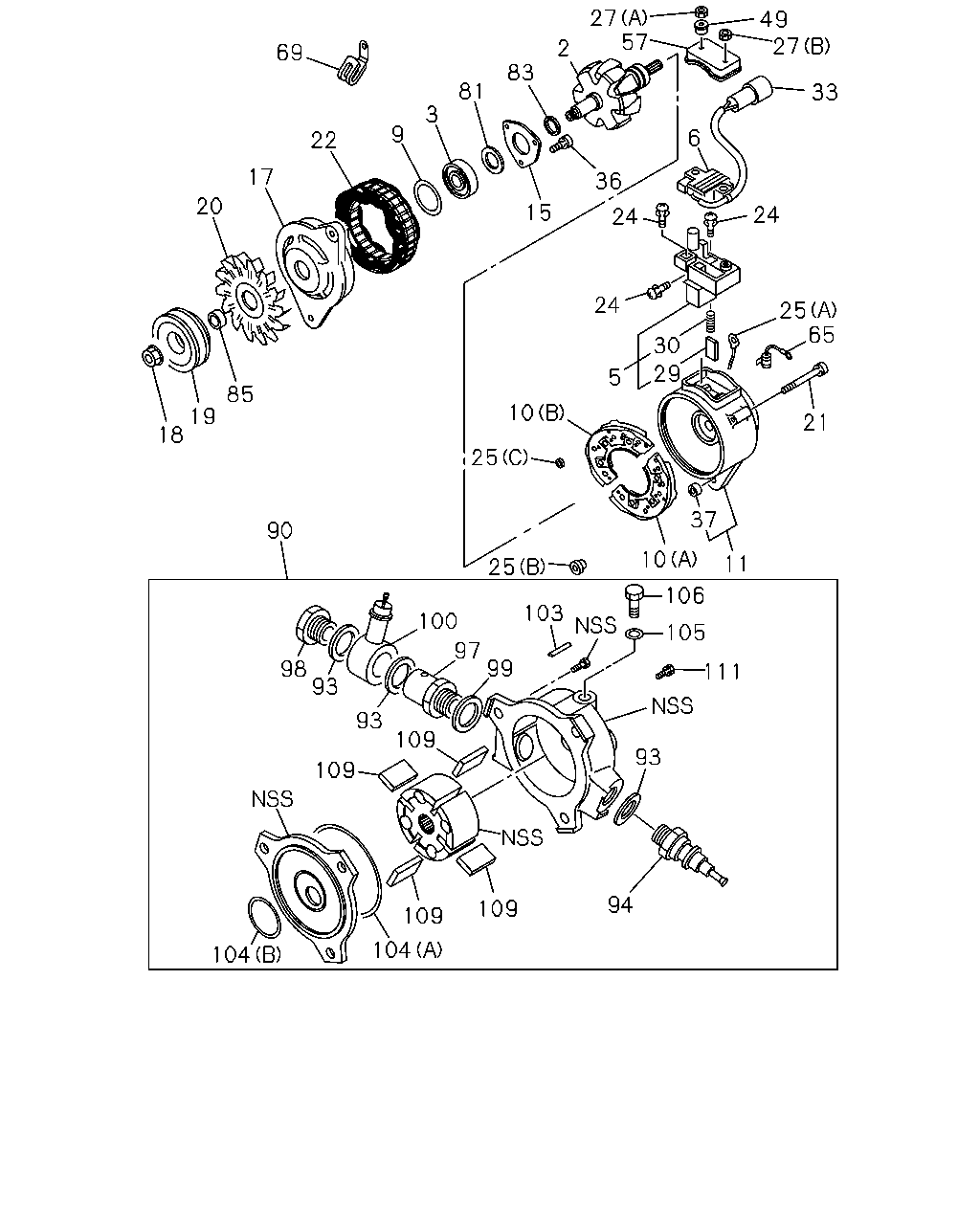

0-66 — GENERATOR (#19919) — 74 parça

27 57 49 27 2 69 83 81 33 3 9 6 22 17 36 24 20 15 24 24 25 65 30 29 5 85 10 19 18 21 25 37 90 10 11 25 106 103 100 105 97 99 98 93 111 93 109 93 109 94 109 109 104 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ROTOR; GEN THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-730-0	01	1	-
3	BEARING; ROTOR,GEN THA ASM PART: A = 8-97911-590-2	1-81229-466-1	01	1	-
3	BEARING; ROTOR,GEN THA ASM PART: B = 8-97920-935-2	8-97921-129-0	01	1	-
5	HOLDER; BRUSH,GEN THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-736-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-746-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN THA ASM PART: A = 8-97911-590-2	1-81214-102-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN THA ASM PART: B = 8-97920-935-2	8-97921-128-0	01	1	-
10	RECTIFIER; GEN (A), THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-733-0	01	1	-
10	RECTIFIER; GEN (B), THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-734-0	01	1	-
11	COVER; RR,GEN THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-731-0	01	1	-
15	RETAINER; ROTOR,GEN THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-729-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-728-0	01	1	-
18	NUT; PULLEY,GEN THA ASM PART: A = 8-97911-590-2	8-94167-948-0	01	1	-
18	NUT; PULLEY,GEN THA ASM PART: B = 8-97920-935-2	8-97921-123-0	01	1	-
19	PULLEY; GEN THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-726-1	01	1	-
20	FAN; GEN THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-727-0	01	1	-
21	BOLT; THROUGH,GEN THA ASM PART: A = 8-97911-590-2	5-81229-106-0	04	1	-
21	BOLT; THROUGH,GEN THA ASM PART: B = 8-97920-935-2	8-97921-124-0	04	1	-
22	STATOR; GEN THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-739-0	01	1	-
24	SCREW; RECTIFIER,GEN THA ASM PART: A = 8-97911-590-2	1-81229-419-0	03	1	-
24	SCREW; RECTIFIER,GEN THA ASM PART: B = 8-97920-935-2	8-97921-726-0	03	1	-
25	BUSHING; INSULATION TERMINAL (A), THA ASM PART: A = 8-97911-590-2	1-81229-410-0	01	1	-
25	BUSHING; INSULATION TERMINAL (B) LOWER, THA ASM PART: A = 8-97911-590-2	1-81229-411-0	02	1	-
25	BUSHING; INSULATION TERMINAL (B) UPPER, THA ASM PART: A = 8-97911-590-2	5-81229-105-0	02	1	-
25	BUSHING; INSULATION TERMINAL (C), THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-735-0	01	1	-
25	BUSHING; INSULATION TERMINAL (B) UPPER, THA ASM PART: B = 8-97920-935-2	8-97921-139-0	02	1	-
25	BUSHING; INSULATION TERMINAL (A), THA ASM PART: B = 8-97920-935-2	8-97921-140-0	01	1	-
25	BUSHING; INSULATION TERMINAL (B) LOWER, THA ASM PART: B = 8-97920-935-2	8-97921-141-0	02	1	-
27	NUT; RECTIFIER,GEN (A), M6 ASM PART: A = 8-97911-590-2	8-94206-186-0	01	1	-
27	NUT; RECTIFIER,GEN (B), THA ASM PART: A = 8-97911-590-2	8-94206-188-0	06	1	-
27	NUT; RECTIFIER,GEN (A), THA ASM PART: B = 8-97920-935-2	8-97921-722-0	01	1	-
27	NUT; RECTIFIER,GEN (B), THA ASM PART: B = 8-97920-935-2	8-97921-725-0	06	1	-
29	BRUSH; GEN THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-737-0	02	1	-
30	SPRING; BRUSH,GEN THA ASM PART: A = 8-97911-590-2	5-81216-002-0	02	1	-
30	SPRING; BRUSH,GEN THA ASM PART: B = 8-97920-935-2	8-97921-143-0	02	1	-
33	WIRE; LEAD,GEN THA ASM PART: A = 8-97911-590-2	8-97918-740-0	01	1	-
33	WIRE; LEAD,GEN THA ASM PART: B = 8-97920-935-2	8-97921-727-0	01	1	-
36	SCREW; FRT COVER THA ASM PART: A = 8-97911-590-2	1-81229-406-0	03	1	-
36	SCREW; FRT COVER THA ASM PART: B = 8-97920-935-2	8-97921-131-0	03	1	-
37	BUSHING; RR COVER,GEN THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-732-0	01	1	-
49	BUSHING; RECTIFIER,GEN THA ASM PART: A = 8-97911-590-2	1-81229-413-0	01	1	-
49	BUSHING; RECTIFIER,GEN THA ASM PART: B = 8-97920-935-2	8-97921-146-0	01	1	-
57	COVER; BRUSH,GEN THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-738-0	01	1	-
65	CONDENSER; GEN THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-741-0	01	1	-
69	CLIP; WIRE,GEN THA ASM PART: B = 8-97920-935-2	8-97921-716-0	01	1	-
81	SPACER; ROTOR,GEN THA ASM PART: A = 8-97911-590-2	1-81229-403-0	01	1	-
81	SPACER; ROTOR,GEN THA ASM PART: B = 8-97920-935-2	8-97921-133-0	01	1	-
83	RING; SLIP,ROTOR,GEN THA ASM PART: A = 8-97911-590-2	1-81229-404-0	01	1	-
83	RING; SLIP,ROTOR,GEN THA ASM PART: B = 8-97920-935-2	8-97921-134-0	01	1	-
85	SPACER; PULLEY,GEN THA ASM PART: A = 8-97911-590-2	1-81229-415-0	01	1	-
85	SPACER; PULLEY,GEN THA ASM PART: B = 8-97920-935-2	8-97921-126-0	01	1	-
90	PUMP ASM; VAC,GEN THA ASM PART: A = 8-97911-590-2	8-97918-742-0	01	1	-
90	PUMP ASM; VAC,GEN THA ASM PART: B = 8-97920-935-2	8-97921-728-0	01	1	-
93	GASKET; CONN,VAC PUMP THA ASM PART: B = 8-97920-935-2	8-97921-215-0	03	1	-
93	GASKET; CONN,VAC PUMP THA ASM PART: A = 8-97911-590-2	9-88130-081-0	03	1	-
94	CONNECTOR; VAC PUMP THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-745-0	01	1	-
97	VALVE; VAC PUMP THA ASM PART: A = 8-97911-590-2	8-94456-612-0	01	1	-
97	VALVE; VAC PUMP THA ASM PART: B = 8-97920-935-2	8-97921-210-0	01	1	-
98	BOLT; VAC PUMP THA ASM PART: A = 8-97911-590-2	5-09000-134-0	01	1	-
98	BOLT; VAC PUMP THA ASM PART: B = 8-97920-935-2	8-97921-730-0	01	1	-
99	GASKET; VAC PUMP THA ASM PART: B = 8-97920-935-2	8-97921-211-0	01	1	-
99	GASKET; VAC PUMP THA ASM PART: A = 8-97911-590-2	9-88130-126-0	01	1	-
100	CONNECTOR; VAC PUMP THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-744-0	01	1	-
103	PIN; VAC PUMP THA ASM PART: B = 8-97920-935-2	8-97921-206-0	01	1	-
103	PIN; VAC PUMP THA ASM PART: A = 8-97911-590-2	9-88130-099-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B), THA ASM PART: A = 8-97911-590-2	5-09623-017-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), THA ASM PART: A = 8-97911-590-2	8-94456-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B), THA ASM PART: B = 8-97920-935-2	8-97921-204-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), THA ASM PART: B = 8-97920-935-2	8-97921-208-0	01	1	-
105	WASHER; CONN BOLT,VAC PUMP THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97917-009-0	02	1	-
106	BOLT; OIL CONN,VAC PUMP THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97917-008-0	01	1	-
109	VANE; VAC PUMP THA ASM PART: A = 8-97911-590-2, B = 8-97920-935-2	8-97918-743-0	04	1	-
111	BOLT; VAC PUMP THA ASM PART: A = 8-97911-590-2	8-94456-611-0	03	1	-
111	BOLT; VAC PUMP THA ASM PART: B = 8-97920-935-2	8-97921-729-0	03	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
