◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50971 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶

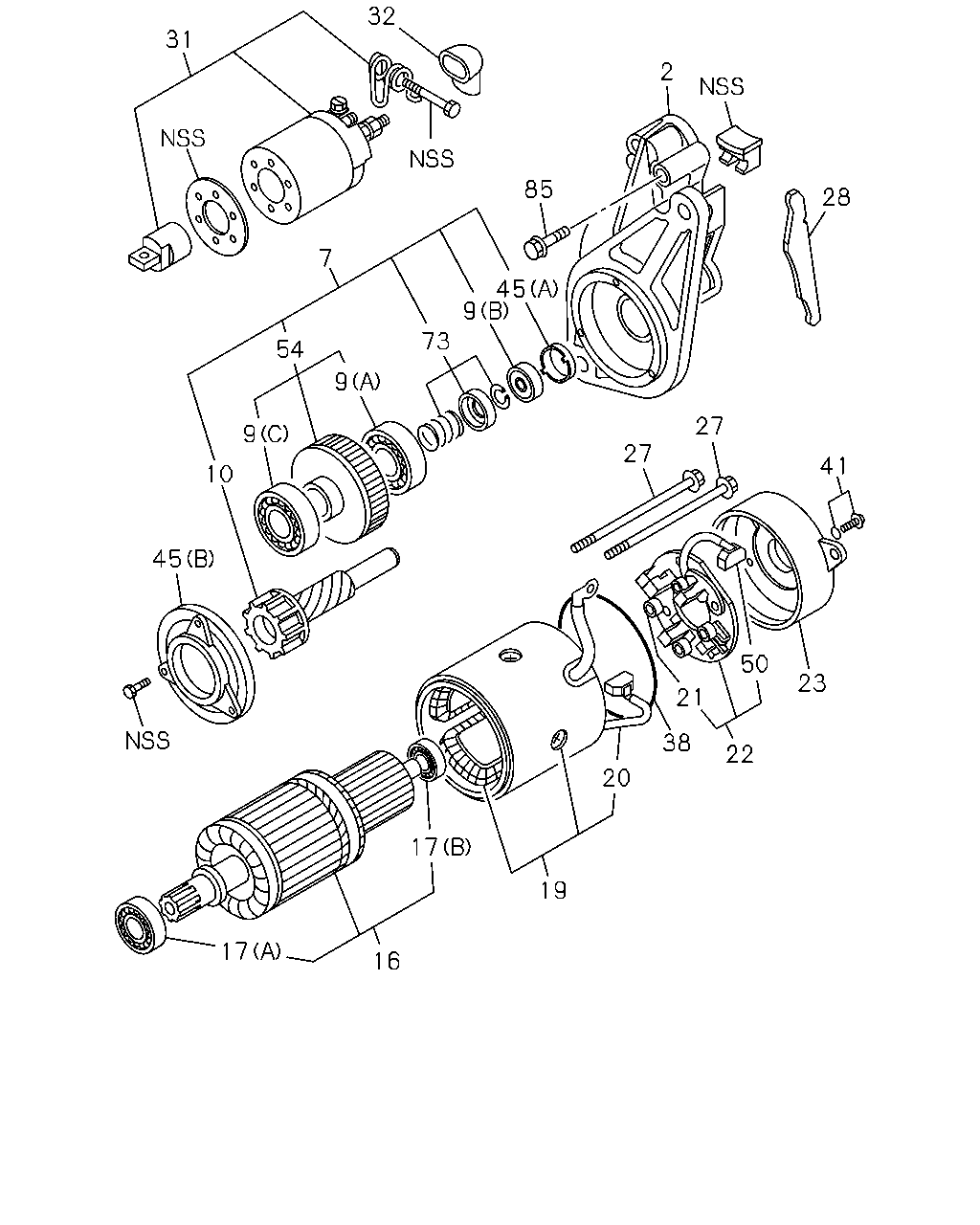

0-65 — STARTER (#19918) — 27 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	51	COVER SET; DUST ENGAGE SW STARTER THA ASM PART: A = 8-97920-966-1	8-97921-106-0	01	1	-

32 31 2 85 28 7 45 9 73 54 9 27 9 27 41 10 45 50 23 21 38 22 20 17 19 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER THA ASM PART: A = 8-97920-966-1	8-97921-104-0	01	1	-
7	CLUTCH ASM; PINION,STARTER DARK GRAY, THA ASM PART: A = 8-97920-966-1	8-97921-094-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (C), THA ASM PART: A = 8-97920-966-1	8-97921-096-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A), THA ASM PART: A = 8-97920-966-1	8-97921-097-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B), THA ASM PART: A = 8-97920-966-1	8-97921-100-0	01	1	-
10	SHAFT; GEAR STARTER THA ASM PART: A = 8-97920-966-1	8-97921-098-0	01	1	-
16	ARMATURE; STARTER THA ASM PART: A = 8-97920-966-1	8-97921-083-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), THA ASM PART: A = 8-97920-966-1	8-97921-084-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), THA ASM PART: A = 8-97920-966-1	8-97921-085-0	01	1	-
19	COIL; FIELD,STARTER THA ASM PART: A = 8-97920-966-1	8-97921-086-0	01	1	-
20	BRUSH; (+),STARTER THA ASM PART: A = 8-97920-966-1	8-97921-088-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER THA ASM PART: A = 8-97920-966-1	8-97921-092-0	04	1	-
22	HOLDER; BRUSH STARTER THA ASM PART: A = 8-97920-966-1	8-97921-091-0	01	1	-
23	COVER; RR COVER STARTER THA ASM PART: A = 8-97920-966-1	8-97921-090-0	01	1	-
27	BOLT; THROUGH,STARTER THA ASM PART: A = 8-97920-966-1	8-97921-108-0	02	1	-
28	LEVER; SHIFT,STARTER THA ASM PART: A = 8-97920-966-1	8-97921-105-0	01	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: A = 8-97920-966-1	8-97921-102-0	01	1	-
32	COVER; RUBBER,STARTER THA ASM PART: A = 8-97920-966-1	8-97921-110-0	01	1	-
38	GASKET; RR COVER,STARTER THA ASM PART: A = 8-97920-966-1	8-97921-089-0	01	1	-
41	SCREW; RR COVER,STARTER THA ASM PART: A = 8-97920-966-1	8-97921-109-0	02	1	-
45	RETAINER; BEARING,STARTER (A), THA ASM PART: A = 8-97920-966-1	8-97921-101-0	01	1	-
45	RETAINER; BEARING,STARTER (B), THA ASM PART: A = 8-97920-966-1	8-97921-103-0	01	1	-
50	BRUSH; (-),STARTER THA ASM PART: A = 8-97920-966-1	8-97921-093-0	02	1	-
54	CLUTCH; PINION,STARTER THA ASM PART: A = 8-97920-966-1	8-97921-095-0	01	1	-
73	STOPPER SET; PINION THA ASM PART: A = 8-97920-966-1	8-97921-099-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER THA ASM PART: A = 8-97920-966-1	8-97921-107-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
