Isuzu WW
▶
TRUCKS
▶
NPR
▶
50971 - NPR/NQR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#19915) — 59 parça
Tümü
A - 4HG1 ENG
B - 4HE1 ENG
◀
[057A] 4HG1(NO.2) (15 parça)
[057A] 4HE1(NO.1) (8 parça)
[057A] 4HG1(NO.1) (18 parça)
[057A] 4HE1(NO.2) (18 parça)
▶

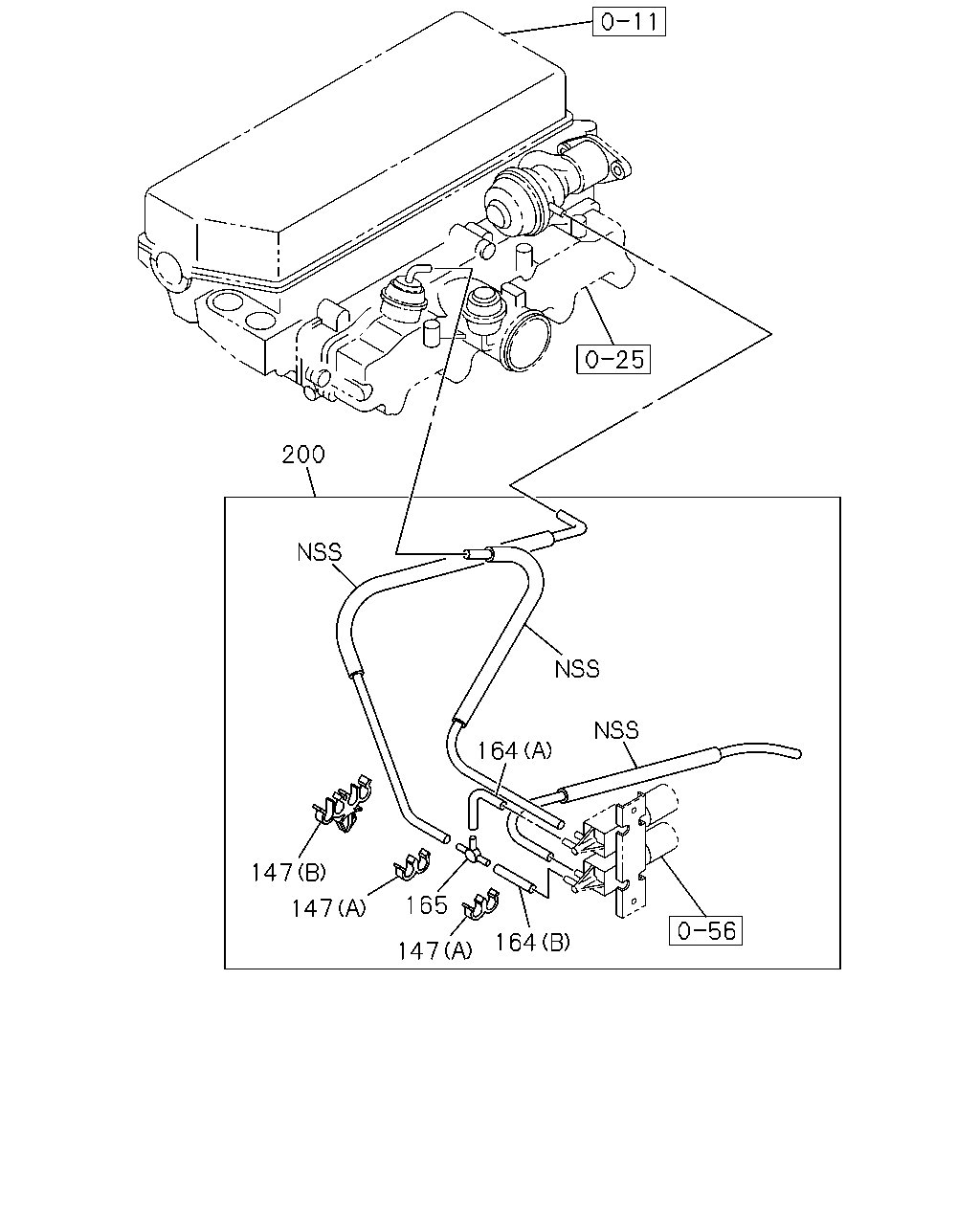

200
164
147
165
147
164
147
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
147
CLIP; RUBBER HOSE
(A) ID=6.8X2
8-94126-636-0
03
1
0309-
●
147
CLIP; RUBBER HOSE
(B) 4XID=6.8
8-94132-799-0
01
1
0309-
●
147
CLIP; RUBBER HOSE
(A) ID=6.8X2
8-94126-636-0
01
1
0309-
●
147
CLIP; RUBBER HOSE
(C) 4XID=6.7
8-94315-422-0
01
1
0309-
●
164
HOSE; RUBBER
(A) L=65 SERVICED BY L=3000
0-04730-300-0
01
1
0309-
●
164
HOSE; RUBBER
(B) L=40 SERVICED BY L=3000
0-04730-300-0
01
1
0309-
●
164
HOSE; RUBBER
(A) L=30 SERVICED BY L=3000
0-04730-300-0
02
1
0309-
●
164
HOSE; RUBBER
(A) L=70 SERVICED BY L=3000
0-04730-300-0
01
1
0309-
●
164
HOSE; RUBBER
(A) L=90 SERVICED BY L=3000
0-04730-300-0
01
1
0309-
●
164
HOSE; RUBBER
(C) L=230 SERVICED BY L=3000
0-04731-300-0
01
1
0309-
●
164
HOSE; RUBBER
(D) L=260 SERVICED BY L=3000
0-04732-300-0
01
1
0309-
●
165
JOINT; HOSE
3WAY
8-94208-695-0
01
1
0309-
●
165
JOINT; HOSE
3WAY
8-94208-695-0
02
1
0309-
●
200
HOSE; VAC
8-97207-666-2
01
1
0309-
●
200
HOSE; VAC
8-97182-890-4
01
1
0309-
●

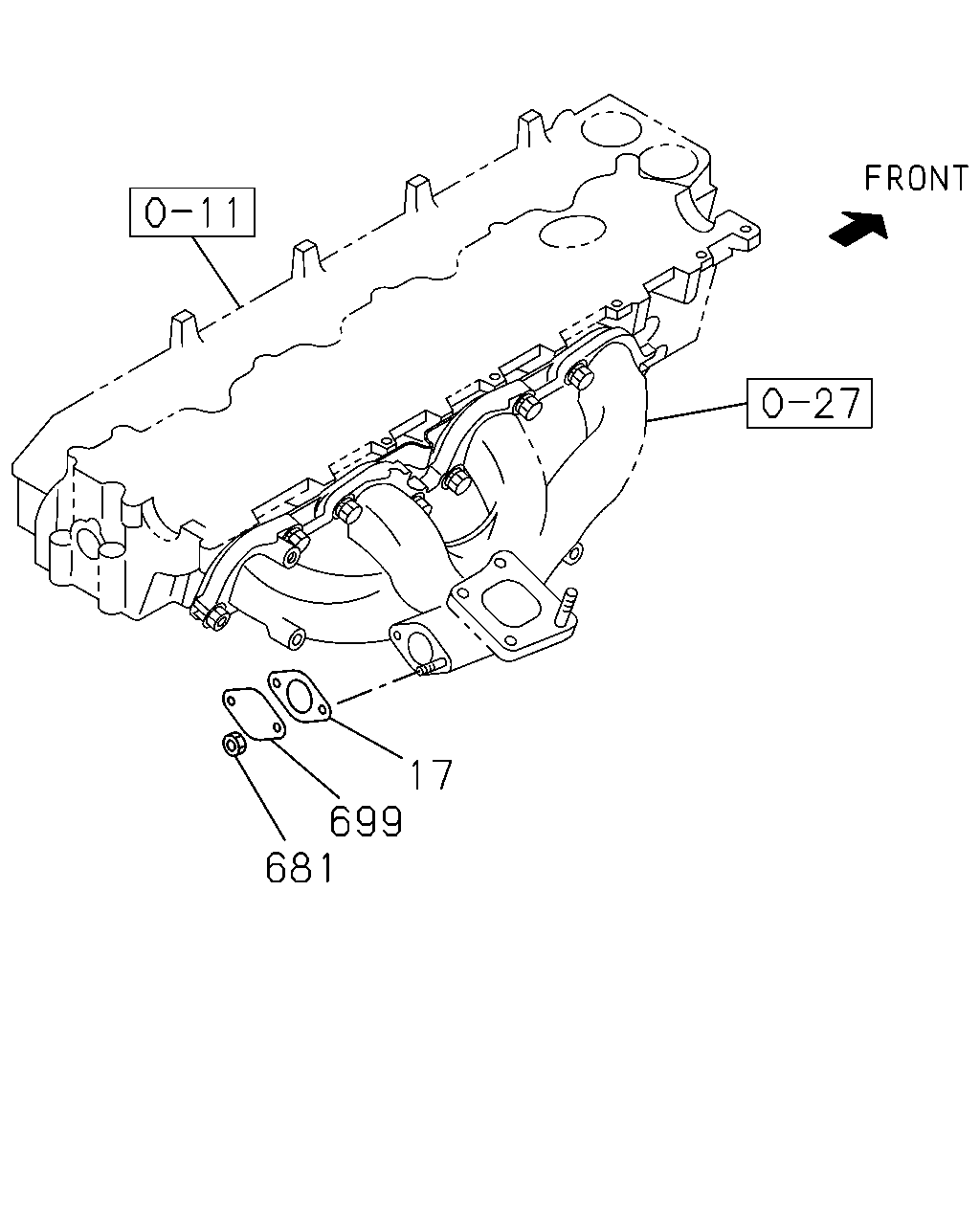

17
699
681
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). THA
8-94340-670-0
01
1
0502-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97113-023-0
01
1
0309-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). THA
8-94340-670-0
01
1
0309-0407
●
681
NUT; EGR PIPE
M8 FLANGE THA
8-97061-401-1
02
1
0502-
●
681
NUT; EGR PIPE
M8 FLANGE
0-91150-108-0
02
1
0309-
●
681
NUT; EGR PIPE
M8 FLANGE THA
8-97061-401-1
02
1
0309-0407
●
699
PLATE; BOSS,EXH MANIFOLD
8-97136-006-0
01
1
0502-
●
699
PLATE; BOSS,EXH MANIFOLD
8-97136-006-0
01
1
0309-0407
●

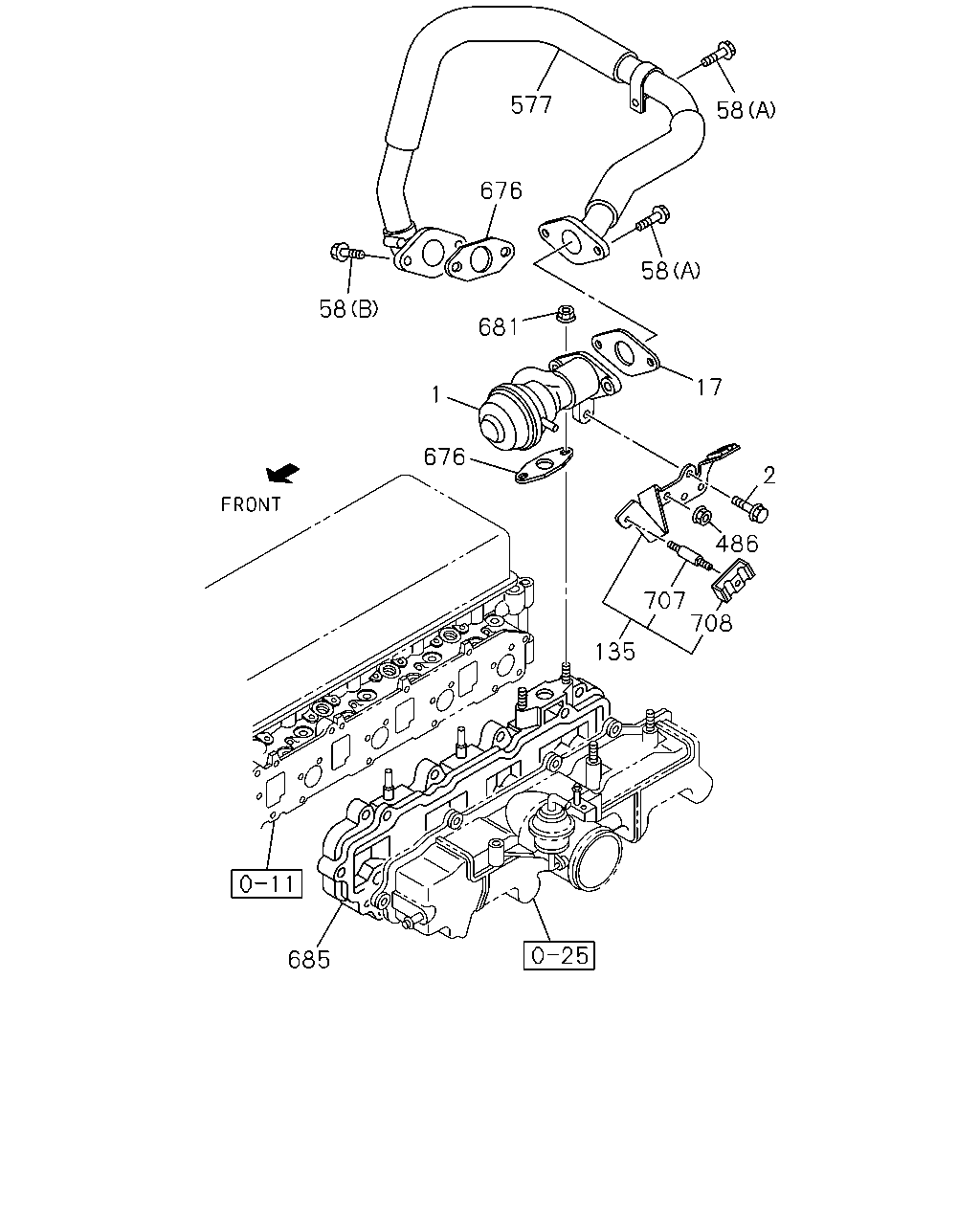

577
58
676
58
58
681
17
1
676
2
486
707
708
135
685
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; EGR
8-97115-533-3
01
1
0309-
●
2
BOLT; EGR VLV
M8X20 FLANGE
0-28680-820-0
01
1
0309-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). THA
8-94340-670-0
01
1
0502-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97113-023-0
01
1
0309-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). THA
8-94340-670-0
01
1
0309-0407
●
58
BOLT; PIPE
(A) M8X20 FLANGE
0-28680-820-0
03
1
0309-
●
58
BOLT; PIPE
(B) M8X23 FLANGE THA
8-94103-629-2
02
1
0309-0408
●
58
BOLT; PIPE
M8X23 FLANGE
8-97378-077-0
02
1
0409-
●
135
BRACKET; EGR
8-97221-358-1
01
1
0309-
●
486
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0309-
●
577
PIPE; AIR,EGR
8-97200-643-2
01
1
0309-
●
676
GASKET; PIPE
8-97146-683-0
02
1
0309-
●
681
NUT; EGR PIPE
M8 FLANGE THA
8-97061-401-1
02
1
0502-
●
681
NUT; EGR PIPE
M8 FLANGE
0-91150-108-0
02
1
0309-
●
681
NUT; EGR PIPE
M8 FLANGE THA
8-97061-401-1
02
1
0309-0407
●
685
CASE; INLET,EGR
8-97146-872-1
01
1
0309-
●
707
STUD; CLIP,INJ PIPE
M6X25 L=36
8-97214-234-0
01
1
0309-
●
708
CLIP; PIPE,INJ
8-97213-481-0
01
1
0309-
●

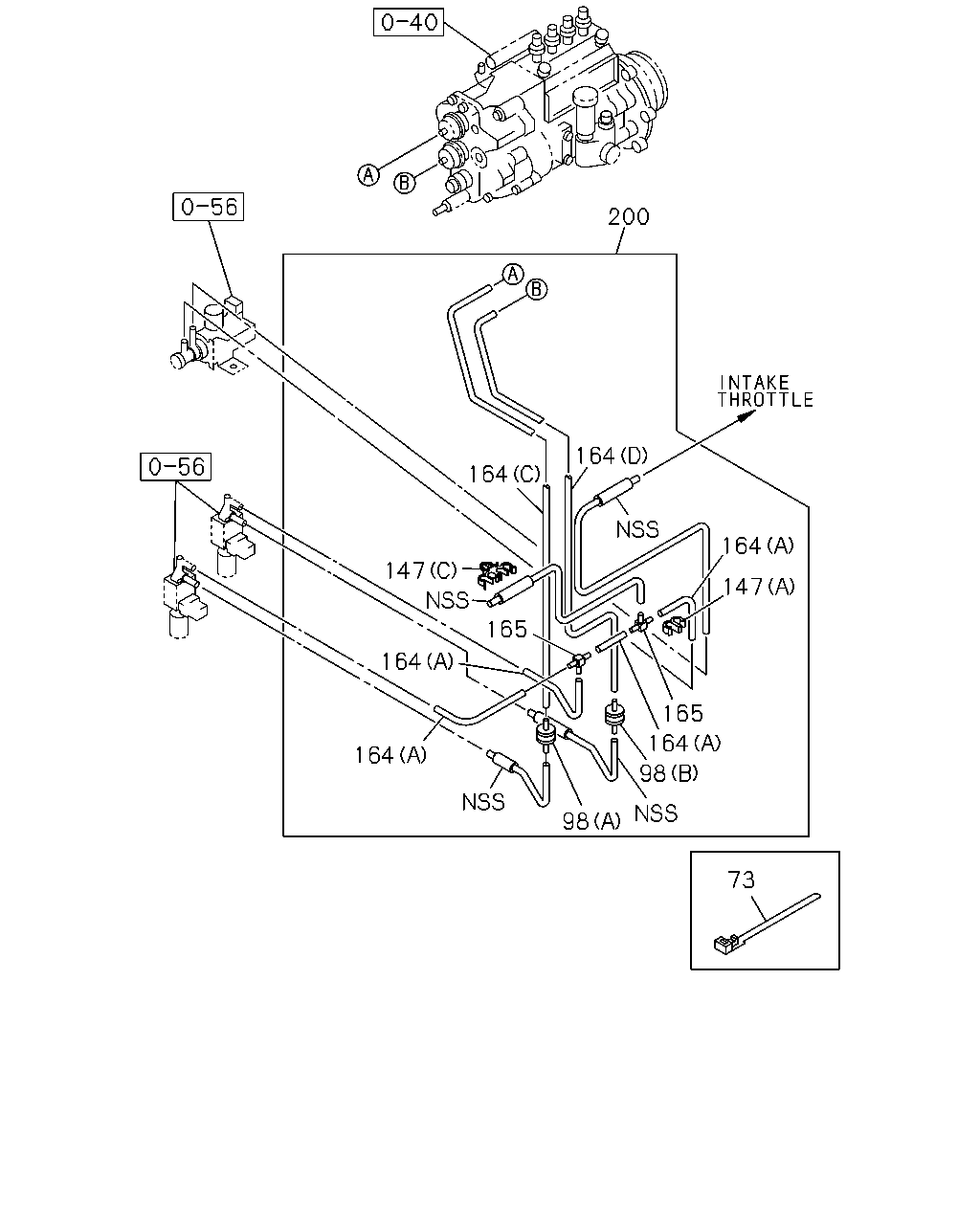

200
164
164
164
147
147
165
164
165
164
164
98
98
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
73
CLIP; VAC HOSE
L=140
5-09707-031-1
03
1
0309-
●
98
VALVE; DELAY
(A)
8-94110-978-0
01
1
0309-
●
98
VALVE; DELAY
(B) PINK
8-94145-108-0
01
1
0309-
●
147
CLIP; RUBBER HOSE
(A) ID=6.8X2
8-94126-636-0
03
1
0309-
●
147
CLIP; RUBBER HOSE
(B) 4XID=6.8
8-94132-799-0
01
1
0309-
●
147
CLIP; RUBBER HOSE
(A) ID=6.8X2
8-94126-636-0
01
1
0309-
●
147
CLIP; RUBBER HOSE
(C) 4XID=6.7
8-94315-422-0
01
1
0309-
●
164
HOSE; RUBBER
(A) L=65 SERVICED BY L=3000
0-04730-300-0
01
1
0309-
●
164
HOSE; RUBBER
(B) L=40 SERVICED BY L=3000
0-04730-300-0
01
1
0309-
●
164
HOSE; RUBBER
(A) L=30 SERVICED BY L=3000
0-04730-300-0
02
1
0309-
●
164
HOSE; RUBBER
(A) L=70 SERVICED BY L=3000
0-04730-300-0
01
1
0309-
●
164
HOSE; RUBBER
(A) L=90 SERVICED BY L=3000
0-04730-300-0
01
1
0309-
●
164
HOSE; RUBBER
(C) L=230 SERVICED BY L=3000
0-04731-300-0
01
1
0309-
●
164
HOSE; RUBBER
(D) L=260 SERVICED BY L=3000
0-04732-300-0
01
1
0309-
●
165
JOINT; HOSE
3WAY
8-94208-695-0
01
1
0309-
●
165
JOINT; HOSE
3WAY
8-94208-695-0
02
1
0309-
●
200
HOSE; VAC
8-97207-666-2
01
1
0309-
●
200
HOSE; VAC
8-97182-890-4
01
1
0309-
●
