0-52 — OIL AND VACUUM PIPING; ENGINE (#19913) — 115 parça

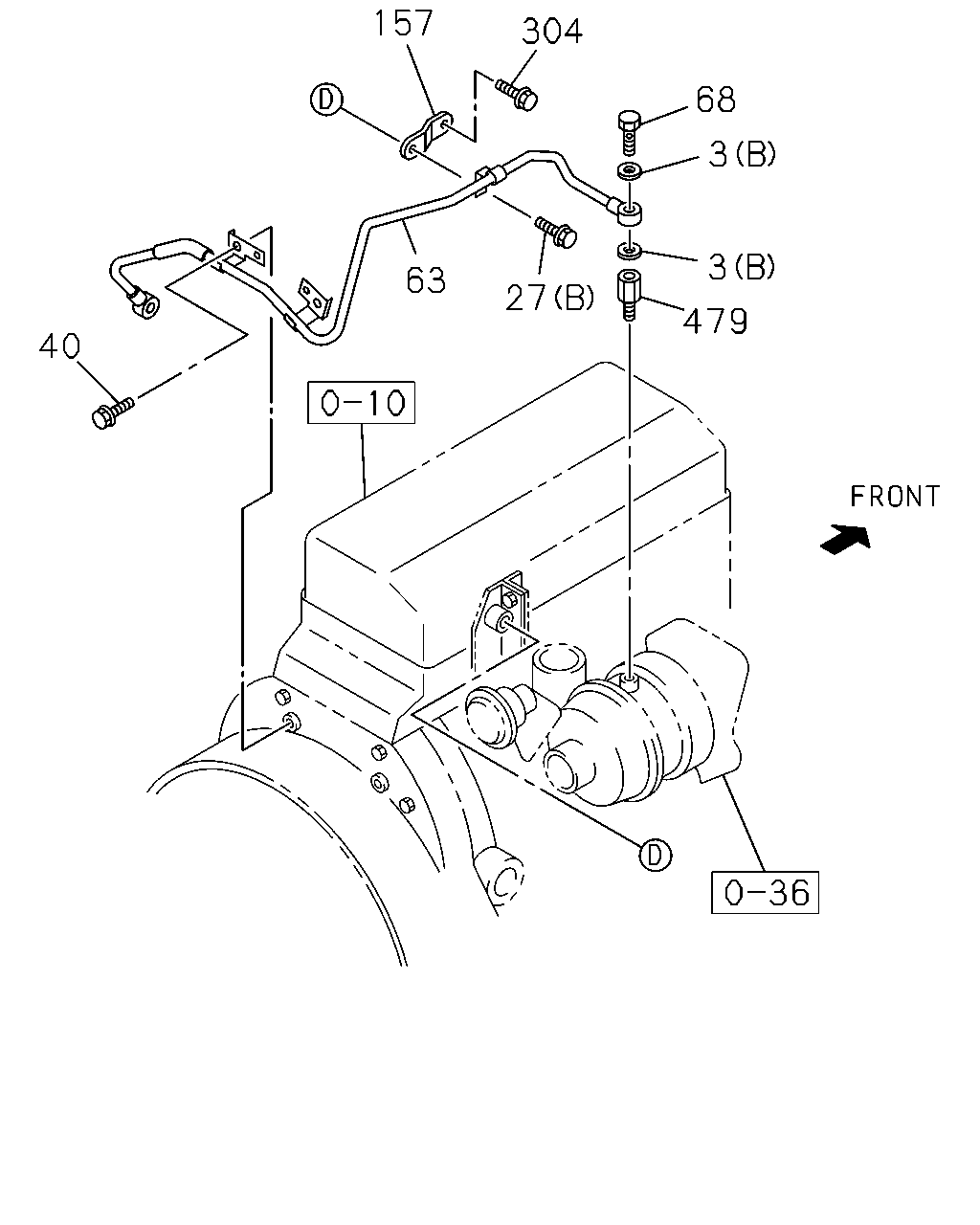

157 304 68 3 3 63 27 479 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 THA	1-09630-083-0	05	1	0309-0407	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 THA	1-09630-083-0	05	1	0408-0501	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 THA	1-09630-083-0	05	1	0502-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	02	1	0309-0407	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	9-09571-412-0	02	1	0408-0501	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	9-09571-412-0	02	1	0502-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 THA	1-09630-083-0	05	1	0408-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	9-09571-412-0	02	1	0408-	●	●
17	CAP; OIL PIPE ID=12 L=30	8-94249-289-0	01	1	0502-	●	●
27	BOLT; OIL PIPE FIX M8X16 FLANGE	0-28080-816-0	01	1	0502-		●
27	BOLT; OIL PIPE FIX (A) M8X12,M10X20 L=42	8-97118-911-0	01	1	0309-	●	●
27	BOLT; OIL PIPE FIX (B) M8X16 FLANGE	0-28080-816-0	01	1	0309-0407		●
40	BOLT; OIL PIPE M10X16 FLANGE	0-28181-016-0	02	1	0502-		●
40	BOLT; OIL PIPE M8X12 FLANGE	0-28080-812-0	01	1	0309-	●
40	BOLT; OIL PIPE M10X16 FLANGE	0-28181-016-0	02	1	0309-0407		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0502-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97349-474-0	01	1	0309-0311	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97372-936-0	01	1	0312-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0309-0407		●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M12X28 FLANGE	8-97166-518-0	01	1	0309-0407	●	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M12X28 FLANGE	8-97166-518-0	01	1	0408-0501	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M12X28 FLANGE	8-97166-518-0	01	1	0502-	●	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M12X28 FLANGE	8-97166-518-0	01	1	0408-	●	●
157	BRACKET; OIL PIPE	8-97181-586-0	01	1	0309-0407	●	●
157	BRACKET; OIL PIPE	8-97181-586-0	01	1	0408-0501	●
157	BRACKET; OIL PIPE	8-97181-586-0	01	1	0502-	●	●
157	BRACKET; OIL PIPE	8-97181-586-0	01	1	0408-	●	●
304	BOLT; BRKT,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	0502-		●
304	BOLT; BRKT,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	0309-0407		●
479	ADAPTER	8-94436-891-0	01	1	0309-0407	●	●
479	ADAPTER	8-94436-891-0	01	1	0408-0501	●
479	ADAPTER	8-94436-891-0	01	1	0502-	●	●
479	ADAPTER	8-94436-891-0	01	1	0408-	●	●

65 89 86 89 202 83 202 27 53 202 202 65 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	CAP; OIL PIPE ID=12 L=30	8-94249-289-0	01	1	0502-	●	●
27	BOLT; OIL PIPE FIX M8X16 FLANGE	0-28080-816-0	01	1	0502-		●
27	BOLT; OIL PIPE FIX (A) M8X12,M10X20 L=42	8-97118-911-0	01	1	0309-	●	●
27	BOLT; OIL PIPE FIX (B) M8X16 FLANGE	0-28080-816-0	01	1	0309-0407		●
53	NUT; OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0309-	●	●
65	BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE THA	1-09675-078-0	01	1	0309-	●	●
65	BOLT; JOINT,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0309-	●	●
83	PIPE; OIL,C/BL TO VAC PUMP THA	8-97916-358-0	01	1	0309-	●	●
86	PIPE; OIL,VAC PUMP RETURN THA	8-94455-311-1	01	1	0309-0407	●	●
86	PIPE; OIL,VAC PUMP RETURN THA	8-94455-311-1	01	1	0408-0501	●
86	PIPE; OIL,VAC PUMP RETURN THA	8-94455-311-1	01	1	0502-	●	●
86	PIPE; OIL,VAC PUMP RETURN THA	8-94455-311-1	01	1	0408-	●	●
89	CLIP; VAC HOSE ID=17.1	8-94122-679-0	01	1	0309-0403	●	●
89	CLIP; VAC HOSE NPR/NQR MIDDLE<NP***F> ID=17.1	8-94122-679-0	01	1	0309-0403	●	●
89	CLIP; VAC HOSE ID=17.1	8-94122-679-0	01	1	0404-	●	●
89	CLIP; VAC HOSE NPR/NQR MIDDLE<NP***F> ID=17.1	8-94122-679-0	01	1	0404-	●
89	CLIP; VAC HOSE ID=17.1	8-94122-679-0	01	1	0404-		●
89	CLIP; VAC HOSE ID=17.1	8-94122-679-0	01	1	0502-	●	●
202	GASKET; OIL PIPE (A) ID=10.2 OD=15.2 THA	1-09630-083-0	02	1	0309-	●	●
202	GASKET; OIL PIPE (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0309-	●	●
340	HOSE; VAC PUMP,RETURN THA	8-97916-768-0	01	1	0309-	●	●

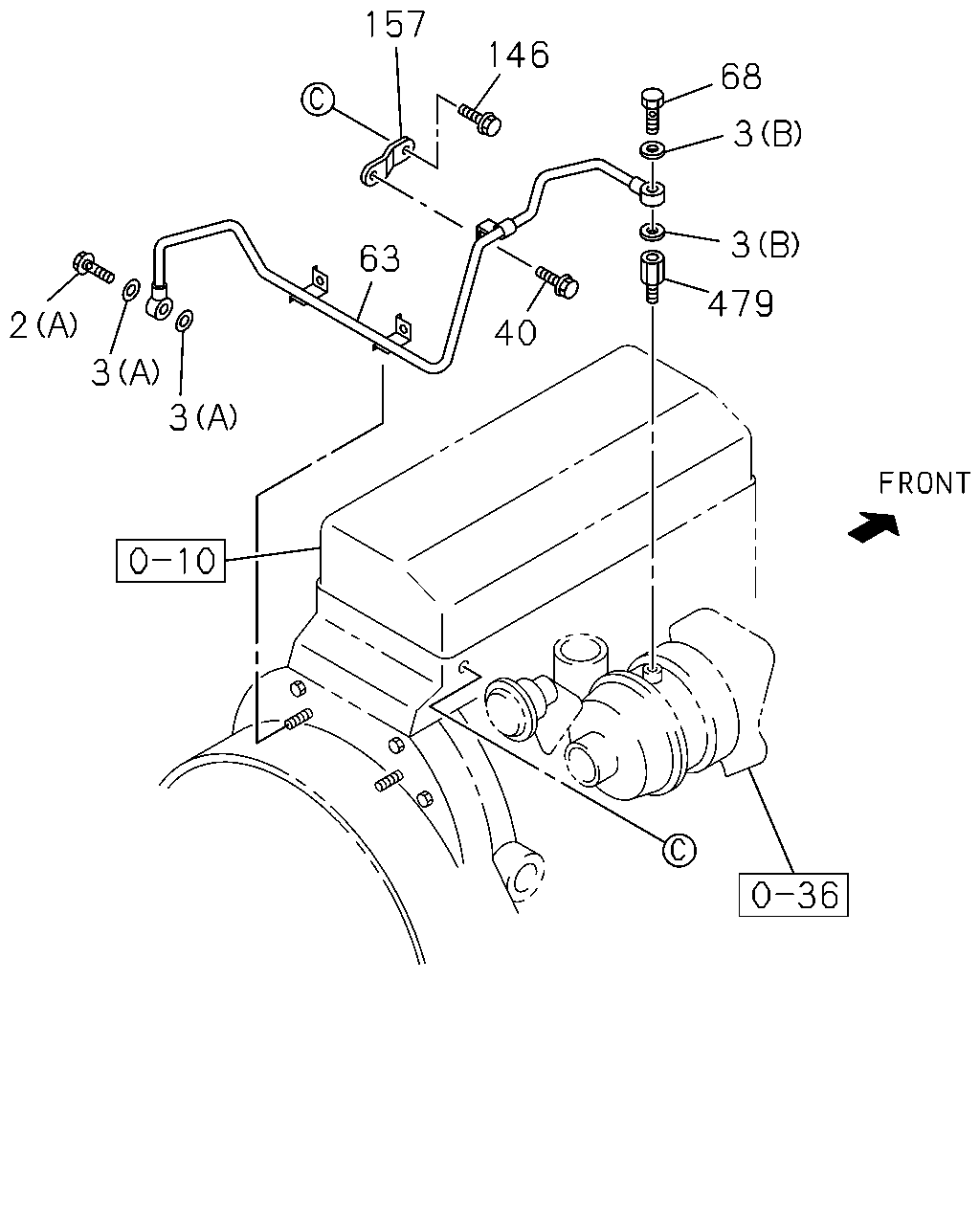

157 146 68 3 3 63 479 2 40 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE (A) M10X40 FLANGE	8-97182-847-0	01	1	0309-0407	●	●
2	BOLT; EYE,OIL PIPE M10X40 FLANGE	8-97182-847-0	01	1	0408-0501	●
2	BOLT; EYE,OIL PIPE M10X40 FLANGE	8-97182-847-0	01	1	0502-	●	●
2	BOLT; EYE,OIL PIPE (B) M10X24	9-09906-205-1	01	1	0309-0407	●	●
2	BOLT; EYE,OIL PIPE M10X24	9-09906-205-1	01	1	0408-0501	●
2	BOLT; EYE,OIL PIPE M10X24	9-09906-205-1	01	1	0502-	●	●
2	BOLT; EYE,OIL PIPE M10X40 FLANGE	8-97182-847-0	01	1	0408-	●	●
2	BOLT; EYE,OIL PIPE M10X24	9-09906-205-1	01	1	0408-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 THA	1-09630-083-0	05	1	0309-0407	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 THA	1-09630-083-0	05	1	0408-0501	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 THA	1-09630-083-0	05	1	0502-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	02	1	0309-0407	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	9-09571-412-0	02	1	0408-0501	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	9-09571-412-0	02	1	0502-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 THA	1-09630-083-0	05	1	0408-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	9-09571-412-0	02	1	0408-	●	●
17	CAP; OIL PIPE ID=12 L=30	8-94249-289-0	01	1	0502-	●	●
40	BOLT; OIL PIPE M10X16 FLANGE	0-28181-016-0	02	1	0502-		●
40	BOLT; OIL PIPE M8X12 FLANGE	0-28080-812-0	01	1	0309-	●
40	BOLT; OIL PIPE M10X16 FLANGE	0-28181-016-0	02	1	0309-0407		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0502-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97349-474-0	01	1	0309-0311	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97372-936-0	01	1	0312-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0309-0407		●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M12X28 FLANGE	8-97166-518-0	01	1	0309-0407	●	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M12X28 FLANGE	8-97166-518-0	01	1	0408-0501	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M12X28 FLANGE	8-97166-518-0	01	1	0502-	●	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M12X28 FLANGE	8-97166-518-0	01	1	0408-	●	●
146	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	01	1	0309-	●
157	BRACKET; OIL PIPE	8-97181-586-0	01	1	0309-0407	●	●
157	BRACKET; OIL PIPE	8-97181-586-0	01	1	0408-0501	●
157	BRACKET; OIL PIPE	8-97181-586-0	01	1	0502-	●	●
157	BRACKET; OIL PIPE	8-97181-586-0	01	1	0408-	●	●
479	ADAPTER	8-94436-891-0	01	1	0309-0407	●	●
479	ADAPTER	8-94436-891-0	01	1	0408-0501	●
479	ADAPTER	8-94436-891-0	01	1	0502-	●	●
479	ADAPTER	8-94436-891-0	01	1	0408-	●	●

3 3 2 63 3 3 3 3 1 3 1 3 2 2 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL	8-97314-008-0	01	1	0502-		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-97200-615-2	01	1	0309-	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-97314-008-0	01	1	0309-0407		●
2	BOLT; EYE,OIL PIPE (A) M10X40 FLANGE	8-97182-847-0	01	1	0309-0407	●	●
2	BOLT; EYE,OIL PIPE M10X40 FLANGE	8-97182-847-0	01	1	0408-0501	●
2	BOLT; EYE,OIL PIPE M10X40 FLANGE	8-97182-847-0	01	1	0502-	●	●
2	BOLT; EYE,OIL PIPE (B) M10X24	9-09906-205-1	01	1	0309-0407	●	●
2	BOLT; EYE,OIL PIPE M10X24	9-09906-205-1	01	1	0408-0501	●
2	BOLT; EYE,OIL PIPE M10X24	9-09906-205-1	01	1	0502-	●	●
2	BOLT; EYE,OIL PIPE M10X40 FLANGE	8-97182-847-0	01	1	0408-	●	●
2	BOLT; EYE,OIL PIPE M10X24	9-09906-205-1	01	1	0408-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 THA	1-09630-083-0	05	1	0309-0407	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 THA	1-09630-083-0	05	1	0408-0501	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 THA	1-09630-083-0	05	1	0502-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	02	1	0309-0407	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	9-09571-412-0	02	1	0408-0501	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	9-09571-412-0	02	1	0502-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 THA	1-09630-083-0	05	1	0408-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	9-09571-412-0	02	1	0408-	●	●
17	CAP; OIL PIPE ID=12 L=30	8-94249-289-0	01	1	0502-	●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0502-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97349-474-0	01	1	0309-0311	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97372-936-0	01	1	0312-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0309-0407		●
