8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#1991) — 39 parça

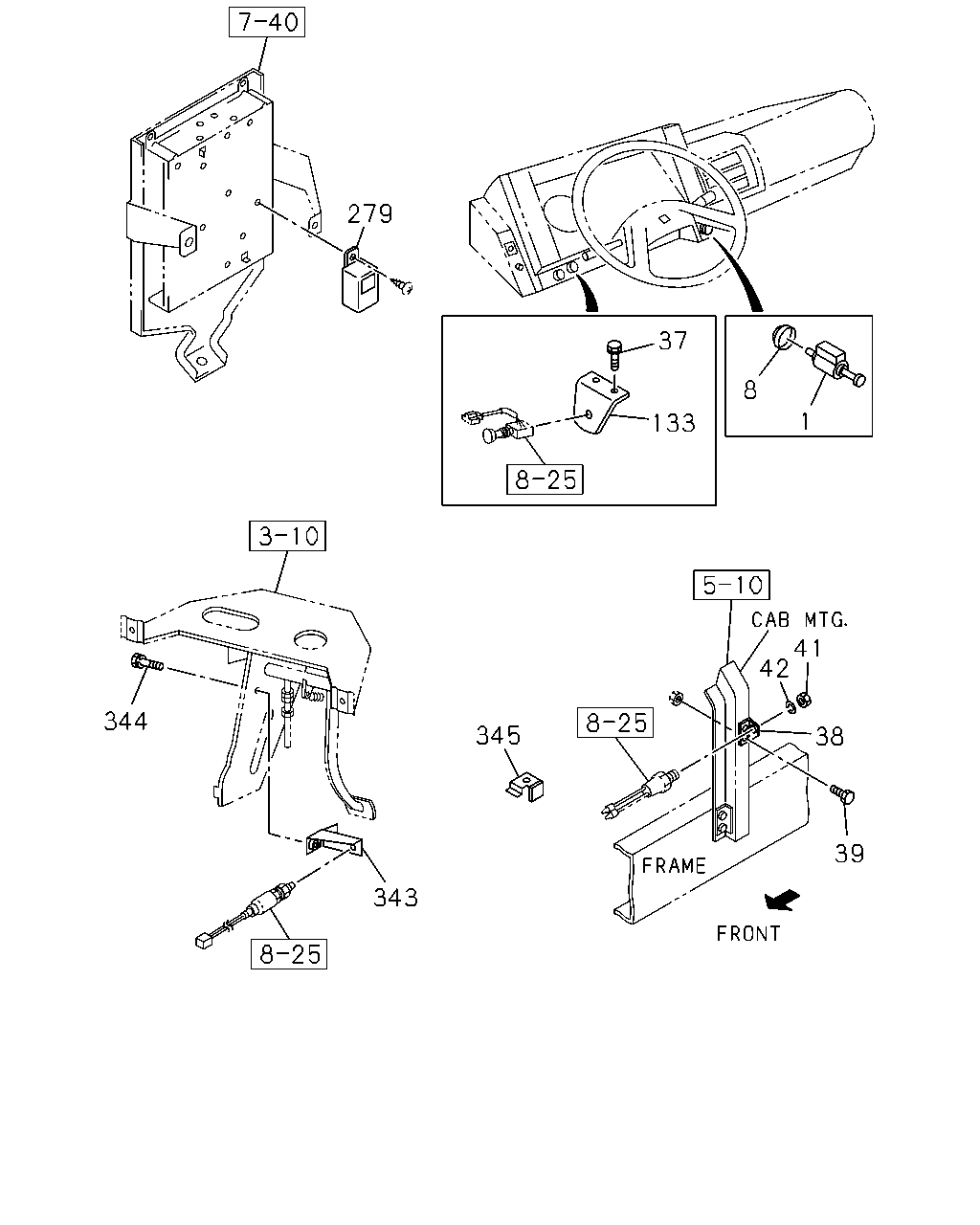

çizim 29623
279 37 8 1 133 41 42 344 345 38 39 343
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LIGHTER; CIGAR 1-84190-023-0 01 1 9207- ● ● ● ●
8 PANEL; GUIDE,CIGAR LIGHTER 8-94232-213-1 01 1 9207- ● ● ● ●
37 BOLT; BRKT FIX
M6X14 W/LK&PL WASHER 		1-09980-549-0 02 1 9207-9211 ● ● ● ●
38 BRACKET; SW,STARTER SUB 1-82699-351-0 01 1 9207- ● ● ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28080-820-0 02 1 9207- ● ● ● ●
41 NUT; SUB STARTER SW 9-82755-020-0 01 1 9207- ● ● ● ●
42 WASHER; LK,SUB STARTER SW
ID=14.2 		9-09150-514-0 01 1 9207- ● ● ● ●
133 BRACKET; SWITCH 1-65680-835-0 01 1 9207-9211 ● ● ● ●
279 BUZZER ASM; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 12V 		5-83460-004-1 01 1 9207- ● ● ● ●
343 BRACKET; CLU SW 1-73907-259-0 01 1 9207- ● ● ● ●
344 BOLT; SW BRKT
M6X16 W/LK&PL WASHER 		1-09980-497-0 01 1 9207-9208 ● ● ● ●
344 BOLT; SW BRKT
M6X16 W/LK&PL WASHER 		1-09980-497-0 02 1 9209- ● ● ● ●
345 BRACKET; SW,CLU PEDAL 1-73907-257-1 01 1 9207- ● ● ● ●

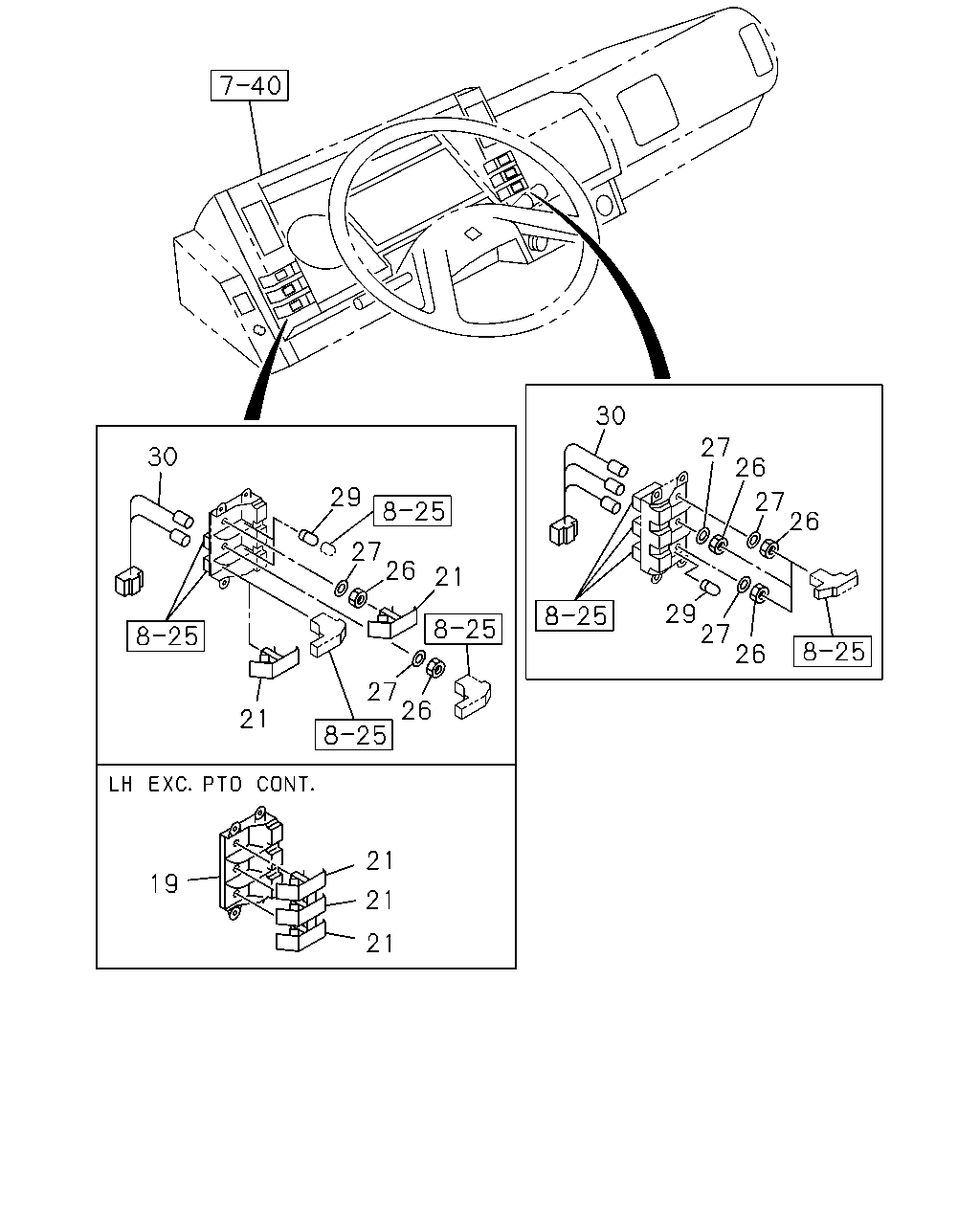

çizim 94081
30 27 26 30 29 27 26 27 26 21 29 27 26 27 26 21 21 19 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 BASE; SW,METER CLUSTER
EXC. PTO CONTROL<SV6> BLACK 		1-82353-008-0 01 1 9207-9208 ● ● ● ●
21 COVER; HOLE 1-82359-038-0 01 1 9207-9208 ● ● ● ●
21 COVER; HOLE
PTO CONTROL<SV6> 		1-82359-038-0 02 1 9207-9208 ● ● ● ●
21 COVER; HOLE
PTO CONTROL<SV6> 		1-82359-038-0 01 1 9209- ● ● ● ●
21 COVER; HOLE
EXC. PTO CONTROL<SV6> 		1-82359-038-0 03 1 9207-9208 ● ● ● ●
21 COVER; HOLE
EXC. PTO CONTROL<SV6> 		1-82359-038-0 02 1 9209- ● ● ● ●
26 NUT; METER SW
M12 		1-09400-066-0 03 1 9207- ● ● ● ●
26 NUT; METER SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> M12 		1-09400-066-0 02 1 9207- ● ● ● ●
26 NUT; METER SW
TRANSMISSION FRONT PTO<RC2> PTO CONTROL<SV6> M12 		1-09400-066-0 02 1 9207- ●
26 NUT; METER SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6> M12 		1-09400-066-0 01 1 9207-9208 ● ● ● ●
26 NUT; METER SW
EXC. PTO CONTROL<SV6> M12 		1-09400-066-0 01 1 9209- ● ● ● ●
27 WASHER; WAVE,SW 1-09550-006-0 03 1 9207- ● ● ● ●
27 WASHER; WAVE,SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 		1-09550-006-0 02 1 9207- ● ● ● ●
27 WASHER; WAVE,SW
TRANSMISSION FRONT PTO<RC2> PTO CONTROL<SV6> 		1-09550-006-0 02 1 9207- ●
27 WASHER; WAVE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6> 		1-09550-006-0 01 1 9207-9208 ● ● ● ●
27 WASHER; WAVE,SW
EXC. PTO CONTROL<SV6> 		1-09550-006-0 01 1 9209- ● ● ● ●
29 BULB; METER SW
24V 1.2W 		1-82194-027-0 03 1 9207- ● ● ● ●
29 BULB; METER SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 24V 1.2W 		1-82194-027-0 02 1 9207- ● ● ● ●
29 BULB; METER SW
TRANSMISSION FRONT PTO<RC2> PTO CONTROL<SV6> 24V 1.2W 		1-82194-027-0 02 1 9207- ●
29 BULB; METER SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6> 24V 1.2W 		1-82194-027-0 01 1 9207-9208 ● ● ● ●
29 BULB; METER SW
EXC. PTO CONTROL<SV6> 24V 1.2W 		1-82194-027-0 01 1 9209- ● ● ● ●
30 CORD ASM; METER SW 1-82359-058-0 01 1 9207- ● ● ● ●
30 CORD ASM; METER SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 		1-82359-066-0 01 1 9207- ● ● ● ●
30 CORD ASM; METER SW
TRANSMISSION FRONT PTO<RC2> PTO CONTROL<SV6> 		1-82359-066-0 01 1 9207- ●
30 CORD ASM; METER SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6> 		1-82359-035-0 01 1 9207-9208 ● ● ● ●
30 CORD ASM; METER SW
EXC. PTO CONTROL<SV6> 		1-82359-035-0 01 1 9209- ● ● ● ●
