Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#19908) — 248 parça

31 31 32 32 34 34 58 58 140 44 43 146 46 140 44 43 33 47 45 138 140 43 35 272 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	8-97148-960-1	04	1	0502-	●
31	NOZZLE ASM; INJ (B)	8-97367-553-0	04	1	0309-		●
31	NOZZLE ASM; INJ (A)	8-97148-960-1	04	1	0309-0407	●
32	HOLDER ASM; NOZZLE	8-94311-966-2	04	1	0502-	●
32	HOLDER ASM; NOZZLE (B)	8-97352-048-0	04	1	0309-		●
32	HOLDER ASM; NOZZLE (A)	8-94311-966-2	04	1	0309-0407	●
33	NOZZLE; INJ	8-97148-961-1	04	1	0502-	●
33	NOZZLE; INJ	8-97148-961-1	04	1	0309-0407	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0502-	●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE BOLT	1-09675-037-1	04	1	0309-		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0309-0407	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0502-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	0309-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0309-0407	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	04	1	0502-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (C)	8-97349-452-0	04	1	0309-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B)	8-97361-697-0	04	1	0309-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (A)	8-94329-555-0	04	1	0309-0407	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0502-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	0309-		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0309-0407	●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-008-0	04	1	0309-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	0502-	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	0309-0407	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	8-97223-340-0	04	1	0309-		●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0309-0407	●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0408-0501		●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0502-	●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0408-	●	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-004-0	04	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10 THA	8-97027-432-0	AR	1	0502-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20 THA	8-97027-433-0	AR	1	0502-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30 THA	8-97027-434-0	AR	1	0502-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40 THA	8-97027-435-0	AR	1	0502-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50 THA	8-97027-436-0	AR	1	0502-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52 THA	8-97027-437-0	AR	1	0502-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54 THA	8-97027-438-0	AR	1	0502-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56 THA	8-97027-439-0	AR	1	0502-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58 THA	8-97027-440-0	AR	1	0502-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.20	1-15349-004-0	04	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.40	1-15349-042-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.50	1-15349-043-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.52	1-15349-044-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.54	1-15349-045-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.56	1-15349-046-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.58	1-15349-047-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.60	1-15349-048-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.70	1-15349-049-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.10	8-97116-029-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.20	8-97116-032-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.30	8-97116-033-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.40	8-97116-034-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.50	8-97116-035-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.51	8-97116-036-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.52	8-97116-037-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.53	8-97116-038-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.54	8-97116-039-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.55	8-97116-040-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.56	8-97116-041-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.57	8-97116-042-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.58	8-97116-043-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.59	8-97116-044-0	AR	1	0309-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.10 THA	8-97027-432-0	AR	1	0309-0407	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.20 THA	8-97027-433-0	AR	1	0309-0407	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.30 THA	8-97027-434-0	AR	1	0309-0407	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.40 THA	8-97027-435-0	AR	1	0309-0407	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.50 THA	8-97027-436-0	AR	1	0309-0407	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.52 THA	8-97027-437-0	AR	1	0309-0407	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.54 THA	8-97027-438-0	AR	1	0309-0407	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.56 THA	8-97027-439-0	AR	1	0309-0407	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (C) T=0.58 THA	8-97027-440-0	AR	1	0309-0407	●
146	SPACER; NOZZLE	8-94344-439-0	04	1	0502-	●
146	SPACER; NOZZLE	8-94344-439-0	04	1	0309-0407	●
146	SPACER; NOZZLE	8-94344-439-0	04	1	0408-	●
272	NOZZLE KIT; INJ	8-97352-267-0	04	1	0309-		●

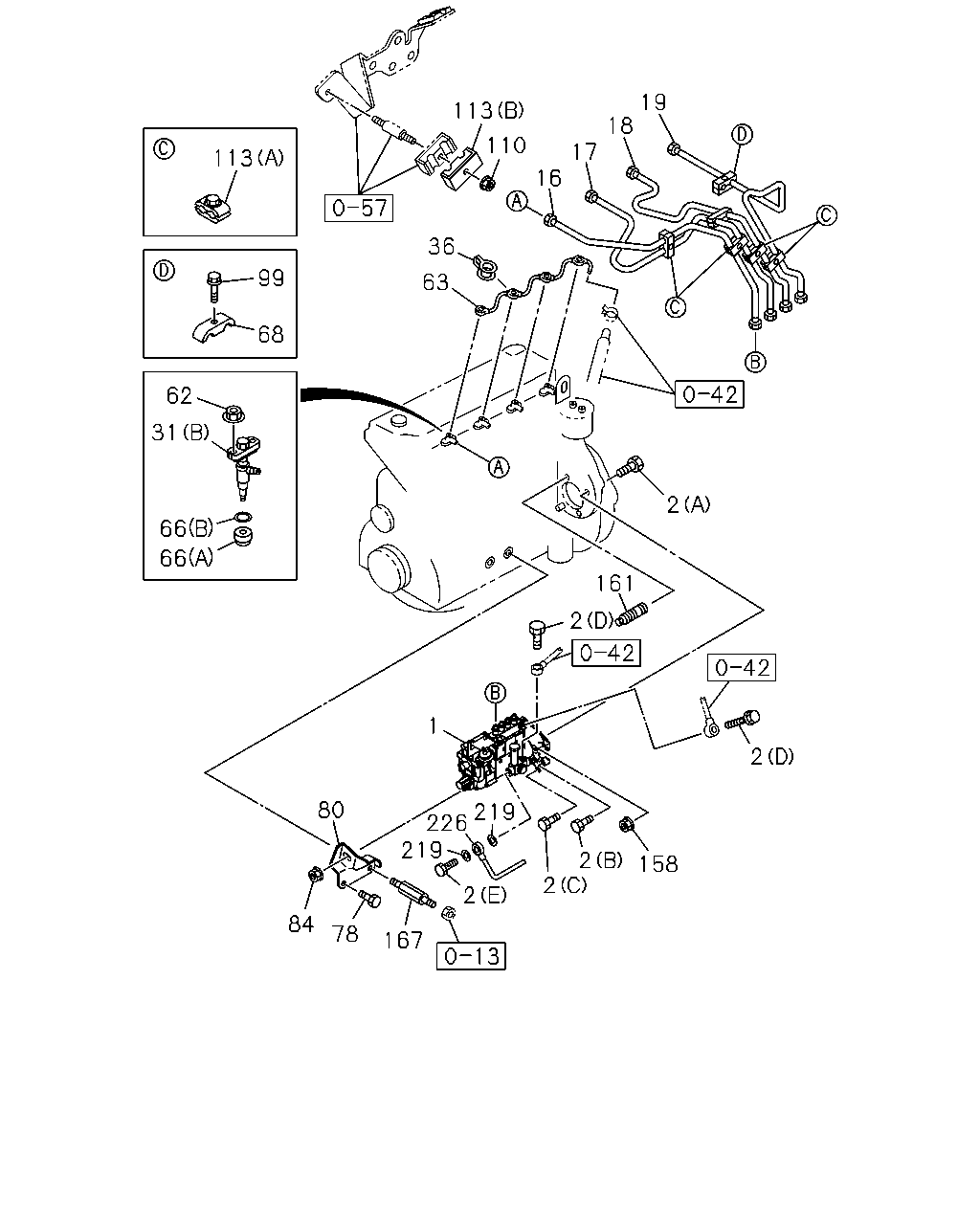

19 18 113 110 17 113 16 36 99 63 68 62 31 2 66 66 161 2 1 2 219 226 219 80 2 2 158 2 84 78 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-185-1	01	1	0502-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	0309-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-189-1	01	1	0309-0407	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-185-1	01	1	0408-	●
2	BOLT; INJ PUMP M12X110	0-28186-211-0	01	1	0502-	●
2	BOLT; INJ PUMP M14X27 FLANGE	1-09675-086-0	01	1	0502-	●
2	BOLT; INJ PUMP (C) M12X90 FLANGE	0-28181-290-0	01	1	0309-		●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	02	1	0309-		●
2	BOLT; INJ PUMP M10X70 FLANGE	0-28181-070-0	01	1	0408-	●	●
2	BOLT; INJ PUMP (E) M14X30	8-97203-957-0	01	1	0309-		●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	0309-0407	●	●
2	BOLT; INJ PUMP M10X70 FLANGE	0-28181-070-0	01	1	0408-0501		●
2	BOLT; INJ PUMP M10X70 FLANGE	0-28181-070-0	01	1	0502-	●	●
2	BOLT; INJ PUMP M12X70 FLANGE	0-28181-270-0	01	1	0408-	●	●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0309-0407	●	●
2	BOLT; INJ PUMP M12X70 FLANGE	0-28181-270-0	01	1	0408-0501		●
2	BOLT; INJ PUMP M12X70 FLANGE	0-28181-270-0	01	1	0502-	●	●
2	BOLT; INJ PUMP (F) M12X110	0-28186-211-0	01	1	0309-0407	●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	01	1	0309-0407	●
16	PIPE; INJ NO.1	8-97148-963-4	01	1	0502-	●
16	PIPE; INJ NO.1	8-97209-493-1	01	1	0309-		●
16	PIPE; INJ NO.1	8-97148-963-4	01	1	0309-0407	●
17	PIPE; INJ NO.2	8-97148-964-3	01	1	0502-	●
17	PIPE; INJ NO.2	8-97209-494-1	01	1	0309-		●
17	PIPE; INJ NO.2	8-97148-964-3	01	1	0309-0407	●
18	PIPE; INJ NO.3	8-97148-965-4	01	1	0502-	●
18	PIPE; INJ NO.3	8-97209-495-1	01	1	0309-		●
18	PIPE; INJ NO.3	8-97148-965-4	01	1	0309-0407	●
19	PIPE; INJ NO.4	8-97148-966-3	01	1	0502-	●
19	PIPE; INJ NO.4	8-97209-496-1	01	1	0309-		●
19	PIPE; INJ NO.4	8-97148-966-3	01	1	0309-0407	●
31	NOZZLE ASM; INJ	8-97148-960-1	04	1	0502-	●
31	NOZZLE ASM; INJ (B)	8-97367-553-0	04	1	0309-		●
31	NOZZLE ASM; INJ (A)	8-97148-960-1	04	1	0309-0407	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0309-0407	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0408-0501		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0502-	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0408-	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	0309-0407	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	0408-0501		●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	0502-	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	0408-	●	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0309-0407	●	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0408-0501		●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0502-	●	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0408-	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97171-922-0	04	1	0502-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97171-332-0	04	1	0309-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) THA	8-94326-439-0	04	1	0309-0407	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-94326-439-0	04	1	0408-0501		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-94326-439-0	04	1	0502-	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-94326-439-0	04	1	0408-	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97171-922-0	04	1	0309-0407	●
68	CLIP; INJ PIPE	8-97213-049-0	06	1	0502-	●
68	CLIP; INJ PIPE	1-09701-091-0	01	1	0309-		●
68	CLIP; INJ PIPE	8-97213-049-0	06	1	0309-0407	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	01	1	0309-0407	●	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	01	1	0408-0501		●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	01	1	0502-	●	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	01	1	0408-	●	●
80	BRACKET; PUMP	8-97148-958-1	01	1	0502-	●
80	BRACKET; PUMP	8-97136-677-0	01	1	0309-		●
80	BRACKET; PUMP	8-97148-958-1	01	1	0309-0407	●
84	NUT; BRKT TO BRKT M12 FLANGE	0-91150-212-0	01	1	0502-	●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	0309-		●
84	NUT; BRKT TO BRKT M12 FLANGE	0-91150-212-0	01	1	0309-0407	●
99	BOLT; CLIP,INJ,PIPE M6X25 FLANGE	0-28680-625-0	01	1	0309-		●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0309-		●
113	CLIP; INJ PIPE	8-97213-050-0	05	1	0502-	●
113	CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0309-		●
113	CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0309-		●
113	CLIP; INJ PIPE (A)	8-97213-050-0	05	1	0309-0407	●
158	NUT; INJ PUMP M12 FLANGE	0-91250-112-0	01	1	0502-	●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	0309-0407	●	●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	0408-0501		●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	0502-	●	●
158	NUT; INJ PUMP M12 FLANGE	0-91250-112-0	01	1	0309-0407	●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	0408-	●	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0309-0407	●	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0408-0501		●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0502-	●	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0408-	●	●
167	SPACER; GUIDE TUBE	8-97065-515-2	01	1	0309-		●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	0309-		●
226	PIPE; FUEL	8-97203-567-0	01	1	0309-		●

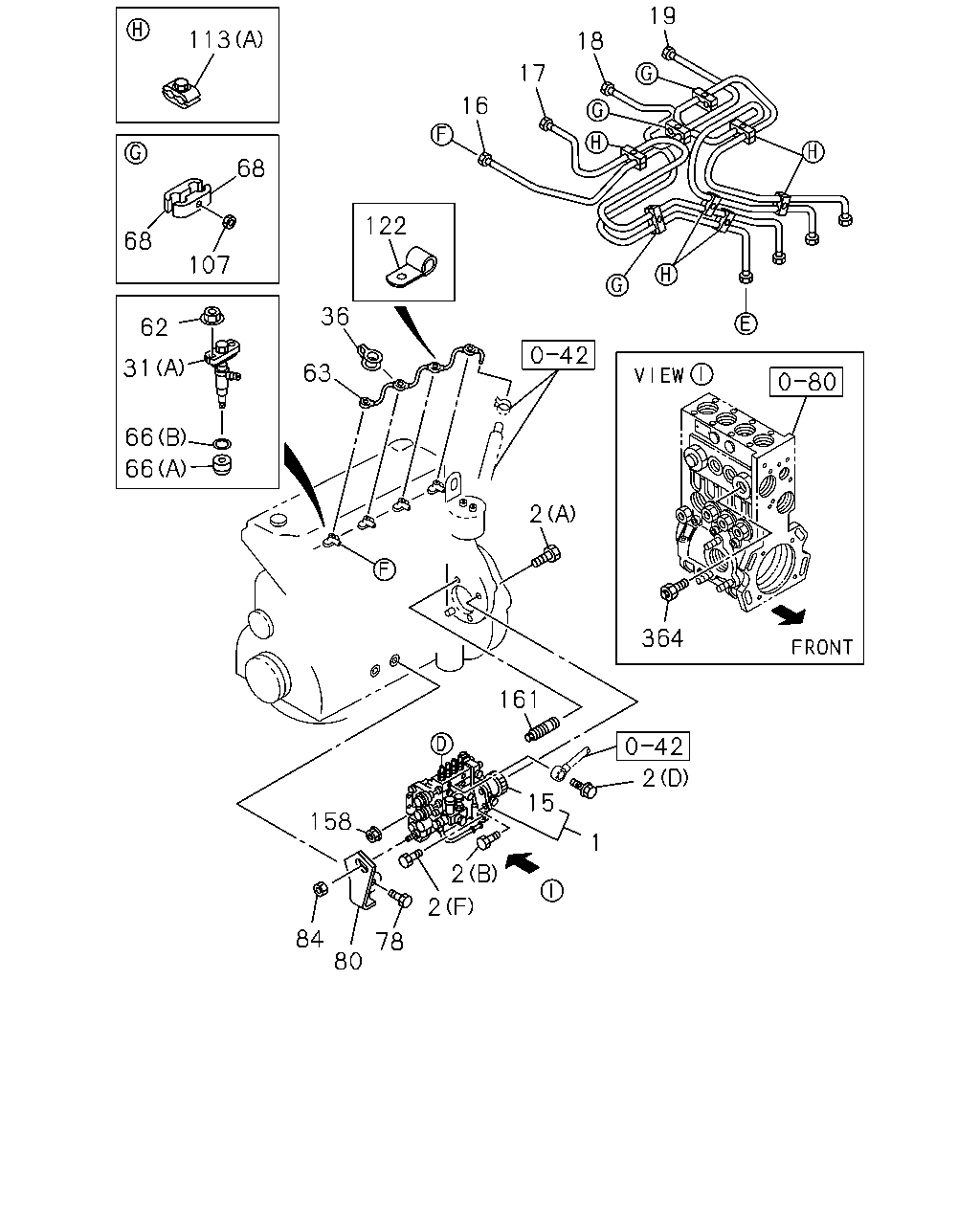

19 113 18 17 16 68 122 68 107 36 62 31 63 66 66 2 364 161 2 15 158 1 2 2 84 80 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-185-1	01	1	0502-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	0309-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-189-1	01	1	0309-0407	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-185-1	01	1	0408-	●
2	BOLT; INJ PUMP M12X110	0-28186-211-0	01	1	0502-	●
2	BOLT; INJ PUMP M14X27 FLANGE	1-09675-086-0	01	1	0502-	●
2	BOLT; INJ PUMP (C) M12X90 FLANGE	0-28181-290-0	01	1	0309-		●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	02	1	0309-		●
2	BOLT; INJ PUMP M10X70 FLANGE	0-28181-070-0	01	1	0408-	●	●
2	BOLT; INJ PUMP (E) M14X30	8-97203-957-0	01	1	0309-		●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	0309-0407	●	●
2	BOLT; INJ PUMP M10X70 FLANGE	0-28181-070-0	01	1	0408-0501		●
2	BOLT; INJ PUMP M10X70 FLANGE	0-28181-070-0	01	1	0502-	●	●
2	BOLT; INJ PUMP M12X70 FLANGE	0-28181-270-0	01	1	0408-	●	●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0309-0407	●	●
2	BOLT; INJ PUMP M12X70 FLANGE	0-28181-270-0	01	1	0408-0501		●
2	BOLT; INJ PUMP M12X70 FLANGE	0-28181-270-0	01	1	0502-	●	●
2	BOLT; INJ PUMP (F) M12X110	0-28186-211-0	01	1	0309-0407	●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	01	1	0309-0407	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-97367-625-0	01	1	0502-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-97367-625-0	01	1	0309-0407	●
16	PIPE; INJ NO.1	8-97148-963-4	01	1	0502-	●
16	PIPE; INJ NO.1	8-97209-493-1	01	1	0309-		●
16	PIPE; INJ NO.1	8-97148-963-4	01	1	0309-0407	●
17	PIPE; INJ NO.2	8-97148-964-3	01	1	0502-	●
17	PIPE; INJ NO.2	8-97209-494-1	01	1	0309-		●
17	PIPE; INJ NO.2	8-97148-964-3	01	1	0309-0407	●
18	PIPE; INJ NO.3	8-97148-965-4	01	1	0502-	●
18	PIPE; INJ NO.3	8-97209-495-1	01	1	0309-		●
18	PIPE; INJ NO.3	8-97148-965-4	01	1	0309-0407	●
19	PIPE; INJ NO.4	8-97148-966-3	01	1	0502-	●
19	PIPE; INJ NO.4	8-97209-496-1	01	1	0309-		●
19	PIPE; INJ NO.4	8-97148-966-3	01	1	0309-0407	●
31	NOZZLE ASM; INJ	8-97148-960-1	04	1	0502-	●
31	NOZZLE ASM; INJ (B)	8-97367-553-0	04	1	0309-		●
31	NOZZLE ASM; INJ (A)	8-97148-960-1	04	1	0309-0407	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0309-0407	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0408-0501		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0502-	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0408-	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	0309-0407	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	0408-0501		●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	0502-	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	0408-	●	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0309-0407	●	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0408-0501		●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0502-	●	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0408-	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97171-922-0	04	1	0502-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97171-332-0	04	1	0309-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) THA	8-94326-439-0	04	1	0309-0407	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-94326-439-0	04	1	0408-0501		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-94326-439-0	04	1	0502-	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-94326-439-0	04	1	0408-	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97171-922-0	04	1	0309-0407	●
68	CLIP; INJ PIPE	8-97213-049-0	06	1	0502-	●
68	CLIP; INJ PIPE	1-09701-091-0	01	1	0309-		●
68	CLIP; INJ PIPE	8-97213-049-0	06	1	0309-0407	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	01	1	0309-0407	●	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	01	1	0408-0501		●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	01	1	0502-	●	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	01	1	0408-	●	●
80	BRACKET; PUMP	8-97148-958-1	01	1	0502-	●
80	BRACKET; PUMP	8-97136-677-0	01	1	0309-		●
80	BRACKET; PUMP	8-97148-958-1	01	1	0309-0407	●
84	NUT; BRKT TO BRKT M12 FLANGE	0-91150-212-0	01	1	0502-	●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	0309-		●
84	NUT; BRKT TO BRKT M12 FLANGE	0-91150-212-0	01	1	0309-0407	●
107	NUT; INJ PIPE CLIP M5 FLANGE	8-94178-699-0	03	1	0502-	●
107	NUT; INJ PIPE CLIP M5 FLANGE	8-94178-699-0	03	1	0309-0407	●
113	CLIP; INJ PIPE	8-97213-050-0	05	1	0502-	●
113	CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0309-		●
113	CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0309-		●
113	CLIP; INJ PIPE (A)	8-97213-050-0	05	1	0309-0407	●
122	CLIP; LEAK OFF PIPE	9-09524-662-0	01	1	0502-	●
122	CLIP; LEAK OFF PIPE	9-09524-662-0	01	1	0309-0407	●
158	NUT; INJ PUMP M12 FLANGE	0-91250-112-0	01	1	0502-	●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	0309-0407	●	●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	0408-0501		●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	0502-	●	●
158	NUT; INJ PUMP M12 FLANGE	0-91250-112-0	01	1	0309-0407	●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	0408-	●	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0309-0407	●	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0408-0501		●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0502-	●	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0408-	●	●
364	VALVE; OVER FLOW,INJ PUMP	1-15619-321-0	01	1	0502-	●
364	VALVE; OVER FLOW,INJ PUMP	1-15619-321-0	01	1	0309-0407	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
