Isuzu WW
▶
TRUCKS
▶
NPR
▶
50971 - NPR/NQR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

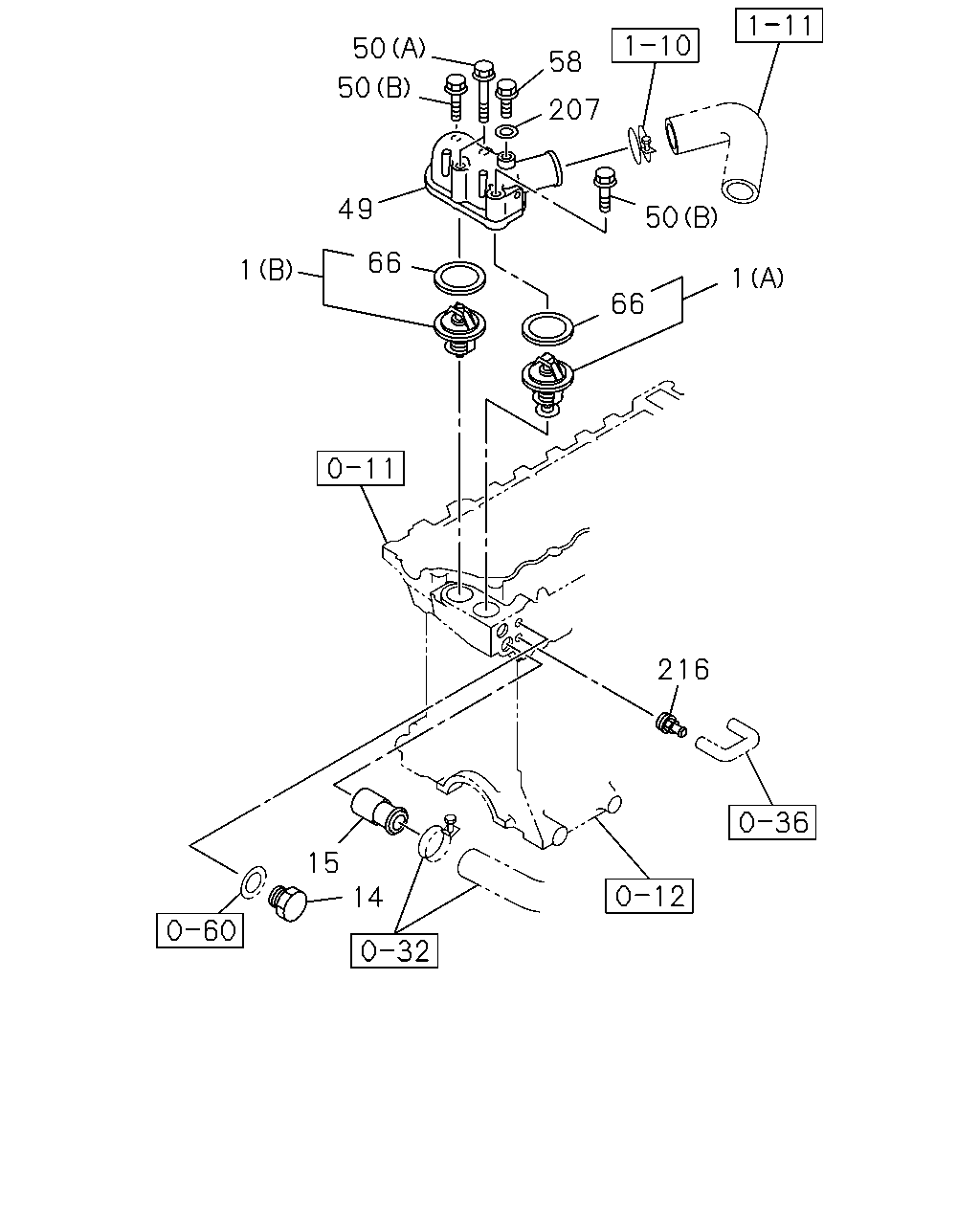

0-31 — THERMOSTAT AND HOUSING
(#19903) — 46 parça
Tümü
A - 4HE1 ENG
B - 4HG1 ENG
50
58
50
207
49
50
66
1
1
66
216
15
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
THERMOSTAT
85?C
8-97300-787-2
01
1
0502-
●
1
THERMOSTAT
82?C
8-97300-790-1
01
1
0502-
●
1
THERMOSTAT
(A) 82?C
8-97300-789-2
01
1
0309-
●
1
THERMOSTAT
(B) 85?C
8-97300-792-1
01
1
0309-
●
1
THERMOSTAT
(B) 85?C
8-97300-787-2
01
1
0309-0407
●
1
THERMOSTAT
(A) 82?C
8-97300-790-1
01
1
0309-0407
●
14
PLUG; SW
PT3/8 THA
5-09605-005-0
01
1
0309-0407
●
●
14
PLUG; SW
PT3/8 THA
5-09605-005-0
01
1
0408-0501
●
14
PLUG; SW
PT3/8 THA
5-09605-005-0
01
1
0502-
●
●
14
PLUG; SW
M16X8 PLUG
9-09661-005-0
01
1
0309-0407
●
●
14
PLUG; SW
M16X8 PLUG
9-09661-005-0
01
1
0408-0501
●
14
PLUG; SW
M16X8 PLUG
9-09661-005-0
01
1
0502-
●
●
14
PLUG; SW
PT3/8 THA
5-09605-005-0
01
1
0408-
●
●
14
PLUG; SW
M16X8 PLUG
9-09661-005-0
01
1
0408-
●
●
15
PIPE; BYPASS
8-94342-574-0
01
1
0309-0407
●
●
15
PIPE; BYPASS
8-94342-574-0
01
1
0408-0501
●
15
PIPE; BYPASS
8-94342-574-0
01
1
0502-
●
●
15
PIPE; BYPASS
8-94342-574-0
01
1
0408-
●
●
49
PIPE; WATER OUTLET
8-97200-620-0
01
1
0309-0407
●
●
49
PIPE; WATER OUTLET
8-97372-769-0
01
1
0408-0501
●
49
PIPE; WATER OUTLET
8-97372-769-0
01
1
0502-
●
●
49
PIPE; WATER OUTLET
8-97372-769-0
01
1
0408-
●
●
50
BOLT; OUTLET PIPE
(A) M8X25 FLANGE
0-28680-825-0
02
1
0309-0407
●
●
50
BOLT; OUTLET PIPE
M8X25 FLANGE
0-28680-825-0
02
1
0408-0501
●
50
BOLT; OUTLET PIPE
M8X25 FLANGE
0-28680-825-0
02
1
0502-
●
●
50
BOLT; OUTLET PIPE
(B) M8X65 FLANGE
1-09044-072-1
02
1
0309-0407
●
●
50
BOLT; OUTLET PIPE
M8X65 FLANGE
1-09044-072-1
02
1
0408-0501
●
50
BOLT; OUTLET PIPE
M8X65 FLANGE
1-09044-072-1
02
1
0502-
●
●
50
BOLT; OUTLET PIPE
M8X25 FLANGE
0-28680-825-0
02
1
0408-
●
●
50
BOLT; OUTLET PIPE
M8X65 FLANGE
1-09044-072-1
02
1
0408-
●
●
58
PLUG; WATER OUTLET PIPE
M8X16
8-97021-211-1
01
1
0309-0407
●
●
58
PLUG; WATER OUTLET PIPE
M8X16
8-97021-211-1
01
1
0408-0501
●
58
PLUG; WATER OUTLET PIPE
M8X16
8-97021-211-1
01
1
0502-
●
●
58
PLUG; WATER OUTLET PIPE
M8X16
8-97021-211-1
01
1
0408-
●
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97300-793-0
02
1
0309-0407
●
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97300-793-0
02
1
0408-0501
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97300-793-0
02
1
0502-
●
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97300-793-0
02
1
0408-
●
●
207
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2
1-09630-082-0
01
1
0309-0407
●
●
207
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2
1-09630-082-0
01
1
0408-0501
●
207
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2
1-09630-082-0
01
1
0502-
●
●
207
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2
1-09630-082-0
01
1
0408-
●
●
216
PIPE ASM; WATER,TURBOCHARGER RETURN
8-97358-699-0
01
1
0309-0407
●
●
216
PIPE ASM; WATER,TURBOCHARGER RETURN
8-97358-699-0
01
1
0408-0501
●
216
PIPE ASM; WATER,TURBOCHARGER RETURN
8-97358-699-0
01
1
0502-
●
●
216
PIPE ASM; WATER,TURBOCHARGER RETURN
8-97358-699-0
01
1
0408-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
