8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#1990) — 35 parça

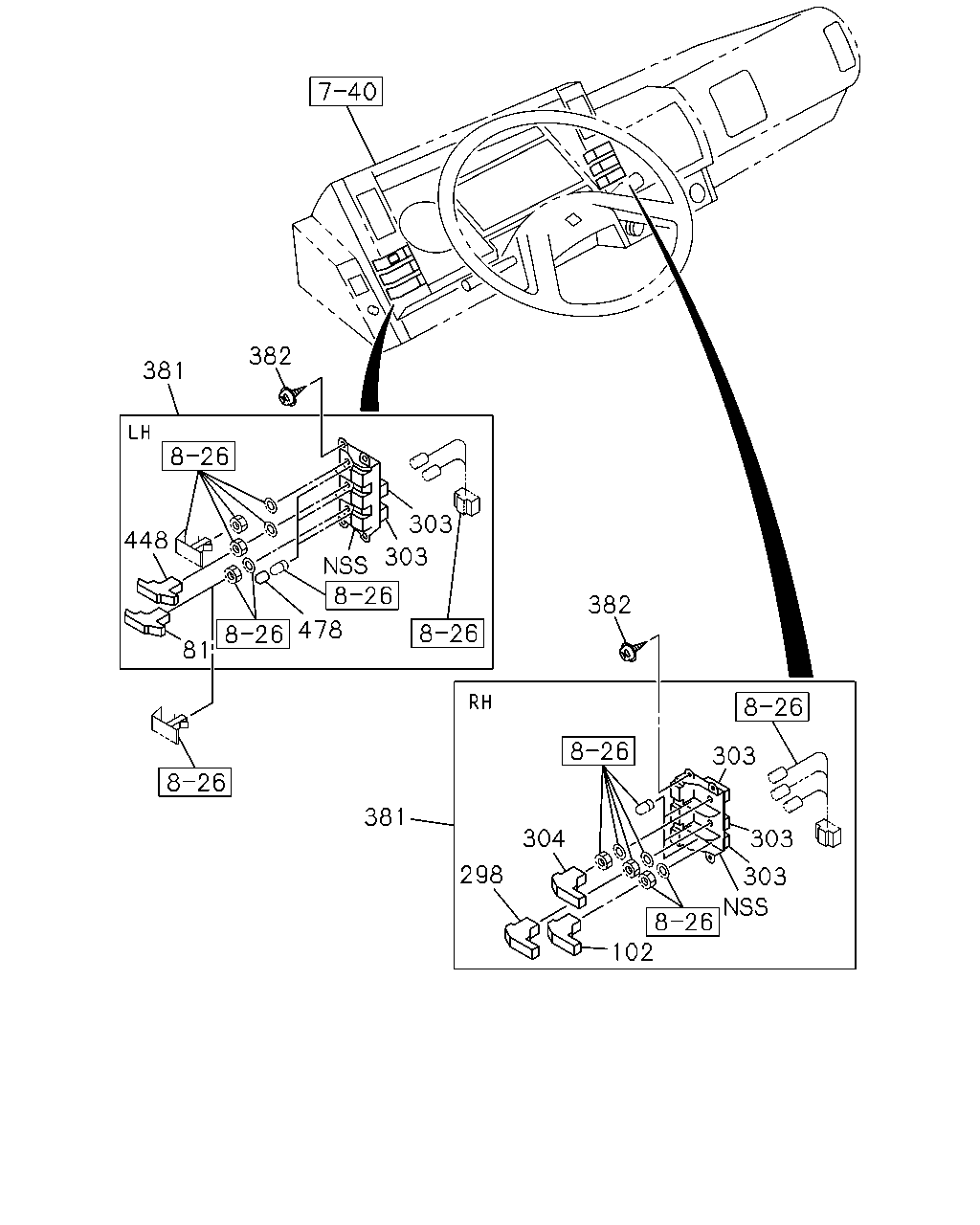

çizim 94127
382 381 303 448 303 382 478 81 303 381 304 303 298 303 102
BalonParca AdiParca NoAdetTipApplied Date A B C D
81 KNOB ASM; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 		1-82356-073-0 01 1 9207- ● ● ● ●
81 KNOB ASM; PTO
TRANSMISSION FRONT PTO<RC2> PTO CONTROL<SV6> 		1-82356-080-0 01 1 9207- ●
102 KNOB ASM; FOG LAMP 1-82356-031-0 01 1 9207- ● ● ● ●
298 KNOB ASM; PARKING LAMP 1-82356-028-0 01 1 9207- ● ● ● ●
303 SWITCH; MICRO
4WD 		1-82350-224-0 01 1 9207- ● ● ● ●
303 SWITCH; MICRO
FOG 		1-82350-091-0 01 1 9207- ● ● ● ●
303 SWITCH; MICRO
PARKING 		1-82350-127-0 01 1 9207- ● ● ● ●
303 SWITCH; MICRO
HAZARD 		1-82350-181-0 01 1 9207- ● ● ● ●
303 SWITCH; MICRO
PTO CONTROL<SV6> PTO 		1-82350-128-0 01 1 9207- ● ● ● ●
304 KNOB ASM; HAZARD 1-82356-068-0 01 1 9207- ● ● ● ●
381 SWITCH ASM; METER CLUSTER SIDE 1-82350-171-0 01 1 9207- ● ● ● ●
381 SWITCH ASM; METER CLUSTER SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 		1-82350-209-1 01 1 9207- ● ● ● ●
381 SWITCH ASM; METER CLUSTER SIDE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6> 		1-82350-211-0 01 1 9207-9208 ● ● ● ●
381 SWITCH ASM; METER CLUSTER SIDE
EXC. PTO CONTROL<SV6> 		1-82350-211-1 01 1 9209- ● ● ● ●
381 SWITCH ASM; METER CLUSTER SIDE
TRANSMISSION FRONT PTO<RC2> PTO CONTROL<SV6> 		1-82350-210-1 01 1 9207- ●
382 SCREW; SW,METER CLUSTER SIDE
M5X14 W/PL WASHER 		5-09981-050-0 08 1 9207- ● ● ● ●
448 KNOB ASM; FULL WHEEL DRIVE 1-82356-094-0 01 1 9207- ● ● ● ●
478 CAP; COLLAR
PTO CONTROL<SV6> GREEN 		1-82199-001-0 02 1 9207- ● ● ● ●
478 CAP; COLLAR
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6> GREEN 		1-82199-001-0 01 1 9207-9208 ● ● ● ●
478 CAP; COLLAR
EXC. PTO CONTROL<SV6> GREEN 		1-82199-001-0 01 1 9209- ● ● ● ●

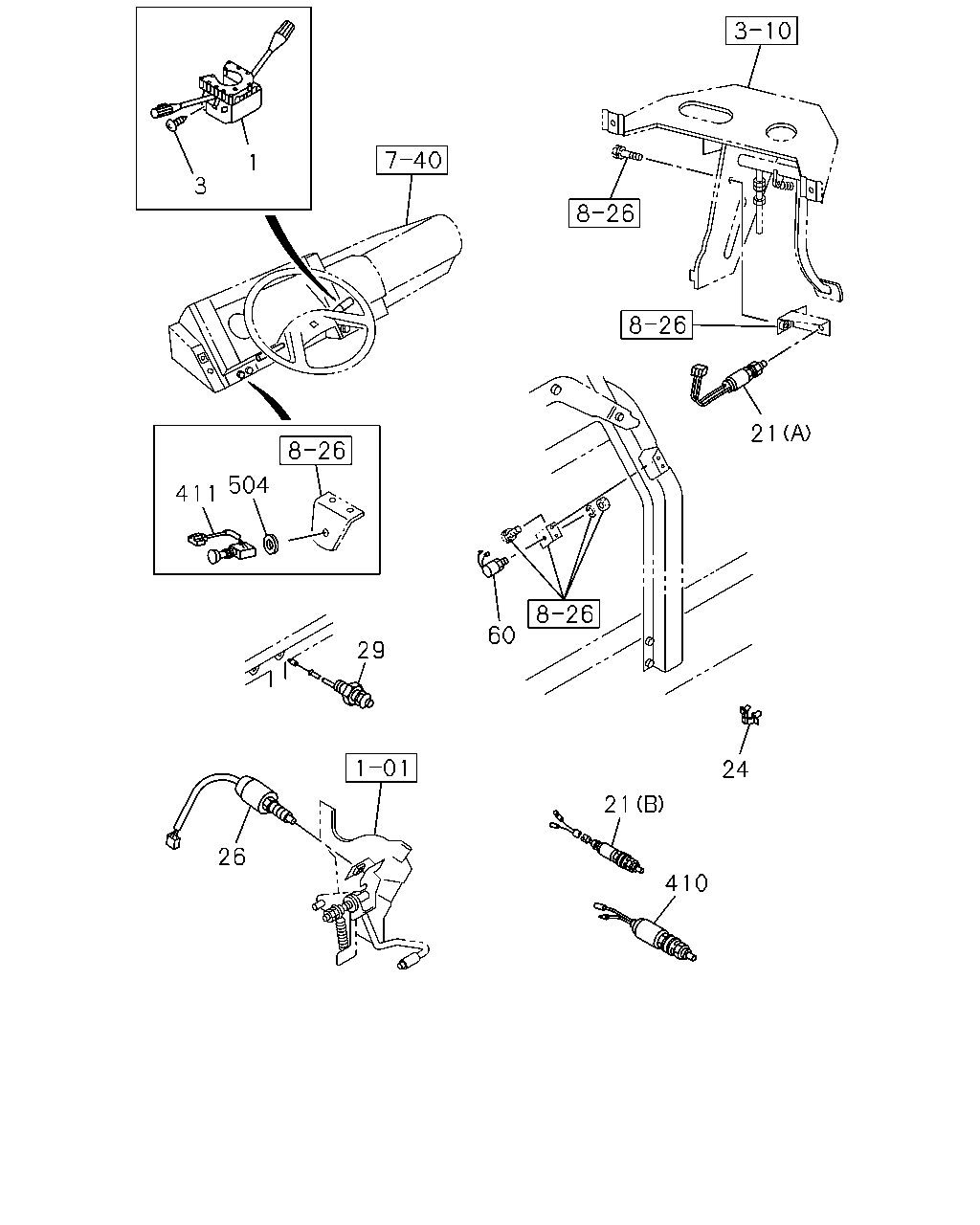

çizim 94391
1 3 21 504 411 60 29 24 21 26 410
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		1-82360-312-2 01 1 9207-9312 ● ● ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		1-82360-321-1 01 1 9207-9312 ● ● ● ●
1 SWITCH; COMB 1-82360-312-2 01 1 9401-9409 ● ● ● ●
1 SWITCH; COMB 1-82360-394-0 01 1 9410- ● ● ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 03 1 9207-9409 ● ● ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9410- ● ● ● ●
21 SWITCH; CLU
(B) 		1-82380-009-3 01 1 9207- ● ● ● ●
21 SWITCH; CLU
(A) 		1-82440-049-1 01 1 9207- ● ● ● ●
24 CLIP; CLU SW,EXH BRK 1-09987-161-0 01 1 9207- ● ● ● ●
26 SWITCH; ACCEL 1-82380-009-3 01 1 9207- ● ● ● ●
29 SWITCH; DOOR 1-82440-091-0 01 1 9207- ● ● ● ●
60 SWITCH; IGNITION SUB 1-82380-065-0 01 1 9207- ● ● ● ●
410 SWITCH; FRT DRIVE 1-82380-009-3 01 1 9207-9208 ● ● ● ●
411 SWITCH; TRANSFER 1-82340-348-1 01 1 9207- ● ● ● ●
504 WASHER; PL,SW
ID=12.5 OD=22 		8-94279-627-0 01 1 9212- ● ● ● ●
