0-22 — ENGINE MOUNTING (#19898) — 43 parça

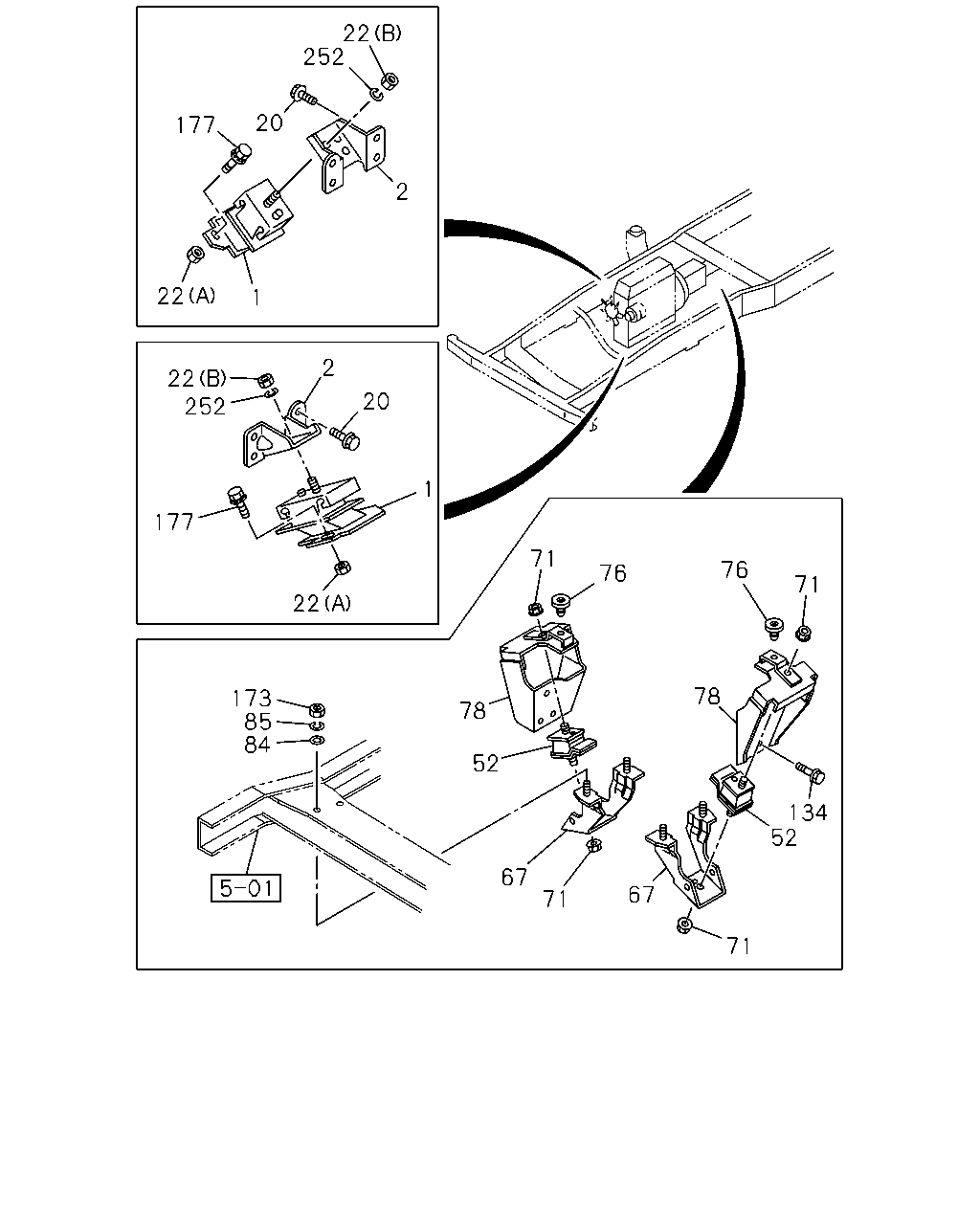

çizim 56087
22 252 20 177 2 22 1 2 22 252 20 1 177 71 76 76 71 22 78 173 85 84 78 2 134 52 67 67 71 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT
EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97940-320-0 01 1 0309- ●
1 RUBBER; ENG FOOT,FRT
EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97940-319-0 01 1 0309- ●
1 RUBBER; ENG FOOT,FRT 8-97187-417-0 01 1 0309- ●
1 RUBBER; ENG FOOT,FRT 8-97187-416-0 01 1 0309- ●
2 FOOT; ENG 8-97228-669-1 02 1 0309-0407 ● ●
2 FOOT; ENG 8-97228-669-1 02 1 0408-0501 ●
2 FOOT; ENG 8-97228-669-2 02 1 0502- ● ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0309-0407 ● ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0408-0501 ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0502- ● ●
22 NUT; CUSHION RUBBER TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-210-0 02 1 0309- ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 		9-99110-412-0 02 1 0309- ● ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0309- ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6F<RSR> 		8-97039-277-0 02 1 0408- ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0309-0407 ● ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MYY5T<RSM> 		8-94111-903-1 02 1 0408- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6F<RSR> 		8-97039-282-2 02 1 0408- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-97371-918-0 01 1 0309-0407 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T<RSM> 		8-97371-918-0 01 1 0408- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-97325-567-0 01 1 0309-0407 ● ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T<RSM> 		8-97325-567-0 01 1 0408- ● ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 0309- ● ●
76 STOPPER; ENG MTG RUBBER
M/T MZZ6F<RSR> 		8-94111-904-0 02 1 0408- ●
76 STOPPER; ENG MTG RUBBER
M/T MZZ6F<RSR> 		8-97039-947-1 02 1 0408- ●
76 STOPPER; ENG MTG RUBBER 8-94111-904-0 06 1 0309-0407 ● ●
76 STOPPER; ENG MTG RUBBER
M/T MYY5T<RSM> 		8-94111-904-0 06 1 0408- ● ●
78 BRACKET; ENG MTG,RR
M/T MZZ6F<RSR> 		8-97172-399-1 01 1 0408- ●
78 BRACKET; ENG MTG,RR
M/T MZZ6F<RSR> 		8-97307-777-0 01 1 0408- ●
78 BRACKET; ENG MTG,RR 8-97325-562-0 01 1 0309-0407 ●
78 BRACKET; ENG MTG,RR
M/T MYY5T<RSM> 		8-97325-562-0 01 1 0408- ●
78 BRACKET; ENG MTG,RR 8-97325-563-0 01 1 0309-0407 ●
78 BRACKET; ENG MTG,RR
M/T MYY5T<RSM> 		8-97325-563-0 01 1 0408- ●
78 BRACKET; ENG MTG,RR 8-97325-564-0 01 1 0309-0407 ●
78 BRACKET; ENG MTG,RR
M/T MYY5T<RSM> 		8-97325-564-0 01 1 0408- ●
78 BRACKET; ENG MTG,RR 8-97325-565-0 01 1 0309-0407 ●
78 BRACKET; ENG MTG,RR
M/T MYY5T<RSM> 		8-97325-565-0 01 1 0408- ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		9-09164-810-0 04 1 0309- ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0309- ● ●
134 BOLT; SUPPORT BRKT
M/T MYY5T<RSM> M12X25 		0-28781-225-0 06 1 0309-0407 ● ●
134 BOLT; SUPPORT BRKT
M12X25 		0-28781-225-0 06 1 0408- ● ●
173 NUT; ENG MTG RR TO FRAME
M10 		9-09110-410-0 04 1 0309- ● ●
177 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0309- ● ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		9-09150-612-0 02 1 0309- ● ●
