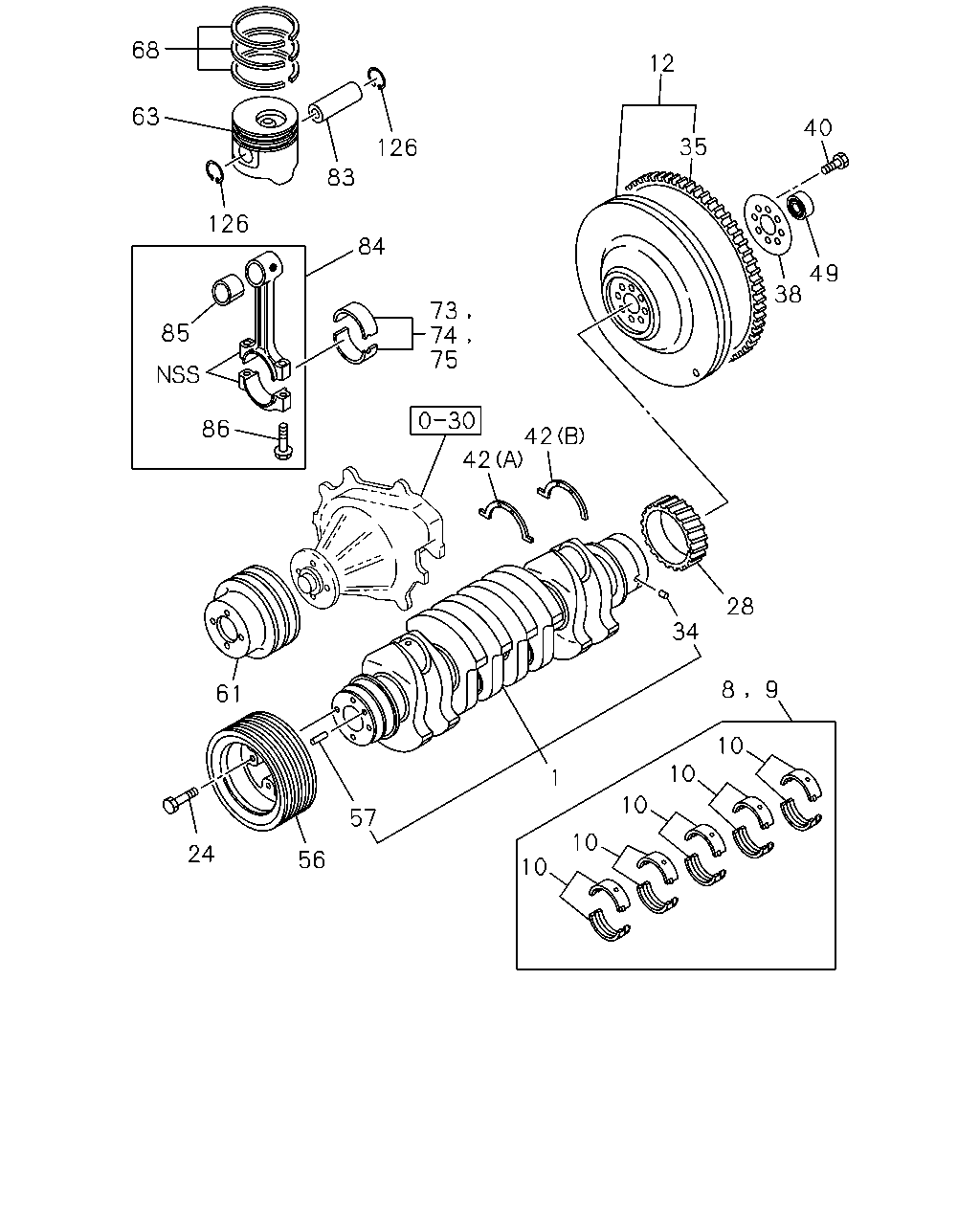

1 |
CRANKSHAFT
|
8-97112-981-3 |
01 |
1 |
0309- |
● |
|
| |
1 |
CRANKSHAFT
|
8-97352-534-2 |
01 |
1 |
0309-0407 |
|
● |
| |
8 |
METAL KIT; CRANKSHAFT,U/S=0.25
|
5-87310-546-0 |
01 |
1 |
0309- |
● |
|
| |
9 |
METAL KIT; CRANKSHAFT,U/S=0.50
|
5-87310-547-0 |
01 |
1 |
0309- |
● |
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97372-076-0 |
05 |
1 |
0309-0407 |
● |
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97372-077-0 |
05 |
1 |
0309-0407 |
● |
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97372-078-0 |
05 |
1 |
0309-0407 |
● |
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97372-076-0 |
05 |
1 |
0408- |
● |
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97372-077-0 |
05 |
1 |
0408- |
● |
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97372-078-0 |
05 |
1 |
0408- |
● |
● |
| |
12 |
FLYWHEEL
|
8-97166-516-0 |
01 |
1 |
0408- |
|
● |
| |
12 |
FLYWHEEL
|
8-97330-892-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
12 |
FLYWHEEL
|
8-97330-892-0 |
01 |
1 |
0408- |
● |
|
| |
24 |
BOLT; DAMPER
M16X42
|
8-97028-733-0 |
04 |
1 |
0309-0407 |
● |
● |
| |
24 |
BOLT; DAMPER
M16X42
|
8-97028-733-0 |
04 |
1 |
0408- |
● |
● |
| |
28 |
GEAR; CR/SHF
Z=42
|
8-94394-342-4 |
01 |
1 |
0408- |
|
● |
| |
28 |
GEAR; CR/SHF
Z=42
|
8-97109-626-1 |
01 |
1 |
0309- |
● |
|
| |
28 |
GEAR; CR/SHF
Z=42
|
8-94394-342-4 |
01 |
1 |
0309-0407 |
|
● |
| |
34 |
PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
34 |
PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
0408- |
● |
● |
| |
35 |
GEAR; RING
Z=138
|
8-97046-366-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
35 |
GEAR; RING
Z=138
|
8-97046-366-0 |
01 |
1 |
0408- |
● |
● |
| |
38 |
WASHER; FLYWHEEL
ID=55 OD=110
|
8-94397-496-1 |
01 |
1 |
0309-0407 |
● |
● |
| |
38 |
WASHER; FLYWHEEL
ID=55 OD=110
|
8-94397-496-1 |
01 |
1 |
0408- |
● |
● |
| |
40 |
BOLT; FLYWHEEL
M16X42
|
8-97178-013-0 |
08 |
1 |
0309-0407 |
● |
● |
| |
40 |
BOLT; FLYWHEEL
M16X42
|
8-97178-013-0 |
08 |
1 |
0408- |
● |
● |
| |
42 |
WASHER; THRUST,CR/SHF
(A)
|
8-94399-277-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
42 |
WASHER; THRUST,CR/SHF
(B)
|
8-94399-283-0 |
02 |
1 |
0309-0407 |
● |
● |
| |
42 |
WASHER; THRUST,CR/SHF
|
8-94399-277-0 |
01 |
1 |
0408- |
● |
● |
| |
42 |
WASHER; THRUST,CR/SHF
|
8-94399-283-0 |
02 |
1 |
0408- |
● |
● |
| |
49 |
BEARING; PILOT
|
8-97258-239-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
49 |
BEARING; PILOT
|
8-97258-239-0 |
01 |
1 |
0408- |
● |
● |
| |
56 |
PULLEY; CR/SHF DAMPER
4-GROOVE
|
8-97222-031-3 |
01 |
1 |
0309-0407 |
● |
● |
| |
56 |
PULLEY; CR/SHF DAMPER
4-GROOVE
|
8-97222-031-3 |
01 |
1 |
0408- |
● |
● |
| |
57 |
PIN; PULLEY
OD=8 L=20
|
9-08150-820-0 |
02 |
1 |
0309-0407 |
● |
● |
| |
57 |
PIN; PULLEY
OD=8 L=20
|
9-08150-820-0 |
02 |
1 |
0408- |
● |
● |
| |
61 |
PULLEY; FAN DRIVE
2-GROOVE
|
8-97174-757-2 |
01 |
1 |
0309-0407 |
● |
● |
| |
61 |
PULLEY; FAN DRIVE
2-GROOVE
|
8-97174-757-3 |
01 |
1 |
0408- |
● |
● |
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
GRADE=AX
|
8-97251-696-0 |
04 |
1 |
0502- |
|
● |
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
GRADE=CX
|
8-97251-697-0 |
04 |
1 |
0502- |
|
● |
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-97219-032-0 |
04 |
1 |
0309- |
● |
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
GRADE=AX
|
8-97251-696-0 |
04 |
1 |
0309-0501 |
|
● |
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
GRADE=CX
|
8-97251-697-0 |
04 |
1 |
0309-0501 |
|
● |
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-97166-992-1 |
04 |
1 |
0502- |
|
● |
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-97219-054-0 |
04 |
1 |
0309- |
● |
|
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-97166-992-1 |
04 |
1 |
0309-0501 |
|
● |
| |
73 |
METAL SET; CONN ROD,STANDARD
GREEN
|
8-94395-757-1 |
20 |
1 |
0502- |
|
● |
| |
73 |
METAL SET; CONN ROD,STANDARD
YELLOW
|
8-97131-186-1 |
20 |
1 |
0502- |
|
● |
| |
73 |
METAL SET; CONN ROD,STANDARD
YELLOW
|
8-97045-800-0 |
04 |
1 |
0309- |
● |
|
| |
73 |
METAL SET; CONN ROD,STANDARD
GREEN
|
8-97045-801-0 |
04 |
1 |
0309- |
● |
|
| |
73 |
METAL SET; CONN ROD,STANDARD
GREEN
|
8-94395-757-1 |
04 |
1 |
0309-0501 |
|
● |
| |
73 |
METAL SET; CONN ROD,STANDARD
YELLOW
|
8-97131-186-1 |
04 |
1 |
0309-0501 |
|
● |
| |
74 |
METAL SET; CONN ROD,U/S=0.25
|
8-97175-127-0 |
04 |
1 |
0309- |
● |
|
| |
75 |
METAL SET; CONN ROD,U/S=0.50
|
8-97175-128-0 |
04 |
1 |
0309- |
● |
|
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94396-731-1 |
04 |
1 |
0502- |
|
● |
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94396-589-1 |
04 |
1 |
0309- |
● |
|
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94396-731-1 |
04 |
1 |
0309-0501 |
|
● |
| |
84 |
ROD ASM; CONN
|
8-94399-661-2 |
04 |
1 |
0502- |
|
● |
| |
84 |
ROD ASM; CONN
|
8-97135-032-1 |
04 |
1 |
0309- |
● |
|
| |
84 |
ROD ASM; CONN
|
8-94399-661-2 |
04 |
1 |
0309-0501 |
|
● |
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-94394-613-0 |
04 |
1 |
0502- |
|
● |
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
1-12251-036-0 |
04 |
1 |
0309- |
● |
|
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-94394-613-0 |
04 |
1 |
0309-0501 |
|
● |
| |
86 |
BOLT; CONNROD
M13X57 FLANGE
|
1-12235-035-0 |
08 |
1 |
0309-0407 |
● |
● |
| |
86 |
BOLT; CONNROD
M13X57 FLANGE
|
1-12235-035-0 |
08 |
1 |
0408- |
● |
● |
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
1-09587-081-1 |
08 |
1 |
0502- |
|
● |
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
8-94318-798-2 |
08 |
1 |
0309- |
● |
|
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
1-09587-081-1 |
08 |
1 |
0309-0501 |
|
● |
