1 |

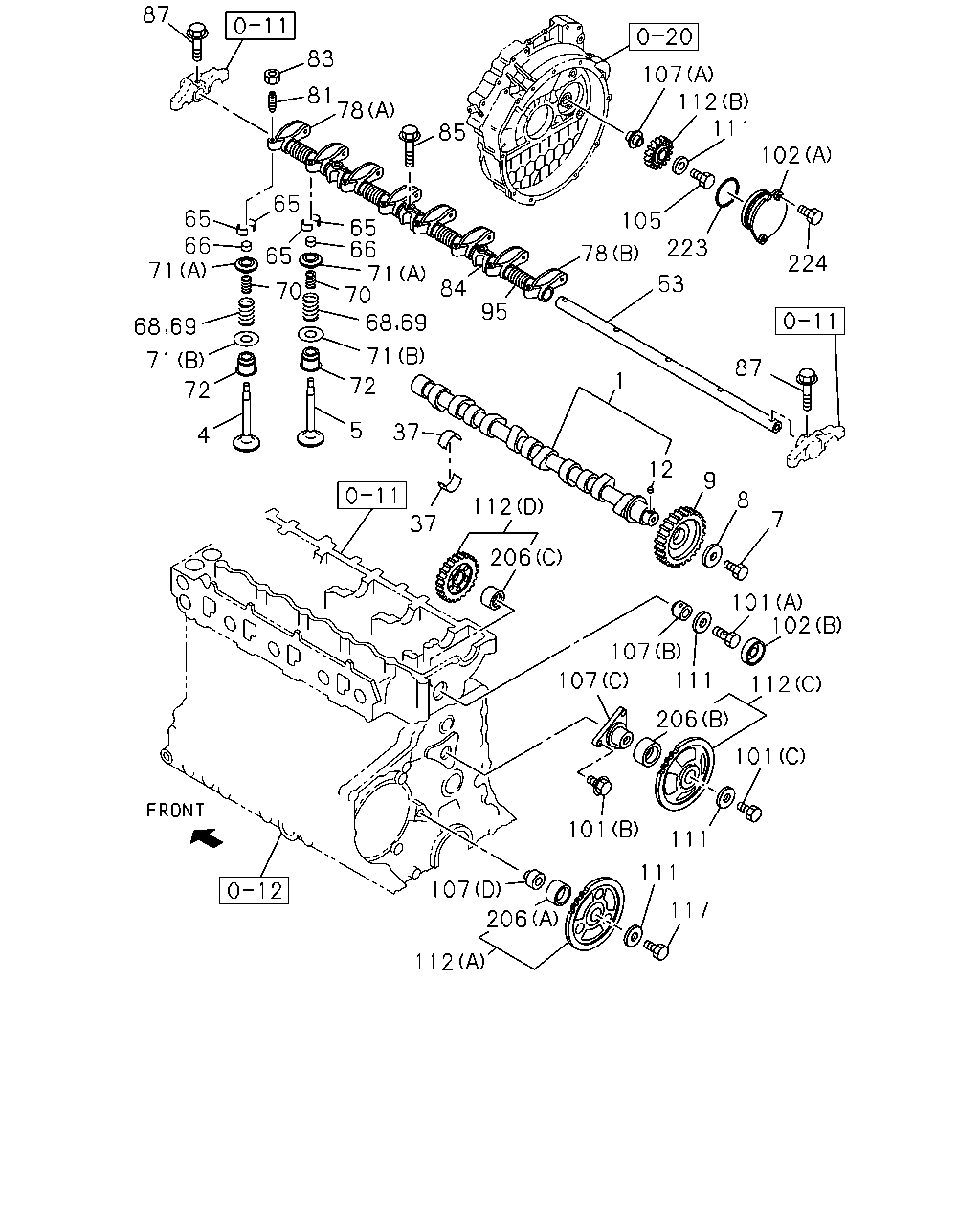

CAMSHAFT
|
8-97077-830-0 |
01 |
1 |
0502- |
● |
|
| |
1 |
CAMSHAFT
|
8-97077-829-0 |
01 |
1 |
0309- |
|
● |
| |
1 |
CAMSHAFT
|
8-97077-830-0 |
01 |
1 |
0309-0407 |
● |
|
| |
4 |
VALVE; INL
|
8-97033-864-2 |
04 |
1 |
0502- |
● |
|
| |
4 |
VALVE; INL
|
8-97171-398-0 |
04 |
1 |
0309- |
|
● |
| |
4 |
VALVE; INL
|
8-97033-864-2 |
04 |
1 |
0309-0407 |
● |
|
| |
5 |
VALVE; EXH
|
8-97219-509-2 |
04 |
1 |
0502- |
● |
|
| |
5 |
VALVE; EXH
|
8-97171-399-0 |
04 |
1 |
0309- |
|
● |
| |
5 |
VALVE; EXH
|
8-97219-509-2 |
04 |
1 |
0309-0407 |
● |
|
| |
7 |
BOLT; CM/SHF GEAR
M14X40
|
8-94396-439-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
7 |
BOLT; CM/SHF GEAR
M14X40
|
8-94396-439-0 |
01 |
1 |
0408-0501 |
|
● |
| |
7 |
BOLT; CM/SHF GEAR
M14X40
|
8-94396-439-0 |
01 |
1 |
0502- |
● |
● |
| |
7 |
BOLT; CM/SHF GEAR
M14X40
|
8-94396-439-0 |
01 |
1 |
0408- |
● |
● |
| |
8 |
WASHER; CM/SHF GEAR
ID=14.5
|
9-09851-850-3 |
01 |
1 |
0309-0407 |
● |
● |
| |
8 |
WASHER; CM/SHF GEAR
ID=14.5
|
9-09851-850-3 |
01 |
1 |
0408-0501 |
|
● |
| |
8 |
WASHER; CM/SHF GEAR
ID=14.5
|
9-09851-850-3 |
01 |
1 |
0502- |
● |
● |
| |
8 |
WASHER; CM/SHF GEAR
ID=14.5
|
9-09851-850-3 |
01 |
1 |
0408- |
● |
● |
| |
9 |
GEAR; CM/SHF
Z=35
|
8-97094-440-2 |
01 |
1 |
0309-0407 |
● |
● |
| |
9 |
GEAR; CM/SHF
Z=35
|
8-97094-440-2 |
01 |
1 |
0408-0501 |
|
● |
| |
9 |
GEAR; CM/SHF
Z=35
|
8-97094-440-2 |
01 |
1 |
0502- |
● |
● |
| |
9 |
GEAR; CM/SHF
Z=35
|
8-97094-440-2 |
01 |
1 |
0408- |
● |
● |
| |
12 |
KEY; CAM GEAR SET
|
8-94399-487-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
12 |
KEY; CAM GEAR SET
|
8-94399-487-0 |
01 |
1 |
0408-0501 |
|
● |
| |
12 |
KEY; CAM GEAR SET
|
8-94399-487-0 |
01 |
1 |
0502- |
● |
● |
| |
12 |
KEY; CAM GEAR SET
|
8-94399-487-0 |
01 |
1 |
0408- |
● |
● |
| |
37 |
METAL; CM/SHF
B=16
|
8-97356-939-0 |
10 |
1 |
0309-0407 |
● |
● |
| |
37 |
METAL; CM/SHF
B=16
|
8-97356-939-0 |
10 |
1 |
0408-0501 |
|
● |
| |
37 |
METAL; CM/SHF
B=16
|
8-97356-939-0 |
10 |
1 |
0502- |
● |
● |
| |
37 |
METAL; CM/SHF
B=16
|
8-97356-939-0 |
10 |
1 |
0408- |
● |
● |
| |
53 |
SHAFT; ROCKER ARM
JBK
|
8-97074-617-1 |
01 |
1 |
0309-0407 |
● |
● |
| |
53 |
SHAFT; ROCKER ARM
JBK
|
8-97074-617-1 |
01 |
1 |
0408-0501 |
|
● |
| |
53 |
SHAFT; ROCKER ARM
JBK
|
8-97074-617-1 |
01 |
1 |
0502- |
● |
● |
| |
53 |
SHAFT; ROCKER ARM
KEIHIN SEIMITSU
|
8-97174-567-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
53 |
SHAFT; ROCKER ARM
KEIHIN SEIMITSU
|
8-97174-567-0 |
01 |
1 |
0408-0501 |
|
● |
| |
53 |
SHAFT; ROCKER ARM
KEIHIN SEIMITSU
|
8-97174-567-0 |
01 |
1 |
0502- |
● |
● |
| |
53 |
SHAFT; ROCKER ARM
JBK
|
8-97074-617-1 |
01 |
1 |
0408- |
● |
● |
| |
53 |
SHAFT; ROCKER ARM
KEIHIN SEIMITSU
|
8-97174-567-0 |
01 |
1 |
0408- |
● |
● |
| |
65 |
COLLAR; SPLIT
|
5-12565-006-0 |
16 |
1 |
0309-0407 |
● |
● |
| |
65 |
COLLAR; SPLIT
|
5-12565-006-0 |
16 |
1 |
0408-0501 |
|
● |
| |
65 |
COLLAR; SPLIT
|
5-12565-006-0 |
16 |
1 |
0502- |
● |
● |
| |
65 |
COLLAR; SPLIT
|
5-12565-006-0 |
16 |
1 |
0408- |
● |
● |
| |
66 |
CAP; VLV STEM END
|
8-94396-015-2 |
08 |
1 |
0309-0407 |
● |
● |
| |
66 |
CAP; VLV STEM END
|
8-94396-015-2 |
08 |
1 |
0408-0501 |
|
● |
| |
66 |
CAP; VLV STEM END
|
8-94396-015-2 |
08 |
1 |
0502- |
● |
● |
| |
66 |
CAP; VLV STEM END
|
8-94396-015-2 |
08 |
1 |
0408- |
● |
● |
| |
68 |
SPRING; VLV
ID=28.5
|
8-97023-559-0 |
08 |
1 |
0309- |
|
● |
| |
69 |
SPRING; VLV,OUTER
MARK GREEN
|
8-97120-905-0 |
04 |
1 |
0502- |
● |
|
| |
69 |
SPRING; VLV,OUTER
MARK PINK
|
8-97120-912-0 |
04 |
1 |
0502- |
● |
|
| |
69 |
SPRING; VLV,OUTER
EXHAUST
MARK GREEN
|
8-97120-905-0 |
04 |
1 |
0309-0407 |
● |
|
| |
69 |
SPRING; VLV,OUTER
INLET
MARK PINK
|
8-97120-912-0 |
04 |
1 |
0309-0407 |
● |
|
| |
70 |
SPRING; VLV,INNER
MARK GREEN
|
8-97120-899-0 |
04 |
1 |
0502- |
● |
|
| |
70 |
SPRING; VLV,INNER
MARK PINK
|
8-97120-911-0 |
04 |
1 |
0502- |
● |
|
| |
70 |
SPRING; VLV,INNER
EXHAUST
MARK GREEN
|
8-97120-899-0 |
04 |
1 |
0309-0407 |
● |
|
| |
70 |
SPRING; VLV,INNER
INLET
MARK PINK
|
8-97120-911-0 |
04 |
1 |
0309-0407 |
● |
|
| |
71 |
SEAT; SPR
(A)
OD=38
|
8-94385-029-2 |
08 |
1 |
0309-0407 |
● |
● |
| |
71 |
SEAT; SPR
OD=38
|
8-94385-029-2 |
08 |
1 |
0408-0501 |
|
● |
| |
71 |
SEAT; SPR
OD=38
|
8-94385-029-2 |
08 |
1 |
0502- |
● |
● |
| |
71 |
SEAT; SPR
(B)
ID=14.3 OD=40
|
8-94399-526-1 |
08 |
1 |
0309-0407 |
● |
● |
| |
71 |
SEAT; SPR
ID=14.3 OD=40
|
8-94399-526-1 |
08 |
1 |
0408-0501 |
|
● |
| |
71 |
SEAT; SPR
ID=14.3 OD=40
|
8-94399-526-1 |
08 |
1 |
0502- |
● |
● |
| |
71 |
SEAT; SPR
OD=38
|
8-94385-029-2 |
08 |
1 |
0408- |
● |
● |
| |
71 |
SEAT; SPR
ID=14.3 OD=40
|
8-94399-526-1 |
08 |
1 |
0408- |
● |
● |
| |
72 |
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94396-609-2 |
08 |
1 |
0309-0407 |
● |
● |
| |
72 |
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94396-609-2 |
08 |
1 |
0408-0501 |
|
● |
| |
72 |
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94396-609-2 |
08 |
1 |
0502- |
● |
● |
| |
72 |
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94396-609-2 |
08 |
1 |
0408- |
● |
● |
| |
78 |
ARM; ROCKER
(B)
JBK
|
8-97014-258-2 |
04 |
1 |
0309-0407 |
● |
● |
| |
78 |
ARM; ROCKER
JBK
|
8-97014-258-2 |
04 |
1 |
0408-0501 |
|
● |
| |
78 |
ARM; ROCKER
JBK
|
8-97014-258-2 |
04 |
1 |
0502- |
● |
● |
| |
78 |
ARM; ROCKER
(A)
JBK
|
8-97074-614-1 |
04 |
1 |
0309-0407 |
● |
● |
| |
78 |
ARM; ROCKER
JBK
|
8-97074-614-1 |
04 |
1 |
0408-0501 |
|
● |
| |
78 |
ARM; ROCKER
JBK
|
8-97074-614-1 |
04 |
1 |
0502- |
● |
● |
| |
78 |
ARM; ROCKER
JBK
|
8-97014-258-2 |
04 |
1 |
0408- |
● |
● |
| |
78 |
ARM; ROCKER
(A)
KEIHIN SEIMITSU
|
8-97174-562-0 |
04 |
1 |
0309-0407 |
● |
● |
| |
78 |
ARM; ROCKER
KEIHIN SEIMITSU
|
8-97174-562-0 |
04 |
1 |
0408-0501 |
|
● |
| |
78 |
ARM; ROCKER
KEIHIN SEIMITSU
|
8-97174-562-0 |
04 |
1 |
0502- |
● |
● |
| |
78 |
ARM; ROCKER
(B)
KEIHIN SEIMITSU
|
8-97174-565-0 |
04 |
1 |
0309-0407 |
● |
● |
| |
78 |
ARM; ROCKER
KEIHIN SEIMITSU
|
8-97174-565-0 |
04 |
1 |
0408-0501 |
|
● |
| |
78 |
ARM; ROCKER
KEIHIN SEIMITSU
|
8-97174-565-0 |
04 |
1 |
0502- |
● |
● |
| |
78 |
ARM; ROCKER
JBK
|
8-97074-614-1 |
04 |
1 |
0408- |
● |
● |
| |
78 |
ARM; ROCKER
KEIHIN SEIMITSU
|
8-97174-562-0 |
04 |
1 |
0408- |
● |
● |
| |
78 |
ARM; ROCKER
KEIHIN SEIMITSU
|
8-97174-565-0 |
04 |
1 |
0408- |
● |
● |
| |
81 |
SCREW; ADJ,ROCKER ARM
|
8-94367-526-2 |
16 |
1 |
0309-0407 |
● |
● |
| |
81 |
SCREW; ADJ,ROCKER ARM
|
8-94367-526-2 |
16 |
1 |
0408-0501 |
|
● |
| |
81 |
SCREW; ADJ,ROCKER ARM
|
8-94367-526-2 |
16 |
1 |
0502- |
● |
● |
| |
81 |
SCREW; ADJ,ROCKER ARM
|
8-94367-526-2 |
16 |
1 |
0408- |
● |
● |
| |
83 |
NUT; ADJ SCREW,LK
M10
|
9-09111-410-0 |
16 |
1 |
0309-0407 |
● |
● |
| |
83 |
NUT; ADJ SCREW,LK
M10
|
9-09111-410-0 |
16 |
1 |
0408-0501 |
|
● |
| |
83 |
NUT; ADJ SCREW,LK
M10
|
9-09111-410-0 |
16 |
1 |
0502- |
● |
● |
| |
83 |
NUT; ADJ SCREW,LK
M10
|
9-09111-410-0 |
16 |
1 |
0408- |
● |
● |
| |
84 |
BRACKET; ROCKER SHAFT,INTER
JBK
|
8-94388-109-3 |
03 |
1 |
0309-0407 |
● |
● |
| |
84 |
BRACKET; ROCKER SHAFT,INTER
JBK
|
8-94388-109-3 |
03 |
1 |
0408-0501 |
|
● |
| |
84 |
BRACKET; ROCKER SHAFT,INTER
JBK
|
8-94388-109-3 |
03 |
1 |
0502- |
● |
● |
| |
84 |
BRACKET; ROCKER SHAFT,INTER
KEIHIN SEIMITSU
|
8-97174-568-0 |
03 |
1 |
0309-0407 |
● |
● |
| |
84 |
BRACKET; ROCKER SHAFT,INTER
KEIHIN SEIMITSU
|
8-97174-568-0 |
03 |
1 |
0408-0501 |
|
● |
| |
84 |
BRACKET; ROCKER SHAFT,INTER
KEIHIN SEIMITSU
|
8-97174-568-0 |
03 |
1 |
0502- |
● |
● |
| |
84 |
BRACKET; ROCKER SHAFT,INTER
JBK
|
8-94388-109-3 |
03 |
1 |
0408- |
● |
● |
| |
84 |
BRACKET; ROCKER SHAFT,INTER
KEIHIN SEIMITSU
|
8-97174-568-0 |
03 |
1 |
0408- |
● |
● |
| |
85 |
BOLT; BRKT
JBK
M10X62 FLANGE
|
8-94393-131-0 |
03 |
1 |
0309-0407 |
● |
● |
| |
85 |
BOLT; BRKT
M10X62 FLANGE
|
8-94393-131-0 |
03 |
1 |
0408-0501 |
|
● |
| |
85 |
BOLT; BRKT
M10X62 FLANGE
|
8-94393-131-0 |
03 |
1 |
0502- |
● |
● |
| |
85 |
BOLT; BRKT
KEIHIN SEIMITSU
M10X62 FLANGE
|
8-97174-650-0 |
03 |
1 |
0309-0407 |
● |
● |
| |
85 |
BOLT; BRKT
M10X62 FLANGE
|
8-97174-650-0 |
03 |
1 |
0408-0501 |
|
● |
| |
85 |
BOLT; BRKT
M10X62 FLANGE
|
8-97174-650-0 |
03 |
1 |
0502- |
● |
● |
| |
85 |
BOLT; BRKT
M10X62 FLANGE
|
8-94393-131-0 |
03 |
1 |
0408- |
● |
● |
| |
85 |
BOLT; BRKT
M10X62 FLANGE
|
8-97174-650-0 |
03 |
1 |
0408- |
● |
● |
| |
87 |
BOLT; ROCKER SHAFT
M8X35 FLANGE
|
0-28080-835-0 |
04 |
1 |
0309-0407 |
● |
● |
| |
87 |
BOLT; ROCKER SHAFT
M8X35 FLANGE
|
0-28080-835-0 |
04 |
1 |
0408-0501 |
|
● |
| |
87 |
BOLT; ROCKER SHAFT
M8X35 FLANGE
|
0-28080-835-0 |
04 |
1 |
0502- |
● |
● |
| |
87 |
BOLT; ROCKER SHAFT
M8X35 FLANGE
|
0-28080-835-0 |
04 |
1 |
0408- |
● |
● |
| |
95 |
SPRING; ROCKER SHAFT
JBK
|
8-94397-263-0 |
04 |
1 |
0309-0407 |
● |
● |
| |
95 |
SPRING; ROCKER SHAFT
JBK
|
8-94397-263-0 |
04 |
1 |
0408-0501 |
|
● |
| |
95 |
SPRING; ROCKER SHAFT
JBK
|
8-94397-263-0 |
04 |
1 |
0502- |
● |
● |
| |
95 |
SPRING; ROCKER SHAFT
KEIHIN SEIMITSU
|
8-97174-654-0 |
04 |
1 |
0309-0407 |
● |
● |
| |
95 |
SPRING; ROCKER SHAFT
KEIHIN SEIMITSU
|
8-97174-654-0 |
04 |
1 |
0408-0501 |
|
● |
| |
95 |
SPRING; ROCKER SHAFT
KEIHIN SEIMITSU
|
8-97174-654-0 |
04 |
1 |
0502- |
● |
● |
| |
95 |
SPRING; ROCKER SHAFT
JBK
|
8-94397-263-0 |
04 |
1 |
0408- |
● |
● |
| |
95 |
SPRING; ROCKER SHAFT
KEIHIN SEIMITSU
|
8-97174-654-0 |
04 |
1 |
0408- |
● |
● |
| |
101 |
BOLT; THRUST COLLAR
(B)
M8X16 FLANGE
|
0-28090-816-0 |
03 |
1 |
0309-0407 |
● |
● |
| |
101 |
BOLT; THRUST COLLAR
M8X16 FLANGE
|
0-28090-816-0 |
03 |
1 |
0408-0501 |
|
● |
| |
101 |
BOLT; THRUST COLLAR
M8X16 FLANGE
|
0-28090-816-0 |
03 |
1 |
0502- |
● |
● |
| |
101 |
BOLT; THRUST COLLAR
(A)
M14X36.5
|
8-94372-221-1 |
01 |
1 |
0309-0407 |
● |
● |
| |
101 |
BOLT; THRUST COLLAR
M14X36.5
|
8-94372-221-1 |
01 |
1 |
0408-0501 |
|
● |
| |
101 |
BOLT; THRUST COLLAR
M14X36.5
|
8-94372-221-1 |
01 |
1 |
0502- |
● |
● |
| |
101 |
BOLT; THRUST COLLAR
M8X16 FLANGE
|
0-28090-816-0 |
03 |
1 |
0408- |
● |
● |
| |
101 |
BOLT; THRUST COLLAR
(C)
M14X25
|
9-92361-425-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
101 |
BOLT; THRUST COLLAR
M14X25
|
9-92361-425-0 |
01 |
1 |
0408-0501 |
|
● |
| |
101 |
BOLT; THRUST COLLAR
M14X25
|
9-92361-425-0 |
01 |
1 |
0502- |
● |
● |
| |
101 |
BOLT; THRUST COLLAR
M14X36.5
|
8-94372-221-1 |
01 |
1 |
0408- |
● |
● |
| |
101 |
BOLT; THRUST COLLAR
M14X25
|
9-92361-425-0 |
01 |
1 |
0408- |
● |
● |
| |
102 |
COVER; IDLE GEAR
(A)
|
8-94334-681-1 |
01 |
1 |
0309-0407 |
● |
● |
| |
102 |
COVER; IDLE GEAR
|
8-94334-681-1 |
01 |
1 |
0408-0501 |
|
● |
| |
102 |
COVER; IDLE GEAR
|
8-94334-681-1 |
01 |
1 |
0502- |
● |
● |
| |
102 |
COVER; IDLE GEAR
(B)
OD=51
|
8-97096-826-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
102 |
COVER; IDLE GEAR
OD=51
|
8-97096-826-0 |
01 |
1 |
0408-0501 |
|
● |
| |
102 |
COVER; IDLE GEAR
OD=51
|
8-97096-826-0 |
01 |
1 |
0502- |
● |
● |
| |
102 |
COVER; IDLE GEAR
|
8-94334-681-1 |
01 |
1 |
0408- |
● |
● |
| |
102 |
COVER; IDLE GEAR
OD=51
|
8-97096-826-0 |
01 |
1 |
0408- |
● |
● |
| |
105 |
BOLT; IDLE GEAR SHAFT
POWER STEERING<N40>
M14X60
|
9-91666-460-0 |
01 |
1 |
0309-0407 |
|
● |
| |
105 |
BOLT; IDLE GEAR SHAFT
M14X60
|
9-91666-460-0 |
01 |
1 |
0309-0407 |
● |
|
| |
105 |
BOLT; IDLE GEAR SHAFT
POWER STEERING<N40>
M14X60
|
9-91666-460-0 |
01 |
1 |
0408-0501 |
|
● |
| |
105 |
BOLT; IDLE GEAR SHAFT
POWER STEERING<N40>
M14X60
|
9-91666-460-0 |
01 |
1 |
0502- |
|
● |
| |
105 |
BOLT; IDLE GEAR SHAFT
M14X60
|
9-91666-460-0 |
01 |
1 |
0502- |
● |
|
| |
105 |
BOLT; IDLE GEAR SHAFT
POWER STEERING<N40>
M14X60
|
9-91666-460-0 |
01 |
1 |
0408- |
|
● |
| |
105 |
BOLT; IDLE GEAR SHAFT
M14X60
|
9-91666-460-0 |
01 |
1 |
0408- |
● |
|
| |
107 |
SHAFT; IDLE GEAR
POWER STEERING<N40>
(A)
|
8-94334-682-0 |
01 |
1 |
0309-0407 |
|
● |
| |
107 |
SHAFT; IDLE GEAR
(A)
|
8-94334-682-0 |
01 |
1 |
0309-0407 |
● |
|
| |
107 |
SHAFT; IDLE GEAR
POWER STEERING<N40>
|
8-94334-682-0 |
01 |
1 |
0408-0501 |
|
● |
| |
107 |
SHAFT; IDLE GEAR
POWER STEERING<N40>
|
8-94334-682-0 |
01 |
1 |
0502- |
|
● |
| |
107 |
SHAFT; IDLE GEAR
|
8-94334-682-0 |
01 |
1 |
0502- |
● |
|
| |
107 |
SHAFT; IDLE GEAR
(D)
|
8-97104-380-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
107 |
SHAFT; IDLE GEAR
|
8-97104-380-0 |
01 |
1 |
0408-0501 |
|
● |
| |
107 |
SHAFT; IDLE GEAR
|
8-97104-380-0 |
01 |
1 |
0502- |
● |
● |
| |
107 |
SHAFT; IDLE GEAR
|
8-97104-380-0 |
01 |
1 |
0408- |
● |
● |
| |
107 |
SHAFT; IDLE GEAR
(B)
|
8-97186-398-1 |
01 |
1 |
0309-0407 |
● |
● |
| |
107 |
SHAFT; IDLE GEAR
|
8-97186-398-1 |
01 |
1 |
0408-0501 |
|
● |
| |
107 |
SHAFT; IDLE GEAR
|
8-97186-398-1 |
01 |
1 |
0502- |
● |
● |
| |
107 |
SHAFT; IDLE GEAR
(C)
|
8-97350-021-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
107 |
SHAFT; IDLE GEAR
|
8-97350-021-0 |
01 |
1 |
0408-0501 |
|
● |
| |
107 |
SHAFT; IDLE GEAR
|
8-97350-021-0 |
01 |
1 |
0502- |
● |
● |
| |
107 |
SHAFT; IDLE GEAR
|
8-97186-398-1 |
01 |
1 |
0408- |
● |
● |
| |
107 |
SHAFT; IDLE GEAR
|
8-97350-021-0 |
01 |
1 |
0408- |
● |
● |
| |
107 |
SHAFT; IDLE GEAR
POWER STEERING<N40>
|
8-94334-682-0 |
01 |
1 |
0408- |
|
● |
| |
107 |
SHAFT; IDLE GEAR
|
8-94334-682-0 |
01 |
1 |
0408- |
● |
|
| |
111 |
COLLAR; THRUST,IDLE GEAR
POWER STEERING<N40>
ID=14.5 OD=46
|
8-97209-728-1 |
01 |
1 |
0309-0407 |
|
● |
| |
111 |
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
|
8-97209-728-1 |
01 |
1 |
0309-0407 |
● |
|
| |
111 |
COLLAR; THRUST,IDLE GEAR
POWER STEERING<N40>
ID=14.5 OD=46
|
8-97209-728-1 |
01 |
1 |
0408-0501 |
|
● |
| |
111 |
COLLAR; THRUST,IDLE GEAR
POWER STEERING<N40>
ID=14.5 OD=46
|
8-97209-728-2 |
01 |
1 |
0502- |
|
● |
| |
111 |
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
|
8-97209-728-2 |
01 |
1 |
0502- |
● |
|
| |
111 |
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
|
8-97209-728-1 |
03 |
1 |
0309-0407 |
● |
● |
| |
111 |
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
|
8-97209-728-1 |
03 |
1 |
0408-0501 |
|
● |
| |
111 |
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
|
8-97209-728-2 |
03 |
1 |
0502- |
● |
● |
| |
111 |
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
|
8-97209-728-2 |
03 |
1 |
0408- |
● |
● |
| |
111 |
COLLAR; THRUST,IDLE GEAR
POWER STEERING<N40>
ID=14.5 OD=46
|
8-97209-728-2 |
01 |
1 |
0408- |
|
● |
| |
111 |
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
|
8-97209-728-2 |
01 |
1 |
0408- |
● |
|
| |
112 |
GEAR; IDLE
(C)
Z=61
|
8-94393-439-3 |
01 |
1 |
0502- |
● |
|
| |
112 |
GEAR; IDLE
(A)
Z=72-30
|
8-97223-189-0 |
01 |
1 |
0502- |
● |
|
| |
112 |
GEAR; IDLE
(C)
Z=61
|
8-97094-546-1 |
01 |
1 |
0309- |
|
● |
| |
112 |
GEAR; IDLE
(A)
Z=72-30
|
8-97227-074-0 |
01 |
1 |
0309-0506 |
|
● |
| |
112 |
GEAR; IDLE
Z=72-30
|
8-97227-074-0 |
01 |
1 |
0508- |
|
● |
| |
112 |
GEAR; IDLE
(D)
Z=41
|
8-97112-607-0 |
01 |
1 |
0408- |
● |
● |
| |
112 |
GEAR; IDLE
POWER STEERING<N40>
(B)
Z=34
|
8-97120-005-0 |
01 |
1 |
0309-0407 |
|
● |
| |
112 |
GEAR; IDLE
(B)
Z=34
|
8-97120-005-0 |
01 |
1 |
0309-0407 |
● |
|
| |
112 |
GEAR; IDLE
POWER STEERING<N40>
(B)
Z=34
|
8-97120-005-0 |
01 |
1 |
0408-0501 |
|
● |
| |
112 |
GEAR; IDLE
POWER STEERING<N40>
(B)
Z=34
|
8-97120-005-0 |
01 |
1 |
0502- |
|
● |
| |
112 |
GEAR; IDLE
(B)
Z=34
|
8-97120-005-0 |
01 |
1 |
0502- |
● |
|
| |
112 |
GEAR; IDLE
(D)
Z=41
|
8-97112-607-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
112 |
GEAR; IDLE
(C)
Z=61
|
8-94393-439-3 |
01 |
1 |
0309-0407 |
● |
|
| |
112 |
GEAR; IDLE
(A)
Z=72-30
|
8-97223-189-0 |
01 |
1 |
0309-0407 |
● |
|
| |
112 |
GEAR; IDLE
Z=72-30
|
8-97227-074-0 |
01 |
1 |
0507-0507 |
|
● |
| |
117 |
BOLT; FLANGE
M14X65 FLANGE
|
8-97113-167-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
117 |
BOLT; FLANGE
M14X65 FLANGE
|
8-97113-167-0 |
01 |
1 |
0408-0501 |
|
● |
| |
117 |
BOLT; FLANGE
M14X65 FLANGE
|
8-97113-167-0 |
01 |
1 |
0502- |
● |
● |
| |
117 |
BOLT; FLANGE
M14X65 FLANGE
|
8-97113-167-0 |
01 |
1 |
0408- |
● |
● |
| |
206 |
BUSHING; IDLE GEAR
(A)
AFTER PRESS FITTING, MACHINE IT.
|
1-12528-006-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
206 |
BUSHING; IDLE GEAR
AFTER PRESS FITTING, MACHINE IT.
|
1-12528-006-0 |
01 |
1 |
0408-0501 |
|
● |
| |
206 |
BUSHING; IDLE GEAR
AFTER PRESS FITTING, MACHINE IT.
|
1-12528-006-0 |
01 |
1 |
0502- |
● |
● |
| |
206 |
BUSHING; IDLE GEAR
(B)
AFTER PRESS FITTING, MACHINE IT.
|
8-94369-340-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
206 |
BUSHING; IDLE GEAR
AFTER PRESS FITTING, MACHINE IT.
|
8-94369-340-0 |
01 |
1 |
0408-0501 |
|
● |
| |
206 |
BUSHING; IDLE GEAR
AFTER PRESS FITTING, MACHINE IT.
|
8-94369-340-0 |
01 |
1 |
0502- |
● |
● |
| |
206 |
BUSHING; IDLE GEAR
AFTER PRESS FITTING, MACHINE IT.
|
1-12528-006-0 |
01 |
1 |
0408- |
● |
● |
| |
206 |
BUSHING; IDLE GEAR
(C)
AFTER PRESS FITTING, MACHINE IT.
|
8-97112-608-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
206 |
BUSHING; IDLE GEAR
AFTER PRESS FITTING, MACHINE IT.
|
8-97112-608-0 |
01 |
1 |
0408-0501 |
|
● |
| |
206 |
BUSHING; IDLE GEAR
AFTER PRESS FITTING, MACHINE IT.
|
8-97112-608-0 |
01 |
1 |
0502- |
● |
● |
| |
206 |
BUSHING; IDLE GEAR
AFTER PRESS FITTING, MACHINE IT.
|
8-94369-340-0 |
01 |
1 |
0408- |
● |
● |
| |
206 |
BUSHING; IDLE GEAR
AFTER PRESS FITTING, MACHINE IT.
|
8-97112-608-0 |
01 |
1 |
0408- |
● |
● |
| |
223 |
GASKET; COVER,IDLE GEAR
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=105.6
|
1-09623-423-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
223 |
GASKET; COVER,IDLE GEAR
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=105.6
|
1-09623-423-0 |
01 |
1 |
0408-0501 |
|
● |
| |
223 |
GASKET; COVER,IDLE GEAR
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=105.6
|
1-09623-423-0 |
01 |
1 |
0502- |
● |
● |
| |
223 |
GASKET; COVER,IDLE GEAR
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=105.6
|
1-09623-423-0 |
01 |
1 |
0408- |
● |
● |
| |
224 |
BOLT; COVER
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0309-0407 |
● |
● |
| |
224 |
BOLT; COVER
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0408-0501 |
|
● |
| |
224 |
BOLT; COVER
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0502- |
● |
● |
| |
224 |
BOLT; COVER
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0408- |
● |
● |
