1 |

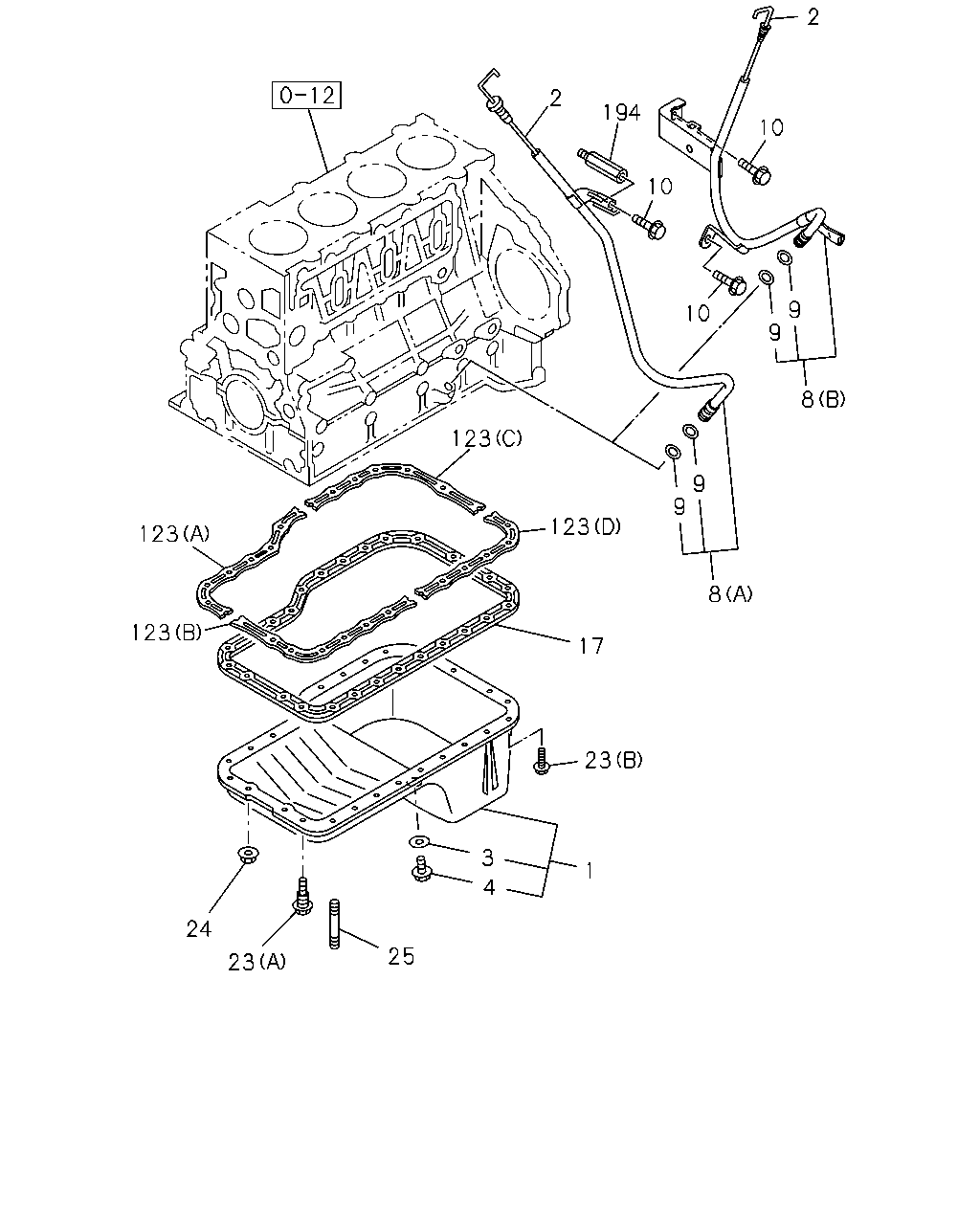

PAN ASM; OIL
|
8-97149-314-0 |
01 |
1 |
0502- |
● |
|
| |
1 |
PAN ASM; OIL
|
8-97305-077-0 |
01 |
1 |
0309-0405 |
|
● |
| |
1 |
PAN ASM; OIL
|
8-97385-249-0 |
01 |
1 |
0406- |
|
● |
| |
1 |
PAN ASM; OIL
|
8-97149-314-0 |
01 |
1 |
0309-0407 |
● |
|
| |
2 |
GAUGE; OIL LEVEL
|
8-97019-885-1 |
01 |
1 |
0502- |
● |
|
| |
2 |
GAUGE; OIL LEVEL
|
8-97094-460-2 |
01 |
1 |
0309- |
|
● |
| |
2 |
GAUGE; OIL LEVEL
|
8-97019-885-1 |
01 |
1 |
0309-0407 |
● |
|
| |
3 |
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=14.2 OD=24
THA
|
8-94158-328-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
3 |
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=14.2 OD=24
THA
|
8-94158-328-0 |
01 |
1 |
0408-0501 |
|
● |
| |
3 |
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=14.2 OD=24
THA
|
8-94158-328-0 |
01 |
1 |
0502- |
● |
● |
| |
3 |
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=14.2 OD=24
THA
|
8-94158-328-0 |
01 |
1 |
0408- |
● |
● |
| |
4 |
PLUG; DRAIN,OIL
M14X14
THA
|
8-94152-613-0 |
01 |
1 |
0309-0407 |
● |
● |
| |
4 |
PLUG; DRAIN,OIL
M14X14
THA
|
8-94152-613-0 |
01 |
1 |
0408-0501 |
|
● |
| |
4 |
PLUG; DRAIN,OIL
M14X14
THA
|
8-94152-613-0 |
01 |
1 |
0502- |
● |
● |
| |
4 |
PLUG; DRAIN,OIL
M14X14
THA
|
8-94152-613-0 |
01 |
1 |
0408- |
● |
● |
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
|
8-97354-831-0 |
01 |
1 |
0502- |
● |
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
|
8-97200-567-1 |
01 |
1 |
0309- |
|
● |
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
|
8-97354-831-0 |
01 |
1 |
0309-0407 |
● |
|
| |
9 |
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=11
|
1-09623-469-0 |
02 |
1 |
0502- |
● |
|
| |
9 |
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=11
THA
|
5-09623-002-0 |
02 |
1 |
0309- |
|
● |
| |
9 |
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=11
|
1-09623-469-0 |
02 |
1 |
0309-0407 |
● |
|
| |
10 |
BOLT; GUIDE TUBE
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0502- |
● |
|
| |
10 |
BOLT; GUIDE TUBE
M10X110 FLANGE
|
0-28186-011-0 |
01 |
1 |
0309- |
|
● |
| |
10 |
BOLT; GUIDE TUBE
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0309-0407 |
● |
|
| |
17 |
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
|
8-97190-191-1 |
01 |
1 |
0309-0402 |
|
● |
| |
17 |
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
|
8-97364-386-0 |
01 |
1 |
0403- |
|
● |
| |
23 |
BOLT; OIL PAN
M8X14
|
8-97047-004-1 |
01 |
1 |
0502- |
● |
|
| |
23 |
BOLT; OIL PAN
M8X14
|
8-97047-005-0 |
18 |
1 |
0502- |
● |
|
| |
23 |
BOLT; OIL PAN
(A)
M8X12.8 W/PL WASHER,RUBBER TUBE
|
8-97190-390-0 |
13 |
1 |
0309- |
|
● |
| |
23 |
BOLT; OIL PAN
(A)
M8X14
|
8-97047-004-1 |
01 |
1 |
0309-0407 |
● |
|
| |
23 |
BOLT; OIL PAN
(B)
M8X14
|
8-97047-005-0 |
18 |
1 |
0309-0407 |
● |
|
| |
24 |
NUT; OIL PAN
M8 W/LK WASHER
|
8-94327-073-0 |
07 |
1 |
0502- |
● |
|
| |
24 |
NUT; OIL PAN
M8 FLANGE
|
0-91150-108-0 |
13 |
1 |
0309- |
|
● |
| |
24 |
NUT; OIL PAN
M8 W/LK WASHER
|
8-94327-073-0 |
07 |
1 |
0309-0407 |
● |
|
| |
25 |
STUD; OIL PAN
M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE
|
8-97190-391-0 |
01 |
1 |
0309- |
|
● |
| |
25 |
STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE
|
8-97190-392-0 |
09 |
1 |
0309- |
|
● |
| |
123 |
RUBBER; SEAL OIL
(A)
|
8-97186-988-0 |
01 |
1 |
0309- |
|
● |
| |
123 |
RUBBER; SEAL OIL
(B)
|
8-97186-994-0 |
01 |
1 |
0309- |
|
● |
| |
123 |
RUBBER; SEAL OIL
(C)
|
8-97186-998-0 |
01 |
1 |
0309- |
|
● |
| |
123 |
RUBBER; SEAL OIL
(D)
|
8-97187-000-0 |
01 |
1 |
0309- |
|
● |
| |
194 |
SPACER; GUIDE TUBE
|
8-97101-215-0 |
01 |
1 |
0502- |
● |
|
| |
194 |
SPACER; GUIDE TUBE
|
8-97101-215-0 |
01 |
1 |
0309-0407 |
● |
|
