0-12 — CYLINDER BLOCK (#19893) — 70 parça

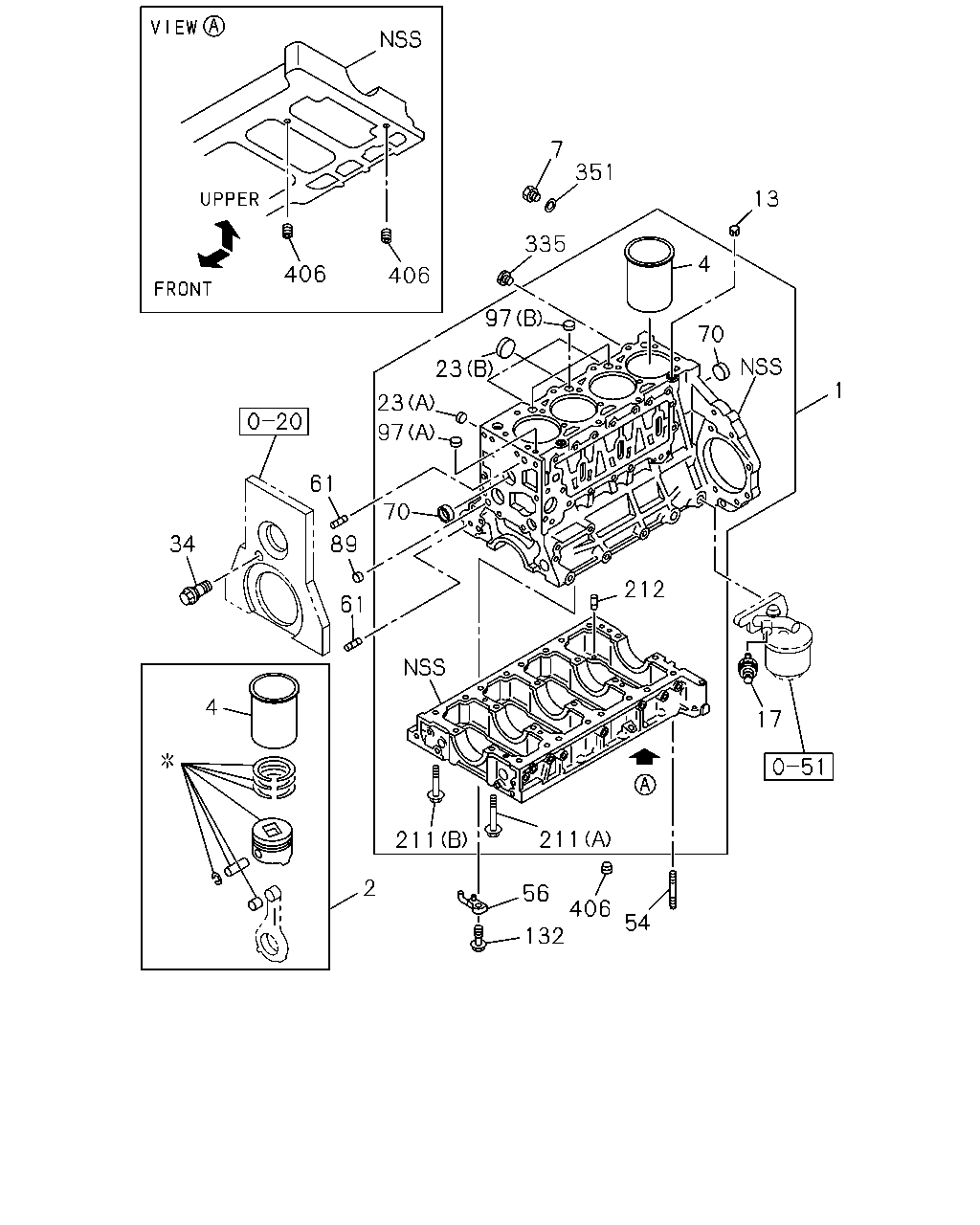

çizim 54190
7 351 13 335 4 406 406 97 70 23 1 23 97 61 70 34 89 212 61 4 17 211 211 2 56 406 132 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 8-97148-885-4 01 1 0502- ●
1 BLOCK ASM; CYL 8-97173-726-7 01 1 0309-0504 ●
1 BLOCK ASM; CYL 8-98005-434-1 01 1 0505- ●
1 BLOCK ASM; CYL 8-97148-885-3 01 1 0309-0407 ●
2 LINER SET; ENG CYL
GRADE=1X 		5-87813-744-1 04 1 0502- ●
2 LINER SET; ENG CYL
GRADE=3X 		5-87813-745-1 04 1 0502- ●
2 LINER SET; ENG CYL
GRADE=1X 		5-87813-571-1 04 1 0309-0504 ●
2 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87814-834-0 04 1 0505- ●
2 LINER SET; ENG CYL
GRADE=3X 		5-87813-572-1 04 1 0309-0504 ●
2 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87814-835-0 04 1 0505- ●
2 LINER SET; ENG CYL
GRADE=1X 		5-87813-744-1 04 1 0309-0407 ●
2 LINER SET; ENG CYL
GRADE=3X 		5-87813-745-1 04 1 0309-0407 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX 		8-97176-723-0 04 1 0502- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX 		8-97176-724-0 04 1 0502- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX 		8-97176-725-0 04 1 0502- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX 		8-97176-726-0 04 1 0502- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-97351-558-0 04 1 0309-0504 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-048-0 04 1 0505- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-97351-559-0 04 1 0309-0504 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-049-0 04 1 0505- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX 		8-97176-723-0 04 1 0309-0407 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX 		8-97176-724-0 04 1 0309-0407 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX 		8-97176-725-0 04 1 0309-0407 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX 		8-97176-726-0 04 1 0309-0407 ●
7 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0309-0407 ● ●
7 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0408- ● ●
13 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0309-0407 ● ●
13 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0408-0501 ●
13 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0502- ● ●
13 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0408- ● ●
17 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0309-0407 ● ●
17 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0408- ● ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=25 		1-09600-016-0 01 1 0309-0407 ● ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0309-0407 ● ●
23 CUP; SEALING,C/BL FRT & RR
OD=25 		1-09600-016-0 01 1 0408- ● ●
23 CUP; SEALING,C/BL FRT & RR
OD=45 		8-97036-550-1 03 1 0408- ● ●
34 VALVE; OIL RELIEF 8-94386-047-1 01 1 0309-0407 ● ●
34 VALVE; OIL RELIEF 8-94386-047-1 01 1 0408- ● ●
54 STUD; OIL PAN TO BLOCK
M8X20 L=38 		8-97021-431-0 03 1 0309-0407 ●
54 STUD; OIL PAN TO BLOCK
M8X20 L=38 		8-97021-431-0 03 1 0408- ●
56 JET; OIL,PISTON COOLING 8-94399-166-0 04 1 0502- ●
56 JET; OIL,PISTON COOLING 8-97213-294-0 04 1 0309- ●
56 JET; OIL,PISTON COOLING 8-94399-166-0 04 1 0309-0407 ●
61 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0309-0407 ● ●
61 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0408- ● ●
70 CUP; SEALING,FRT & RR
OD=25 		1-09600-016-0 01 1 0502- ●
70 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0309-0407 ● ●
70 CUP; SEALING,FRT & RR
OD=25 		1-09600-016-0 01 1 0309-0407 ●
70 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0408- ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 0309-0407 ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 0408- ● ●
97 CUP; SEALING
(A) OD=16 		5-11129-006-0 01 1 0309- ●
97 CUP; SEALING
(B) OD=22 		8-97209-609-0 03 1 0309- ●
132 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0309-0407 ● ●
132 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0408- ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-0 02 1 0408- ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-0 02 1 0309-0407 ● ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0309-0407 ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0309-0407 ● ●
211 BOLT; CRANKCASE
M10X82 		8-94399-553-2 17 1 0408- ● ●
211 BOLT; CRANKCASE
M14X115 W/FLANGE 		8-97077-638-0 10 1 0408- ● ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 0309-0407 ● ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 0408- ● ●
335 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 02 1 0502- ●
335 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 01 1 0309- ●
335 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 02 1 0309-0407 ●
351 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 THA 		1-09630-083-0 01 1 0309-0407 ● ●
351 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 THA 		1-09630-083-0 01 1 0408- ● ●
406 PLUG; CRANK CASE
PT3/8 THA 		5-09605-005-0 02 1 0309-0407 ● ●
406 PLUG; CRANK CASE
PT3/8 THA 		5-09605-005-0 02 1 0408- ● ●
