◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50971 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#19890) — 18 parça

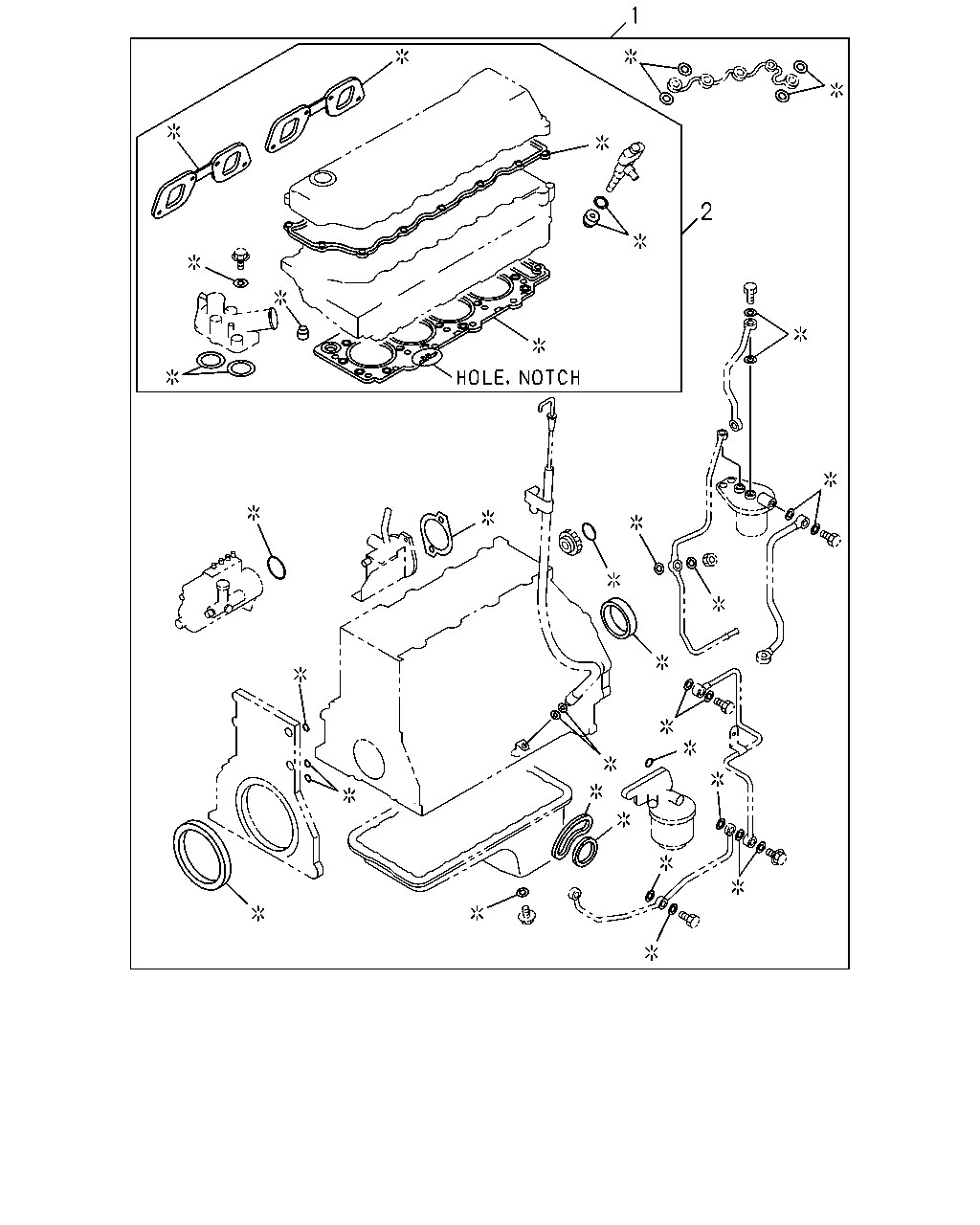

çizim 12611
1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87814-433-1 01 1 0502- ●
1 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87814-434-1 01 1 0502- ●
1 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87814-435-1 01 1 0502- ●
1 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87814-433-1 01 1 0309-0407 ●
1 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87814-434-1 01 1 0309-0407 ●
1 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87814-435-1 01 1 0309-0407 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-350-2 01 1 0309- ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-351-2 01 1 0309- ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-352-2 01 1 0309- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87814-338-2 01 1 0502- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87814-339-2 01 1 0502- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87814-340-2 01 1 0502- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-2 01 1 0309- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-2 01 1 0309- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-2 01 1 0309- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87814-338-2 01 1 0309-0407 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87814-339-2 01 1 0309-0407 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87814-340-2 01 1 0309-0407 ●
