8-90 — RADIO AND TV (#19887) — 69 parça

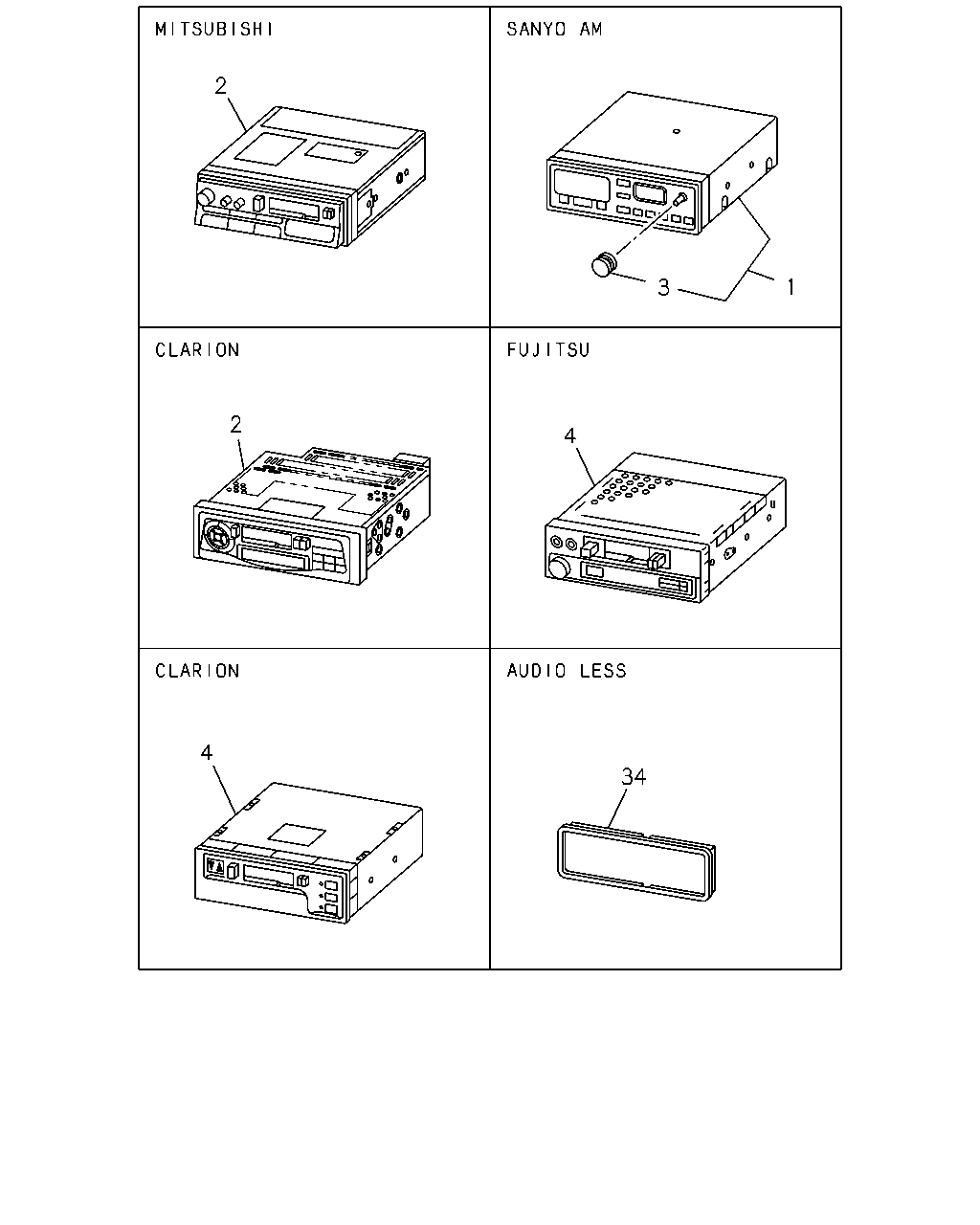

2 3 1 2 4 4 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIO RADIO AM W/AMPLIFIER<RS2> TUNER BAND ASIA<7DN> SANYO AM	8-97241-357-0	01	1	0309-0312	●	●
1	RADIO RADIO AM W/AMPLIFIER<RS2> TUNER BAND ASIA<7DN> CLARION AM-RADIO W/SPEAKER	8-97316-996-0	01	1	0401-	●	●
2	RADIO & CASSETTE DECK ASM RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> TUNER BAND ASIA<7DN> CLARION THA	8-97917-415-0	01	1	0309-	●	●
2	RADIO & CASSETTE DECK ASM RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> TUNER BAND ASIA<7DN> MITSUBISHI THA	8-97921-304-0	01	1	0309-			●
4	CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> FUJITSU	8-97088-290-0	01	1	0309-	●	●
4	CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> CLARION	8-97088-291-0	01	1	0309-			●
34	COVER; RADIO HOLE EXC. RADIO AM W/AMPLIFIER<RS2>,RADIO AM/FM STEREO2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKER S<6VL>	8-97856-203-3	01	1	0309-	●	●
34	COVER; RADIO HOLE EXC. RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL>	8-97856-203-3	01	1	0309-			●
268	KNOB; VOL RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> TUNER BAND ASIA<7DN> CLARION THA	8-97093-559-0	01	1	0309-			●
268	KNOB; VOL RADIO AM W/AMPLIFIER<RS2> TUNER BAND ASIA<7DN> SANYO	8-97093-557-0	01	1	0309-0312	●	●
268	KNOB; VOL RADIO AM W/AMPLIFIER<RS2> TUNER BAND ASIA<7DN> CLARION	8-97331-589-0	01	1	0401-	●	●

222 116 222 171 222 5 117 48 221 221 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	HARNESS; EXT ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER<RS2> THA	8-97131-327-0	02	1	0309-	●	●
5	HARNESS; EXT ANTENNA<U73> THA	8-97131-327-0	02	1	0309-			●
48	SPEAKER; AUDIO RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> TUNER BAND ASIA<7DN> THA	8-97916-349-0	02	1	0309-	●	●
48	SPEAKER; AUDIO ANTENNA<U73> THA	8-97916-363-0	02	1	0309-			●
49	SCREW; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER<RS2> M5X14 THA	8-94279-325-0	06	1	0309-	●	●
49	SCREW; SPEAKER ANTENNA<U73> M5X14 THA	8-94279-325-0	06	1	0309-			●
116	PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER<RS2>	8-97852-325-3	01	1	0309-	●	●
116	PANEL; SPEAKER,FRT DOOR ANTENNA<U73>	8-97852-325-3	01	1	0309-			●
116	PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER<RS2>	8-97852-324-3	01	1	0309-	●	●
116	PANEL; SPEAKER,FRT DOOR ANTENNA<U73>	8-97852-324-3	01	1	0309-			●
117	SCREW; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER<RS2> M5X14 THA	8-94279-325-0	06	1	0309-	●	●
117	SCREW; SPEAKER PANEL ANTENNA<U73> M5X14 THA	8-94279-325-0	06	1	0309-			●
171	COVER; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER<RS2>	8-97852-331-4	02	1	0309-	●	●
171	COVER; SPEAKER ANTENNA<U73>	8-97852-331-4	02	1	0309-			●
221	SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER<RS2> (A)	8-97852-327-5	02	1	0309-	●	●
221	SEAL; SPEAKER PANEL ANTENNA<U73> (A)	8-97852-327-5	02	1	0309-			●
221	SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER<RS2> (B)	8-97852-601-2	02	1	0309-	●	●
221	SEAL; SPEAKER PANEL ANTENNA<U73> (B)	8-97852-601-2	02	1	0309-			●
222	GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER<RS2> (A)	1-09987-144-0	02	1	0309-	●	●
222	GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> (A)	1-09987-144-0	02	1	0309-			●
222	GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER<RS2> (B) D=8.5X8.5 L=7.5 THA	8-94279-078-0	06	1	0309-	●	●
222	GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> (B) D=8.5X8.5 L=7.5 THA	8-94279-078-0	06	1	0309-			●
268	KNOB; VOL RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> TUNER BAND ASIA<7DN> CLARION THA	8-97093-559-0	01	1	0309-			●
268	KNOB; VOL RADIO AM W/AMPLIFIER<RS2> TUNER BAND ASIA<7DN> SANYO	8-97093-557-0	01	1	0309-0312	●	●
268	KNOB; VOL RADIO AM W/AMPLIFIER<RS2> TUNER BAND ASIA<7DN> CLARION	8-97331-589-0	01	1	0401-	●	●

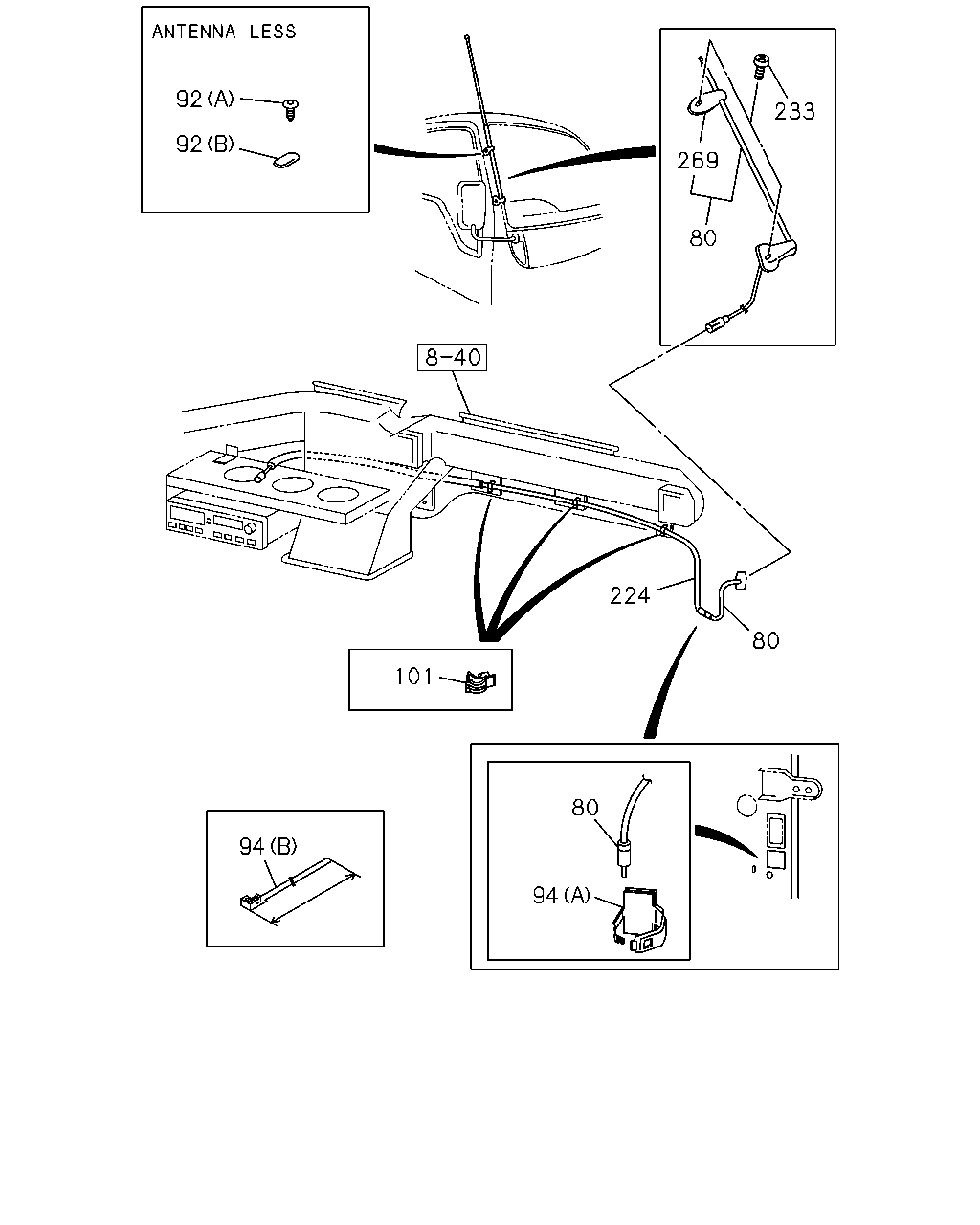

92 233 92 269 80 224 80 101 80 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
80	ANTENNA RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> TUNER BAND ASIA<7DN> THA	8-97916-360-0	01	1	0309-	●	●
80	ANTENNA ANTENNA<U73> THA	8-97916-362-0	01	1	0309-			●
92	COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (A) OD=12 L=14.8	8-94279-921-0	01	1	0309-	●	●	●
92	COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-2	01	1	0309-	●	●	●
94	CLIP; ANTENNA FEEDER ANTENNA<U73> (A)	1-09987-155-2	01	1	0309-	●	●	●
94	CLIP; ANTENNA FEEDER ANTENNA<U73> (B) L=200	8-94464-835-0	01	1	0309-	●	●	●
101	CLIP; FEEDER TO BRKT ANTENNA<U73> ID=7 THA	5-09707-053-0	03	1	0309-	●	●	●
224	CABLE; EXT,FEEDER RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> TUNER BAND ASIA<7DN> THA	8-97916-348-0	01	1	0309-	●	●
224	CABLE; EXT,FEEDER ANTENNA<U73> THA	8-97916-364-1	01	1	0309-			●
233	SCREW ANTENNA<U73> M6X16	8-97123-696-0	01	1	0309-	●	●	●
268	KNOB; VOL RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> TUNER BAND ASIA<7DN> CLARION THA	8-97093-559-0	01	1	0309-			●
268	KNOB; VOL RADIO AM W/AMPLIFIER<RS2> TUNER BAND ASIA<7DN> SANYO	8-97093-557-0	01	1	0309-0312	●	●
268	KNOB; VOL RADIO AM W/AMPLIFIER<RS2> TUNER BAND ASIA<7DN> CLARION	8-97331-589-0	01	1	0401-	●	●
269	SUPPORT KIT; ANTENNA ANTENNA<U73> THA	8-97219-079-0	01	1	0309-	●	●	●

6 1 7 7 7 6 7 7 1 7 6 226 6 4 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIO RADIO AM W/AMPLIFIER<RS2> TUNER BAND ASIA<7DN> SANYO AM	8-97241-357-0	01	1	0309-0312	●	●
1	RADIO RADIO AM W/AMPLIFIER<RS2> TUNER BAND ASIA<7DN> CLARION AM-RADIO W/SPEAKER	8-97316-996-0	01	1	0401-	●	●
4	CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> FUJITSU	8-97088-290-0	01	1	0309-	●	●
4	CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> CLARION	8-97088-291-0	01	1	0309-			●
6	BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER<RS2>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ> (A) THA	8-97910-181-0	01	1	0309-	●	●
6	BRACKET; RADIO TO PANEL RADIO AM/FM STEREO 2 SPEAKERS<6GZ> (A) THA	8-97910-181-0	01	1	0309-			●
6	BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER<RS2>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ> (A) THA	8-97910-180-0	01	1	0309-	●	●
6	BRACKET; RADIO TO PANEL RADIO AM/FM STEREO 2 SPEAKERS<6GZ> (A) THA	8-97910-180-0	01	1	0309-			●
6	BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> (B)	8-97859-104-1	01	1	0309-	●	●	●
6	BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> (B)	8-97859-103-1	01	1	0309-	●	●	●
7	SCREW; RADIO RADIO AM W/AMPLIFIER<RS2>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ> M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0309-	●	●
7	SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS<6GZ> M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0309-			●
7	SCREW; RADIO RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> M5X10 W/LK+PL WASHER	9-03920-510-0	08	1	0309-	●	●	●
226	BOLT; BRKT RADIO AM W/AMPLIFIER<RS2>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ> THA	8-97916-573-0	02	1	0309-	●	●
226	BOLT; BRKT RADIO AM/FM STEREO 2 SPEAKERS<6GZ> THA	8-97916-573-0	02	1	0309-			●
226	BOLT; BRKT RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> M6X16 W/LK&PL WASHER THA	8-94139-963-0	04	1	0309-	●	●	●
268	KNOB; VOL RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> TUNER BAND ASIA<7DN> CLARION THA	8-97093-559-0	01	1	0309-			●
268	KNOB; VOL RADIO AM W/AMPLIFIER<RS2> TUNER BAND ASIA<7DN> SANYO	8-97093-557-0	01	1	0309-0312	●	●
268	KNOB; VOL RADIO AM W/AMPLIFIER<RS2> TUNER BAND ASIA<7DN> CLARION	8-97331-589-0	01	1	0401-	●	●
