8-40 — HEATER SYSTEM (#19882) — 10 parça

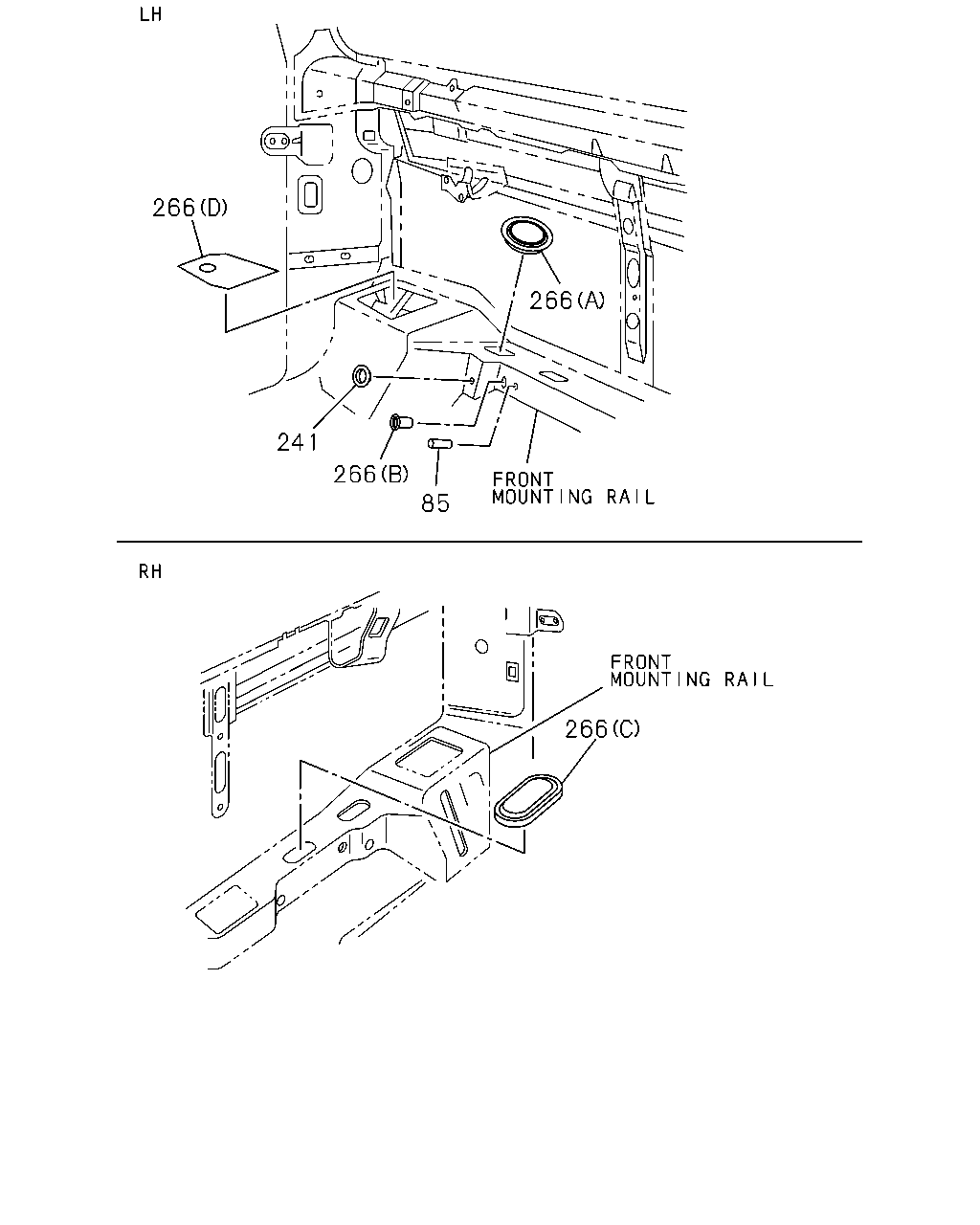

266 266 241 266 85 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
85	SEAL; HTR UNIT THA	8-97916-502-0	02	1	0309-	●	●	●
241	PLUG; RUBBER,EVAP DRAIN HOLE	8-97037-392-0	01	1	0309-	●	●	●
266	PLUG; HTR HOLE (A) H=78 B=37	8-97036-019-0	01	1	0309-	●	●	●
266	PLUG; HTR HOLE (C) H=69.5 B=29.5	8-97036-020-0	01	1	0309-	●	●	●
266	PLUG; HTR HOLE (D) THA	8-97917-228-0	01	1	0309-	●	●	●
266	PLUG; HTR HOLE (B) THA	8-97917-405-0	01	1	0309-	●	●	●

368 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	RELAY; A/C AIR CONDITIONER MANUAL CONT<C60> 12V 20A THA	8-97060-926-1	01	1	0309-	●	●
32	RELAY; A/C AIR CONDITIONER MANUAL CONT<C60> 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0309-			●
368	RELAY; HEATER AND A/C 12V 20A THA	8-97060-926-1	01	1	0309-	●	●
368	RELAY; HEATER AND A/C 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0309-			●
