8-15 — FIXING PARTS; WIRING HARNESS (#1988) — 197 parça

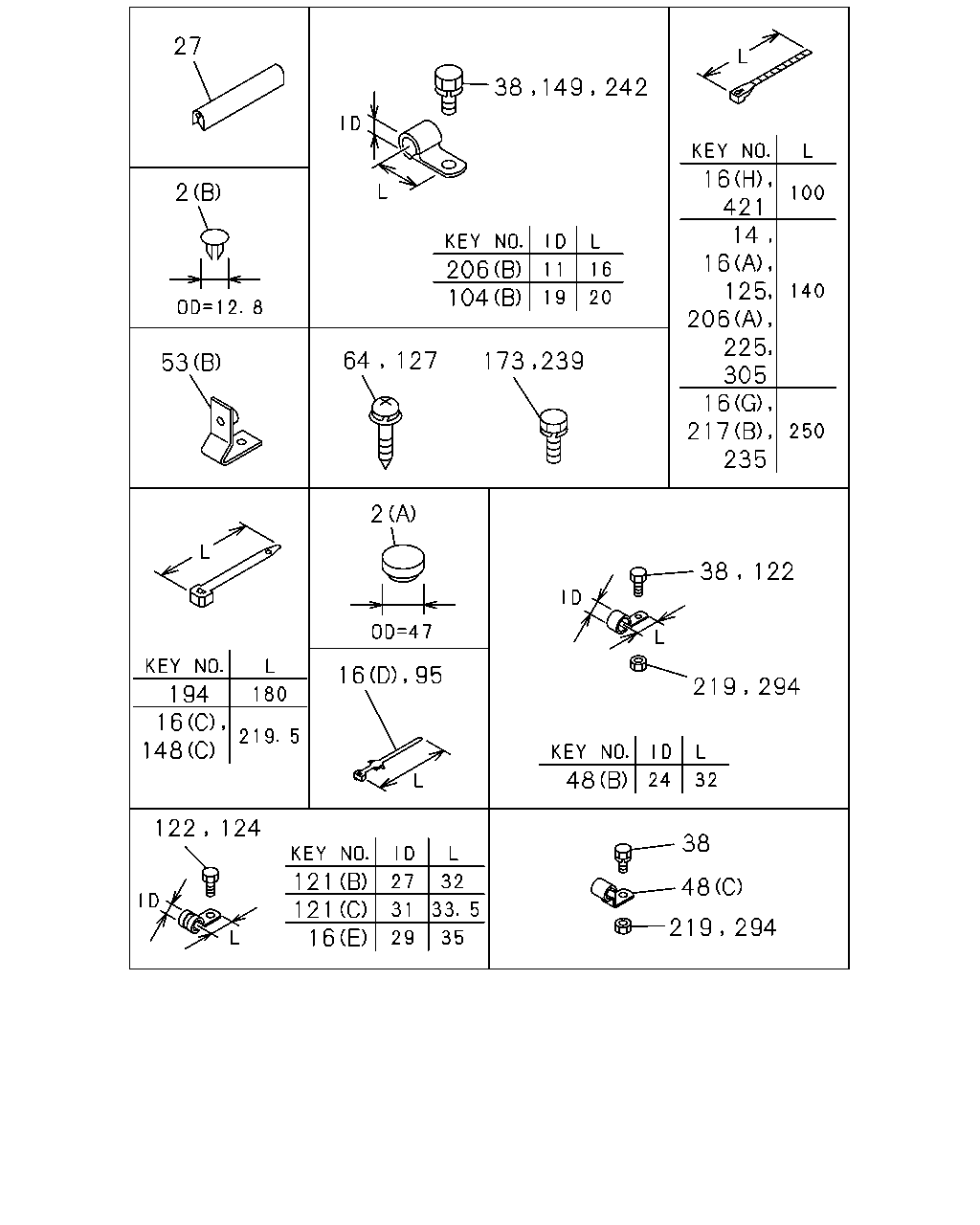

çizim 28175
27 16 421 14 16 125 206 225 305 16 217 235 2 206 104 64 127 53 2 38 122 194 16 148 48 122 124 38 121 121 16 48 38 149 242 173 239 16 95 219 294 219 294
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 GROMMET; CLIP HOLE,HARNESS
(A) OD=47 		1-09983-039-1 02 1 9207- ● ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
(B) OD=12.8 		1-09983-065-0 04 1 9207- ● ● ● ●
14 CLIP; BAND,HARNESS
L=140 		5-09707-031-1 03 1 9209- ● ● ● ●
16 CLIP; HARNESS
(I) ID=8 L=38 		9-09917-424-0 02 1 9207- ● ●
16 CLIP; HARNESS
(B) ID=28 L=58 		1-09700-400-0 01 1 9312- ● ●
16 CLIP; HARNESS
(F) L=300 		1-09707-001-1 01 1 9312- ● ●
16 CLIP; HARNESS
(J) ID=11 L=41 		1-09700-403-0 02 1 9207- ● ● ● ●
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9207- ● ● ● ●
16 CLIP; HARNESS
(D) L=135 		1-09987-143-1 02 1 9207- ● ● ● ●
16 CLIP; HARNESS
(E) ID=29 L=35 		5-09700-293-1 02 1 9207-9311 ● ● ● ●
16 CLIP; HARNESS
(E) ID=29 L=35 		5-09700-293-1 01 1 9312- ● ● ● ●
16 CLIP; HARNESS
(E) ID=29 L=35 		5-09700-293-1 01 1 9312- ● ●
16 CLIP; HARNESS
(A) L=140 		5-09707-031-0 02 1 9207-9208 ● ● ● ●
16 CLIP; HARNESS
(A) L=140 		5-09707-031-0 06 1 9209-9210 ● ● ● ●
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 02 1 9211- ● ● ● ●
16 CLIP; HARNESS
(K) ID=20 L=50 		9-09917-430-0 03 1 9207- ● ● ● ●
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 9303- ● ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> EXC. RADIO CLARION(SK2) (A) L=140 		5-09707-031-1 01 1 9207- ● ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (H) L=100 		5-09707-036-1 02 1 9207- ● ● ● ●
16 CLIP; HARNESS
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> (A) L=140 		5-09707-031-0 03 1 9207-9210 ● ● ● ●
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 03 1 9211- ● ● ● ●
16 CLIP; HARNESS
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> (A) L=140 		5-09707-031-1 03 1 9211- ● ● ● ●
27 PROTECTOR; EDGE
L=120 SERVICED BY L=2040 		1-71997-513-1 02 1 9207- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 01 1 9207- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9207-9311 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9312- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9207- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9207- ● ● ● ●
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 01 1 9207- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 07 1 9207- ● ●
48 CLIP; FRAME HARNESS
(F) ID=22 L=52 		9-09917-431-0 05 1 9207- ● ●
48 CLIP; FRAME HARNESS
(C) ID=19 L=24 H=21 		1-09700-109-1 02 1 9207- ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=28 L=58 		1-09700-400-0 01 1 9207- ● ● ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 9207-9210 ● ● ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 9207-9210 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 9211- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 9211- ● ●
48 CLIP; FRAME HARNESS
(E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9207- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 9207-9210 ● ● ● ●
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 04 1 9211- ● ●
48 CLIP; FRAME HARNESS
(F) ID=22 L=52 		9-09917-431-0 01 1 9207- ● ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=24 L=32 		1-09700-766-1 01 1 9207- ● ● ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 9207-9208 ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 9209-9210 ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 9211- ● ● ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 9211- ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 9211- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 08 1 9207- ● ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 06 1 9207-9208 ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 06 1 9209-9210 ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 9211- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 10 1 9207- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 11 1 9207- ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 06 1 9211- ●
48 CLIP; FRAME HARNESS
(F) ID=22 L=52 		9-09917-431-0 03 1 9207- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 13 1 9207- ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 09 1 9207- ●
53 BRACKET; HARNESS
(A) 		1-82699-489-1 01 1 9312- ● ●
53 BRACKET; HARNESS
(B) 		1-47475-775-3 01 1 9207- ● ● ● ●
64 SCREW; CLIP
M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 9207- ● ● ● ●
95 CLIP; CABLE
L=135 		1-09987-143-1 02 1 9207- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(A) L=142 		8-94232-619-0 02 1 9207- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(B) ID=19 L=20 		9-09525-832-0 01 1 9207- ● ● ● ●
121 CLIP; FACIA HARNESS
(A) ID=41 L=40 		1-09700-596-0 02 1 9207- ● ● ● ●
121 CLIP; FACIA HARNESS
(B) ID=27 L=32 		1-09700-712-1 04 1 9207- ● ● ● ●
121 CLIP; FACIA HARNESS
(C) ID=31 L=33.5 		1-09987-165-0 01 1 9207- ● ● ● ●
122 BOLT; FACIA HARNESS CLIP
M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9207- ● ● ● ●
122 BOLT; FACIA HARNESS CLIP
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9207- ● ● ● ●
122 BOLT; FACIA HARNESS CLIP
M6X20 W/LK&PL WASHER 		1-09980-493-0 03 1 9207- ● ● ● ●
124 BOLT; GRAND,FACIA
M6X22 W/LK&PL WASHER 		1-09980-584-0 01 1 9207-9303 ● ● ● ●
124 BOLT; GRAND,FACIA
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ● ● ●
125 CLIP; BAND,STOP LAMP SW HARNESS
L=140 		5-09707-031-1 01 1 9207- ● ● ● ●
127 SCREW; FACIA HARNESS CLIP
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING W/PL WASHER 		0-74100-516-0 01 1 9207- ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(C) L=219.5 		1-09987-136-0 01 1 9207- ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 03 1 9207- ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) L=142 		8-94232-619-0 06 1 9207- ● ● ● ●
149 BOLT; HEADLAMP HARNESS EARTH
M6X22 W/LK&PL WASHER 		1-09980-430-0 01 1 9207-9303 ● ● ● ●
149 BOLT; HEADLAMP HARNESS EARTH
M6X20 W/LK&PL WASHER 		8-97086-824-0 02 1 9304- ● ● ● ●
149 BOLT; HEADLAMP HARNESS EARTH
M6X22 W/LK&PL WASHER 		1-09980-537-0 01 1 9207-9303 ● ● ● ●
173 BOLT; STARTER EARTH
M10X16 FLANGE 		0-28081-016-0 01 1 9207-9212 ● ● ● ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9301- ● ● ● ●
194 CLIP; BAND
L=180 		1-09707-162-1 03 1 9207- ● ● ● ●
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 9207- ● ● ● ●
206 CLIP; FUEL TANK HARNESS
(B) ID=11 L=16 		9-09525-022-0 01 1 9207- ● ● ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9207- ● ● ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9207- ● ● ● ●
219 NUT
M8 		9-09110-408-0 01 1 9207-9311 ● ● ● ●
219 NUT
M8 		9-09110-408-0 01 1 9312- ● ●
219 NUT
M8 		9-09110-408-0 02 1 9207- ● ● ● ●
225 CLIP; AIR TANK HARNESS
L=140 		5-09707-031-1 02 1 9207- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=250 		5-09707-030-1 01 1 9207- ● ● ● ●
239 BOLT; GRAND
M5X8 		0-20800-508-0 01 1 9207- ● ● ● ●
239 BOLT; GRAND
M8X20 FLANGE 		0-28480-820-0 01 1 9207-9212 ● ● ● ●
239 BOLT; GRAND
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9301- ● ● ● ●
242 BOLT; BRKT,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9207-9311 ● ● ● ●
242 BOLT; BRKT,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9312- ● ● ● ●
242 BOLT; BRKT,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9312- ● ●
294 NUT
M8 		9-09110-408-0 01 1 9207-9311 ● ● ● ●
294 NUT
M8 		9-09110-408-0 01 1 9312- ● ● ● ●
294 NUT
M8 		9-09110-408-0 01 1 9312- ● ●
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> L=140 		5-09707-031-1 01 1 9211- ● ● ● ●
421 CLIP; FLOOR HARNESS
SAUDI ARABIA EQUIPMENT(WH1) L=100 		5-09707-036-1 01 1 9207- ● ● ● ●

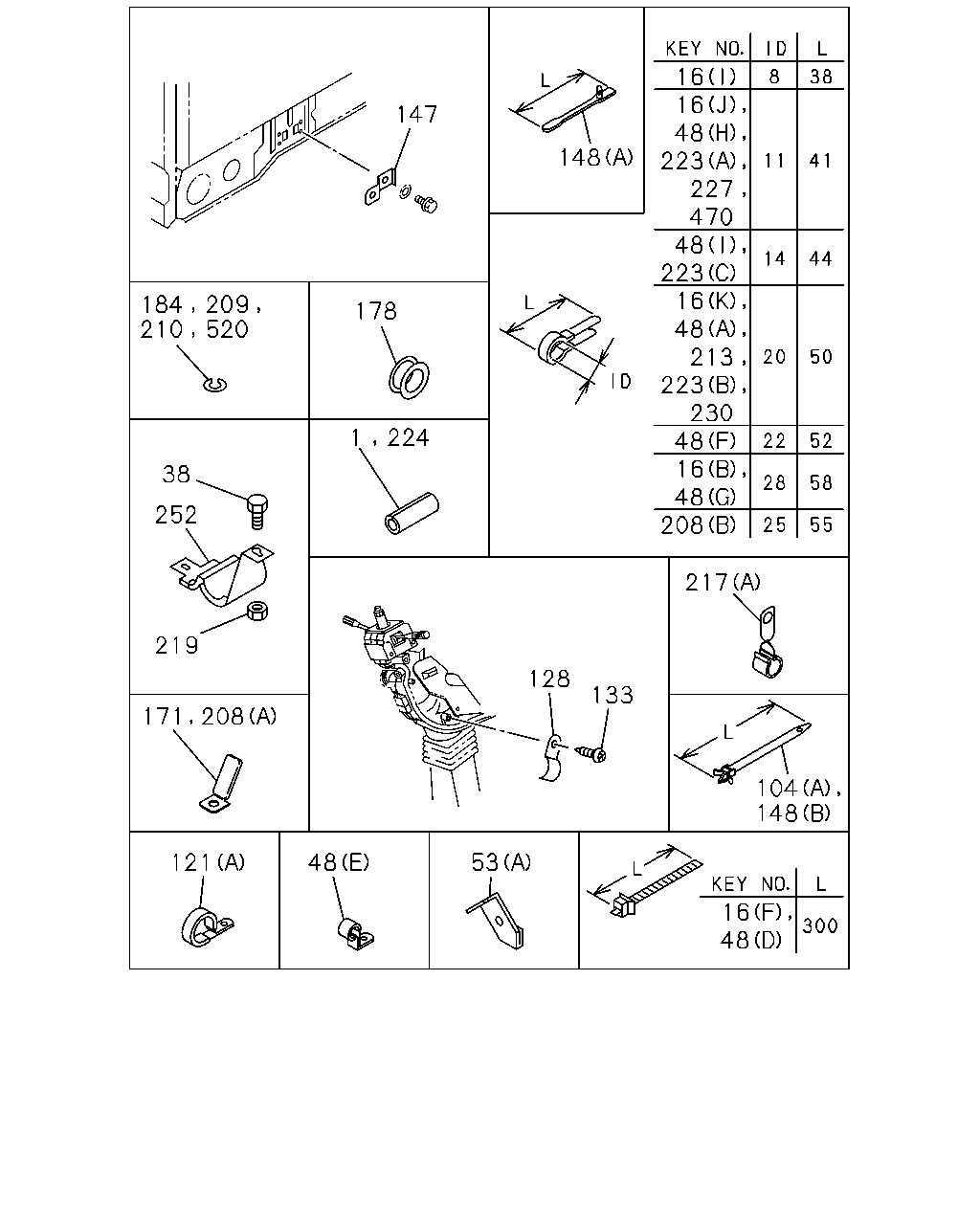

çizim 29626
16 16 48 223 227 470 48 223 16 48 213 223 230 48 16 48 208 147 148 178 224 1 38 252 217 219 128 133 104 148 121 48 53 16 48 171 208 184 209 210 520
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 9209- ● ● ● ●
16 CLIP; HARNESS
(I) ID=8 L=38 		9-09917-424-0 02 1 9207- ● ●
16 CLIP; HARNESS
(B) ID=28 L=58 		1-09700-400-0 01 1 9312- ● ●
16 CLIP; HARNESS
(F) L=300 		1-09707-001-1 01 1 9312- ● ●
16 CLIP; HARNESS
(J) ID=11 L=41 		1-09700-403-0 02 1 9207- ● ● ● ●
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9207- ● ● ● ●
16 CLIP; HARNESS
(D) L=135 		1-09987-143-1 02 1 9207- ● ● ● ●
16 CLIP; HARNESS
(E) ID=29 L=35 		5-09700-293-1 02 1 9207-9311 ● ● ● ●
16 CLIP; HARNESS
(E) ID=29 L=35 		5-09700-293-1 01 1 9312- ● ● ● ●
16 CLIP; HARNESS
(E) ID=29 L=35 		5-09700-293-1 01 1 9312- ● ●
16 CLIP; HARNESS
(A) L=140 		5-09707-031-0 02 1 9207-9208 ● ● ● ●
16 CLIP; HARNESS
(A) L=140 		5-09707-031-0 06 1 9209-9210 ● ● ● ●
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 02 1 9211- ● ● ● ●
16 CLIP; HARNESS
(K) ID=20 L=50 		9-09917-430-0 03 1 9207- ● ● ● ●
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 9303- ● ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> EXC. RADIO CLARION(SK2) (A) L=140 		5-09707-031-1 01 1 9207- ● ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (H) L=100 		5-09707-036-1 02 1 9207- ● ● ● ●
16 CLIP; HARNESS
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> (A) L=140 		5-09707-031-0 03 1 9207-9210 ● ● ● ●
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 03 1 9211- ● ● ● ●
16 CLIP; HARNESS
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> (A) L=140 		5-09707-031-1 03 1 9211- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 01 1 9207- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9207-9311 ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9312- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9207- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ● ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9207- ● ● ● ●
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 01 1 9207- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 07 1 9207- ● ●
48 CLIP; FRAME HARNESS
(F) ID=22 L=52 		9-09917-431-0 05 1 9207- ● ●
48 CLIP; FRAME HARNESS
(C) ID=19 L=24 H=21 		1-09700-109-1 02 1 9207- ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=28 L=58 		1-09700-400-0 01 1 9207- ● ● ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 9207-9210 ● ● ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 9207-9210 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 9211- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 9211- ● ●
48 CLIP; FRAME HARNESS
(E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9207- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 9207-9210 ● ● ● ●
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 04 1 9211- ● ●
48 CLIP; FRAME HARNESS
(F) ID=22 L=52 		9-09917-431-0 01 1 9207- ● ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=24 L=32 		1-09700-766-1 01 1 9207- ● ● ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 9207-9208 ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 9209-9210 ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 9211- ● ● ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 9211- ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 9211- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 08 1 9207- ● ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 06 1 9207-9208 ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 06 1 9209-9210 ● ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 9211- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 10 1 9207- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 11 1 9207- ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 06 1 9211- ●
48 CLIP; FRAME HARNESS
(F) ID=22 L=52 		9-09917-431-0 03 1 9207- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 13 1 9207- ●
48 CLIP; FRAME HARNESS
(H) ID=11 L=41 		1-09700-403-0 09 1 9207- ●
53 BRACKET; HARNESS
(A) 		1-82699-489-1 01 1 9312- ● ●
53 BRACKET; HARNESS
(B) 		1-47475-775-3 01 1 9207- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(A) L=142 		8-94232-619-0 02 1 9207- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(B) ID=19 L=20 		9-09525-832-0 01 1 9207- ● ● ● ●
121 CLIP; FACIA HARNESS
(A) ID=41 L=40 		1-09700-596-0 02 1 9207- ● ● ● ●
121 CLIP; FACIA HARNESS
(B) ID=27 L=32 		1-09700-712-1 04 1 9207- ● ● ● ●
121 CLIP; FACIA HARNESS
(C) ID=31 L=33.5 		1-09987-165-0 01 1 9207- ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN 1-09987-193-0 01 1 9207- ● ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/LK&PL WASHER 		9-03920-612-0 01 1 9207- ● ● ● ●
147 BRACKET; HARNESS,HEADLAMP 1-71998-471-0 02 1 9207- ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(C) L=219.5 		1-09987-136-0 01 1 9207- ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 03 1 9207- ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) L=142 		8-94232-619-0 06 1 9207- ● ● ● ●
171 CLIP; STARTER HARNESS
L=63 		1-09700-418-1 01 1 9207- ● ● ● ●
178 GROMMET; HARNESS
ID=15 OD=20 T=17.5 		9-09956-178-0 01 1 9207- ● ● ● ●
178 GROMMET; HARNESS
ID=15 OD=20 T=17.5 		9-09956-178-0 02 1 9207- ● ● ● ●
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9207- ● ● ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 		1-09503-265-0 01 1 9301- ● ● ● ●
208 CLIP; HARNESS,MAG VLV
(A) L=63 		1-09700-418-1 03 1 9207- ● ● ● ●
208 CLIP; HARNESS,MAG VLV
(A) L=63 		1-09700-418-1 01 1 9207- ● ● ● ●
208 CLIP; HARNESS,MAG VLV
(B) ID=25 L=55 		9-09917-573-0 01 1 9207- ● ● ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9207- ● ● ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9301- ● ● ● ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9207- ● ● ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9207- ● ● ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9207- ● ● ● ●
219 NUT
M8 		9-09110-408-0 01 1 9207-9311 ● ● ● ●
219 NUT
M8 		9-09110-408-0 01 1 9312- ● ●
219 NUT
M8 		9-09110-408-0 02 1 9207- ● ● ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 9207- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 9207- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 05 1 9207- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 05 1 9207- ● ●
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 02 1 9207- ● ●
227 CLIP; FOG LAMP HARNESS
ID=11 L=41 		1-09700-403-0 02 1 9207- ● ● ● ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 9207- ● ● ● ●
252 CLIP; CONNECTOR FIX
W/SPONGE RUBBER 		1-09709-150-0 01 1 9207- ● ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
PINTLE HOOK<PP7> ID=11 L=41 		1-09700-403-0 01 1 9207- ● ● ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9301- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
