8-21 — METER ASM (#19878) — 72 parça

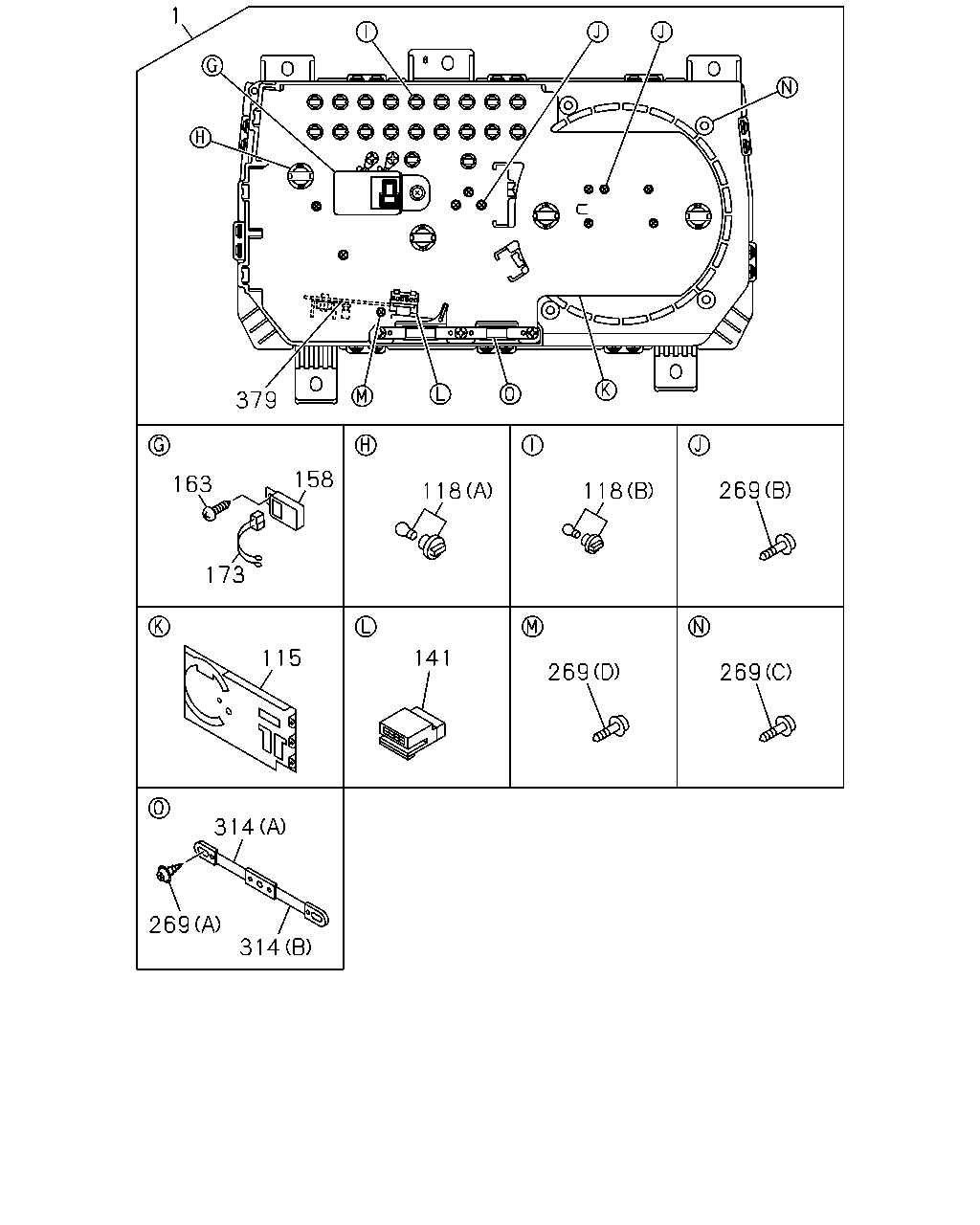

1 379 158 163 269 118 118 173 115 141 269 269 314 269 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	METER COMPL; CLUSTER 4JB1 ENG<RLF> TACHOMETER<U16>	8-97172-033-2	01	1	0309-	●	●
1	METER COMPL; CLUSTER 4JB1 ENG<RLF> EXC. TACHOMETER<U16>	8-97170-585-2	01	1	0309-	●	●
1	METER COMPL; CLUSTER 4HG1 ENG<RJH> TACHOMETER<U16>	8-97170-600-2	01	1	0309-			●
1	METER COMPL; CLUSTER 4HG1 ENG<RJH> EXC. TACHOMETER<U16>	8-97170-596-2	01	1	0309-			●
115	CIRCUIT; PRINTED,CLUSTER METER 4JB1 ENG<RLF> TACHOMETER<U16>	8-97185-506-0	01	1	0309-	●	●
115	CIRCUIT; PRINTED,CLUSTER METER 4JB1 ENG<RLF> EXC. TACHOMETER<U16>	8-97185-499-0	01	1	0309-	●	●
115	CIRCUIT; PRINTED,CLUSTER METER 4HG1 ENG<RJH> TACHOMETER<U16>	8-97185-507-0	01	1	0309-			●
115	CIRCUIT; PRINTED,CLUSTER METER 4HG1 ENG<RJH> EXC. TACHOMETER<U16>	8-97185-489-0	01	1	0309-			●
118	BULB; CLUSTER METER (A) 12V SOCKET COLOR BLACK	8-97185-535-0	AR	1	0309-	●	●	●
118	BULB; CLUSTER METER (B) 12V SOCKET COLOR BLACK	8-97185-536-0	AR	1	0309-	●	●	●
118	BULB; CLUSTER METER (B) 12V SOCKET COLOR BLUE	8-97185-537-0	AR	1	0309-	●	●	●
118	BULB; CLUSTER METER (A) 24V SOCKET COLOR DARK BROWN	8-97185-538-0	AR	1	0309-	●	●	●
118	BULB; CLUSTER METER (B) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	AR	1	0309-	●	●	●
118	BULB; CLUSTER METER (B) 24V SOCKET COLOR REDDISH BROWN	8-97185-540-0	AR	1	0309-	●	●	●
141	CONNECTOR; CLUSTER METER 4HG1 ENG<RJH>	8-97185-513-0	01	1	0309-			●
158	BUZZER; VAC WARNING 4JB1 ENG<RLF> 12V	8-97185-520-0	01	1	0309-	●	●
158	BUZZER; VAC WARNING 4HG1 ENG<RJH> 24V	8-97185-519-0	01	1	0309-			●
163	SCREW; BUZZER 4JB1 ENG<RLF>	8-97185-527-0	01	1	0309-	●	●
163	SCREW; BUZZER 4HG1 ENG<RJH>	8-97185-527-0	01	1	0309-			●
173	WIRE; LEAD 4JB1 ENG<RLF>	8-97185-643-0	01	1	0309-	●	●
173	WIRE; LEAD 4HG1 ENG<RJH>	8-97185-643-0	01	1	0309-			●
269	SCREW; METER CLUSTER 4JB1 ENG<RLF> (C)	8-97185-525-0	06	1	0309-	●	●
269	SCREW; METER CLUSTER 4HG1 ENG<RJH> (C)	8-97185-525-0	06	1	0309-			●
269	SCREW; METER CLUSTER 4JB1 ENG<RLF> (A)	8-97185-528-0	02	1	0309-	●	●
269	SCREW; METER CLUSTER 4JB1 ENG<RLF> TACHOMETER<U16> (B)	8-97185-524-0	08	1	0309-	●	●
269	SCREW; METER CLUSTER 4HG1 ENG<RJH> TACHOMETER<U16> (B)	8-97185-524-0	08	1	0309-			●
269	SCREW; METER CLUSTER 4JB1 ENG<RLF> EXC. TACHOMETER<U16> (B)	8-97185-524-0	07	1	0309-	●	●
269	SCREW; METER CLUSTER 4HG1 ENG<RJH> EXC. TACHOMETER<U16> (B)	8-97185-524-0	07	1	0309-			●
269	SCREW; METER CLUSTER 4HG1 ENG<RJH> (D)	8-97185-523-0	01	1	0309-			●
269	SCREW; METER CLUSTER 4HG1 ENG<RJH> (A)	8-97185-528-0	05	1	0309-			●
314	RESISTOR; COMB METER,CLUSTER METER 4HG1 ENG<RJH> (A)	8-97185-515-0	01	1	0309-			●
314	RESISTOR; COMB METER,CLUSTER METER 4HG1 ENG<RJH> (B)	8-97185-516-0	01	1	0309-			●
379	CIRCUIT; DROP 4HG1 ENG<RJH>	8-97185-512-0	01	1	0309-			●

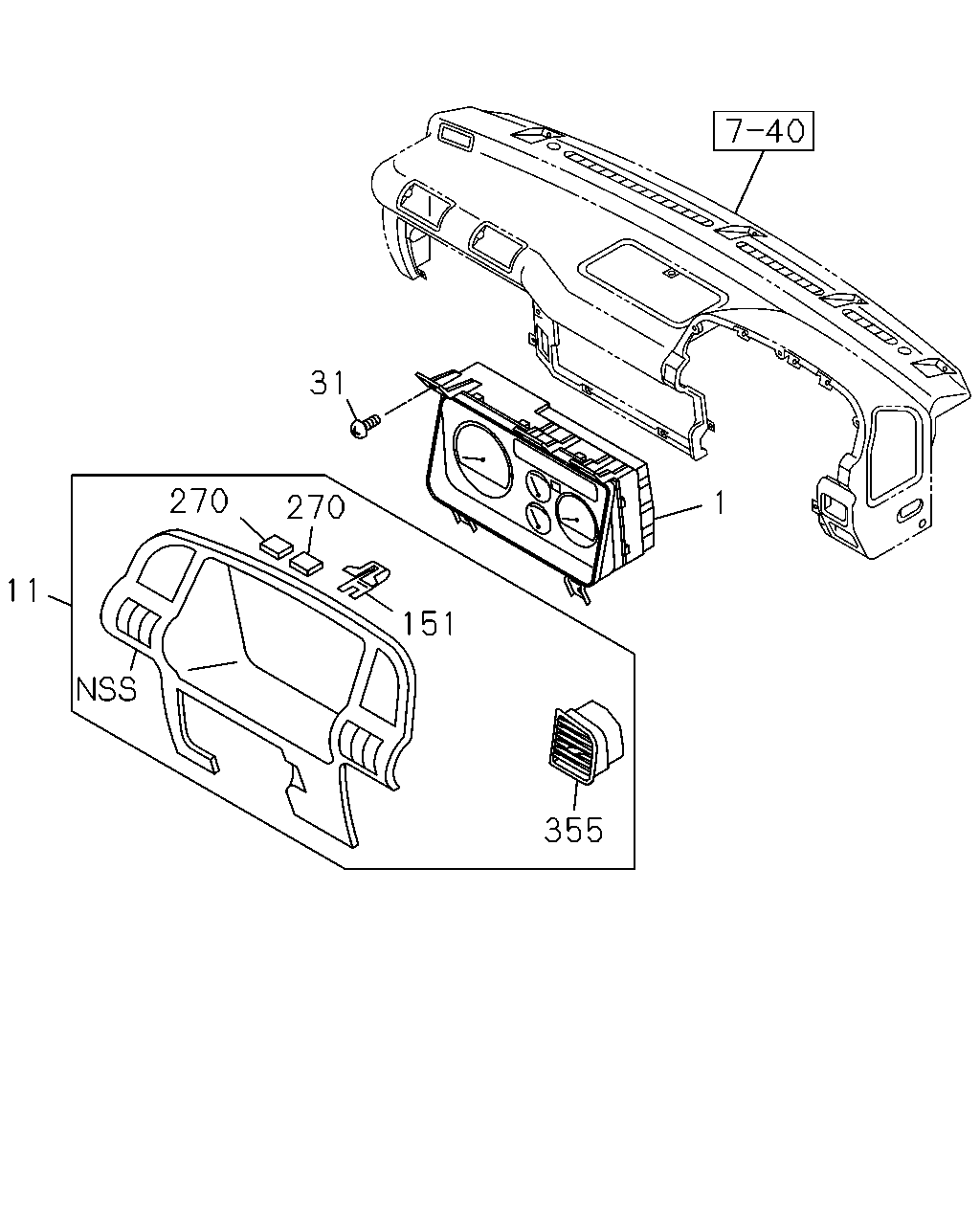

31 270 1 270 11 151 355

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	METER COMPL; CLUSTER 4JB1 ENG<RLF> TACHOMETER<U16>	8-97172-033-2	01	1	0309-	●	●
1	METER COMPL; CLUSTER 4JB1 ENG<RLF> EXC. TACHOMETER<U16>	8-97170-585-2	01	1	0309-	●	●
1	METER COMPL; CLUSTER 4HG1 ENG<RJH> TACHOMETER<U16>	8-97170-600-2	01	1	0309-			●
1	METER COMPL; CLUSTER 4HG1 ENG<RJH> EXC. TACHOMETER<U16>	8-97170-596-2	01	1	0309-			●
11	CLUSTER ASM; METER BLACK	8-97195-964-2	01	1	0309-	●	●	●
31	SCREW; METER,INST PANEL M6X19.5 W/LK&PL WASHER THA	8-94279-201-0	05	1	0309-	●	●	●
151	CLIP; METER CLUSTER	8-97217-066-0	07	1	0309-	●	●	●
270	CUSHION; METER CLUSTER 15X30 T=5	8-94270-366-2	01	1	0401-	●	●	●
270	CUSHION; METER CLUSTER 6X30 T=2	8-94270-378-1	02	1	0309-	●	●	●
355	GRILLE; VENT BLACK	8-97195-967-1	01	1	0309-	●	●	●
355	GRILLE; VENT BLACK	8-97195-966-1	01	1	0309-	●	●	●

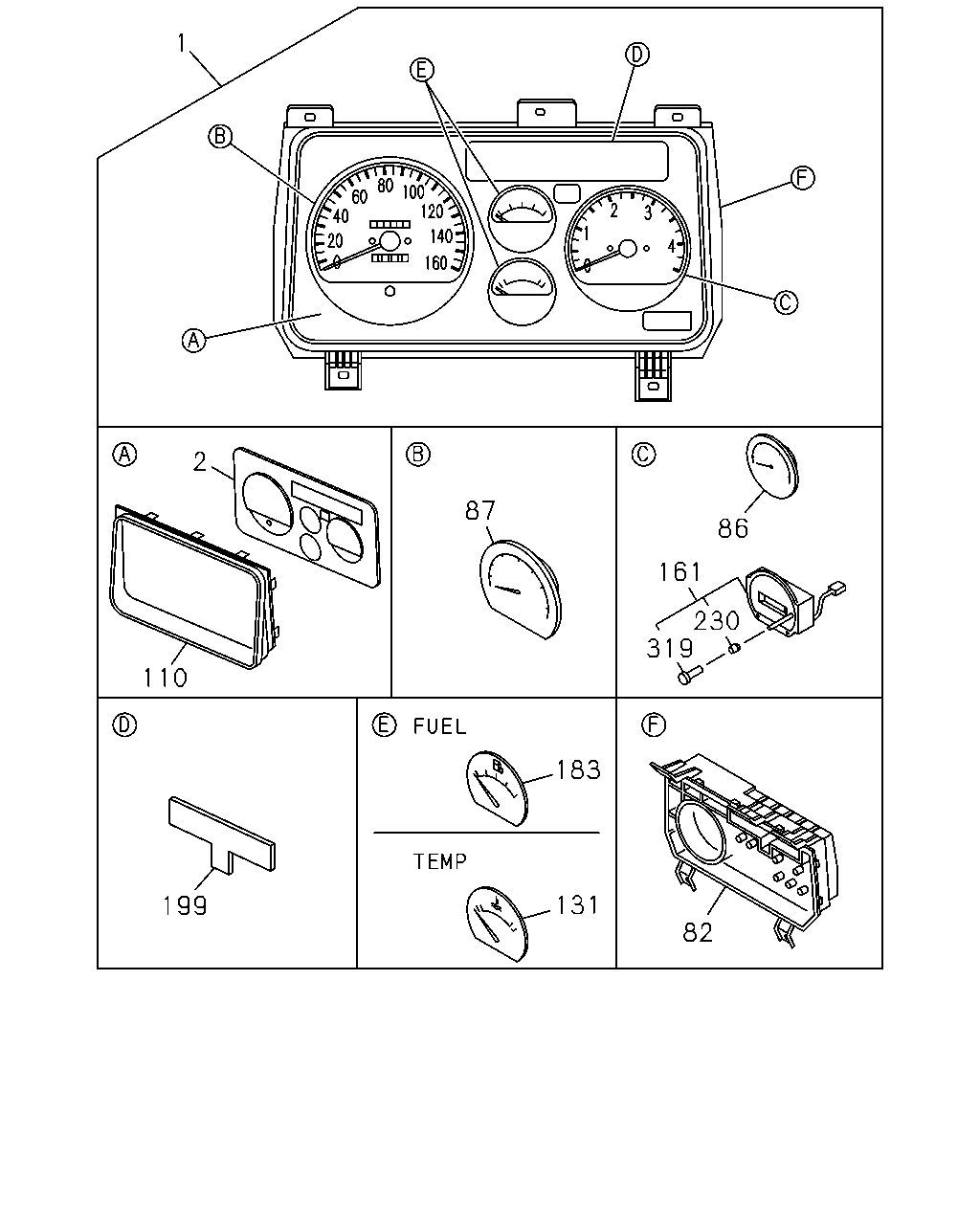

1 2 87 86 161 230 319 110 183 131 199 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	METER COMPL; CLUSTER 4JB1 ENG<RLF> TACHOMETER<U16>	8-97172-033-2	01	1	0309-	●	●
1	METER COMPL; CLUSTER 4JB1 ENG<RLF> EXC. TACHOMETER<U16>	8-97170-585-2	01	1	0309-	●	●
1	METER COMPL; CLUSTER 4HG1 ENG<RJH> TACHOMETER<U16>	8-97170-600-2	01	1	0309-			●
1	METER COMPL; CLUSTER 4HG1 ENG<RJH> EXC. TACHOMETER<U16>	8-97170-596-2	01	1	0309-			●
2	PANEL; CLUSTER 4JB1 ENG<RLF>	8-97185-443-0	01	1	0309-	●	●
2	PANEL; CLUSTER 4HG1 ENG<RJH>	8-97185-443-0	01	1	0309-			●
82	CASE ASM; CLUSTER METER 4JB1 ENG<RLF>	8-97185-448-0	01	1	0309-	●	●
82	CASE ASM; CLUSTER METER 4HG1 ENG<RJH>	8-97185-448-0	01	1	0309-			●
86	TACHOMETER; CLUSTER METER 4JB1 ENG<RLF> TACHOMETER<U16>	8-97185-467-0	01	1	0309-	●	●
86	TACHOMETER; CLUSTER METER 4HG1 ENG<RJH> TACHOMETER<U16>	8-97185-470-0	01	1	0309-			●
87	SPEEDOMETER 4JB1 ENG<RLF>	8-97185-457-0	01	1	0309-	●	●
87	SPEEDOMETER 4HG1 ENG<RJH>	8-97185-457-0	01	1	0309-			●
110	GLASS; CLUSTER METER 4JB1 ENG<RLF> TACHOMETER<U16>	8-97185-452-0	01	1	0309-	●	●
110	GLASS; CLUSTER METER 4HG1 ENG<RJH> TACHOMETER<U16>	8-97185-452-0	01	1	0309-			●
110	GLASS; CLUSTER METER 4JB1 ENG<RLF> EXC. TACHOMETER<U16>	8-97185-451-0	01	1	0309-	●	●
110	GLASS; CLUSTER METER 4HG1 ENG<RJH> EXC. TACHOMETER<U16>	8-97185-451-0	01	1	0309-			●
131	GAUGE; TEMP,CLUSTER METER 4JB1 ENG<RLF>	8-97185-476-0	01	1	0309-	●	●
131	GAUGE; TEMP,CLUSTER METER 4HG1 ENG<RJH>	8-97185-475-0	01	1	0309-			●
161	CLOCK; CLUSTER METER 4JB1 ENG<RLF> EXC. TACHOMETER<U16>	8-97185-462-0	01	1	0309-	●	●
161	CLOCK; CLUSTER METER 4HG1 ENG<RJH> EXC. TACHOMETER<U16>	8-97185-462-0	01	1	0309-			●
183	GAUGE; FUEL 4JB1 ENG<RLF>	8-97185-473-0	01	1	0309-	●	●
183	GAUGE; FUEL 4HG1 ENG<RJH>	8-97185-473-0	01	1	0309-			●
199	LENS; WARNING LAMP 4JB1 ENG<RLF>	8-97185-481-0	01	1	0309-	●	●
199	LENS; WARNING LAMP 4HG1 ENG<RJH>	8-97185-481-0	01	1	0309-			●
230	KNOB; DIGITAL CLOCK,SUB METER 4JB1 ENG<RLF> EXC. TACHOMETER<U16>	8-97185-644-0	01	1	0309-	●	●
230	KNOB; DIGITAL CLOCK,SUB METER 4HG1 ENG<RJH> EXC. TACHOMETER<U16>	8-97185-644-0	01	1	0309-			●
319	SCREW; KNOB,CLUSTER METER 4JB1 ENG<RLF> EXC. TACHOMETER<U16>	8-97185-522-0	01	1	0309-	●	●
319	SCREW; KNOB,CLUSTER METER 4HG1 ENG<RJH> EXC. TACHOMETER<U16>	8-97185-522-0	01	1	0309-			●
