8-10 — WIRING HARNESS AND FUSE (#1987) — 46 parça

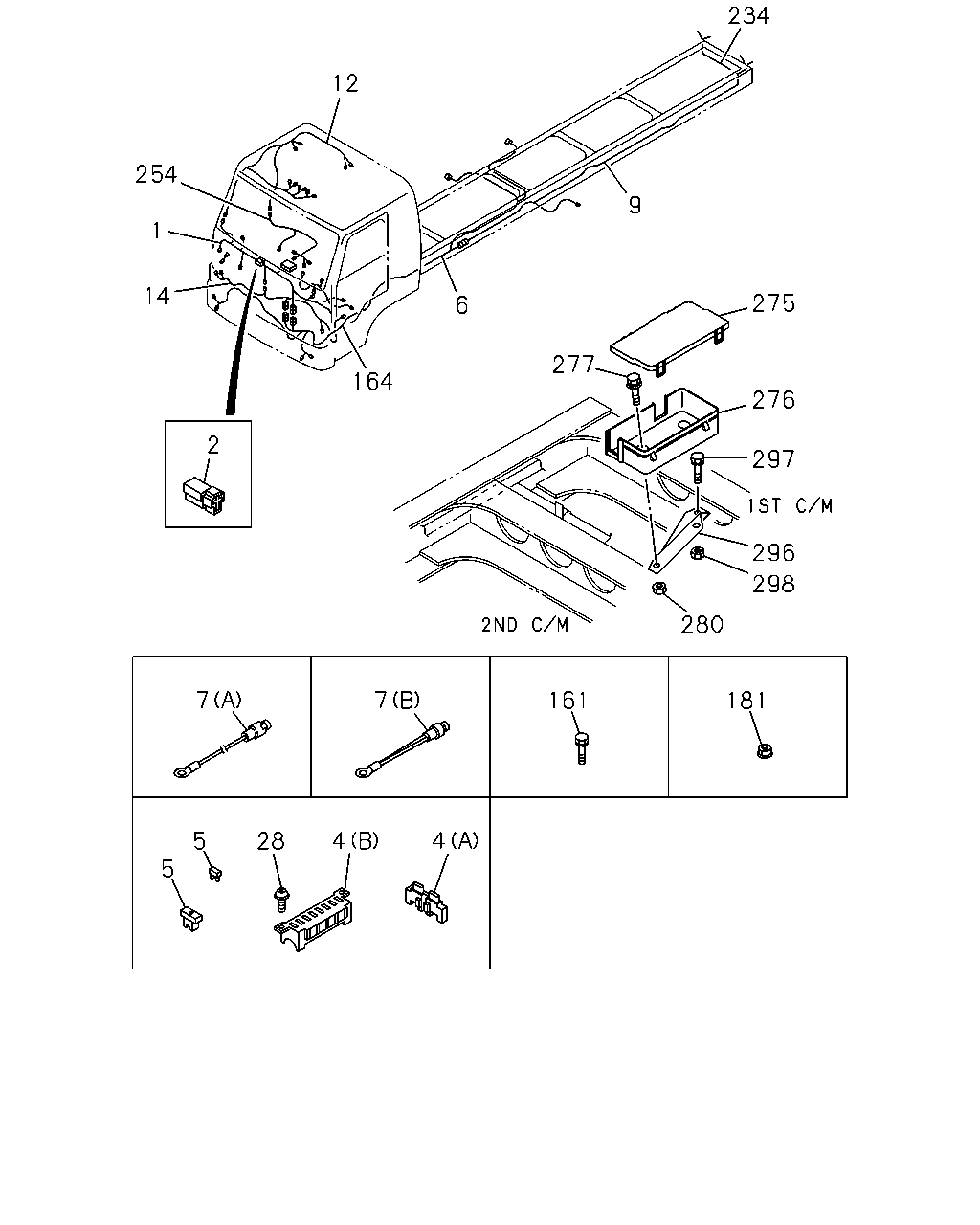

çizim 94046
234 12 254 9 1 14 275 6 277 164 276 2 297 296 298 280 7 7 161 181 5 28 4 4 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HARNESS; CAB
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-82624-838-2 01 1 9207-9211 ● ● ● ●
1 HARNESS; CAB
SAUDI ARABIA EQUIPMENT(WH1) 		1-82624-839-2 01 1 9207-9211 ● ● ● ●
1 HARNESS; CAB
SAUDI ARABIA EQUIPMENT(WH1) 		1-82625-166-0 01 1 9212- ● ●
1 HARNESS; CAB
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-82625-165-0 01 1 9212- ● ●
1 HARNESS; CAB
SAUDI ARABIA EQUIPMENT(WH1) 		1-82624-839-3 01 1 9212- ● ●
1 HARNESS; CAB
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-82624-838-3 01 1 9212- ● ●
2 DIODE; CABLE HARNESS 8-94249-985-0 01 1 9207- ● ● ● ●
4 BOX ASM; FUSE,HARNESS
(B) 		1-82510-214-1 01 1 9207- ● ● ● ●
4 BOX ASM; FUSE,HARNESS
(A) 10AX1 		1-82510-335-0 01 1 9207- ● ● ● ●
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 11 1 9207- ● ● ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 09 1 9207- ● ● ● ●
6 HARNESS; FRAME 1-82637-659-1 01 1 9207-9211 ●
6 HARNESS; FRAME 1-82638-186-1 01 1 9212- ●
6 HARNESS; FRAME 1-82637-660-1 01 1 9207-9211 ●
6 HARNESS; FRAME 1-82638-187-1 01 1 9212- ●
6 HARNESS; FRAME 1-82637-657-1 01 1 9207- ●
6 HARNESS; FRAME
FIRE TRUCK(RA9) 		1-82637-662-1 01 1 9207- ●
6 HARNESS; FRAME
EXC. FIRE TRUCK(RA9) 		1-82637-672-1 01 1 9207- ●
7 LINK ASM; FUSIBLE
(A) BLACK 		1-82659-031-1 01 1 9207- ● ● ● ●
7 LINK ASM; FUSIBLE
(B) GREEN/RED L=150 GREEN,RED 		1-82659-054-0 01 1 9207- ● ● ● ●
9 HARNESS; FRAME,RR 1-82637-675-0 01 1 9207- ●
9 HARNESS; FRAME,RR 1-82637-677-0 01 1 9207- ●
9 HARNESS; FRAME,RR 1-82634-651-0 01 1 9207- ●
9 HARNESS; FRAME,RR
FIRE TRUCK(RA9) 		1-82635-245-0 01 1 9207- ●
9 HARNESS; FRAME,RR
EXC. FIRE TRUCK(RA9) 		1-82634-652-0 01 1 9207- ●
12 HARNESS; ROOF 1-82622-549-0 01 1 9207- ● ● ● ●
14 HARNESS; HEADLAMP
HALOGEN HEAD LAMP(TT5),HEAD LAMPS WHITE GLOW(T70),AMBER HEADLAMPS<T75> 		1-82622-566-4 01 1 9207- ● ● ● ●
14 HARNESS; HEADLAMP
EXC. HALOGEN HEAD LAMP(TT5),HEAD LAMPS WHITE GLOW(T70),AMBER HEADLAMPS<T75> 		1-82622-761-2 01 1 9207- ● ● ● ●
28 SCREW; FUSE BOX
M5X16 W/LK&PL WASHER 		9-03920-516-0 02 1 9207- ● ● ● ●
161 BOLT; GROUND,HARNESS
M6X16 W/LK&PL WASHER 		1-09981-375-0 01 1 9207-9303 ● ● ● ●
161 BOLT; GROUND,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9304- ● ● ● ●
164 HARNESS; ELEC
SAUDI ARABIA EQUIPMENT(WH1) 		1-82624-376-0 01 1 9207- ● ● ● ●
164 HARNESS; ELEC
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-82624-375-0 01 1 9207- ● ● ● ●
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 9207- ● ● ● ●
234 HARNESS; LICENSE LAMP
PINTLE HOOK<PP7> 		1-82634-920-0 01 1 9207- ● ● ● ●
254 HARNESS; CAB FLOOR
SAUDI ARABIA EQUIPMENT(WH1) 		1-82622-993-1 01 1 9207- ● ● ● ●
254 HARNESS; CAB FLOOR
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-82622-989-1 01 1 9207- ● ● ● ●
275 BOX ASM; FRAME HARNESS 1-82699-148-2 01 1 9207- ● ● ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-151-1 01 1 9207- ● ● ● ●
277 BOLT; BOX ASM FIX
M8X25 FLANGE 		0-28080-825-0 02 1 9207-9211 ● ● ● ●
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9212-9303 ● ● ● ●
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09980-479-0 02 1 9304- ● ● ● ●
280 NUT; BOX ASM FIX
M8 		9-09110-408-0 02 1 9207- ● ● ● ●
296 BRACKET; HARNESS BOX 1-82699-168-0 01 1 9207- ● ● ● ●
297 BOLT; BOX BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9207- ● ● ● ●
298 NUT; BOX BRKT
M8 		9-09110-408-0 02 1 9207- ● ● ● ●
