◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50970 - NKR(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#19868) — 60 parça

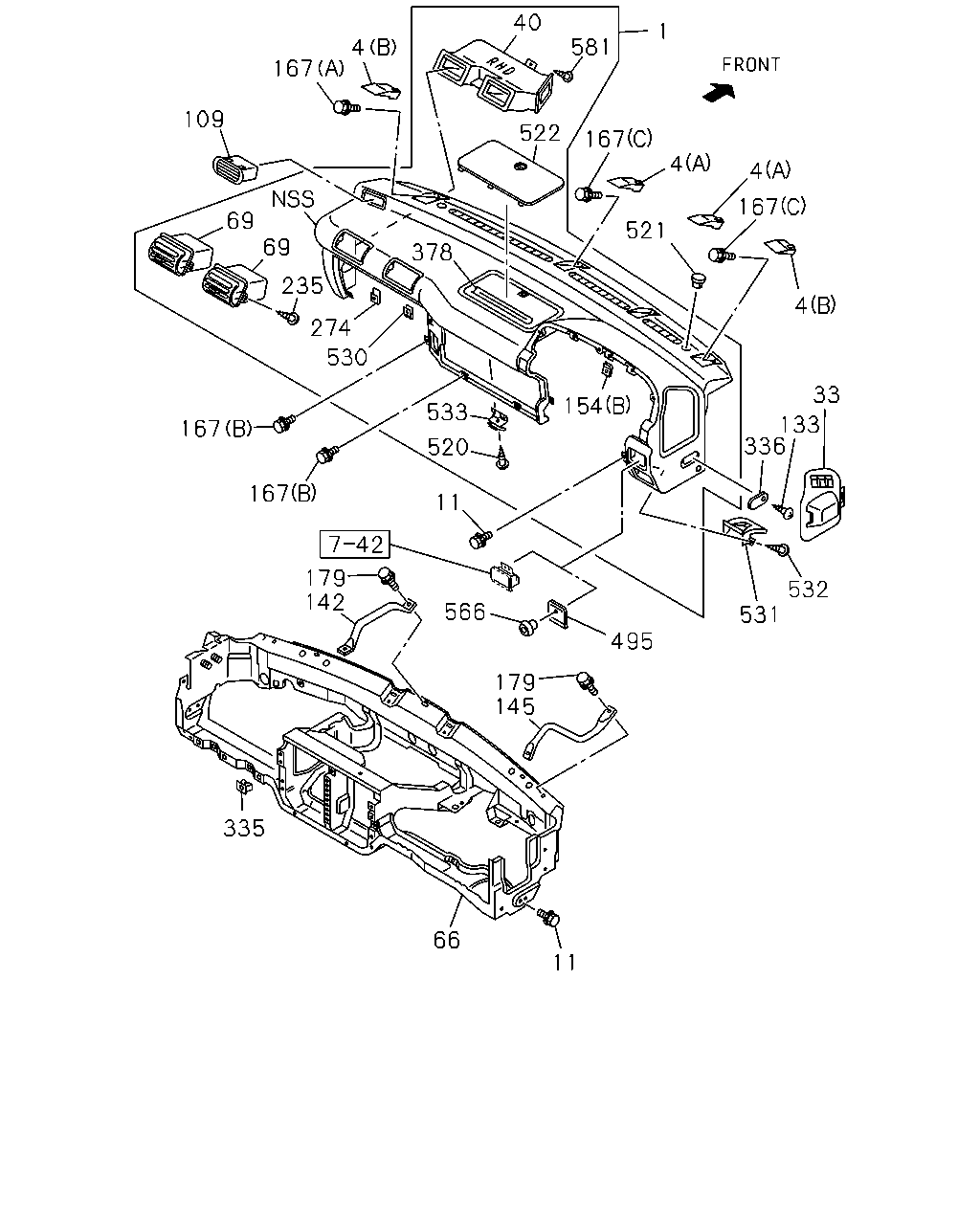

çizim 12419
40 1 581 4 167 109 522 167 4 4 167 69 521 69 378 235 4 274 530 33 154 533 133 336 167 520 167 11 179 142 532 566 531 495 179 145 335 66 11
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; INST
DARK GRAY 		8-97866-925-6 01 1 0309- ● ● ●
4 COVER; INST PNL
(A) DARK GRAY 		8-97857-523-3 02 1 0309- ● ● ●
4 COVER; INST PNL
(B) DARK GRAY 		8-97857-525-3 01 1 0309- ● ● ●
4 COVER; INST PNL
(B) DARK GRAY 		8-97857-524-3 01 1 0309- ● ● ●
11 BOLT; INST PNL
M8X23 FLANGE 		8-97264-766-0 04 1 0309- ● ● ●
33 LID; CHECK HOLE,CLU FLUID
DARK GRAY 		8-97859-824-5 01 1 0309- ● ● ●
40 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-688-0 01 1 0309- ● ● ●
66 REINFORCEMENT; INST PANEL 8-97898-461-4 01 1 0309-0505 ● ● ●
66 REINFORCEMENT; INST PANEL 8-98013-756-0 01 1 0506- ● ● ●
69 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 0309- ● ● ●
109 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97859-795-0 01 1 0309- ● ● ●
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 0309- ● ● ●
142 STAY; INST PANEL 8-97853-637-2 01 1 0309- ● ● ●
145 STAY; INST PANEL SIDE 8-97853-638-3 01 1 0309- ● ● ●
154 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 0309- ● ● ●
154 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 0309- ● ● ●
167 BOLT; REINF TO INST
(B) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 06 1 0309- ● ● ●
167 BOLT; REINF TO INST
(C) M6X25 		8-94279-204-0 02 1 0309- ● ● ●
167 BOLT; REINF TO INST
(A) M6X24 FLANGE 		8-94279-231-1 02 1 0309- ● ● ●
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 0309- ● ● ●
235 SCREW; GRILLE
M5X14 THA 		8-94279-325-0 04 1 0309- ● ● ●
274 NUT; GLOVE BOX
M5 SPIRE NUT 		8-94279-051-0 02 1 0309- ● ● ●
335 GROMMET; GLOVE BOX LK
D=8.5X8.5 L=7.5 THA 		8-94279-078-0 02 1 0309- ● ● ●
336 COVER; INST PANEL SIDE
DARK GRAY 		8-97857-528-4 02 1 0309- ● ● ●
378 SEAL; INST PANEL 8-97209-399-0 01 1 0309- ● ● ●
495 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 0309- ● ● ●
520 SCREW; CLIP,SPRING
M5X14 THA 		8-94279-325-0 02 1 0309- ● ● ●
521 COVER; SUN SENSOR
DARK GRAY 		8-97857-529-2 01 1 0309- ● ● ●
522 LID; RELAY BOX
DARK GRAY 		8-97857-520-6 01 1 0309- ● ● ●
530 CLIP; GLOVE BOX 8-97856-135-0 01 1 0309- ● ● ●
531 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 		8-97853-130-0 01 1 0309- ● ● ●
532 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> M5X14 THA 		8-94279-325-0 02 1 0309- ● ● ●
533 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 0309- ● ● ●
566 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 0309- ● ● ●
581 SCREW
M5X14 THA 		8-94279-325-0 02 1 0309- ● ● ●

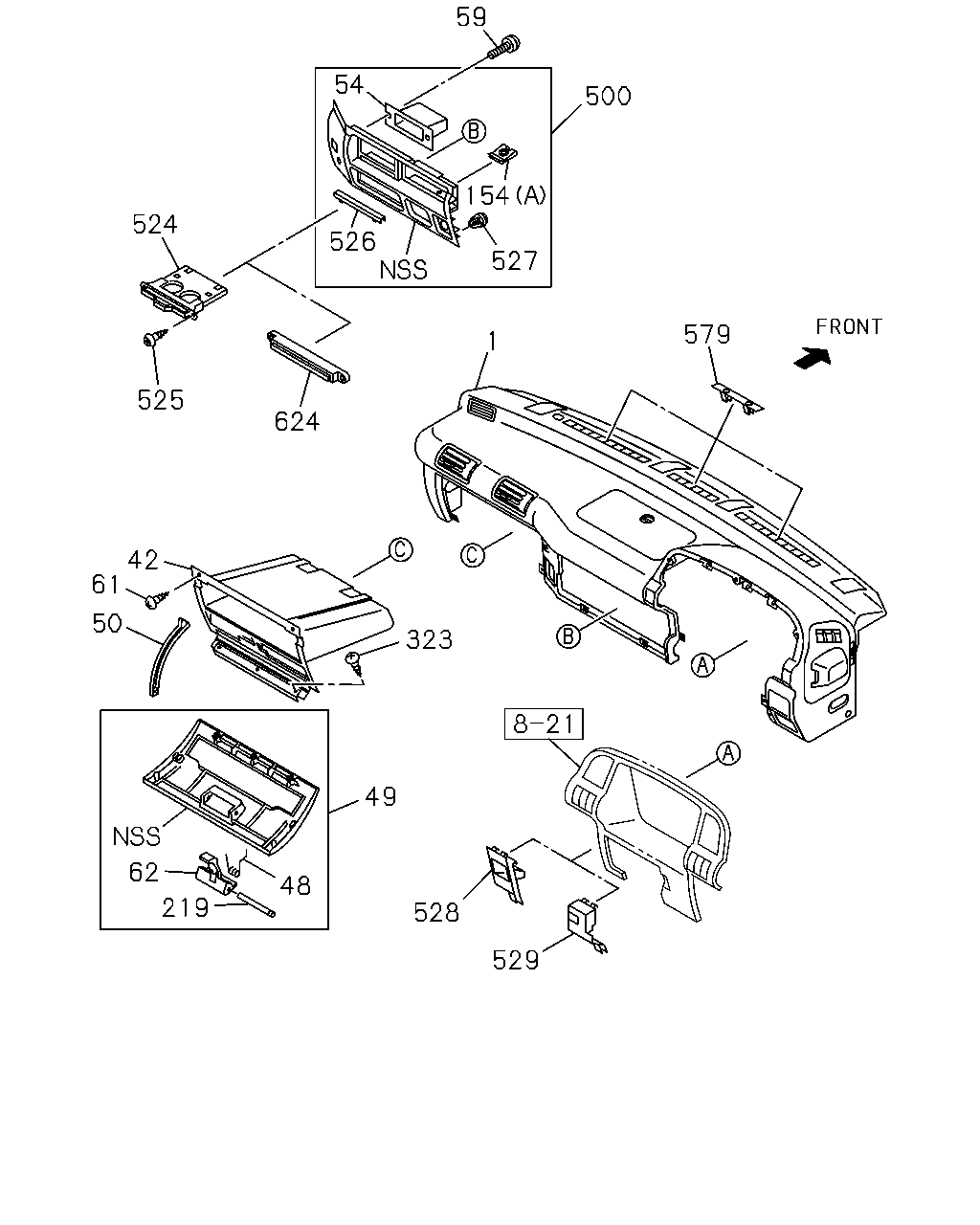

çizim 54614
59 54 500 154 524 526 527 579 1 525 624 42 61 50 323 49 62 48 219 528 529
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; INST
DARK GRAY 		8-97866-925-6 01 1 0309- ● ● ●
42 BOX; GLOVE,INST PNL 8-97853-150-5 01 1 0309- ● ● ●
48 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 0309- ● ● ●
49 LID; GLOVE BOX
DARK GRAY 		8-97859-798-5 01 1 0309- ● ● ●
50 STOPPER; LID,GLOVE BOX,INST CLUSTER 8-97853-152-0 02 1 0309- ● ● ●
54 POCKET; CENTER CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> DARK GRAY 		8-97196-294-2 01 1 0309- ● ● ●
59 SCREW; CLUSTER POCKET
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> M5X14 		8-94148-576-1 02 1 0309-0401 ● ● ●
59 SCREW; CLUSTER POCKET
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> M5X14 THA 		8-94279-325-0 02 1 0402- ● ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0309- ● ● ●
62 KNOB; GLOVE BOX LID
DARK GRAY 		8-97857-498-1 01 1 0309- ● ● ●
154 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 0309- ● ● ●
154 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 0309- ● ● ●
219 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 0309- ● ● ●
323 SCREW; GLOVE BOX LK
M5X14 THA 		8-94279-325-0 03 1 0309- ● ● ●
500 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> DARK GRAY 		8-97198-489-2 01 1 0309- ● ● ●
500 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> DARK GRAY 		8-97892-187-5 01 1 0309- ● ● ●
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-8 01 1 0309- ● ● ●
525 SCREW; CUP STAND
M5X14 THA 		8-94279-325-0 02 1 0309- ● ● ●
526 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> DARK GRAY 		8-97857-503-1 01 1 0309- ● ● ●
527 CLIP; INST CLUSTER 8-97853-169-0 04 1 0309- ● ● ●
528 COVER; PTO LEVER
PTO TRANSMISSION SIDE<V66> BLACK 		8-97867-071-5 01 1 0309- ● ● ●
529 POCKET; COIN
EXC. PTO TRANSMISSION SIDE<V66> BLACK 		8-97867-074-5 01 1 0309- ● ● ●
579 COVER; INST PNL
CENTER L=162 THA 		8-97917-983-0 01 1 0309- ● ● ●
579 COVER; INST PNL
SIDE L=316 THA 		8-97917-984-0 02 1 0309- ● ● ●
624 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-1 01 1 0309- ● ● ●
