Sayfa 7-20 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50970 - NKR(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶

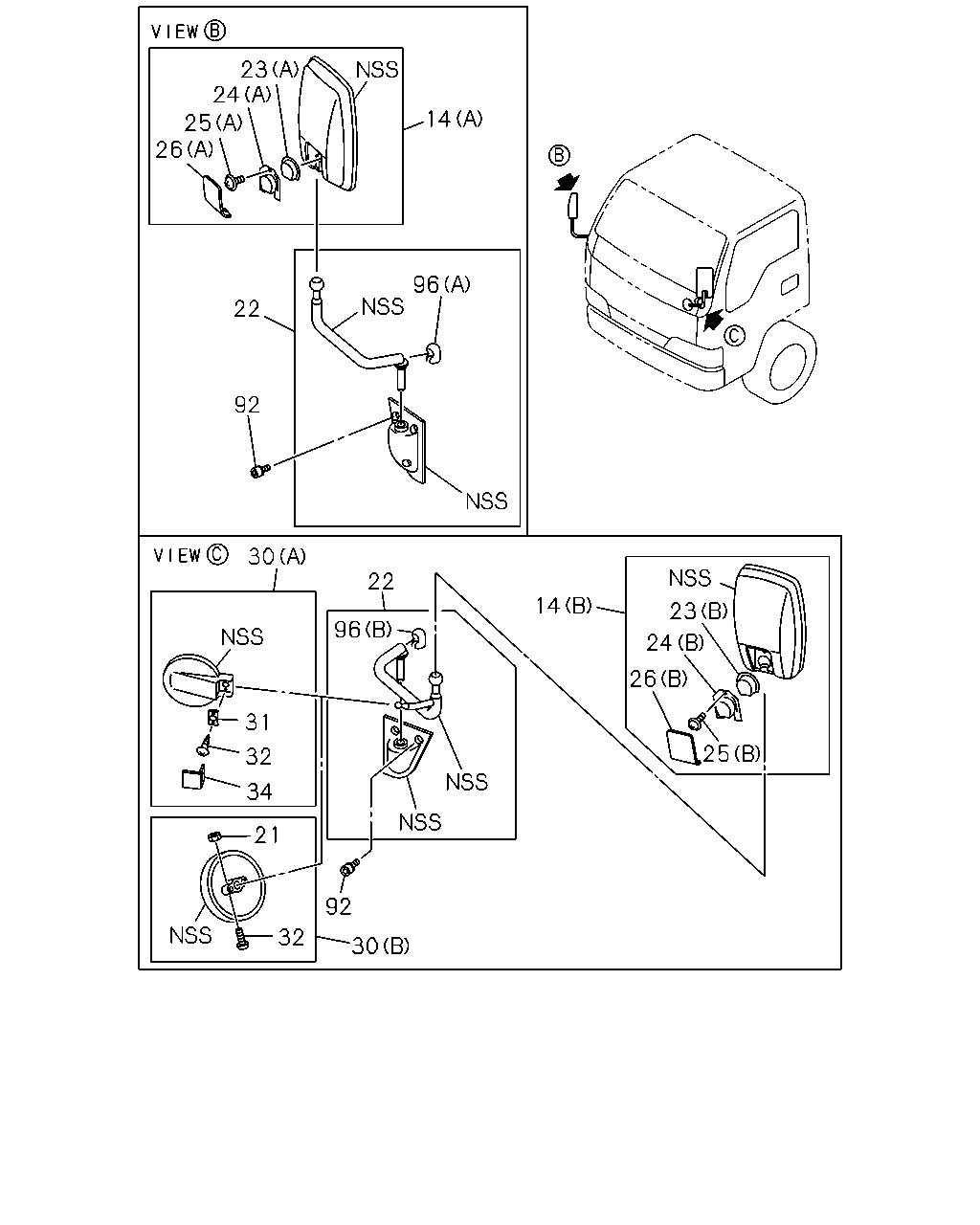

7-20 — MIRROR AND MIRROR STAY (#19866) — 128 parça

4 162 2 159 3 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MIRROR; ROOM TRAY ROOF HEAD<7EJ> THA	8-97917-030-0	01	1	0309-	●	●
1	MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-348-2	01	1	0309-	●	●
1	MIRROR; ROOM TRAY ROOF HEAD<7EJ> THA	8-97917-031-0	01	1	0309-			●
1	MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-351-2	01	1	0309-			●
2	SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> M5X16	8-94279-341-0	02	1	0406-	●	●	●
2	SCREW; MIRROR TO BODY M5X20	5-09981-059-0	02	1	0309-0405	●	●	●
2	SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> M5X20	5-09981-059-0	02	1	0406-	●	●	●
3	STOPPER; RR VIEW MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31	8-97859-098-2	01	1	0309-	●	●	●
3	STOPPER; RR VIEW MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> THA	8-97916-547-1	01	1	0309-	●	●	●
4	GROMMET; SCREW,ROOM MIRROR THA	8-94279-039-0	01	1	0309-0405	●	●	●
4	GROMMET; SCREW,ROOM MIRROR TRAY ROOF HEAD<7EJ> THA	8-94279-039-0	01	1	0406-	●	●	●
158	LENS; ROOM LAMP TRAY ROOF HEAD<7EJ> THA	8-97917-211-0	01	1	0309-	●	●	●
158	LENS; ROOM LAMP EXC. TRAY ROOF HEAD<7EJ> THA	5-73117-108-1	01	1	0309-	●	●	●
159	BULB; ROOM LAMP TRAY ROOF HEAD<7EJ> 24V 10W THA	8-97917-212-0	01	1	0309-	●	●
159	BULB; ROOM LAMP EXC. TRAY ROOF HEAD<7EJ> 12V 10W	8-97128-771-0	01	1	0309-	●	●
159	BULB; ROOM LAMP TRAY ROOF HEAD<7EJ> 24V 10W THA	8-97917-213-0	01	1	0309-			●
159	BULB; ROOM LAMP EXC. TRAY ROOF HEAD<7EJ> 24V 10W THA	5-82194-030-0	01	1	0309-			●
162	SEAL; ROOM LAMP TRAY ROOF HEAD<7EJ> THA	8-97856-532-0	01	1	0309-	●	●	●
183	FINISHER; MIRROR EXC. UNDER MIRROR<RR9> THA	8-97917-102-0	01	1	0309-	●
183	FINISHER; MIRROR THA	8-97917-102-0	01	1	0309-	●
183	FINISHER; MIRROR 4JB1 ENG<RLF> THA	8-97917-102-0	01	1	0309-		●
183	FINISHER; MIRROR 4JB1 ENG<RLF> THA	8-97917-102-0	01	1	0309-		●
183	FINISHER; MIRROR 4HG1 ENG<RJH> THA	8-97917-102-0	02	1	0309-			●

24 25 23 14 26 22 96 92 14 23 22 24 25 96 26 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	MIRROR ASM; OUTSIDE UNDER MIRROR<RR9> (B) THA	8-94262-542-3	01	1	0309-	●
14	MIRROR ASM; OUTSIDE EXC. UNDER MIRROR<RR9> (A),(B) THA	8-97917-086-0	01	1	0309-	●
14	MIRROR ASM; OUTSIDE (A),(B) THA	8-97917-086-0	01	1	0309-	●
14	MIRROR ASM; OUTSIDE 4JB1 ENG<RLF> (A),(B) THA	8-97917-086-0	01	1	0309-		●
14	MIRROR ASM; OUTSIDE 4JB1 ENG<RLF> (A),(B) THA	8-97917-086-0	01	1	0309-		●
14	MIRROR ASM; OUTSIDE 4HG1 ENG<RJH> (A),(B) THA	8-97917-088-0	02	1	0309-			●
22	STAY; OUTSIDE MIRROR THA	8-97917-095-0	01	1	0309-	●
22	STAY; OUTSIDE MIRROR 4JB1 ENG<RLF> THA	8-97917-095-0	01	1	0309-		●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97866-942-1	01	1	0309-	●
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> THA	8-97917-093-0	01	1	0309-	●
22	STAY; OUTSIDE MIRROR 4JB1 ENG<RLF> THA	8-97917-092-0	01	1	0309-		●
22	STAY; OUTSIDE MIRROR 4HG1 ENG<RJH> THA	8-97922-345-0	01	1	0309-			●
22	STAY; OUTSIDE MIRROR 4HG1 ENG<RJH> THA	8-97922-344-0	01	1	0309-			●
23	WASHER; OUTSIDE MIRROR UNDER MIRROR<RR9> (B) T=2.0 THA	8-94262-545-0	01	1	0309-	●
23	WASHER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> (A),(B) THA	8-97918-674-0	01	1	0309-	●
23	WASHER; OUTSIDE MIRROR (A),(B) THA	8-97918-674-0	01	1	0309-	●
23	WASHER; OUTSIDE MIRROR 4JB1 ENG<RLF> (A),(B) THA	8-97918-674-0	01	1	0309-		●
23	WASHER; OUTSIDE MIRROR 4JB1 ENG<RLF> (A),(B) THA	8-97918-674-0	01	1	0309-		●
23	WASHER; OUTSIDE MIRROR 4HG1 ENG<RJH> (A),(B) THA	8-97918-674-0	02	1	0309-			●
24	HOLDER; OUTSIDE MIRROR UNDER MIRROR<RR9> (B) T=1.6 THA	8-94262-546-1	01	1	0309-	●
24	HOLDER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> (A),(B) THA	8-97918-675-0	01	1	0309-	●
24	HOLDER; OUTSIDE MIRROR (A),(B) THA	8-97918-675-0	01	1	0309-	●
24	HOLDER; OUTSIDE MIRROR 4JB1 ENG<RLF> (A),(B) THA	8-97918-675-0	01	1	0309-		●
24	HOLDER; OUTSIDE MIRROR 4JB1 ENG<RLF> (A),(B) THA	8-97918-675-0	01	1	0309-		●
24	HOLDER; OUTSIDE MIRROR 4HG1 ENG<RJH> (A),(B) THA	8-97918-675-0	02	1	0309-			●
25	SCREW; OUTSIDE MIRROR UNDER MIRROR<RR9> (B) M6X30 THA	8-94279-365-0	01	1	0309-	●
25	SCREW; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> (A),(B) THA	8-97918-676-0	01	1	0309-	●
25	SCREW; OUTSIDE MIRROR (A),(B) THA	8-97918-676-0	01	1	0309-	●
25	SCREW; OUTSIDE MIRROR 4JB1 ENG<RLF> (A),(B) THA	8-97918-676-0	01	1	0309-		●
25	SCREW; OUTSIDE MIRROR 4JB1 ENG<RLF> (A),(B) THA	8-97918-676-0	01	1	0309-		●
25	SCREW; OUTSIDE MIRROR 4HG1 ENG<RJH> (A),(B) THA	8-97918-676-0	02	1	0309-			●
26	COVER; OUTSIDE MIRROR UNDER MIRROR<RR9> (B) T=2.3 THA	8-94262-547-2	01	1	0309-	●
26	COVER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> (A),(B) THA	8-97918-677-0	01	1	0309-	●
26	COVER; OUTSIDE MIRROR (A),(B) THA	8-97918-677-0	01	1	0309-	●
26	COVER; OUTSIDE MIRROR 4JB1 ENG<RLF> (A),(B) THA	8-97918-677-0	01	1	0309-		●
26	COVER; OUTSIDE MIRROR 4JB1 ENG<RLF> (A),(B) THA	8-97918-677-0	01	1	0309-		●
26	COVER; OUTSIDE MIRROR 4HG1 ENG<RJH> (A),(B) THA	8-97918-677-0	02	1	0309-			●
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	0309-	●	●	●
96	CAP; MIRROR STAY UNDER MIRROR<RR9> (B) OD=40 THA	8-97853-206-2	01	1	0309-	●
96	CAP; MIRROR STAY EXC. UNDER MIRROR<RR9> (A),(B) THA	8-97917-112-0	01	1	0309-	●
96	CAP; MIRROR STAY (A),(B) THA	8-97917-112-0	01	1	0309-	●
96	CAP; MIRROR STAY 4JB1 ENG<RLF> (A),(B) THA	8-97917-112-0	01	1	0309-		●
96	CAP; MIRROR STAY 4JB1 ENG<RLF> (A),(B) THA	8-97917-112-0	01	1	0309-		●
96	CAP; MIRROR STAY 4HG1 ENG<RJH> (A),(B) THA	8-97917-112-0	02	1	0309-			●
183	FINISHER; MIRROR EXC. UNDER MIRROR<RR9> THA	8-97917-102-0	01	1	0309-	●
183	FINISHER; MIRROR THA	8-97917-102-0	01	1	0309-	●
183	FINISHER; MIRROR 4JB1 ENG<RLF> THA	8-97917-102-0	01	1	0309-		●
183	FINISHER; MIRROR 4JB1 ENG<RLF> THA	8-97917-102-0	01	1	0309-		●
183	FINISHER; MIRROR 4HG1 ENG<RJH> THA	8-97917-102-0	02	1	0309-			●

23 24 25 26 14 96 22 92 30 22 14 23 96 24 26 31 25 32 34 21 92 32 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	MIRROR ASM; OUTSIDE UNDER MIRROR<RR9> (B) THA	8-94262-542-3	01	1	0309-	●
14	MIRROR ASM; OUTSIDE EXC. UNDER MIRROR<RR9> (A),(B) THA	8-97917-086-0	01	1	0309-	●
14	MIRROR ASM; OUTSIDE (A),(B) THA	8-97917-086-0	01	1	0309-	●
14	MIRROR ASM; OUTSIDE 4JB1 ENG<RLF> (A),(B) THA	8-97917-086-0	01	1	0309-		●
14	MIRROR ASM; OUTSIDE 4JB1 ENG<RLF> (A),(B) THA	8-97917-086-0	01	1	0309-		●
14	MIRROR ASM; OUTSIDE 4HG1 ENG<RJH> (A),(B) THA	8-97917-088-0	02	1	0309-			●
21	NUT; MIRROR 4HG1 ENG<RJH> THA	8-97922-499-0	02	1	0309-			●
22	STAY; OUTSIDE MIRROR THA	8-97917-095-0	01	1	0309-	●
22	STAY; OUTSIDE MIRROR 4JB1 ENG<RLF> THA	8-97917-095-0	01	1	0309-		●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97866-942-1	01	1	0309-	●
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> THA	8-97917-093-0	01	1	0309-	●
22	STAY; OUTSIDE MIRROR 4JB1 ENG<RLF> THA	8-97917-092-0	01	1	0309-		●
22	STAY; OUTSIDE MIRROR 4HG1 ENG<RJH> THA	8-97922-345-0	01	1	0309-			●
22	STAY; OUTSIDE MIRROR 4HG1 ENG<RJH> THA	8-97922-344-0	01	1	0309-			●
23	WASHER; OUTSIDE MIRROR UNDER MIRROR<RR9> (B) T=2.0 THA	8-94262-545-0	01	1	0309-	●
23	WASHER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> (A),(B) THA	8-97918-674-0	01	1	0309-	●
23	WASHER; OUTSIDE MIRROR (A),(B) THA	8-97918-674-0	01	1	0309-	●
23	WASHER; OUTSIDE MIRROR 4JB1 ENG<RLF> (A),(B) THA	8-97918-674-0	01	1	0309-		●
23	WASHER; OUTSIDE MIRROR 4JB1 ENG<RLF> (A),(B) THA	8-97918-674-0	01	1	0309-		●
23	WASHER; OUTSIDE MIRROR 4HG1 ENG<RJH> (A),(B) THA	8-97918-674-0	02	1	0309-			●
24	HOLDER; OUTSIDE MIRROR UNDER MIRROR<RR9> (B) T=1.6 THA	8-94262-546-1	01	1	0309-	●
24	HOLDER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> (A),(B) THA	8-97918-675-0	01	1	0309-	●
24	HOLDER; OUTSIDE MIRROR (A),(B) THA	8-97918-675-0	01	1	0309-	●
24	HOLDER; OUTSIDE MIRROR 4JB1 ENG<RLF> (A),(B) THA	8-97918-675-0	01	1	0309-		●
24	HOLDER; OUTSIDE MIRROR 4JB1 ENG<RLF> (A),(B) THA	8-97918-675-0	01	1	0309-		●
24	HOLDER; OUTSIDE MIRROR 4HG1 ENG<RJH> (A),(B) THA	8-97918-675-0	02	1	0309-			●
25	SCREW; OUTSIDE MIRROR UNDER MIRROR<RR9> (B) M6X30 THA	8-94279-365-0	01	1	0309-	●
25	SCREW; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> (A),(B) THA	8-97918-676-0	01	1	0309-	●
25	SCREW; OUTSIDE MIRROR (A),(B) THA	8-97918-676-0	01	1	0309-	●
25	SCREW; OUTSIDE MIRROR 4JB1 ENG<RLF> (A),(B) THA	8-97918-676-0	01	1	0309-		●
25	SCREW; OUTSIDE MIRROR 4JB1 ENG<RLF> (A),(B) THA	8-97918-676-0	01	1	0309-		●
25	SCREW; OUTSIDE MIRROR 4HG1 ENG<RJH> (A),(B) THA	8-97918-676-0	02	1	0309-			●
26	COVER; OUTSIDE MIRROR UNDER MIRROR<RR9> (B) T=2.3 THA	8-94262-547-2	01	1	0309-	●
26	COVER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> (A),(B) THA	8-97918-677-0	01	1	0309-	●
26	COVER; OUTSIDE MIRROR (A),(B) THA	8-97918-677-0	01	1	0309-	●
26	COVER; OUTSIDE MIRROR 4JB1 ENG<RLF> (A),(B) THA	8-97918-677-0	01	1	0309-		●
26	COVER; OUTSIDE MIRROR 4JB1 ENG<RLF> (A),(B) THA	8-97918-677-0	01	1	0309-		●
26	COVER; OUTSIDE MIRROR 4HG1 ENG<RJH> (A),(B) THA	8-97918-677-0	02	1	0309-			●
30	MIRROR; UNDER UNDER MIRROR<RR9> (A)	8-94262-625-2	01	1	0309-	●	●
30	MIRROR; UNDER 4HG1 ENG<RJH> (B) THA	8-97922-353-0	01	1	0309-			●
31	PLATE; MIRROR UNDER MIRROR<RR9>	8-94262-631-0	01	1	0309-	●	●
32	SCREW; UNDER MIRROR UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	0309-	●	●
32	SCREW; UNDER MIRROR 4HG1 ENG<RJH> THA	8-97922-498-0	02	1	0309-			●
34	CAP; MIRROR UNDER MIRROR<RR9>	8-94262-629-0	01	1	0309-	●	●
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	0309-	●	●	●
96	CAP; MIRROR STAY UNDER MIRROR<RR9> (B) OD=40 THA	8-97853-206-2	01	1	0309-	●
96	CAP; MIRROR STAY EXC. UNDER MIRROR<RR9> (A),(B) THA	8-97917-112-0	01	1	0309-	●
96	CAP; MIRROR STAY (A),(B) THA	8-97917-112-0	01	1	0309-	●
96	CAP; MIRROR STAY 4JB1 ENG<RLF> (A),(B) THA	8-97917-112-0	01	1	0309-		●
96	CAP; MIRROR STAY 4JB1 ENG<RLF> (A),(B) THA	8-97917-112-0	01	1	0309-		●
96	CAP; MIRROR STAY 4HG1 ENG<RJH> (A),(B) THA	8-97917-112-0	02	1	0309-			●
183	FINISHER; MIRROR EXC. UNDER MIRROR<RR9> THA	8-97917-102-0	01	1	0309-	●
183	FINISHER; MIRROR THA	8-97917-102-0	01	1	0309-	●
183	FINISHER; MIRROR 4JB1 ENG<RLF> THA	8-97917-102-0	01	1	0309-		●
183	FINISHER; MIRROR 4JB1 ENG<RLF> THA	8-97917-102-0	01	1	0309-		●
183	FINISHER; MIRROR 4HG1 ENG<RJH> THA	8-97917-102-0	02	1	0309-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
