◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10635 - FSS/FTS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#1985) — 39 parça

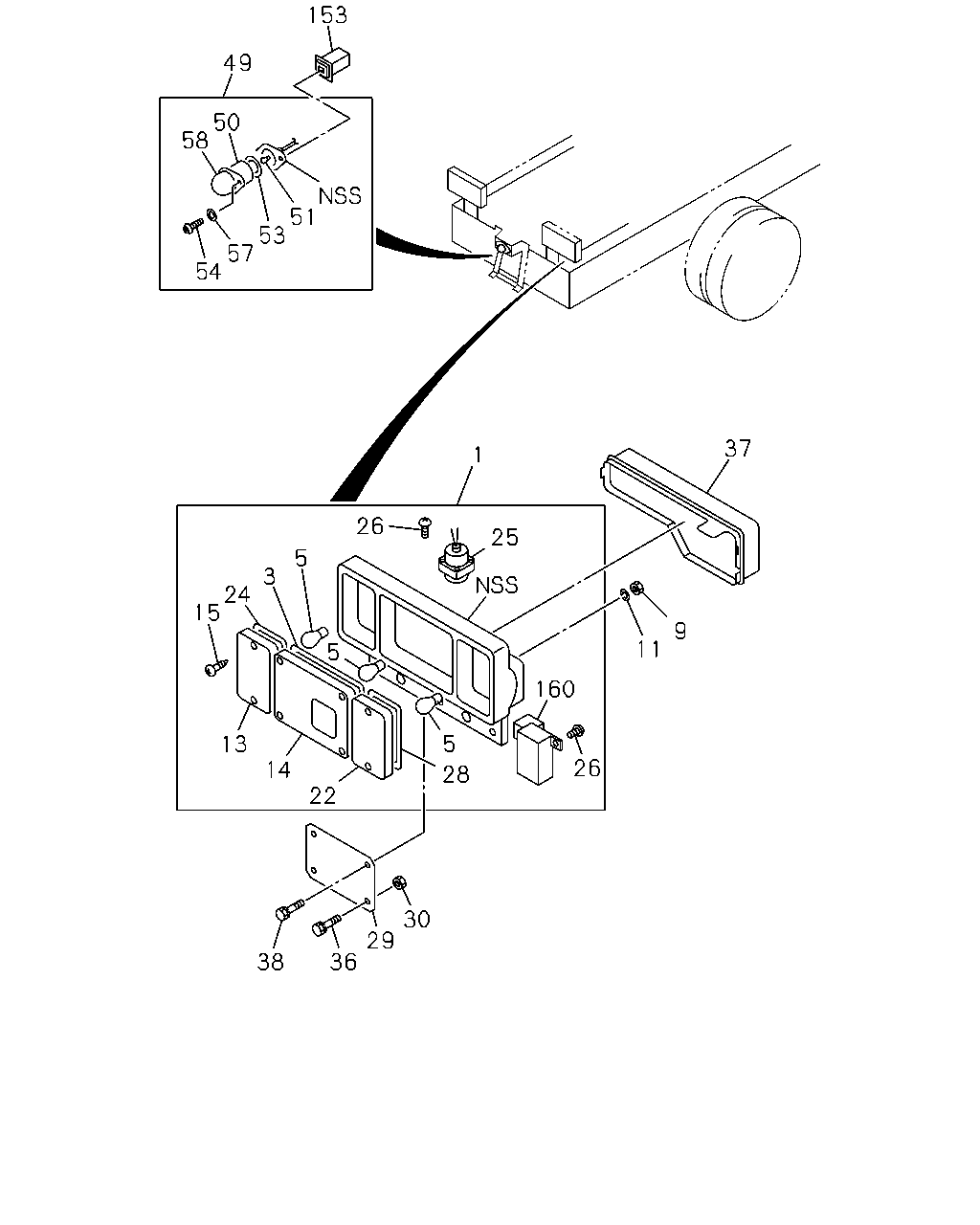

çizim 94126
153 49 50 58 51 53 57 54 37 1 26 25 5 3 24 15 9 11 5 160 5 13 26 14 28 22 30 29 36 38
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LAMP ASM; RR COMB
INDICATOR TAIL & STOP LAMP<YD6> 		1-82230-133-2 01 1 9207- ● ● ● ●
1 LAMP ASM; RR COMB
EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-82230-135-2 01 1 9207- ● ● ● ●
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> 		1-82230-132-2 01 1 9207- ● ● ● ●
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> 		1-82230-134-2 01 1 9207- ● ● ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 9207- ● ● ● ●
5 BULB; RR COMB LAMP
24V 21W 		8-94125-956-0 02 1 9207- ● ● ● ●
5 BULB; RR COMB LAMP
24V 21/5W 		8-94125-957-0 01 1 9207- ● ● ● ●
9 NUT; LAMP,RR COMB
M6 		9-09110-406-0 04 1 9207- ● ● ● ●
11 WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18 		9-09160-706-0 04 1 9207- ● ● ● ●
13 LENS; TURN SIGNAL 1-82235-015-0 01 1 9207- ● ● ● ●
13 LENS; TURN SIGNAL 1-82235-014-0 01 1 9207- ● ● ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94257-511-0 01 1 9207- ● ● ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94257-510-0 01 1 9207- ● ● ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 9207- ● ● ● ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-0 02 1 9207- ● ● ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 02 1 9207- ● ● ● ●
25 HORN ASM; BACK
REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 9207- ● ● ● ●
26 SCREW; BACK HORN
INDICATOR TAIL & STOP LAMP<YD6> 		1-82239-031-0 02 1 9207- ● ● ● ●
26 SCREW; BACK HORN
EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-82239-031-0 01 1 9207-9411 ● ● ● ●
26 SCREW; BACK HORN
EXC. INDICATOR TAIL & STOP LAMP<YD6> M4X12 TAPPING 		9-07076-412-0 01 1 9412- ● ● ● ●
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X10 TAPPING 		9-07076-410-0 02 1 9207-9411 ● ● ● ●
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X14 TAPPING 		9-07076-414-0 02 1 9412- ● ● ● ●
26 SCREW; BACK HORN
EXC. REVERSING WARNING BUZZER<YM9> M4X10 TAPPING 		9-07076-410-0 01 1 9207- ● ● ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 9207- ● ● ● ●
29 BRACKET; LAMP,RR COMB 1-82237-050-1 02 1 9207- ● ● ● ●
30 NUT; BRKT,RR COMB
M10 		9-09110-510-0 04 1 9207- ● ● ● ●
36 BOLT; BRKT,RR COMB
M10X20 W/LK WASHER 		0-50041-020-0 04 1 9207- ● ● ● ●
37 COVER; RR COMB LAMP 1-82239-008-0 01 1 9207- ● ● ● ●
37 COVER; RR COMB LAMP 1-82239-007-0 01 1 9207- ● ● ● ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK WASHER 		0-50040-630-0 04 1 9207- ● ● ● ●
49 LAMP; LICENSE PLATE 1-82120-021-0 01 1 9207- ● ● ● ●
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 9207- ● ● ● ●
51 BULB; LICENSE PLATE LAMP
24V 12W 		1-82194-030-0 01 1 9207- ● ● ● ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 9207- ● ● ● ●
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 9207- ● ● ● ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 9207- ● ● ● ●
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 9207- ● ● ● ●
153 BOLT; LICENSE PLATE LAMP
?????? D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 9207- ● ● ● ●
160 INDICATOR; RR COMB LAMP
INDICATOR TAIL & STOP LAMP<YD6> 		1-82550-195-0 01 1 9207- ● ● ● ●
