0-85A — AUTO TIMER; INJECTION PUMP (#19845) — 22 parça

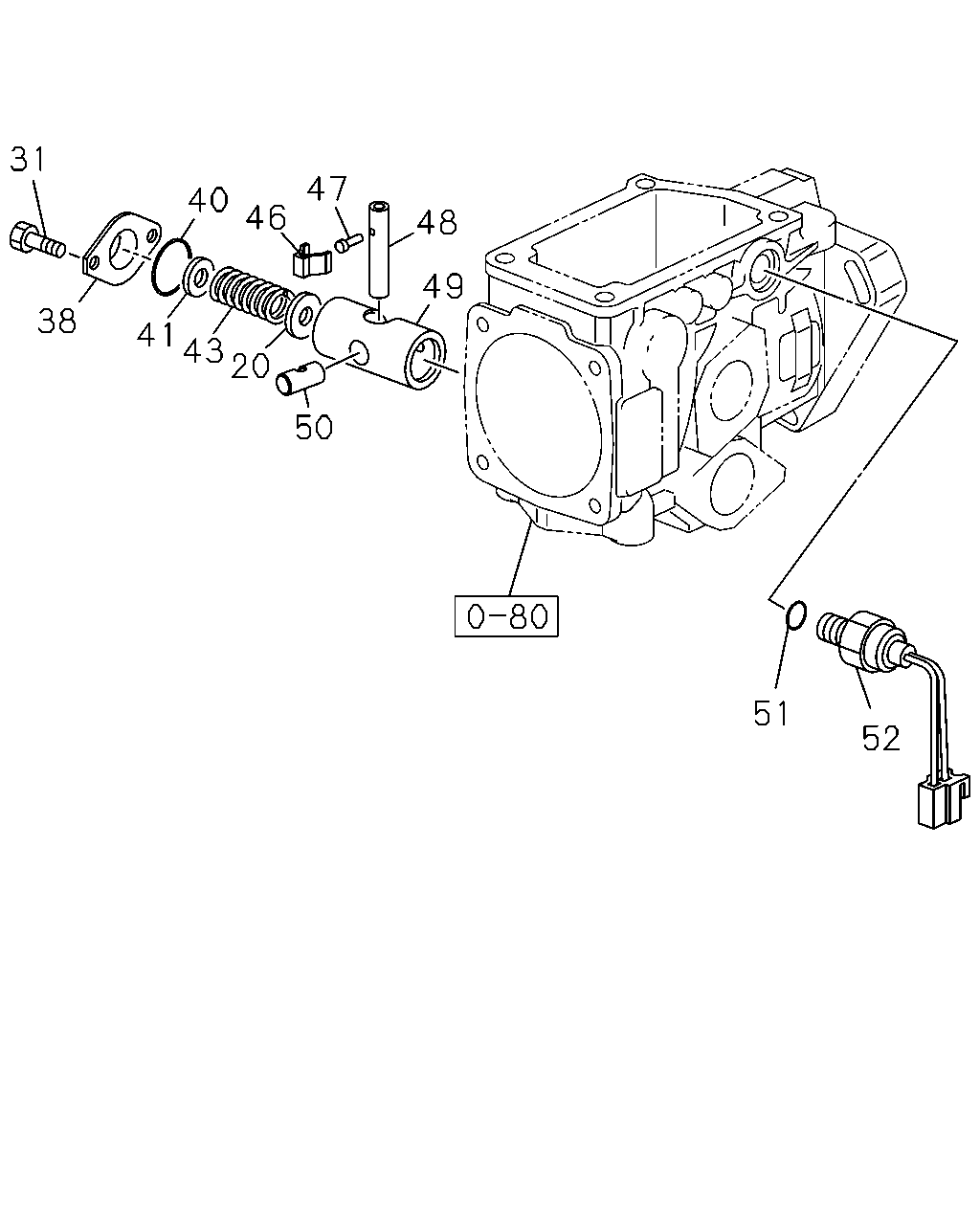

çizim 12159
31 47 40 46 48 49 38 41 43 20 50 51 52
BalonParca AdiParca NoAdetTipApplied Date
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.60 ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94227-495-0 01 1 -
31 03.330 SCREW; TIMER COVER,INJ PUMP
ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94313-276-0 02 1 -
38 03.318 COVER; TIMER,INJ PUMP
ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94473-120-0 01 1 -
40 03.330 GASKET; TIMER COVER,INJ PUMP
03.306 ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94227-491-0 01 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
03.320, T=2.40 ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94121-620-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.60 ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94227-495-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.70 ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94227-496-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.90 ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94227-497-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=1.00 ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94227-498-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=1.20 ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94227-499-0 AR 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
L=35.7 EFFECT TURN=5.1 ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94313-200-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
L=35.5 EFFECT TURN=4.9 ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94313-227-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
L=35.6 EFFECT TURN=5.4 ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94313-241-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
L=35.8 EFFECT TURN=5.7 ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94386-591-0 01 1 -
46 03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94227-488-0 01 1 -
47 03.340 PIN; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94227-487-0 01 1 -
48 03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM
ASM PART: A = 8-97263-390-0, 97263390 		8-94227-486-0 01 1 -
48 03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM
ASM PART: B = 8-97310-504-0, 97310504 		8-94473-118-0 01 1 -
49 03.330 PISTON; TIMER,INJ PUMP
03.340 ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94111-657-0 01 1 -
50 03.340 SLIDER; TIMER PISTON,INJ PUMP
ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94227-493-0 01 1 -
51 03.340 GASKET; TIMING SENSOR,INJ PUMP
03.306 ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94227-671-0 01 1 -
52 03.340 SENSOR; TIMING,TACHOMETER,INJ PU
ASM PART: A = 8-97263-390-0, 97263390, B = 8-97310-504-0, 97310504 		8-94403-289-1 01 1 -
