Sayfa 0-65 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶

0-65 — STARTER (#19836) — 72 parça

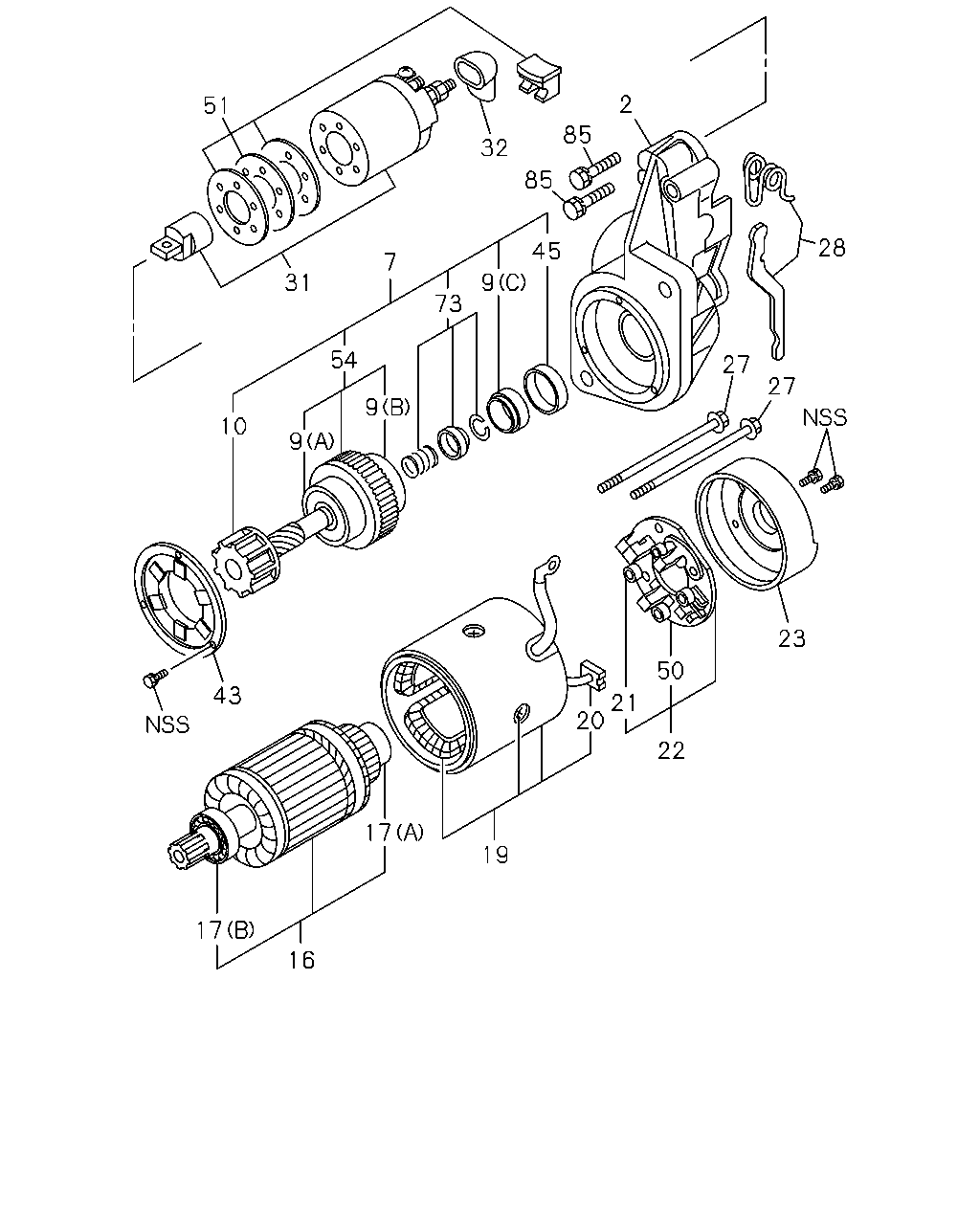

2 51 85 32 85 28 45 7 31 9 73 54 27 27 9 10 9 23 50 43 21 20 22 17 19 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-97136-688-0, 97136688	8-97112-560-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97319-420-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: A = 8-97136-688-0, 97136688	8-97047-547-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97229-910-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-97047-549-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-97047-550-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: A = 8-97136-688-0, 97136688	8-97047-551-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: A = 8-97136-688-0, 97136688	8-94324-622-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97130-189-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-97136-688-0, 97136688	8-97112-555-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97262-027-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-94228-437-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: A = 8-97136-688-0, 97136688	8-97142-596-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97319-417-0	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-97113-286-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-94242-064-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-97142-597-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-97136-688-0, 97136688	8-97112-558-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97319-418-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: A = 8-97136-688-0, 97136688	8-97112-565-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97319-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-97136-688-0, 97136688	8-94435-571-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97319-422-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-97136-688-0, 97136688	8-94337-444-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97319-419-0	01	1	-
32	02.115 COVER; RUBBER,STARTER HITACHI ASM PART: A = 8-97136-688-0, 97136688	5-81129-069-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-94435-570-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER ASM PART: A = 8-97136-688-0, 97136688	8-94435-567-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-97113-286-0	02	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: A = 8-97136-688-0, 97136688	8-94435-572-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: B = 8-97255-390-1, 97255390	8-97319-421-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-97136-688-0, 97136688	8-97047-548-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97262-031-0	01	1	-
73	02.063 STOPPER SET; PINION ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-94228-450-0	01	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER 02.041 ASM PART: A = 8-97136-688-0, 97136688	5-81129-294-0	02	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: B = 8-97255-390-1, 97255390	8-94408-500-0	02	1	-

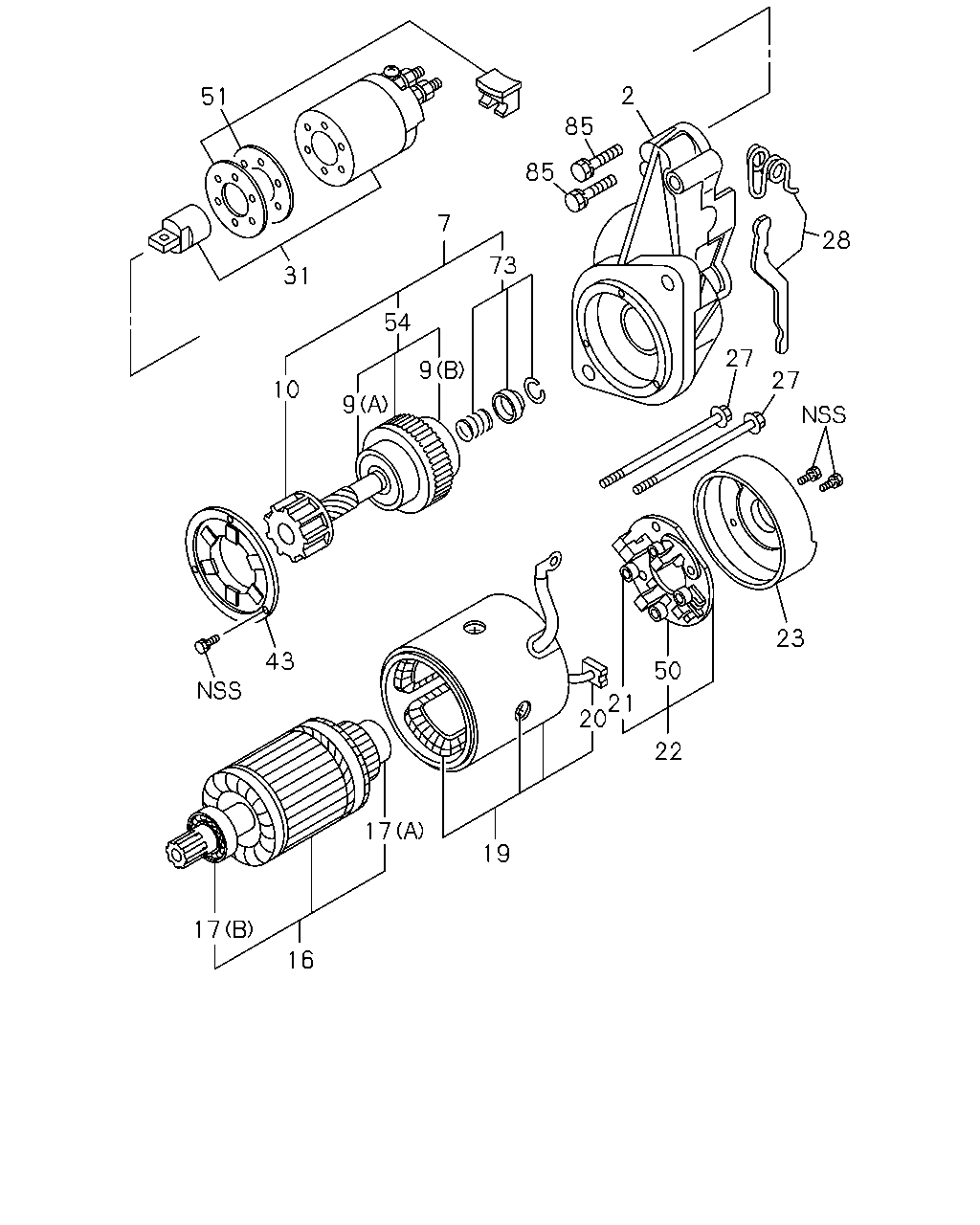

2 51 85 85 7 28 73 31 54 27 9 27 10 9 23 43 50 21 20 22 17 19 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-97136-688-0, 97136688	8-97112-560-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97319-420-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: A = 8-97136-688-0, 97136688	8-97047-547-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97229-910-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-97047-549-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-97047-550-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: A = 8-97136-688-0, 97136688	8-97047-551-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: A = 8-97136-688-0, 97136688	8-94324-622-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97130-189-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-97136-688-0, 97136688	8-97112-555-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97262-027-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-94228-437-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: A = 8-97136-688-0, 97136688	8-97142-596-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97319-417-0	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-97113-286-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-94242-064-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-97142-597-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-97136-688-0, 97136688	8-97112-558-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97319-418-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: A = 8-97136-688-0, 97136688	8-97112-565-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97319-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-97136-688-0, 97136688	8-94435-571-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97319-422-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-97136-688-0, 97136688	8-94337-444-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97319-419-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-94435-570-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-97113-286-0	02	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: A = 8-97136-688-0, 97136688	8-94435-572-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: B = 8-97255-390-1, 97255390	8-97319-421-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-97136-688-0, 97136688	8-97047-548-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-97255-390-1, 97255390	8-97262-031-0	01	1	-
73	02.063 STOPPER SET; PINION ASM PART: A = 8-97136-688-0, 97136688, B = 8-97255-390-1, 97255390	8-94228-450-0	01	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER 02.041 ASM PART: A = 8-97136-688-0, 97136688	5-81129-294-0	02	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: B = 8-97255-390-1, 97255390	8-94408-500-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
