◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND BATTERY CABLE ▶
0-61 — BATTERY AND BATTERY CABLE (#19835) — 22 parça

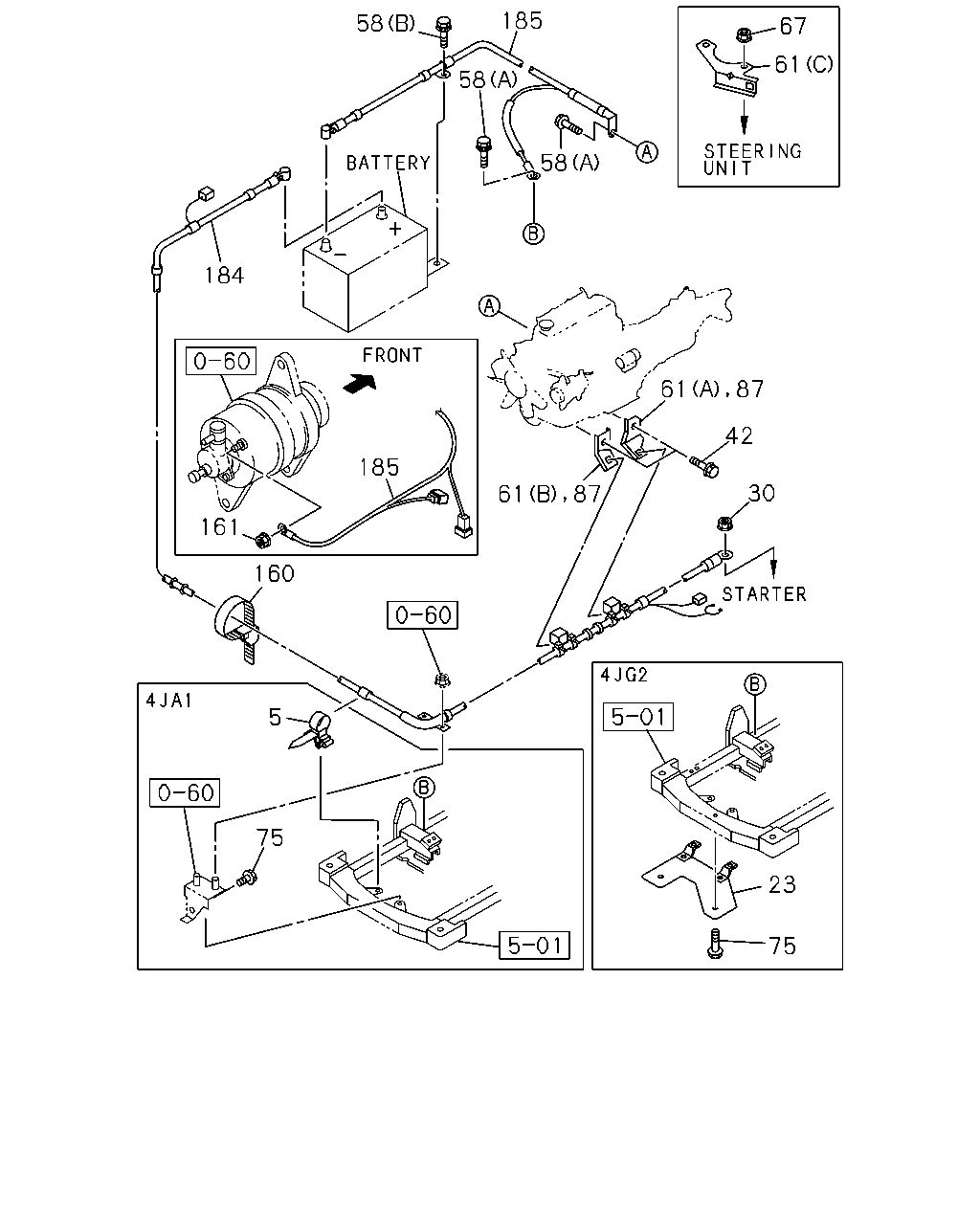

çizim 47914
185 58 67 61 58 58 184 61 87 42 185 30 161 160 5 75 23 75
BalonParca AdiParca NoAdetTipApplied Date A B
5 02.559 CLIP; BATTERY CABLE TO BODY
02.587 L=172 		8-94232-620-0 01 1 0108- ●
23 02.343 BRACKET; CABLE CLIP TO FRAME 8-97081-412-0 01 1 0108- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0108- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0108- ● ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (A) M10X16 FLANGE 		0-28081-016-0 01 1 0108-0108 ● ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ● ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ●
58 02.343 BOLT; CABLE,BATTERY
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0108- ● ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97102-761-0 01 1 0108- ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97077-656-0 01 1 0108- ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97232-164-0 01 1 0108- ●
67 02.183 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 01 1 0108- ●
75 02.333 BOLT; BRKT
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0108- ●
75 02.333 BOLT; BRKT
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0108- ●
87 02.343 BRACKET; HARNESS
02.333 		8-97232-164-0 02 1 0108- ●
160 02.343 CLIP; BATTERY CABLE
03.162 L=140 		5-09707-031-1 01 1 0108- ●
161 02.343 NUT; BATTERY CABLE
CHARGE AIR COOLER<6PL> 04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0108- ●
184 02.525 HARNESS; CABLE,BATTERY (+) 8-97226-943-1 01 1 0108- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
SHIFT ON THE FLY(7EX) 		8-97217-416-2 01 1 0108- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. SHIFT ON THE FLY(7EX) 		8-97217-417-0 01 1 0108- ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97226-944-2 01 1 0108- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
CHARGE AIR COOLER<6PL> 		8-97300-732-1 01 1 0108- ●
