0-57 — EMISSION PIPING (#19833) — 145 parça

194 526 270 759 526

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
194	03.675 HOSE; VAC ENG QUICK WARM UP SYSTEM<6JZ> 08.962 L=130 SERVICED BY L=3000	0-04742-300-0	01	1	0108-	●
270	03.680 BOLT CHARGE AIR COOLER<6PL> 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0108-	●
526	03.675 CLIP; BAND CHARGE AIR COOLER<6PL> 03.162 (A) L=140	5-09707-031-1	01	1	0108-	●
526	03.675 CLIP; BAND CHARGE AIR COOLER<6PL> (B)	8-97322-092-0	01	1	0108-	●
759	03.670 SENSOR; TDC CHARGE AIR COOLER<6PL>	8-97323-554-0	01	1	0108-0205	●
759	03.670 SENSOR; TDC CHARGE AIR COOLER<6PL>	8-97324-402-0	01	1	0206-	●

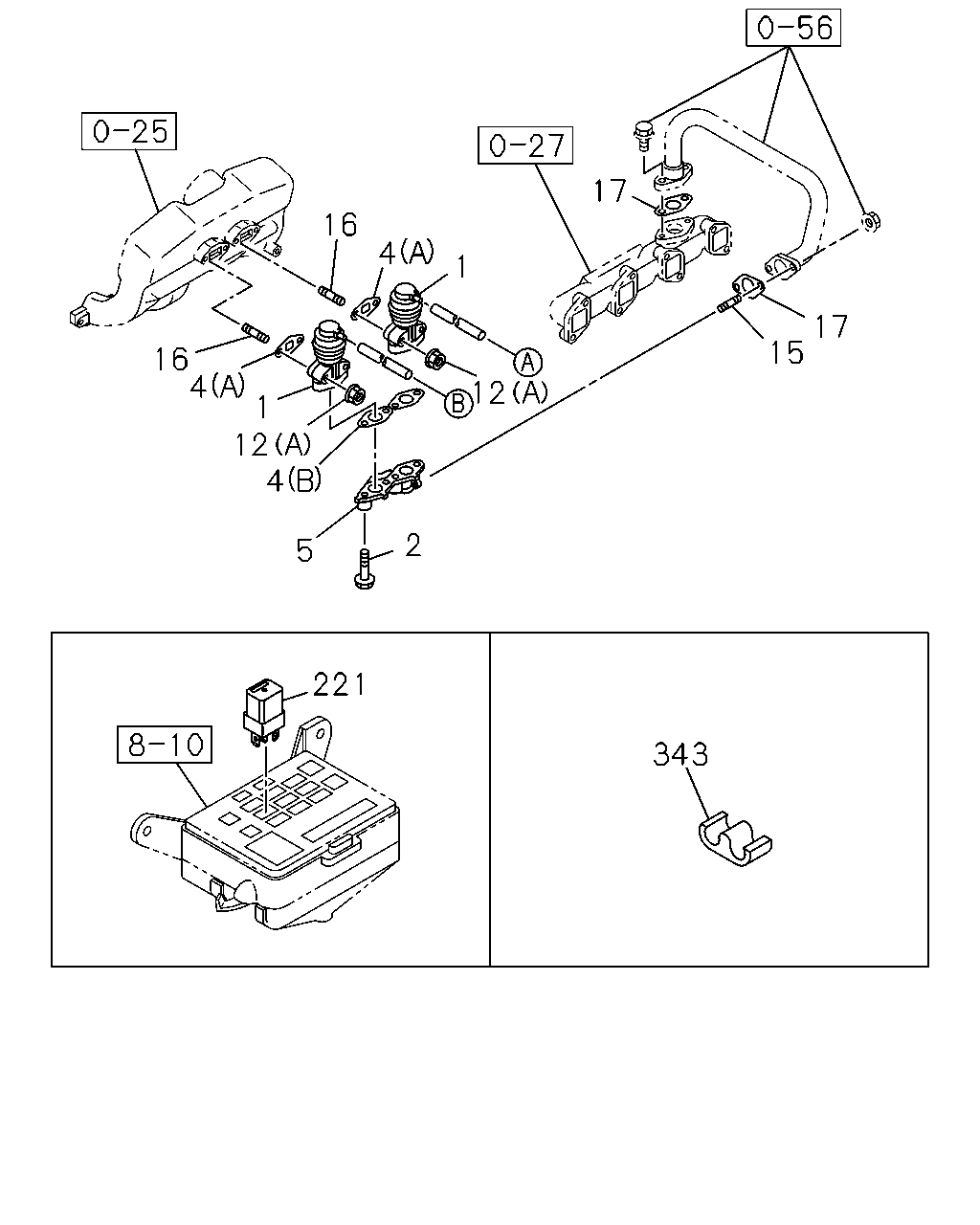

17 16 4 1 17 15 16 4 12 1 12 4 2 5 221 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; EGR	8-97135-674-4	02	1	0108-		●
1	03.670 VALVE; EGR CHARGE AIR COOLER<6PL>	8-97312-533-1	01	1	0108-	●
2	03.670 BOLT; EGR VLV CHARGE AIR COOLER<6PL> (A) M8X23 FLANGE	8-94103-629-2	02	1	0307-	●
2	03.670 BOLT; EGR VLV CHARGE AIR COOLER<6PL> 03.680 (B) M8X18 FLANGE	8-94368-563-1	02	1	0307-	●
2	03.670 BOLT; EGR VLV 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0108-		●
2	03.670 BOLT; EGR VLV CHARGE AIR COOLER<6PL> 09.190 (C) M6X30 FLANGE	0-28680-630-0	02	1	0108-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.665 (D)	8-97324-052-0	01	1	0307-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	0108-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	0108-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.665 (C)	8-97192-765-0	02	1	0108-	●
5	03.670 ADAPTER ASM CHARGE AIR COOLER<6PL>	8-97329-584-2	01	1	0307-	●
5	03.670 ADAPTER ASM	8-97117-260-0	01	1	0108-		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	0108-		●
12	03.671 NUT; EGR VLV CHARGE AIR COOLER<6PL> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0108-	●
12	03.671 NUT; EGR VLV CHARGE AIR COOLER<6PL> 01.540 (A) M8 FLANGE	0-91150-208-0	02	1	0108-	●
15	03.670 STUD; EGR PIPE 03.901 M8X25 L=37	9-04110-825-0	02	1	0108-		●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	0108-		●
16	03.275 STUD; EGR VLV CHARGE AIR COOLER<6PL> 03.342 M8X55 L=67	8-94343-897-0	02	1	0108-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-670-0	02	1	0108-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL>	8-94340-670-0	02	1	0108-	●
221	03.670 RELAY; MAIN 02.100 12V 20A	8-97173-039-1	01	1	0108-	●
343	03.680 CLIP; RUBBER HOSE 03.162 ID=6.8X2	8-94126-636-0	01	1	0108-		●

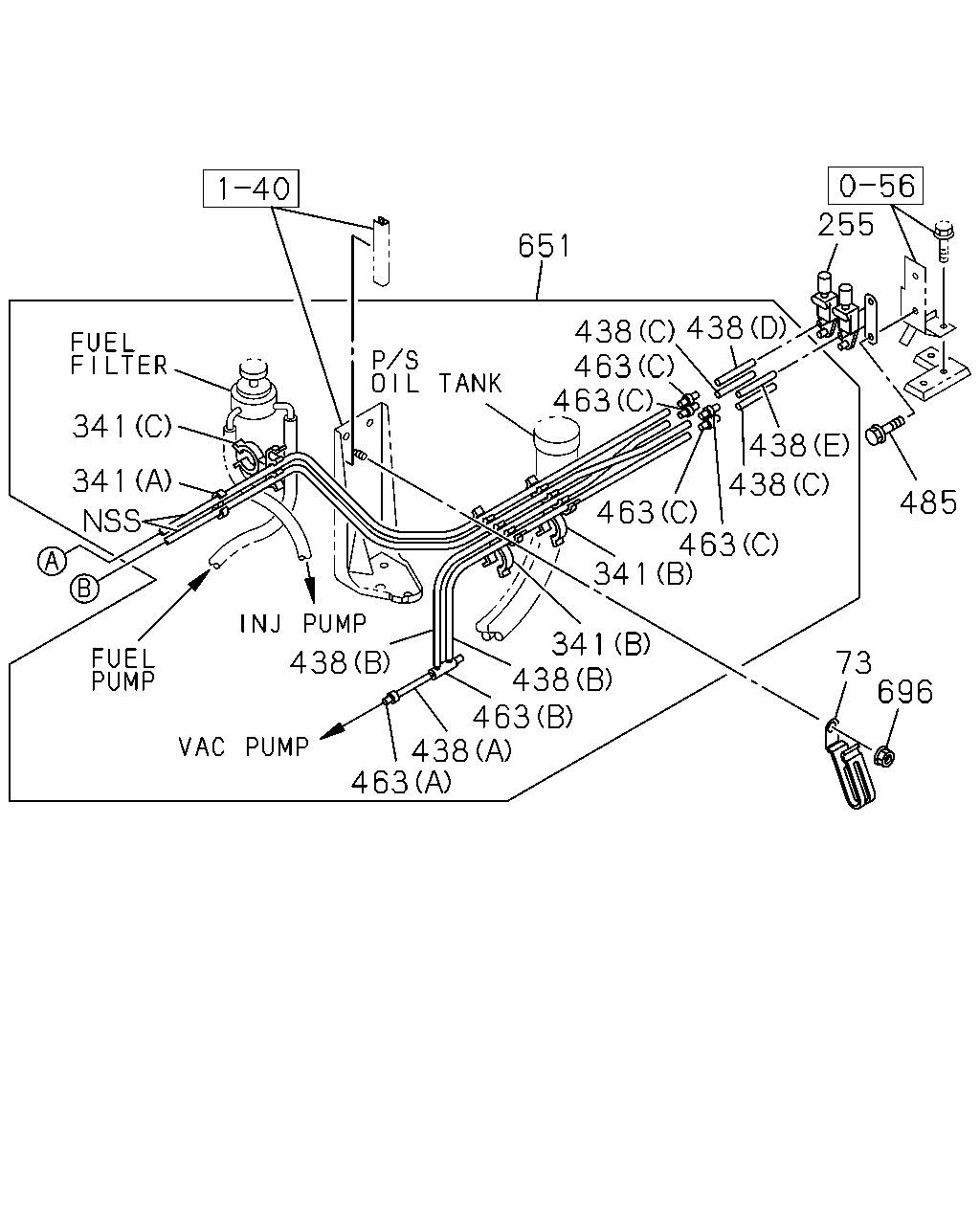

255 651 438 438 463 463 341 438 438 341 485 463 463 341 341 438 463 438 463 438 73 696

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	03.680 CLIP; VAC HOSE 03.278	8-94406-478-0	01	1	0108-		●
255	03.675 VALVE; VAC SW,EGR CONT 03.670	8-94340-699-0	01	1	0108-		●
255	03.675 VALVE; VAC SW,EGR CONT CHARGE AIR COOLER<6PL> 03.670	8-97240-699-0	01	1	0108-	●
341	03.680 CLIP; RUBBER HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0108-		●
341	03.680 CLIP; RUBBER HOSE 02.251 (B) 4XID=6.8	8-94132-799-0	02	1	0108-		●
341	03.680 CLIP; RUBBER HOSE (C) ID=14.5 & 7X4	8-94368-499-0	01	1	0108-		●
438	03.675 HOSE; RUBBER,VSV,EGR (A) L=80 SERVICED BY L=3000	0-04932-300-0	01	1	0108-		●
438	03.675 HOSE; RUBBER,VSV,EGR (B) L=240 SERVICED BY L=3000	0-04932-300-0	02	1	0108-		●
438	03.675 HOSE; RUBBER,VSV,EGR (C) L=80 SERVICED BY L=3000	0-04942-300-0	02	1	0108-		●
438	03.675 HOSE; RUBBER,VSV,EGR (E) L=80 SERVICED BY L=3000	0-04943-300-0	01	1	0108-		●
438	03.675 HOSE; RUBBER,VSV,EGR (D) L=80 SERVICED BY L=3000	0-04945-300-0	01	1	0108-		●
463	03.680 JOINT; RUBBER HOSE (A) 2WAY	8-94313-805-0	01	1	0108-		●
463	03.680 JOINT; RUBBER HOSE (B) 4WAY	8-94429-994-0	01	1	0108-		●
463	03.680 JOINT; RUBBER HOSE (C) 2WAY	8-97165-694-0	04	1	0108-		●
485	03.671 BOLT; VSV 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0108-		●
651	03.675 HOSE ASM; VSV,EGR	8-97259-684-0	01	1	0108-		●
696	03.680 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0108-		●

97 94 101 97 543 101 97 101 102 102 97 97 97 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ>	8-97313-779-0	01	1	0108-	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (C) L=60 SERVICED BY L=3000	0-04932-300-0	01	1	0108-	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (D) L=630 SERVICED BY L=3000	0-04932-300-0	01	1	0108-	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (E) L=120 SERVICED BY L=3000	0-04933-300-0	01	1	0108-	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (F) L=150 SERVICED BY L=3000	0-04942-300-0	01	1	0108-	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (A) L=80 SERVICED BY L=3000	0-04944-300-0	01	1	0108-	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (B) L=100 SERVICED BY L=3000	0-04944-300-0	01	1	0108-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	0108-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 03.680 (C) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0108-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 04.686 (B)	8-94425-589-0	01	1	0108-	●
102	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (A) 3WAY	8-94210-631-0	01	1	0108-	●
102	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (A) 3WAY	8-94210-631-0	01	1	0108-	●
102	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (B) 2WAY	8-97165-694-0	01	1	0108-	●
543	03.670 VALVE; VAC REGULATING ENG QUICK WARM UP SYSTEM<6JZ>	8-94111-775-0	01	1	0108-	●

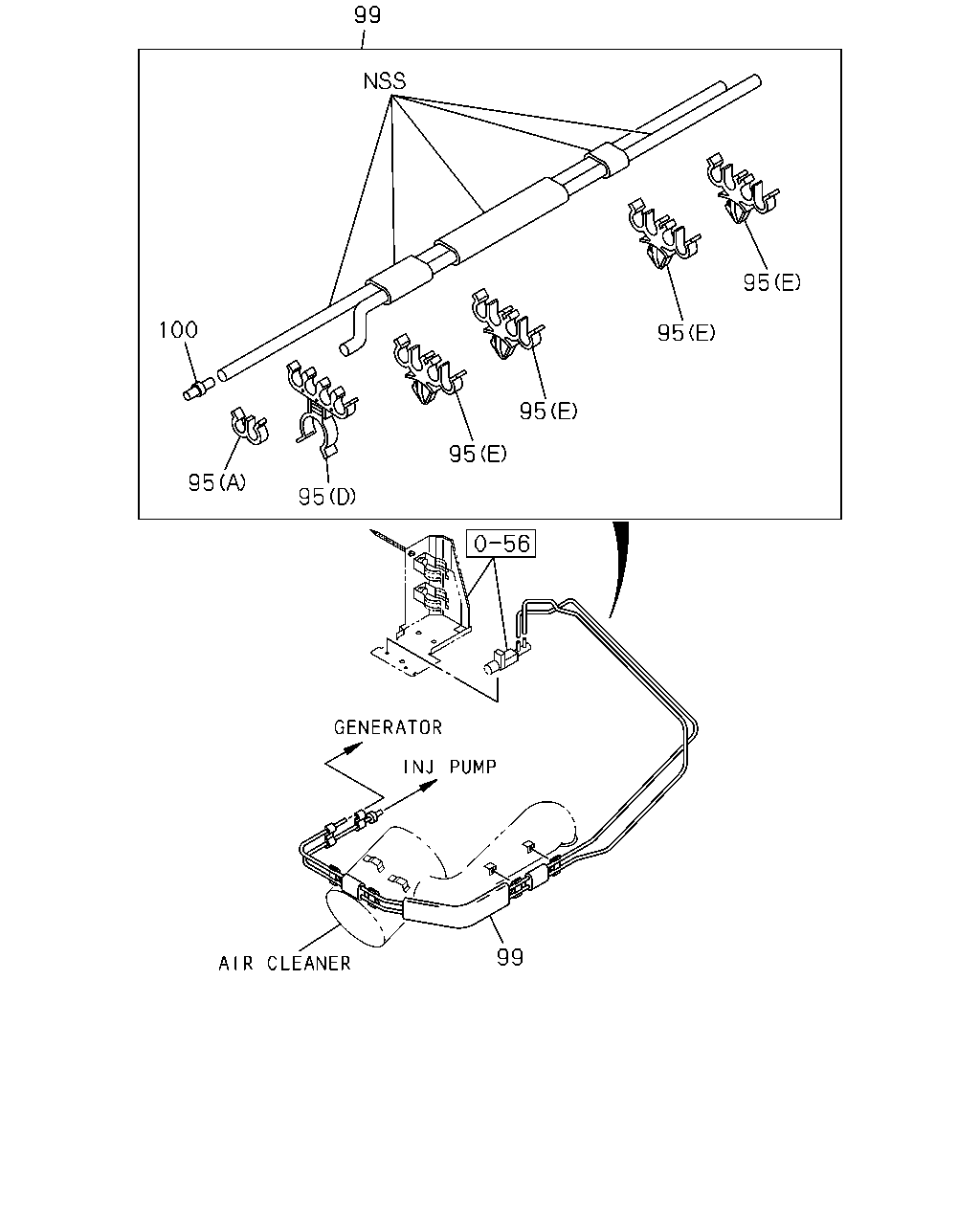

99 95 100 95 95 95 95 95 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
95	03.680 CLIP; HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0108-		●
95	03.680 CLIP; HOSE (E) 4XID=6.7	8-94315-422-0	04	1	0108-		●
95	03.680 CLIP; HOSE (D) ID=20 & 7X4	8-94368-500-0	01	1	0108-		●
95	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	0108-	●
95	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> 03.162 (B) ID=13.2 & 7.5	8-94315-426-0	01	1	0108-	●
95	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> 03.425 (C) ID=8.3 & 20.2	8-94470-738-0	03	1	0108-	●
99	03.675 HOSE; RUBBER	8-97225-259-0	01	1	0108-		●
100	03.680 JOINT; HOSE 2WAY	8-94313-805-0	01	1	0108-		●
100	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) 2WAY	8-97165-694-0	02	1	0108-	●
100	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (B) 3WAY	8-94208-695-0	01	1	0108-	●
100	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) 2WAY	8-97165-694-0	01	1	0108-	●

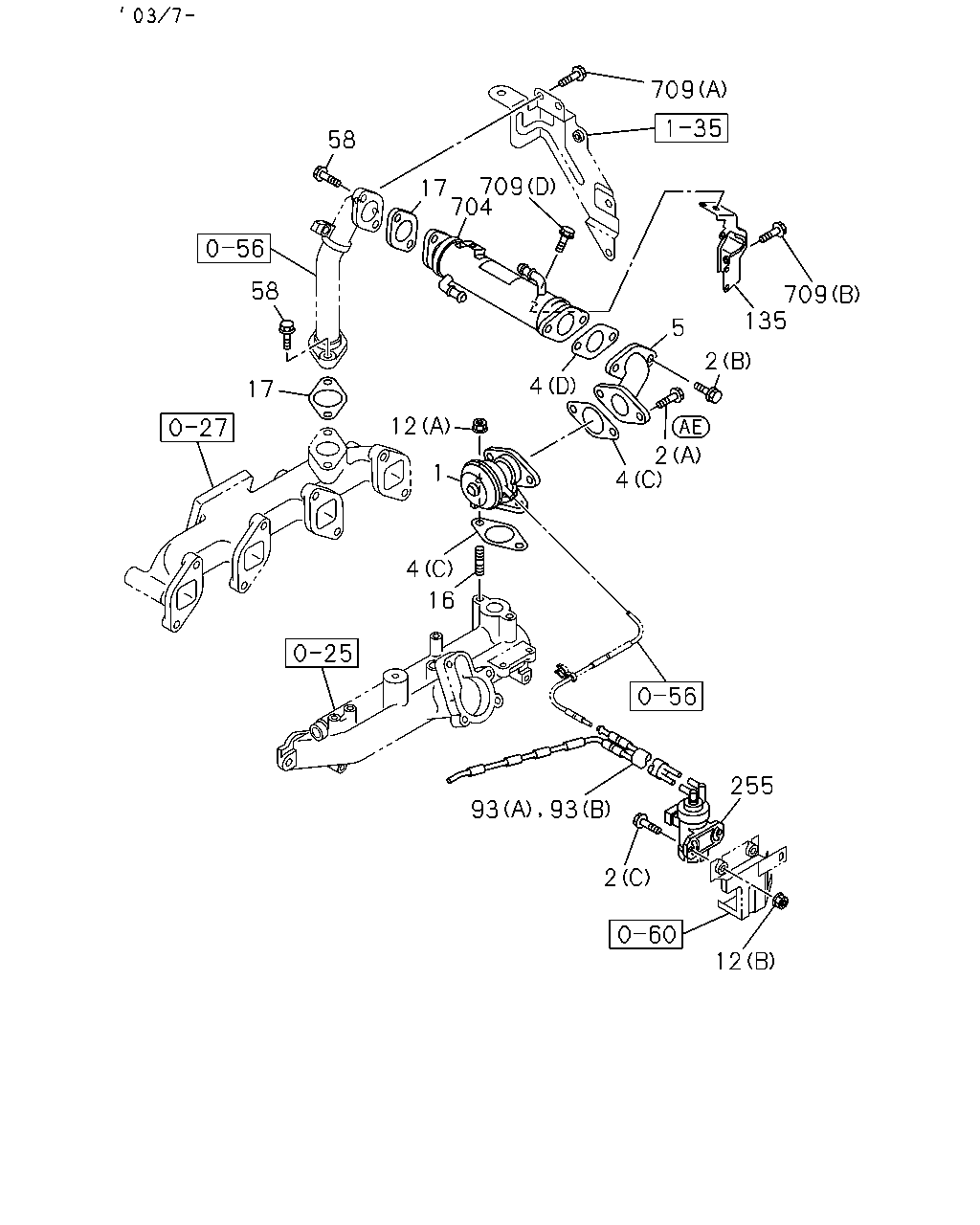

709 58 135 17 704 58 4 709 12 17 1 709 4 16 255 93 93 2 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; EGR	8-97135-674-4	02	1	0108-		●
1	03.670 VALVE; EGR CHARGE AIR COOLER<6PL>	8-97312-533-1	01	1	0108-	●
2	03.670 BOLT; EGR VLV CHARGE AIR COOLER<6PL> (A) M8X23 FLANGE	8-94103-629-2	02	1	0307-	●
2	03.670 BOLT; EGR VLV CHARGE AIR COOLER<6PL> 03.680 (B) M8X18 FLANGE	8-94368-563-1	02	1	0307-	●
2	03.670 BOLT; EGR VLV 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0108-		●
2	03.670 BOLT; EGR VLV CHARGE AIR COOLER<6PL> 09.190 (C) M6X30 FLANGE	0-28680-630-0	02	1	0108-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.665 (D)	8-97324-052-0	01	1	0307-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	0108-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	0108-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.665 (C)	8-97192-765-0	02	1	0108-	●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	0108-		●
12	03.671 NUT; EGR VLV CHARGE AIR COOLER<6PL> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0108-	●
12	03.671 NUT; EGR VLV CHARGE AIR COOLER<6PL> 01.540 (A) M8 FLANGE	0-91150-208-0	02	1	0108-	●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	0108-		●
16	03.275 STUD; EGR VLV CHARGE AIR COOLER<6PL> 03.342 M8X55 L=67	8-94343-897-0	02	1	0108-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-670-0	02	1	0108-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL>	8-94340-670-0	02	1	0108-	●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> 03.670 M8X23 FLANGE	8-94103-629-2	04	1	0108-	●
93	03.675 HOSE ASM CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97312-479-2	01	1	0108-	●
93	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A)	8-97312-480-2	01	1	0108-	●
135	03.680 BRACKET; EGR CHARGE AIR COOLER<6PL>	8-97311-694-0	01	1	0108-0306	●
135	03.680 BRACKET; EGR CHARGE AIR COOLER<6PL>	8-97329-585-0	01	1	0307-	●
255	03.675 VALVE; VAC SW,EGR CONT 03.670	8-94340-699-0	01	1	0108-		●
255	03.675 VALVE; VAC SW,EGR CONT CHARGE AIR COOLER<6PL> 03.670	8-97240-699-0	01	1	0108-	●
704	03.337 COOLER ASM; EGR CHARGE AIR COOLER<6PL>	8-97310-515-1	01	1	0108-0306	●
704	03.337 COOLER ASM; EGR CHARGE AIR COOLER<6PL>	8-97329-581-0	01	1	0307-	●
709	03.670 BOLT; EGR COOLER CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0108-0306	●
709	03.670 BOLT; EGR COOLER CHARGE AIR COOLER<6PL> 02.664 (D) M8X20 FLANGE	0-28680-820-0	01	1	0307-	●
709	03.670 BOLT; EGR COOLER CHARGE AIR COOLER<6PL> 01.271 (B) M8X40 FLANGE	0-28080-840-0	02	1	0108-	●
709	03.670 BOLT; EGR COOLER CHARGE AIR COOLER<6PL> 02.559 (C) M8X25 FLANGE	0-28680-825-0	02	1	0108-0306	●

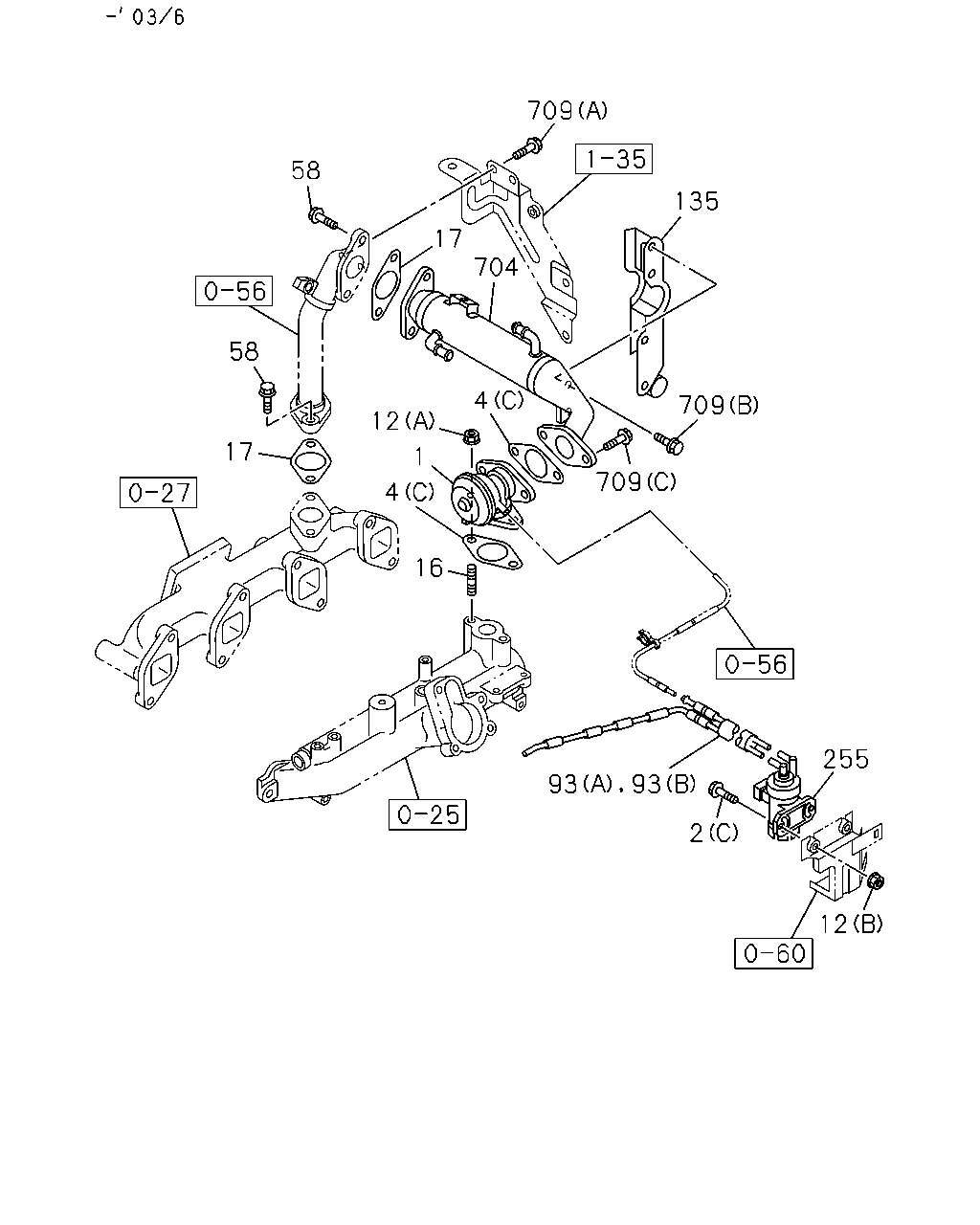

709 58 704 58 709 135 5 2 4 17 12 2 4 1 4 16 255 93 93 2 12 17 709

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; EGR	8-97135-674-4	02	1	0108-		●
1	03.670 VALVE; EGR CHARGE AIR COOLER<6PL>	8-97312-533-1	01	1	0108-	●
2	03.670 BOLT; EGR VLV CHARGE AIR COOLER<6PL> (A) M8X23 FLANGE	8-94103-629-2	02	1	0307-	●
2	03.670 BOLT; EGR VLV CHARGE AIR COOLER<6PL> 03.680 (B) M8X18 FLANGE	8-94368-563-1	02	1	0307-	●
2	03.670 BOLT; EGR VLV 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0108-		●
2	03.670 BOLT; EGR VLV CHARGE AIR COOLER<6PL> 09.190 (C) M6X30 FLANGE	0-28680-630-0	02	1	0108-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.665 (D)	8-97324-052-0	01	1	0307-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	0108-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	0108-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.665 (C)	8-97192-765-0	02	1	0108-	●
5	03.670 ADAPTER ASM CHARGE AIR COOLER<6PL>	8-97329-584-2	01	1	0307-	●
5	03.670 ADAPTER ASM	8-97117-260-0	01	1	0108-		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	0108-		●
12	03.671 NUT; EGR VLV CHARGE AIR COOLER<6PL> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0108-	●
12	03.671 NUT; EGR VLV CHARGE AIR COOLER<6PL> 01.540 (A) M8 FLANGE	0-91150-208-0	02	1	0108-	●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	0108-		●
16	03.275 STUD; EGR VLV CHARGE AIR COOLER<6PL> 03.342 M8X55 L=67	8-94343-897-0	02	1	0108-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-670-0	02	1	0108-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL>	8-94340-670-0	02	1	0108-	●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> 03.670 M8X23 FLANGE	8-94103-629-2	04	1	0108-	●
93	03.675 HOSE ASM CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97312-479-2	01	1	0108-	●
93	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A)	8-97312-480-2	01	1	0108-	●
135	03.680 BRACKET; EGR CHARGE AIR COOLER<6PL>	8-97311-694-0	01	1	0108-0306	●
135	03.680 BRACKET; EGR CHARGE AIR COOLER<6PL>	8-97329-585-0	01	1	0307-	●
255	03.675 VALVE; VAC SW,EGR CONT 03.670	8-94340-699-0	01	1	0108-		●
255	03.675 VALVE; VAC SW,EGR CONT CHARGE AIR COOLER<6PL> 03.670	8-97240-699-0	01	1	0108-	●
704	03.337 COOLER ASM; EGR CHARGE AIR COOLER<6PL>	8-97310-515-1	01	1	0108-0306	●
704	03.337 COOLER ASM; EGR CHARGE AIR COOLER<6PL>	8-97329-581-0	01	1	0307-	●
709	03.670 BOLT; EGR COOLER CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0108-0306	●
709	03.670 BOLT; EGR COOLER CHARGE AIR COOLER<6PL> 02.664 (D) M8X20 FLANGE	0-28680-820-0	01	1	0307-	●
709	03.670 BOLT; EGR COOLER CHARGE AIR COOLER<6PL> 01.271 (B) M8X40 FLANGE	0-28080-840-0	02	1	0108-	●
709	03.670 BOLT; EGR COOLER CHARGE AIR COOLER<6PL> 02.559 (C) M8X25 FLANGE	0-28680-825-0	02	1	0108-0306	●

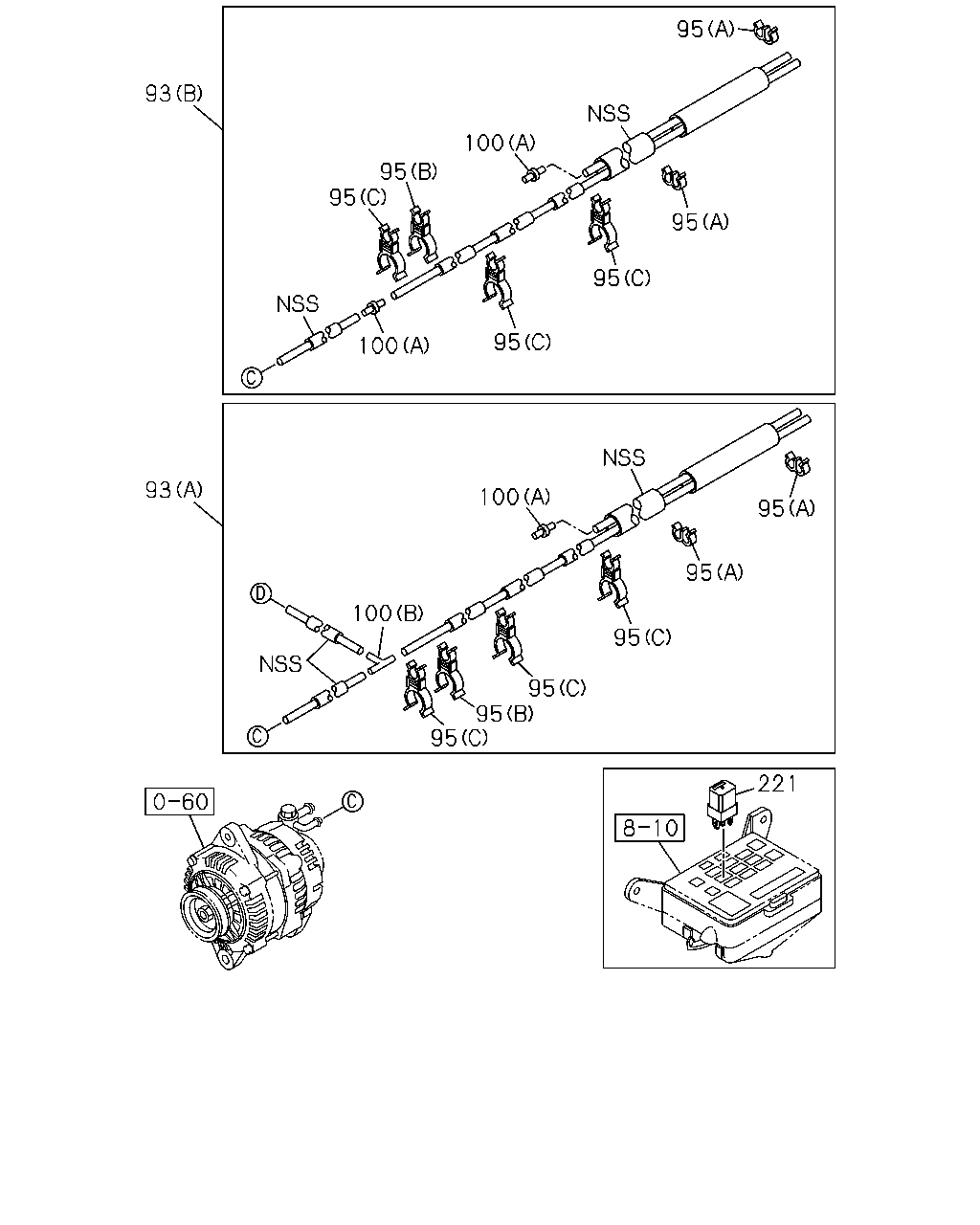

95 93 100 95 95 95 95 95 100 93 100 95 95 100 95 95 95 95 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	03.675 HOSE ASM CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97312-479-2	01	1	0108-	●
93	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A)	8-97312-480-2	01	1	0108-	●
95	03.680 CLIP; HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0108-		●
95	03.680 CLIP; HOSE (E) 4XID=6.7	8-94315-422-0	04	1	0108-		●
95	03.680 CLIP; HOSE (D) ID=20 & 7X4	8-94368-500-0	01	1	0108-		●
95	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	0108-	●
95	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> 03.162 (B) ID=13.2 & 7.5	8-94315-426-0	01	1	0108-	●
95	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> 03.425 (C) ID=8.3 & 20.2	8-94470-738-0	03	1	0108-	●
100	03.680 JOINT; HOSE 2WAY	8-94313-805-0	01	1	0108-		●
100	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) 2WAY	8-97165-694-0	02	1	0108-	●
100	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (B) 3WAY	8-94208-695-0	01	1	0108-	●
100	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) 2WAY	8-97165-694-0	01	1	0108-	●
221	03.670 RELAY; MAIN 02.100 12V 20A	8-97173-039-1	01	1	0108-	●
