0-50 — OIL COOLER AND OIL FILTER (#19829) — 56 parça

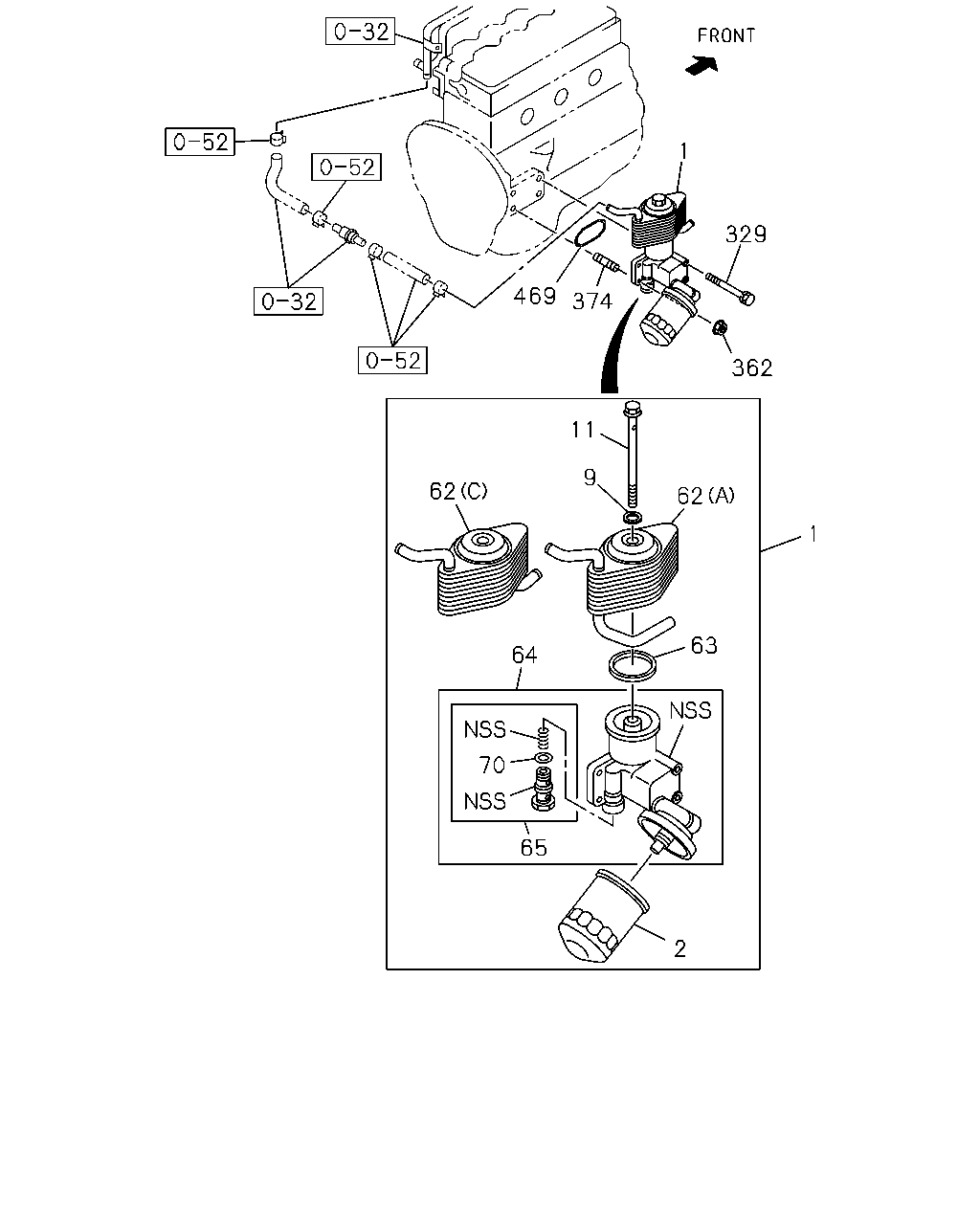

1 329 469 374 362 11 9 62 62 1 63 64 70 65 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.540 FILTER & COOLER ASM; OIL	8-97069-792-2	01	1	0108-0212	●
1	01.540 FILTER & COOLER ASM; OIL	8-97351-570-2	01	1	0301-	●
1	01.540 FILTER & COOLER ASM; OIL CHARGE AIR COOLER<6PL>	8-97249-278-1	01	1	0108-		●
2	01.836 ELEMENT; OIL FILTER	8-94340-697-1	01	1	0108-0204	●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0205-	●
2	01.836 ELEMENT; OIL FILTER CHARGE AIR COOLER<6PL>	8-97312-740-0	01	1	0108-		●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97047-000-0	01	1	0108-	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL>	8-97319-136-0	01	1	0108-		●
11	01.840 BOLT; CENTER	8-97046-999-1	01	1	0108-0212	●
11	01.840 BOLT; CENTER	8-97094-724-1	01	1	0301-	●
11	01.840 BOLT; CENTER CHARGE AIR COOLER<6PL>	8-97319-135-0	01	1	0108-		●
62	01.540 COOLER ASM; OIL (A)	8-97078-376-1	01	1	0108-0212	●
62	01.540 COOLER ASM; OIL (C)	8-97367-198-0	01	1	0301-0305	●
62	01.540 COOLER ASM; OIL	8-97369-679-0	01	1	0306-	●
62	01.540 COOLER ASM; OIL CHARGE AIR COOLER<6PL> (B)	8-97319-556-0	01	1	0108-		●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	0108-	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97078-377-1	01	1	0108-	●
64	01.540 BODY; OIL FILTER & OIL COOLER CHARGE AIR COOLER<6PL>	8-97319-445-0	01	1	0108-		●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	0108-	●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	0108-	●
70	01.844 GASKET; PLUG,OIL FILTER CHARGE AIR COOLER<6PL>	8-97914-706-0	02	1	0108-		●
329	01.840 BOLT; OIL FILTER 01.062 M8X95 FLANGE	1-09044-075-1	02	1	0108-	●
329	01.840 BOLT; OIL FILTER CHARGE AIR COOLER<6PL> 01.062 M8X95 FLANGE	1-09044-075-1	02	1	0108-		●
362	01.837 NUT; OIL FILTER 07.633 M8 FLANGE	0-91150-108-0	02	1	0108-	●
362	01.837 NUT; OIL FILTER CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0108-		●
374	01.840 STUD; OIL FILTER 03.901 M8X25 L=37	9-04110-825-0	02	1	0108-	●
374	01.840 STUD; OIL FILTER CHARGE AIR COOLER<6PL> 03.901 M8X25 L=37	9-04110-825-0	02	1	0108-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	0108-	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 01.844	8-97065-983-0	01	1	0108-		●

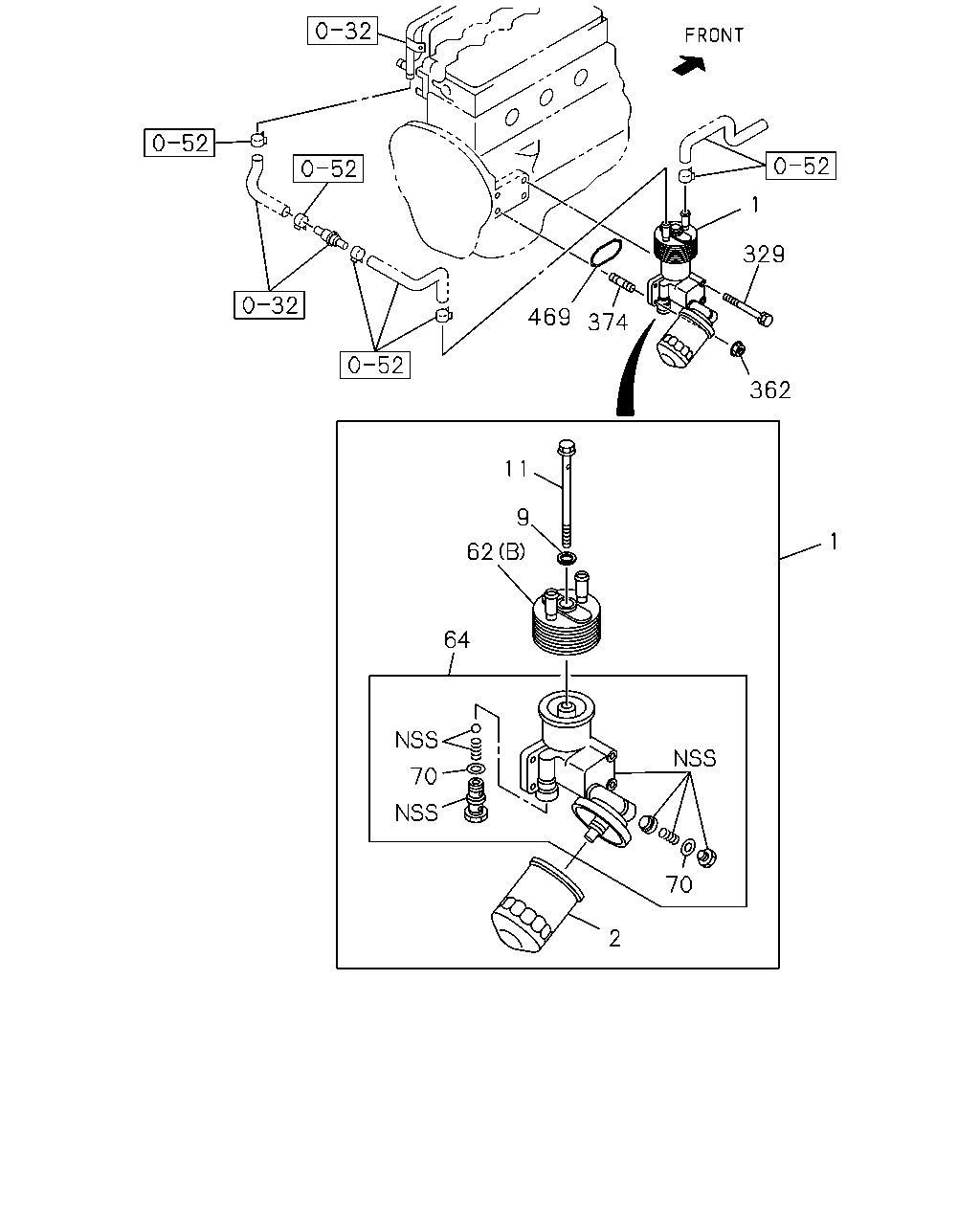

1 329 469 374 362 11 9 1 62 64 70 70 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.540 FILTER & COOLER ASM; OIL	8-97069-792-2	01	1	0108-0212	●
1	01.540 FILTER & COOLER ASM; OIL	8-97351-570-2	01	1	0301-	●
1	01.540 FILTER & COOLER ASM; OIL CHARGE AIR COOLER<6PL>	8-97249-278-1	01	1	0108-		●
2	01.836 ELEMENT; OIL FILTER	8-94340-697-1	01	1	0108-0204	●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0205-	●
2	01.836 ELEMENT; OIL FILTER CHARGE AIR COOLER<6PL>	8-97312-740-0	01	1	0108-		●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97047-000-0	01	1	0108-	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL>	8-97319-136-0	01	1	0108-		●
11	01.840 BOLT; CENTER	8-97046-999-1	01	1	0108-0212	●
11	01.840 BOLT; CENTER	8-97094-724-1	01	1	0301-	●
11	01.840 BOLT; CENTER CHARGE AIR COOLER<6PL>	8-97319-135-0	01	1	0108-		●
62	01.540 COOLER ASM; OIL (A)	8-97078-376-1	01	1	0108-0212	●
62	01.540 COOLER ASM; OIL (C)	8-97367-198-0	01	1	0301-0305	●
62	01.540 COOLER ASM; OIL	8-97369-679-0	01	1	0306-	●
62	01.540 COOLER ASM; OIL CHARGE AIR COOLER<6PL> (B)	8-97319-556-0	01	1	0108-		●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97078-377-1	01	1	0108-	●
64	01.540 BODY; OIL FILTER & OIL COOLER CHARGE AIR COOLER<6PL>	8-97319-445-0	01	1	0108-		●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	0108-	●
70	01.844 GASKET; PLUG,OIL FILTER CHARGE AIR COOLER<6PL>	8-97914-706-0	02	1	0108-		●
329	01.840 BOLT; OIL FILTER 01.062 M8X95 FLANGE	1-09044-075-1	02	1	0108-	●
329	01.840 BOLT; OIL FILTER CHARGE AIR COOLER<6PL> 01.062 M8X95 FLANGE	1-09044-075-1	02	1	0108-		●
362	01.837 NUT; OIL FILTER 07.633 M8 FLANGE	0-91150-108-0	02	1	0108-	●
362	01.837 NUT; OIL FILTER CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0108-		●
374	01.840 STUD; OIL FILTER 03.901 M8X25 L=37	9-04110-825-0	02	1	0108-	●
374	01.840 STUD; OIL FILTER CHARGE AIR COOLER<6PL> 03.901 M8X25 L=37	9-04110-825-0	02	1	0108-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	0108-	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 01.844	8-97065-983-0	01	1	0108-		●
