◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶

0-40 — FUEL INJECTION SYSTEM (#19826) — 108 parça

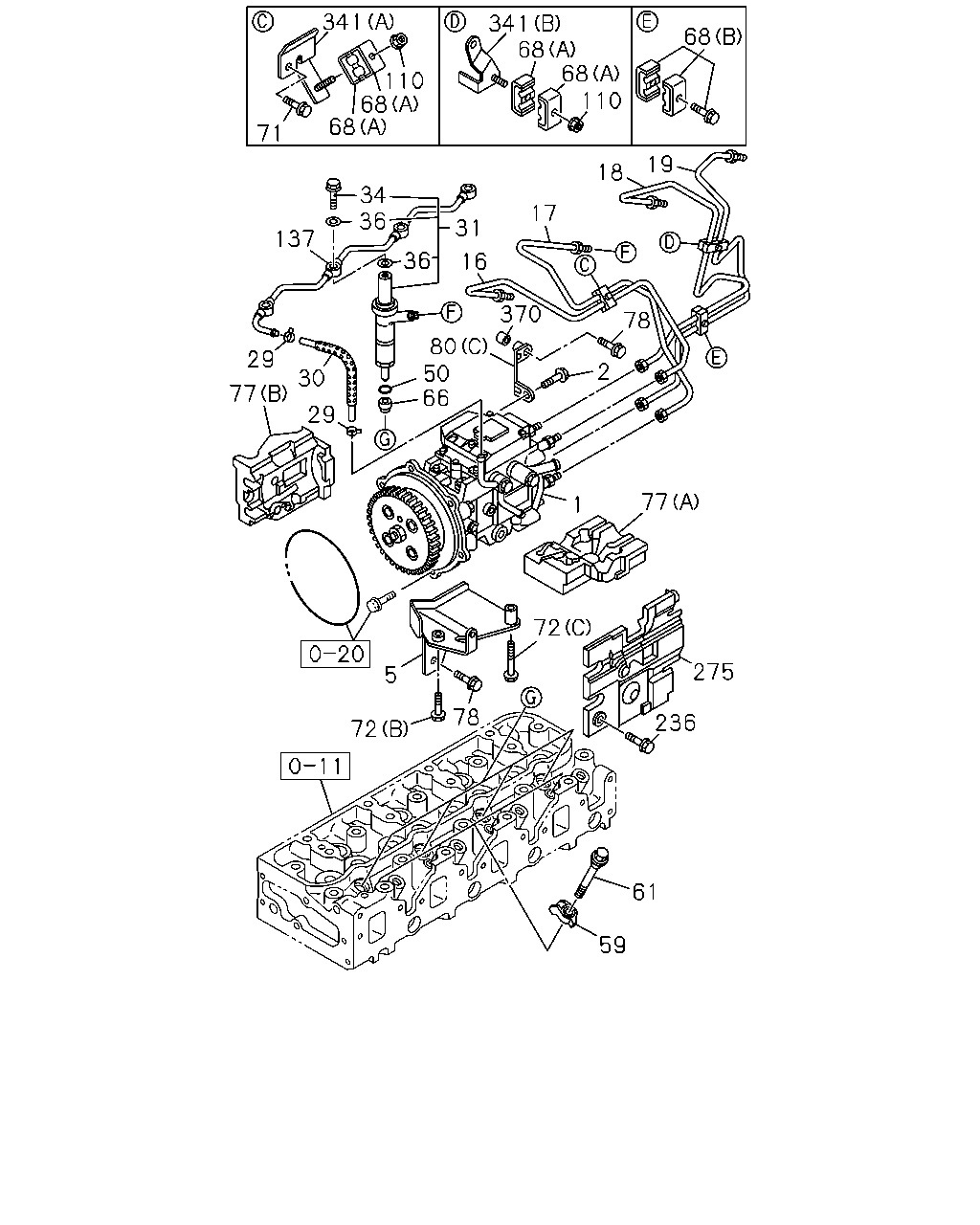

341 341 68 68 110 68 110 68 68 71 19 18 34 36 17 137 31 36 16 370 78 80 50 66 29 2 30 77 29 77 1 72 275 5 78 236 72 61 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SINGAPORE EQUIPMENT(S9Y)	8-97310-504-0	01	1	0108-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SINGAPORE EQUIPMENT(S9Y)	8-97263-390-0	01	1	0108-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97249-238-2	01	1	0108-		●
2	03.330 BOLT; INJ PUMP CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0108-		●
5	03.330 BRACKET; INJ PUMP CHARGE AIR COOLER<6PL>	8-97253-452-2	01	1	0108-		●
16	03.330 PIPE; INJ NO.1	8-94368-242-4	01	1	0108-	●
16	03.330 PIPE; INJ NO.1 CHARGE AIR COOLER<6PL>	8-97300-013-3	01	1	0108-		●
17	03.330 PIPE; INJ NO.2	8-97109-539-2	01	1	0108-	●
17	03.330 PIPE; INJ NO.2 CHARGE AIR COOLER<6PL>	8-97300-014-3	01	1	0108-		●
18	03.330 PIPE; INJ NO.3	8-97109-540-2	01	1	0108-	●
18	03.330 PIPE; INJ NO.3 CHARGE AIR COOLER<6PL>	8-97300-015-3	01	1	0108-		●
19	03.330 PIPE; INJ NO.4	8-97109-541-2	01	1	0108-	●
19	03.330 PIPE; INJ NO.4 CHARGE AIR COOLER<6PL>	8-97300-016-3	01	1	0108-		●
29	03.162 CLIP; HOSE 01.219 ID=12	8-94238-610-0	02	1	0108-0301	●
29	03.162 CLIP; HOSE CHARGE AIR COOLER<6PL> 01.219 ID=12	8-94238-610-0	02	1	0108-0301		●
29	03.162 CLIP; HOSE 03.163 ID=11	8-97173-219-0	02	1	0302-	●
29	03.162 CLIP; HOSE CHARGE AIR COOLER<6PL> 03.163 ID=11	8-97173-219-0	02	1	0302-		●
30	03.163 HOSE; RUBBER,FUEL LEAK L=320 W/INSULATOR	8-94427-501-2	01	1	0108-0301	●
30	03.163 HOSE; RUBBER,FUEL LEAK CHARGE AIR COOLER<6PL> L=320 W/INSULATOR	8-94427-501-2	01	1	0108-0301		●
30	03.163 HOSE; RUBBER,FUEL LEAK L=320	8-97364-773-0	01	1	0302-	●
30	03.163 HOSE; RUBBER,FUEL LEAK CHARGE AIR COOLER<6PL> L=320	8-97364-773-0	01	1	0302-		●
31	03.332 NOZZLE ASM; INJ	8-97081-157-2	04	1	0108-	●
31	03.332 NOZZLE ASM; INJ CHARGE AIR COOLER<6PL>	8-97300-942-1	04	1	0108-		●
34	03.330 BOLT; EYE,NOZZLE HOLDER CHARGE AIR COOLER<6PL> 03.306	8-94320-307-0	04	1	0108-		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97084-347-0	08	1	0108-		●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97287-402-1	04	1	0108-		●
59	03.332 CLAMP; NOZZLE HOLDER CHARGE AIR COOLER<6PL>	8-97259-884-0	04	1	0108-		●
61	03.332 BOLT; CLAMP NOZZLE HOLDER CHARGE AIR COOLER<6PL>	8-94468-020-2	04	1	0108-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0108-		●
68	03.162 CLIP; INJ PIPE CHARGE AIR COOLER<6PL> (A) ID=15 L=30	1-09701-132-1	04	1	0108-		●
68	03.162 CLIP; INJ PIPE CHARGE AIR COOLER<6PL> (B)	8-97224-041-1	01	1	0108-		●
71	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0108-		●
72	03.330 BOLT; BRKT TO INJ PUMP 01.516 (A) M10X20 W/LK WASHER	0-50051-020-0	02	1	0108-	●
72	03.330 BOLT; BRKT TO INJ PUMP CHARGE AIR COOLER<6PL> 09.181 (B) M10X25 FLANGE	0-28781-025-0	01	1	0108-		●
72	03.330 BOLT; BRKT TO INJ PUMP CHARGE AIR COOLER<6PL> 00.669 (C) M10X40 FLANGE	0-28781-040-0	01	1	0108-		●
77	03.340 RUBBER; SPACE,INJ PUMP CHARGE AIR COOLER<6PL> (A)	8-97249-233-1	01	1	0108-		●
77	03.340 RUBBER; SPACE,INJ PUMP CHARGE AIR COOLER<6PL> (B)	8-97254-238-0	01	1	0108-		●
78	03.330 BOLT; BRKT TO C/BL 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0108-	●
78	03.330 BOLT; BRKT TO C/BL CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE	0-28680-830-0	01	1	0108-		●
78	03.330 BOLT; BRKT TO C/BL CHARGE AIR COOLER<6PL> 03.611 M10X20 FLANGE	0-28681-020-0	02	1	0108-		●
80	03.306 BRACKET; PUMP 03.330 (A)	8-94133-761-1	01	1	0108-	●
80	03.306 BRACKET; PUMP 03.330 (B)	8-94133-762-2	01	1	0108-	●
80	03.306 BRACKET; PUMP CHARGE AIR COOLER<6PL> (C)	8-97253-451-2	01	1	0108-		●
110	03.330 NUT; CLIP CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE	0-91150-106-0	02	1	0108-		●
137	03.163 PIPE ASM; LEAK OFF CHARGE AIR COOLER<6PL>	8-94467-727-3	01	1	0108-		●
236	03.335 BOLT; COVER CHARGE AIR COOLER<6PL> 16.716 M8X25	8-94493-360-1	03	1	0108-		●
275	03.335 COVER; INJ PUMP CHARGE AIR COOLER<6PL>	8-97249-232-1	01	1	0108-		●
341	03.330 BRACKET; CLIP,INJ PIPE CHARGE AIR COOLER<6PL> (A)	8-97255-534-0	01	1	0108-		●
341	03.330 BRACKET; CLIP,INJ PIPE CHARGE AIR COOLER<6PL> (B)	8-97310-508-0	01	1	0108-		●
370	03.332 PIECE; DIST CHARGE AIR COOLER<6PL>	8-97323-430-0	01	1	0108-		●

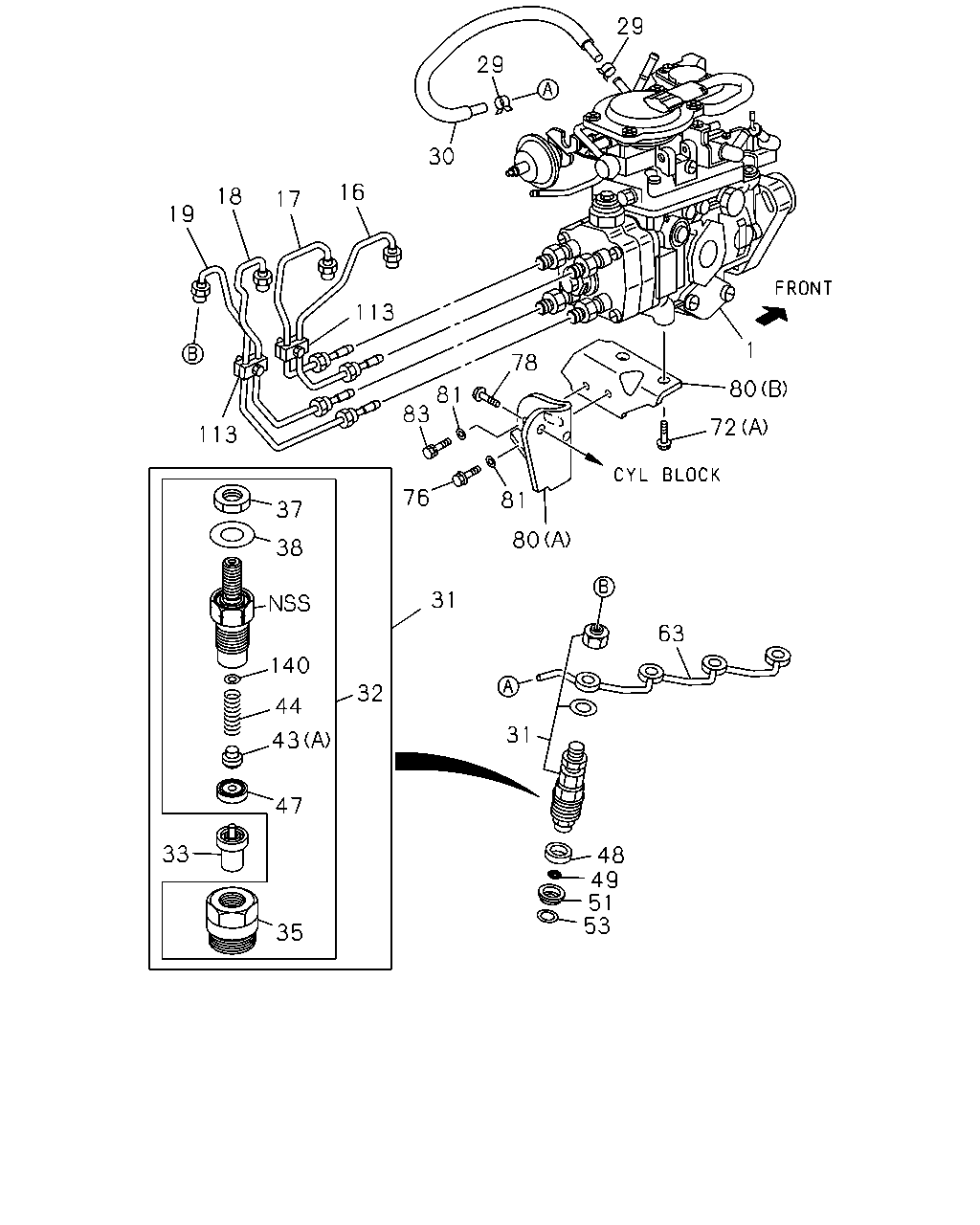

29 29 30 16 18 17 19 113 1 78 80 81 83 72 113 76 81 37 80 38 31 63 140 32 44 31 43 47 33 48 49 51 53 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SINGAPORE EQUIPMENT(S9Y)	8-97310-504-0	01	1	0108-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SINGAPORE EQUIPMENT(S9Y)	8-97263-390-0	01	1	0108-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97249-238-2	01	1	0108-		●
16	03.330 PIPE; INJ NO.1	8-94368-242-4	01	1	0108-	●
16	03.330 PIPE; INJ NO.1 CHARGE AIR COOLER<6PL>	8-97300-013-3	01	1	0108-		●
17	03.330 PIPE; INJ NO.2	8-97109-539-2	01	1	0108-	●
17	03.330 PIPE; INJ NO.2 CHARGE AIR COOLER<6PL>	8-97300-014-3	01	1	0108-		●
18	03.330 PIPE; INJ NO.3	8-97109-540-2	01	1	0108-	●
18	03.330 PIPE; INJ NO.3 CHARGE AIR COOLER<6PL>	8-97300-015-3	01	1	0108-		●
19	03.330 PIPE; INJ NO.4	8-97109-541-2	01	1	0108-	●
19	03.330 PIPE; INJ NO.4 CHARGE AIR COOLER<6PL>	8-97300-016-3	01	1	0108-		●
29	03.162 CLIP; HOSE 01.219 ID=12	8-94238-610-0	02	1	0108-0301	●
29	03.162 CLIP; HOSE CHARGE AIR COOLER<6PL> 01.219 ID=12	8-94238-610-0	02	1	0108-0301		●
29	03.162 CLIP; HOSE 03.163 ID=11	8-97173-219-0	02	1	0302-	●
29	03.162 CLIP; HOSE CHARGE AIR COOLER<6PL> 03.163 ID=11	8-97173-219-0	02	1	0302-		●
30	03.163 HOSE; RUBBER,FUEL LEAK L=320 W/INSULATOR	8-94427-501-2	01	1	0108-0301	●
30	03.163 HOSE; RUBBER,FUEL LEAK CHARGE AIR COOLER<6PL> L=320 W/INSULATOR	8-94427-501-2	01	1	0108-0301		●
30	03.163 HOSE; RUBBER,FUEL LEAK L=320	8-97364-773-0	01	1	0302-	●
30	03.163 HOSE; RUBBER,FUEL LEAK CHARGE AIR COOLER<6PL> L=320	8-97364-773-0	01	1	0302-		●
31	03.332 NOZZLE ASM; INJ	8-97081-157-2	04	1	0108-	●
31	03.332 NOZZLE ASM; INJ CHARGE AIR COOLER<6PL>	8-97300-942-1	04	1	0108-		●
32	03.332 HOLDER ASM; NOZZLE	8-97081-159-0	04	1	0108-	●
33	03.332 NOZZLE; INJ	8-97081-158-1	04	1	0108-	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-97086-142-0	04	1	0108-	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER CHARGE AIR COOLER<6PL>	8-97314-755-0	04	1	0108-		●
37	03.330 NUT; CAP,NOZZLE HOLDER 03.162 M12	8-94174-344-0	08	1	0108-	●
38	03.332 GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). ID=12 W/2-HOLE	8-94104-993-0	08	1	0108-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94128-963-0	04	1	0108-	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94128-964-0	04	1	0108-	●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97086-141-0	04	1	0108-	●
48	03.332 WASHER; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97139-710-0	04	1	0108-	●
49	03.330 WASHER; CORRUGATED,NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=5.4 OD=10.6 CORRUGATED WASHER	8-94420-247-0	04	1	0108-	●
51	03.332 SHIELD; HEAT,INJ NOZZLE	8-97139-711-0	04	1	0108-	●
53	03.332 WASHER; HEAT SHIELD ID=14.2 OD=17.3	8-94257-593-0	04	1	0108-	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-94368-249-2	01	1	0108-	●
72	03.330 BOLT; BRKT TO INJ PUMP 01.516 (A) M10X20 W/LK WASHER	0-50051-020-0	02	1	0108-	●
72	03.330 BOLT; BRKT TO INJ PUMP CHARGE AIR COOLER<6PL> 09.181 (B) M10X25 FLANGE	0-28781-025-0	01	1	0108-		●
72	03.330 BOLT; BRKT TO INJ PUMP CHARGE AIR COOLER<6PL> 00.669 (C) M10X40 FLANGE	0-28781-040-0	01	1	0108-		●
76	03.330 BOLT; BRKT TO BRKT 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	0108-	●
78	03.330 BOLT; BRKT TO C/BL 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0108-	●
78	03.330 BOLT; BRKT TO C/BL CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE	0-28680-830-0	01	1	0108-		●
78	03.330 BOLT; BRKT TO C/BL CHARGE AIR COOLER<6PL> 03.611 M10X20 FLANGE	0-28681-020-0	02	1	0108-		●
80	03.306 BRACKET; PUMP 03.330 (A)	8-94133-761-1	01	1	0108-	●
80	03.306 BRACKET; PUMP 03.330 (B)	8-94133-762-2	01	1	0108-	●
80	03.306 BRACKET; PUMP CHARGE AIR COOLER<6PL> (C)	8-97253-451-2	01	1	0108-		●
81	03.330 WASHER; PL,BRKT TO PUMP 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0108-	●
83	03.330 BOLT; BRKT TO BRKT 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	0108-	●
113	03.162 CLIP; INJ PIPE 03.330	5-15419-013-1	02	1	0108-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.10	8-94176-962-0	AR	1	0108-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.20	8-94176-963-0	AR	1	0108-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.30	8-94176-964-0	AR	1	0108-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.40	8-94176-965-0	AR	1	0108-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.50	8-94176-966-0	AR	1	0108-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.52	8-94176-967-0	AR	1	0108-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.54	8-94176-968-0	AR	1	0108-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.56	8-94176-969-0	AR	1	0108-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.58	8-94176-970-0	AR	1	0108-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.80	8-94176-971-0	AR	1	0108-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
