0-36 — TURBOCHARGER SYSTEM (#19824) — 108 parça

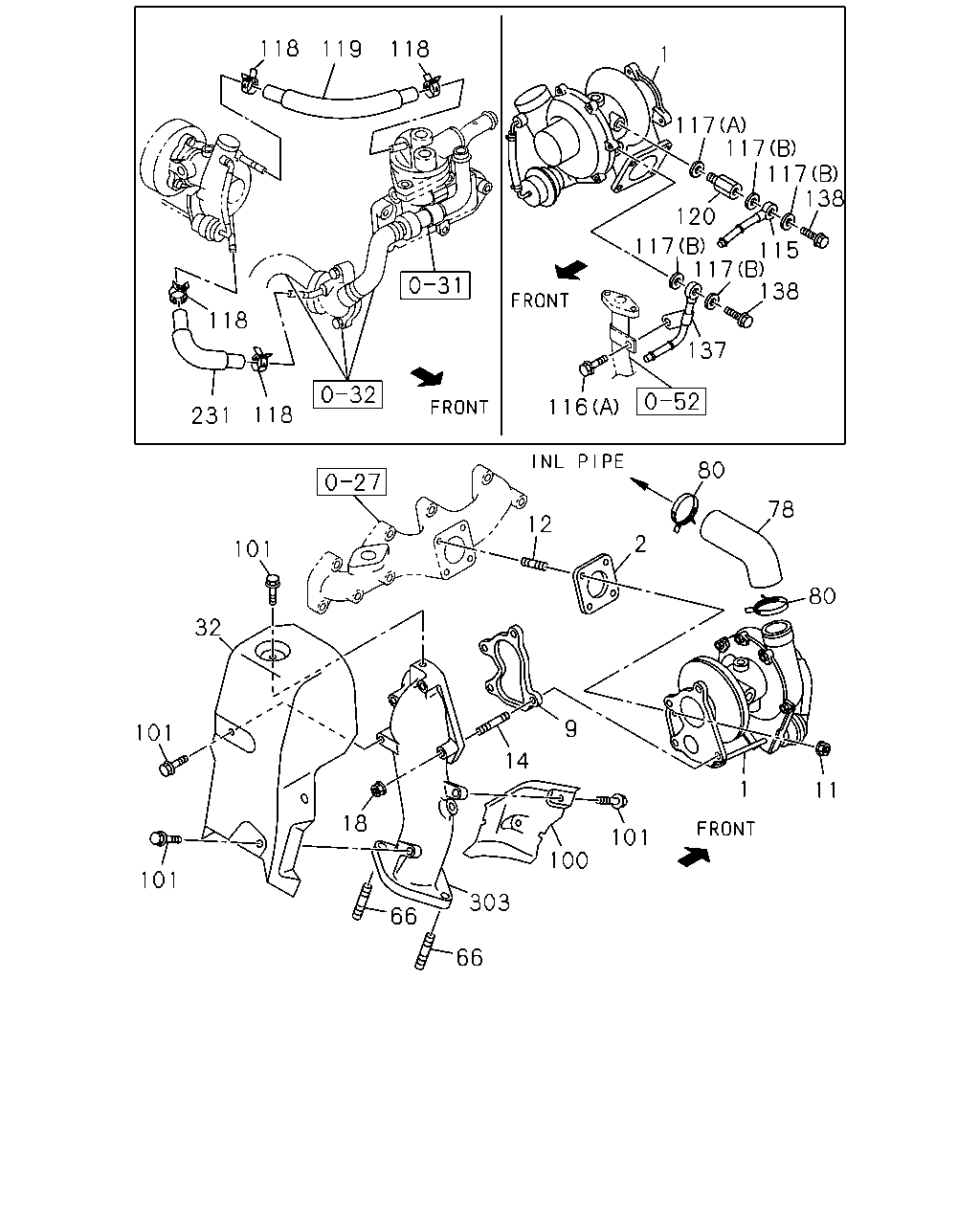

118 119 118 1 117 117 117 138 120 117 115 117 138 118 137 116 118 231 80 12 78 2 101 80 32 9 101 14 1 11 18 101 100 101 303 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97070-029-2	01	1	0108-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97289-468-2	01	1	0108-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0108-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97315-266-0	01	1	0108-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-604-0	01	1	0108-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97139-726-0	01	1	0108-		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0108-	●
11	03.342 NUT; TURBOCHARGER CHARGE AIR COOLER<6PL> 03.613 M8 FLANGE	8-97161-607-0	04	1	0108-		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0108-	●
12	03.342 STUD; TURBOCHARGER CHARGE AIR COOLER<6PL> M8X20 L=31	8-97104-508-1	04	1	0108-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X41 L=52	8-97188-452-0	04	1	0108-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE CHARGE AIR COOLER<6PL> M8X41 L=52	8-97188-452-0	04	1	0108-		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0108-	●
18	03.613 NUT; EXH PIPE CHARGE AIR COOLER<6PL> M8 FLANGE	8-97161-607-0	04	1	0108-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97087-029-0	01	1	0108-	●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	0108-	●
66	03.342 STUD; EXH PIPE CHARGE AIR COOLER<6PL> 03.613 M10X38 L=53	5-09302-007-0	02	1	0108-		●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-97188-117-1	01	1	0108-	●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER ID=45.5-56.5	8-97131-943-0	02	1	0108-	●
100	03.417 PROTECTOR; HEAT,EXH MANIF	8-97038-109-1	01	1	0108-	●
101	03.602 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	06	1	0108-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT 01.097	8-97063-234-0	01	1	0108-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97289-450-2	01	1	0108-		●
116	03.342 BOLT; WATER PIPE 00.685 (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	0108-	●
116	03.342 BOLT; WATER PIPE CHARGE AIR COOLER<6PL> 00.685 (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	0108-		●
116	03.342 BOLT; WATER PIPE CHARGE AIR COOLER<6PL> 02.500 (C) M6X10 FLANGE	0-28080-610-0	02	1	0108-		●
116	03.342 BOLT; WATER PIPE CHARGE AIR COOLER<6PL> 03.670 (B) M6X20 FLANGE	0-28080-620-0	02	1	0108-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) T=2.5	8-94472-584-1	01	1	0108-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0108-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.374 (C)	8-94321-135-1	04	1	0108-		●
118	03.342 CLIP; WATER HOSE 01.153 ID=12.8	8-94367-943-0	04	1	0108-	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> 01.153 ID=12.8	8-94367-943-0	14	1	0108-		●
119	03.342 HOSE; WATER,TURBOCHARGER L=250 W/INSULATOR	8-94340-669-1	01	1	0108-	●
119	03.342 HOSE; WATER,TURBOCHARGER CHARGE AIR COOLER<6PL> L=250 W/INSULATOR	8-94340-669-1	01	1	0108-		●
120	01.097 ADAPTER; WATER	8-94472-583-0	01	1	0108-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN 03.342	8-94472-585-2	01	1	0108-	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0108-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> 01.097 L=170 SERVICED BY L=3000	0-03559-300-0	01	1	0109-0112		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97325-123-0	01	1	0201-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT L=160 W/INSULATOR	8-94325-255-0	01	1	0108-0108	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> L=160 W/INSULATOR	8-94325-255-0	01	1	0108-0108		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT L=160 W/INSULATOR	8-94325-255-0	01	1	0109-	●
303	03.440 ADAPTER; THROTTLE BODY,EXH	8-97087-028-1	01	1	0108-	●

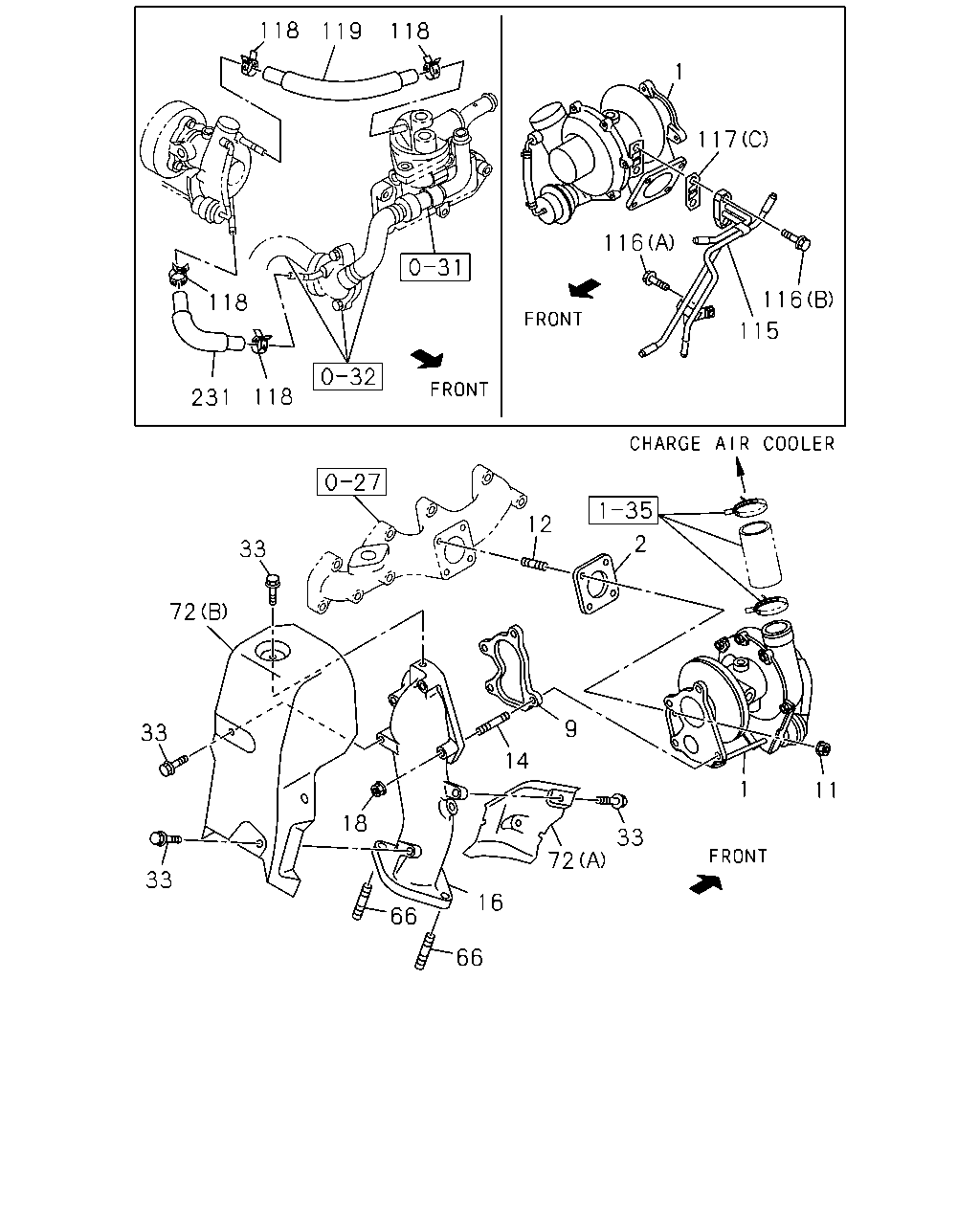

118 119 118 1 117 116 116 118 115 118 231 12 2 33 72 9 33 14 1 11 18 33 72 33 16 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97070-029-2	01	1	0108-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97289-468-2	01	1	0108-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0108-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97315-266-0	01	1	0108-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-604-0	01	1	0108-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97139-726-0	01	1	0108-		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0108-	●
11	03.342 NUT; TURBOCHARGER CHARGE AIR COOLER<6PL> 03.613 M8 FLANGE	8-97161-607-0	04	1	0108-		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0108-	●
12	03.342 STUD; TURBOCHARGER CHARGE AIR COOLER<6PL> M8X20 L=31	8-97104-508-1	04	1	0108-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X41 L=52	8-97188-452-0	04	1	0108-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE CHARGE AIR COOLER<6PL> M8X41 L=52	8-97188-452-0	04	1	0108-		●
16	03.609 ADAPTER; EXH PIPE CHARGE AIR COOLER<6PL> 03.440	8-97139-725-0	01	1	0108-		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0108-	●
18	03.613 NUT; EXH PIPE CHARGE AIR COOLER<6PL> M8 FLANGE	8-97161-607-0	04	1	0108-		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	06	1	0108-		●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	0108-	●
66	03.342 STUD; EXH PIPE CHARGE AIR COOLER<6PL> 03.613 M10X38 L=53	5-09302-007-0	02	1	0108-		●
72	03.602 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL> 03.417 (A)	8-97038-109-1	01	1	0108-		●
72	03.602 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL> (B)	8-97300-338-1	01	1	0108-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT 01.097	8-97063-234-0	01	1	0108-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97289-450-2	01	1	0108-		●
116	03.342 BOLT; WATER PIPE 00.685 (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	0108-	●
116	03.342 BOLT; WATER PIPE CHARGE AIR COOLER<6PL> 00.685 (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	0108-		●
116	03.342 BOLT; WATER PIPE CHARGE AIR COOLER<6PL> 02.500 (C) M6X10 FLANGE	0-28080-610-0	02	1	0108-		●
116	03.342 BOLT; WATER PIPE CHARGE AIR COOLER<6PL> 03.670 (B) M6X20 FLANGE	0-28080-620-0	02	1	0108-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) T=2.5	8-94472-584-1	01	1	0108-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0108-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.374 (C)	8-94321-135-1	04	1	0108-		●
118	03.342 CLIP; WATER HOSE 01.153 ID=12.8	8-94367-943-0	04	1	0108-	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> 01.153 ID=12.8	8-94367-943-0	14	1	0108-		●
119	03.342 HOSE; WATER,TURBOCHARGER L=250 W/INSULATOR	8-94340-669-1	01	1	0108-	●
119	03.342 HOSE; WATER,TURBOCHARGER CHARGE AIR COOLER<6PL> L=250 W/INSULATOR	8-94340-669-1	01	1	0108-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> 01.097 L=170 SERVICED BY L=3000	0-03559-300-0	01	1	0109-0112		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97325-123-0	01	1	0201-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT L=160 W/INSULATOR	8-94325-255-0	01	1	0108-0108	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> L=160 W/INSULATOR	8-94325-255-0	01	1	0108-0108		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT L=160 W/INSULATOR	8-94325-255-0	01	1	0109-	●

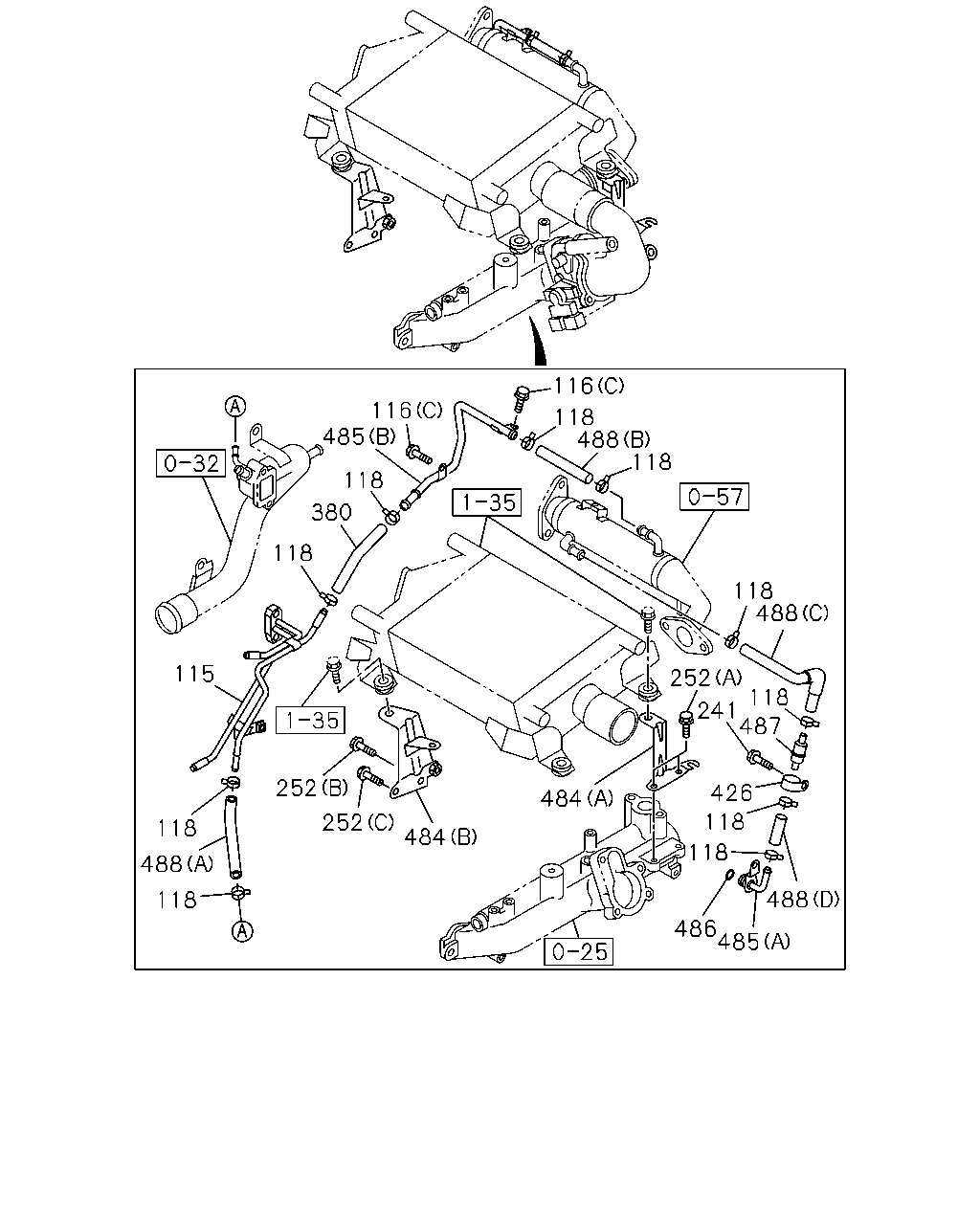

116 116 485 118 488 118 118 380 118 118 488 115 252 118 241 487 252 426 484 118 252 484 118 118 488 488 118 486 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	03.342 PIPE; WATER,TURBOCHARGER OUT 01.097	8-97063-234-0	01	1	0108-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97289-450-2	01	1	0108-		●
116	03.342 BOLT; WATER PIPE 00.685 (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	0108-	●
116	03.342 BOLT; WATER PIPE CHARGE AIR COOLER<6PL> 00.685 (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	0108-		●
116	03.342 BOLT; WATER PIPE CHARGE AIR COOLER<6PL> 02.500 (C) M6X10 FLANGE	0-28080-610-0	02	1	0108-		●
116	03.342 BOLT; WATER PIPE CHARGE AIR COOLER<6PL> 03.670 (B) M6X20 FLANGE	0-28080-620-0	02	1	0108-		●
118	03.342 CLIP; WATER HOSE 01.153 ID=12.8	8-94367-943-0	04	1	0108-	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> 01.153 ID=12.8	8-94367-943-0	14	1	0108-		●
241	01.531 BOLT CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0108-		●
252	03.417 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0108-		●
252	03.417 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.559 (C) M10X16 FLANGE	0-28081-016-0	01	1	0108-		●
252	03.417 BOLT; BRKT CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0108-		●
380	03.417 HOSE; RUBBER,PIPE TO PIPE CHARGE AIR COOLER<6PL> 01.097 L=150 SERVICED BY L=3000	0-03559-300-0	01	1	0108-		●
426	03.616 BRACKET; VLV CHARGE AIR COOLER<6PL>	8-97308-580-0	01	1	0108-		●
484	03.616 BRACKET; I/COOLER AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97254-248-1	01	1	0108-		●
484	03.616 BRACKET; I/COOLER CHARGE AIR COOLER<6PL> (A)	8-97263-859-0	01	1	0108-		●
485	01.097 PIPE; WATER EGR CHARGE AIR COOLER<6PL> (A)	8-97249-188-2	01	1	0108-		●
485	01.097 PIPE; WATER EGR CHARGE AIR COOLER<6PL> (B)	8-97313-795-1	01	1	0108-		●
486	03.342 O-RING; WATER PIPE CHARGE AIR COOLER<6PL> 01.531	8-97264-168-0	01	1	0108-		●
487	03.342 VALVE ASM; THRMO CHARGE AIR COOLER<6PL>	8-97254-150-0	01	1	0108-		●
488	03.163 HOSE; RUBBER CHARGE AIR COOLER<6PL> 03.342 L=70 SERVICED BY L=3000	0-03259-300-0	01	1	0108-0204		●
488	03.163 HOSE; RUBBER CHARGE AIR COOLER<6PL> 01.097 L=130 SERVICED BY L=3000	0-03559-300-0	01	1	0205-		●
488	03.163 HOSE; RUBBER CHARGE AIR COOLER<6PL> 03.342 (D) L=70 SERVICED BY L=3000	0-03259-300-0	01	1	0108-		●
488	03.163 HOSE; RUBBER CHARGE AIR COOLER<6PL> 01.097 (B) L=130 SERVICED BY L=3000	0-03559-300-0	01	1	0108-0204		●
488	03.163 HOSE; RUBBER CHARGE AIR COOLER<6PL> 01.097 L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0205-		●
488	03.163 HOSE; RUBBER CHARGE AIR COOLER<6PL> 01.097 (A) L=90 SERVICED BY L=3000	0-03559-300-0	01	1	0108-		●
488	03.163 HOSE; RUBBER CHARGE AIR COOLER<6PL> (C)	8-97249-211-1	01	1	0108-		●
