◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10635 - FSS/FTS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#1982) — 12 parça

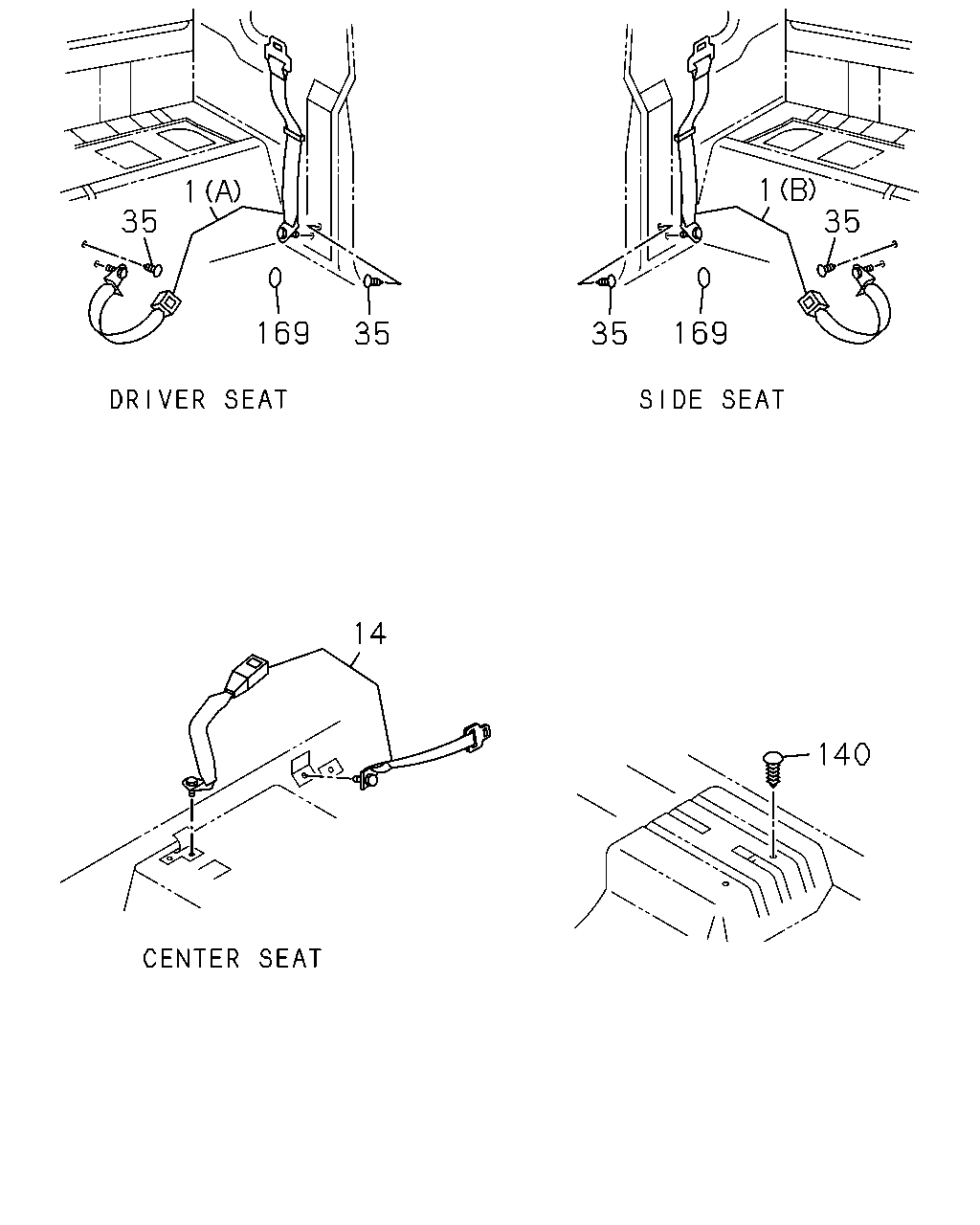

çizim 95279
1 35 1 35 169 169 35 35 14 140
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-75618-617-0 01 1 9207- ● ● ● ●
1 BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. SAUDI ARABIA EQUIPMENT(WH1),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A),(B) 		1-75618-589-1 01 1 9207- ● ● ● ●
1 BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> (A),(B) 		1-75618-589-1 01 1 9207- ● ● ● ●
1 BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75618-613-1 01 1 9207- ● ● ● ●
14 BELT; SEAT,CENTER
FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-519-1 01 1 9207- ● ● ● ●
35 GROMMET; SEAT BELT ANCHOR
FRONT SEAT BELT WO/RETRACTOR<A37> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> OD=22 		9-61168-535-0 04 1 9207- ● ● ● ●
35 GROMMET; SEAT BELT ANCHOR
FRONT SEAT BELT WO/RETRACTOR<A37> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> OD=22 		9-61168-535-0 02 1 9207- ● ● ● ●
35 GROMMET; SEAT BELT ANCHOR
FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> OD=22 		9-61168-535-0 02 1 9207- ● ● ● ●
35 GROMMET; SEAT BELT ANCHOR
EXC. FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=22 		9-61168-535-0 06 1 9207- ● ● ● ●
140 PLUG; CENTER SEAT,PARCEL BOX SIDE
D4.7X11 		1-76378-154-0 01 1 9207- ● ● ● ●
169 SEAL
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> OD=20 T=0.4 BLACK 		1-76798-020-0 01 1 9207- ● ● ● ●
169 SEAL
EXC. FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=20 T=0.4 BLACK 		1-76798-020-0 02 1 9207- ● ● ● ●
